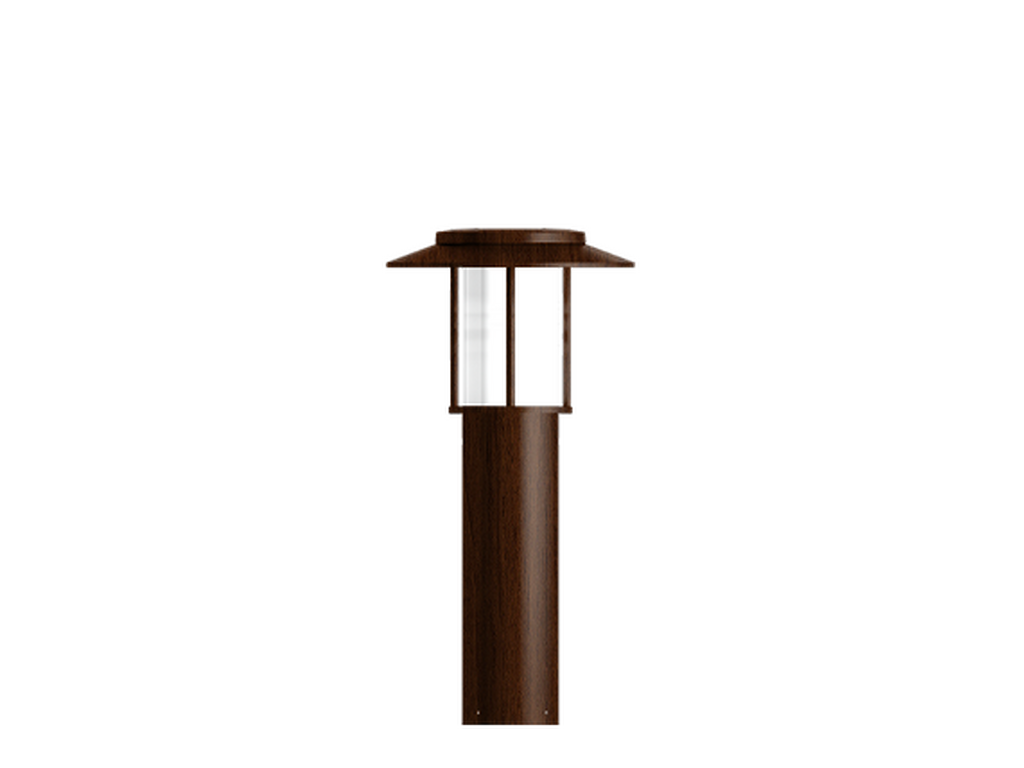

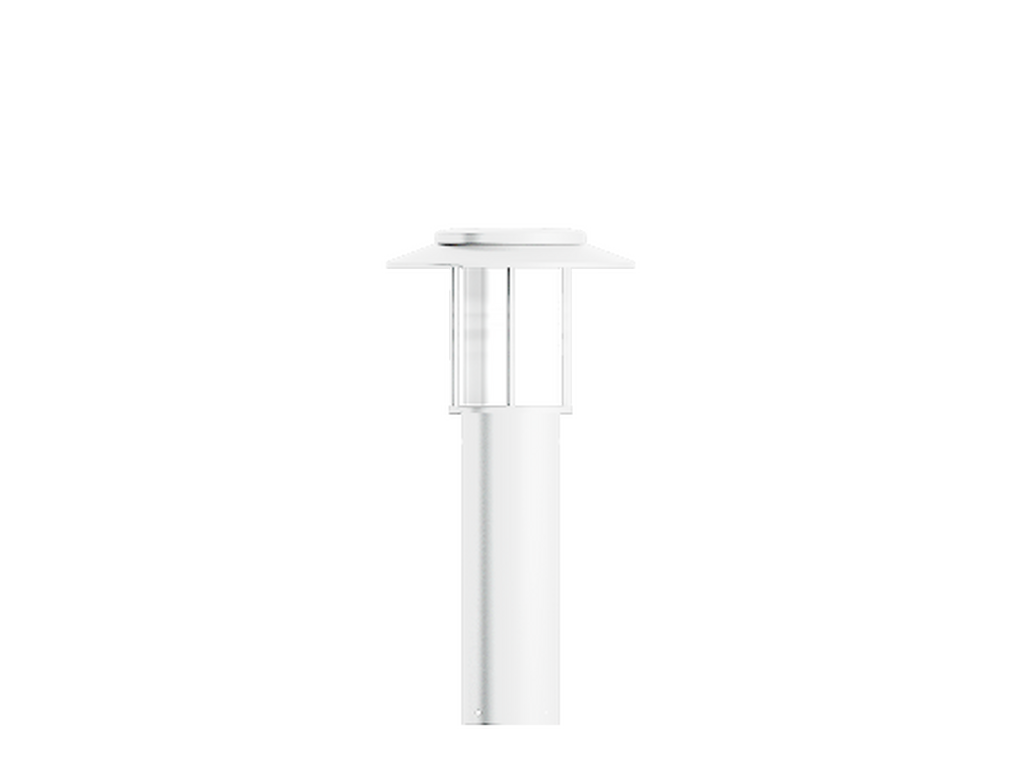

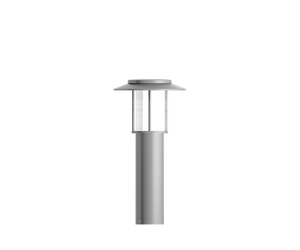

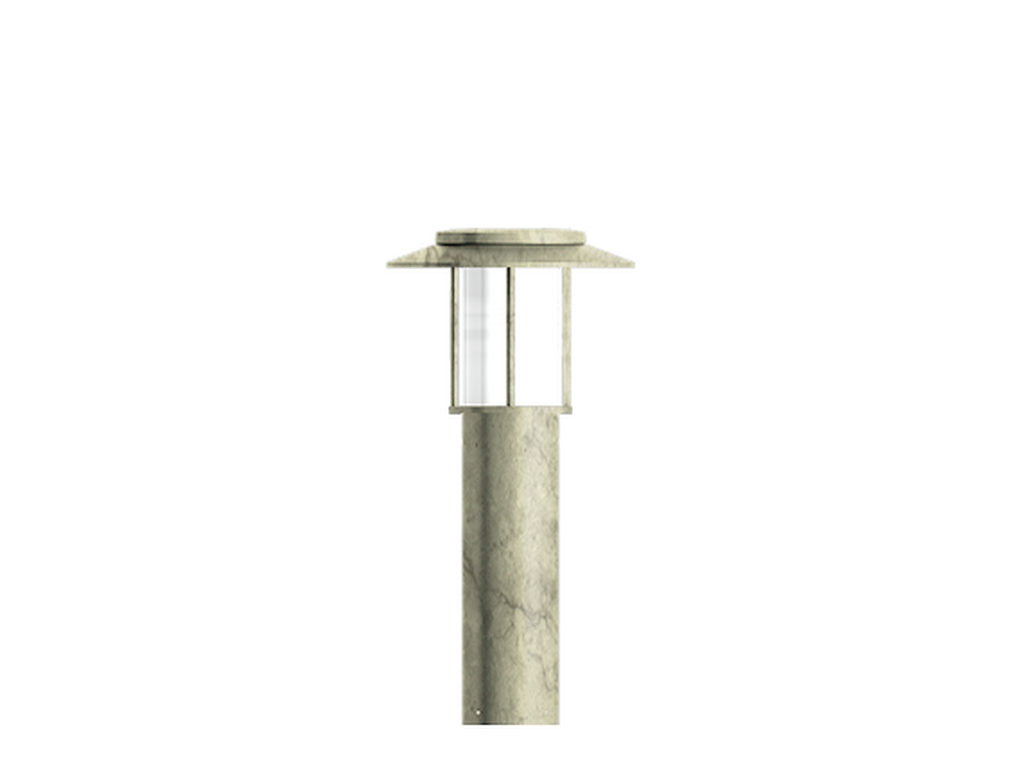

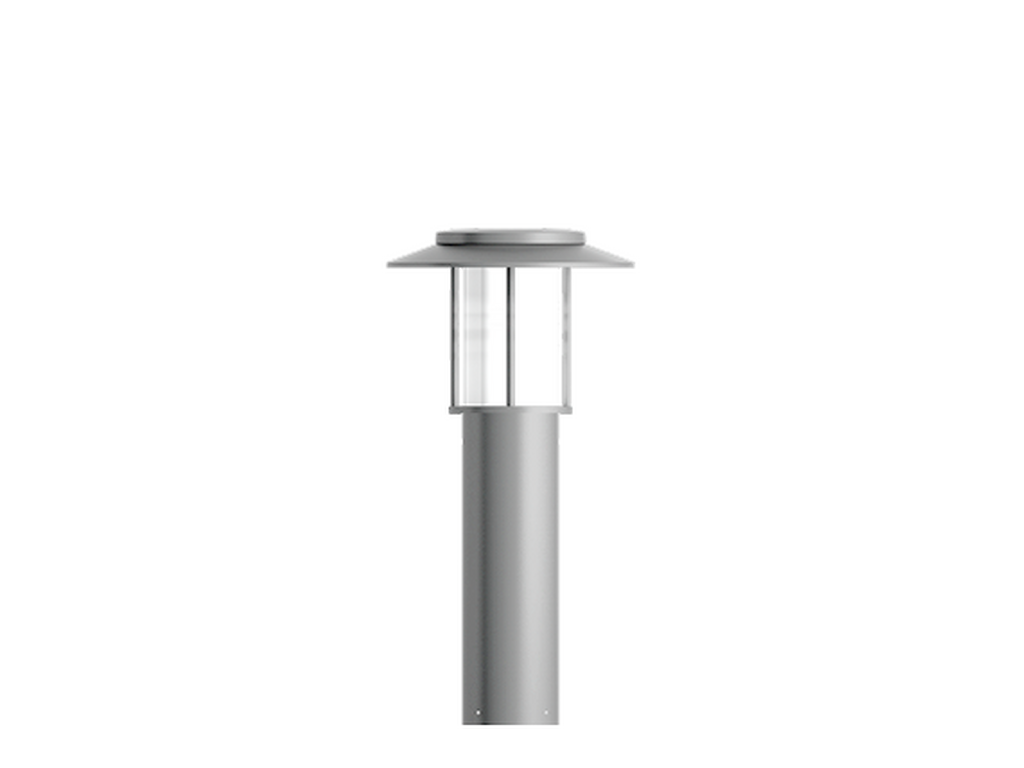

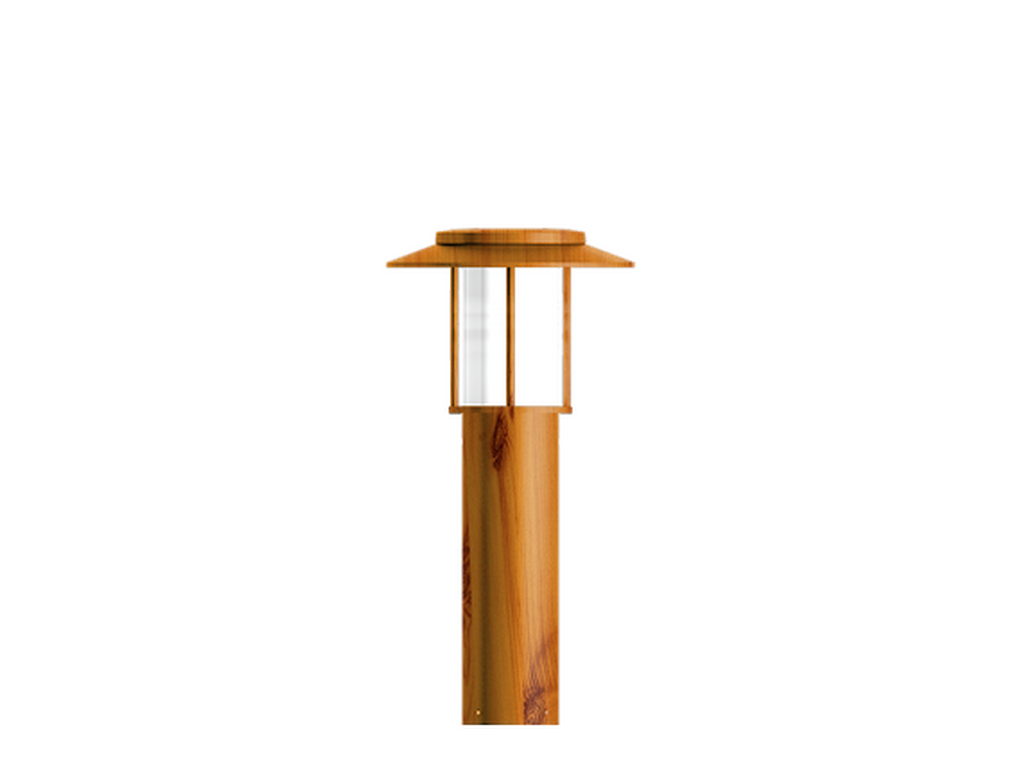

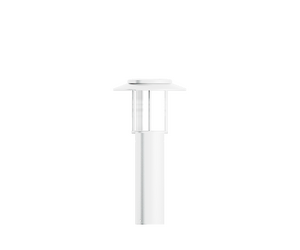

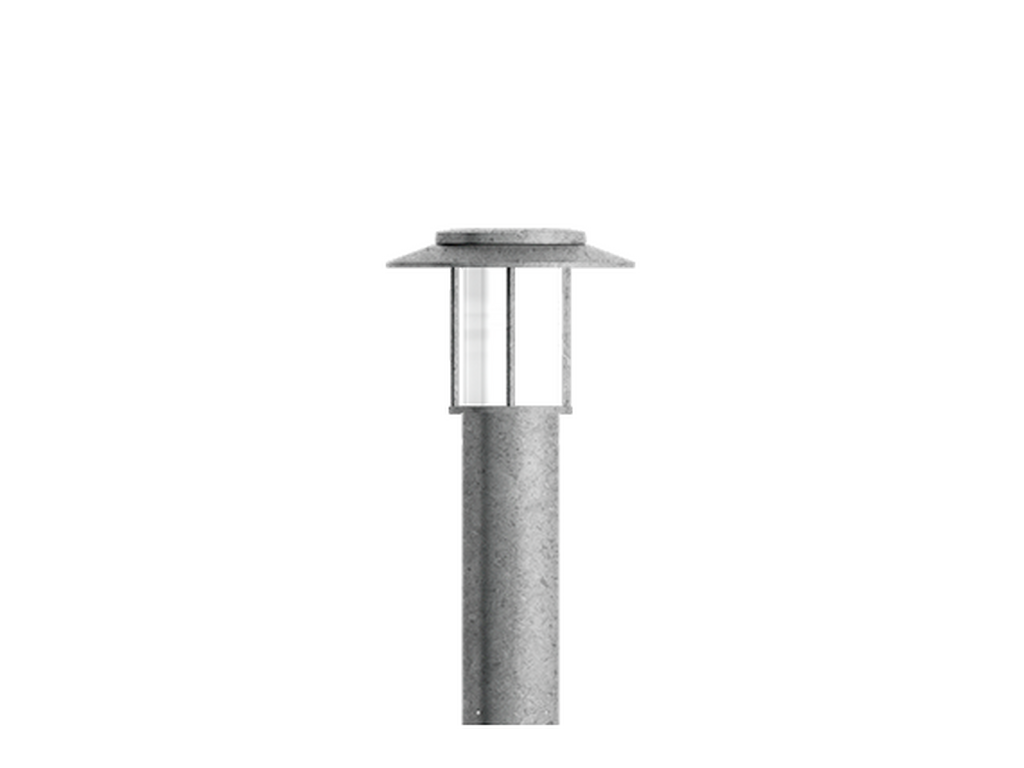

FORREY 1
Ø160 - 824 mm - Flat top with shade
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Lamp
4X40 LED
Power (Luminaire)
50.2 W
Lumen (Luminaire)
4036 lm, 4340 lm
Luminaire luminous efficacy
86 lm/W
EEC
A++
CCT
3000K, 4000K
CRI
Ra > 80
MacAdam Ellipse
3 SDCM
Optic
O
Optic Value
360˚
Dimming type
1-10V, DALI, On/Off
Product colors
Black, Bronze, Dark Grey, Matt Silver, White
Weight
10.5 kg

CODE FINDER

Power
Lumen
CCT
CRI
Optic
Optic Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT
CRI
Optic
Optic
Value
Dimming
type
Product
colors
SKU: FOR-10021-O-W40-ND-02
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Dark Grey
SKU: FOR-10021-O-W30-ND-02
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Dark Grey
SKU: FOR-10021-O-W40-ND-05
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Matt Silver
SKU: FOR-10021-O-W30-ND-05
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Matt Silver
SKU: FOR-10021-O-W40-ND-01
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Black
SKU: FOR-10021-O-W30-ND-01
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Black
SKU: FOR-10021-O-W40-ND-03
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: White
SKU: FOR-10021-O-W30-ND-03
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: White
SKU: FOR-10021-O-W40-ND-06
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Bronze
SKU: FOR-10021-O-W30-ND-06
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: On/Off
Product colors: Bronze
SKU: FOR-10021-O-W40-DI-02
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Dark Grey
SKU: FOR-10021-O-W30-DI-02
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Dark Grey
SKU: FOR-10021-O-W40-DI-05
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Matt Silver
SKU: FOR-10021-O-W30-DI-05
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Matt Silver
SKU: FOR-10021-O-W40-DI-01
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Black
SKU: FOR-10021-O-W30-DI-01
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Black
SKU: FOR-10021-O-W40-DI-03
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: White
SKU: FOR-10021-O-W30-DI-03
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: White
SKU: FOR-10021-O-W40-DI-06
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Bronze
SKU: FOR-10021-O-W30-DI-06
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: 1-10V
Product colors: Bronze
SKU: FOR-10021-O-W40-DA-02
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Dark Grey
SKU: FOR-10021-O-W30-DA-02
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Dark Grey
SKU: FOR-10021-O-W40-DA-05
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Matt Silver
SKU: FOR-10021-O-W30-DA-05
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Matt Silver
SKU: FOR-10021-O-W40-DA-01
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Black
SKU: FOR-10021-O-W30-DA-01
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Black
SKU: FOR-10021-O-W40-DA-03
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: White
SKU: FOR-10021-O-W30-DA-03
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: White
SKU: FOR-10021-O-W40-DA-06
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4340 lm
CCT: 4000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Bronze
SKU: FOR-10021-O-W30-DA-06
Lamp: 4X40 LED
Power (Lum.): 50.2 W
Lumen (Lum.): 4036 lm
CCT: 3000K
CRI: Ra > 80
Optic: O
Optic Value: 360˚
Dimming type: DALI
Product colors: Bronze

ACCESSORY

Anchor bolt
Anchor bolt - A10291
