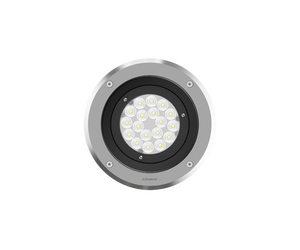

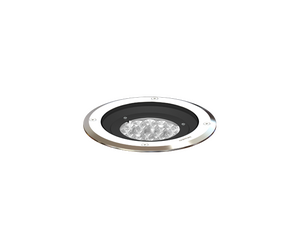

HARRIER 3

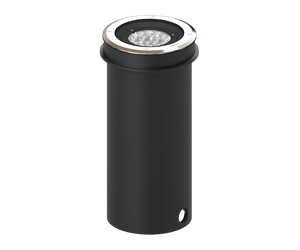

With recessing box / driver - Round - Stainless steel frame
CESNIClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Lamp
18 LED
Power (Luminaire)
29 W
Lumen (Luminaire)
2387 - 2899 lm
Luminaire luminous efficacy
82 - 100 lm/W
EEC
A+, A++
CCT
3000K, 4000K
CRI
Ra > 80
MacAdam Ellipse
3 SDCM
Optic
M, N, W
Optic Value
15°, 28°, 41°
Dimming type
1-10V, DALI, On/Off
Product colors
Stainless Steel
Weight
2.6 kg

CODE FINDER

Power
Lumen
CCT
CRI
Optic
Optic Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT
CRI
Optic
Optic
Value
Dimming
type
Product
colors
SKU: HA-60050-S-N-W30-DA
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2628 lm
CCT: 3000K
CRI: Ra > 80
Optic: N
Optic Value: 15°
Dimming type: DALI
Product colors: Stainless Steel
SKU: HA-60050-S-N-W40-DA
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2891 lm
CCT: 4000K
CRI: Ra > 80
Optic: N
Optic Value: 15°
Dimming type: DALI
Product colors: Stainless Steel
SKU: HA-60050-S-N-W30-DI
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2628 lm
CCT: 3000K
CRI: Ra > 80
Optic: N
Optic Value: 15°
Dimming type: 1-10V
Product colors: Stainless Steel
SKU: HA-60050-S-N-W40-DI
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2891 lm
CCT: 4000K
CRI: Ra > 80
Optic: N
Optic Value: 15°
Dimming type: 1-10V
Product colors: Stainless Steel
SKU: HA-60050-S-N-W30-ND
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2628 lm
CCT: 3000K
CRI: Ra > 80
Optic: N
Optic Value: 15°
Dimming type: On/Off
Product colors: Stainless Steel
SKU: HA-60050-S-N-W40-ND
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2891 lm
CCT: 4000K
CRI: Ra > 80
Optic: N
Optic Value: 15°
Dimming type: On/Off
Product colors: Stainless Steel
SKU: HA-60050-S-M-W30-DA
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2635 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 28°
Dimming type: DALI
Product colors: Stainless Steel
SKU: HA-60050-S-M-W40-DA
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2899 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 28°
Dimming type: DALI
Product colors: Stainless Steel
SKU: HA-60050-S-M-W30-ND
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2635 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 28°
Dimming type: On/Off
Product colors: Stainless Steel
SKU: HA-60050-S-M-W40-ND
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2899 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 28°
Dimming type: On/Off
Product colors: Stainless Steel
SKU: HA-60050-S-M-W30-DI
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2635 lm
CCT: 3000K
CRI: Ra > 80
Optic: M
Optic Value: 28°
Dimming type: 1-10V
Product colors: Stainless Steel
SKU: HA-60050-S-M-W40-DI
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2899 lm
CCT: 4000K
CRI: Ra > 80
Optic: M
Optic Value: 28°
Dimming type: 1-10V
Product colors: Stainless Steel
SKU: HA-60050-S-W-W30-DA
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2387 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 41°
Dimming type: DALI
Product colors: Stainless Steel
SKU: HA-60050-S-W-W40-DA
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2625 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 41°
Dimming type: DALI
Product colors: Stainless Steel
SKU: HA-60050-S-W-W30-ND
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2387 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 41°
Dimming type: On/Off
Product colors: Stainless Steel
SKU: HA-60050-S-W-W40-ND
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2625 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 41°
Dimming type: On/Off
Product colors: Stainless Steel
SKU: HA-60050-S-W-W30-DI
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2387 lm
CCT: 3000K
CRI: Ra > 80
Optic: W
Optic Value: 41°
Dimming type: 1-10V
Product colors: Stainless Steel
SKU: HA-60050-S-W-W40-DI
Lamp: 18 LED
Power (Lum.): 29 W
Lumen (Lum.): 2625 lm
CCT: 4000K
CRI: Ra > 80
Optic: W
Optic Value: 41°
Dimming type: 1-10V
Product colors: Stainless Steel

ACCESSORY

Connector IP68
Connector IP68 - A62591
Recessing box
Recessing box - A61151
Anti slip glass
Anti slip glass - A60212
