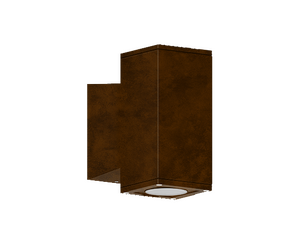

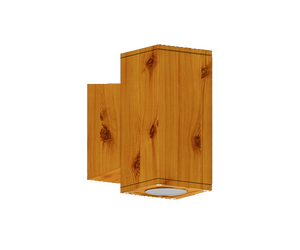

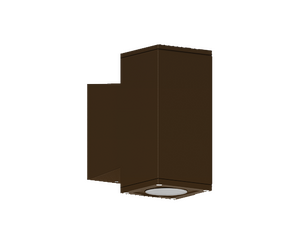

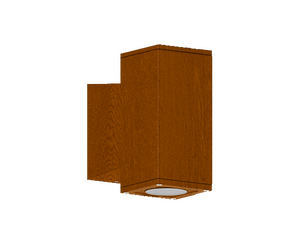

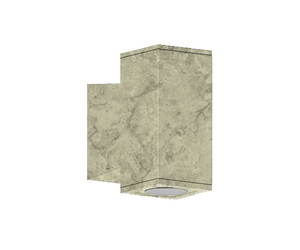

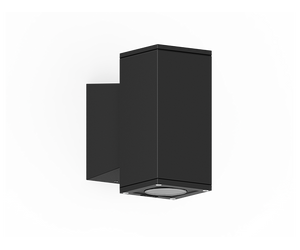

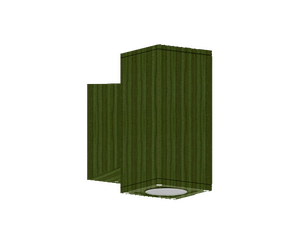

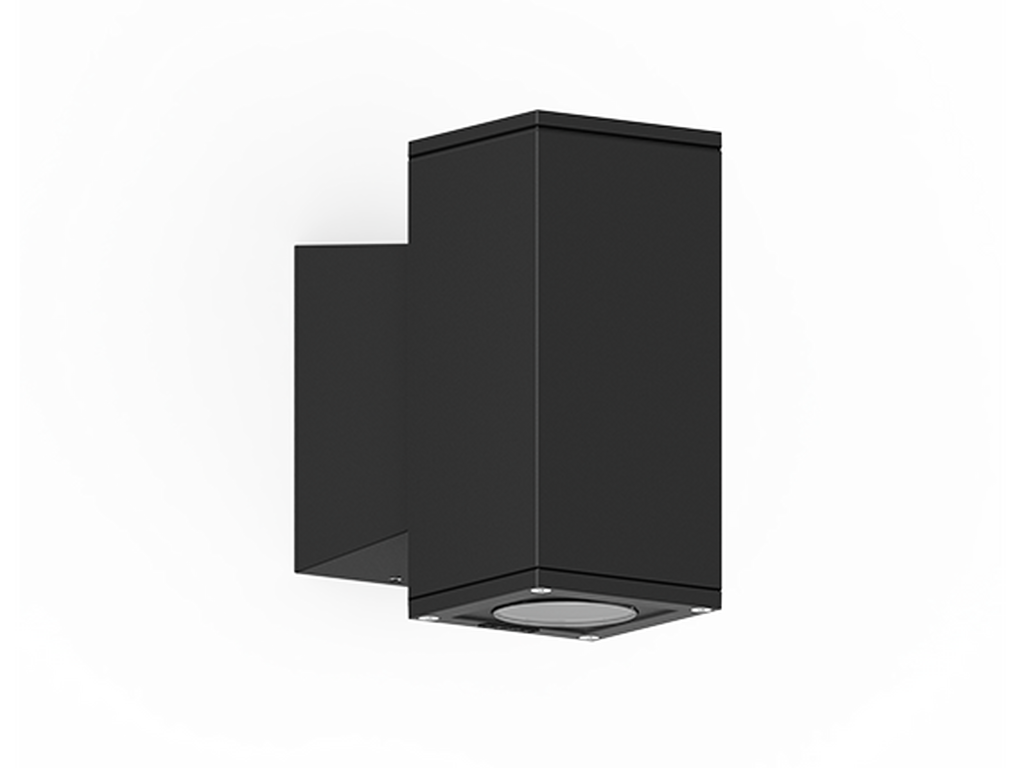

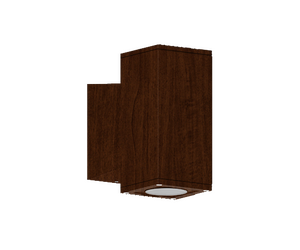

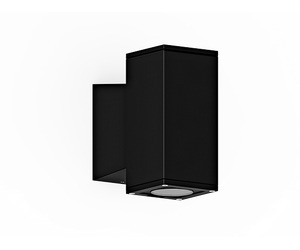

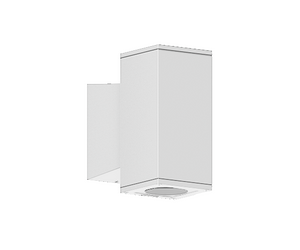

JET 36
102x102 mm - 218 mm - Down & Up - Square
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Lamp
2 x 1 COB
Power (Luminaire)
28 W
Lumen (Luminaire)
1898 lm, 1920 lm, 2036 lm, 2044 lm, 2059 lm, 2067 lm, 2174 lm, 2182 lm, 2190 lm, 2198 lm, 2206 lm, 2214 lm
Luminaire luminous efficacy
79 lm/W
EEC
A+
CCT
3000K, 4000K
CRI
Ra > 80
MacAdam Ellipse
3 SDCM
Optic
M, N, VW, W
Optic Value
20°, 24°, 36°, 71°
Optic (2nd)
M, N, VW, W
Optic (2nd) Value
20°, 24°, 36°, 71°
Dimming type
1-10V, DALI, On/Off
Product colors
Black, Bronze, Dark Grey, Matt Silver, White
Weight
2.7 kg

CODE FINDER

Power
Lumen
CCT
CRI
Optic
Optic Value
Optic (2nd)
Optic (2nd) Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT
CRI
Optic
Optic
Value
Optic
(2nd)
Optic
(2nd)
Value
Dimming
type
Product
colors
