ANNET 3AE-50521
(Version 1)
Underwater projectors, floodlights

Name: ANNET 3
Brand: LIGMAN
SKU: AE-50521
Availability: InStock

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.

Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.

Your request was successfully sent.

Without remote driver - Constant voltage (CV) 24 V

TECHNICAL SPECIFICATIONS

Material

Stainless Steel

Light source

3 LED

Power (W)

7 W

Lumen (lm)

617 - 765 lm

Efficacy (lm/W)

88 - 109 lm/W

Driver option

Remote driver (not included)

Driver

Constant voltage (CV)

Input voltage

24 VDC

Optic

N, M, W

Optic value

23°, 31°, 51°

CCT / CRI

3000K CRI80, 4000K CRI80

Bug

B1-U0-G0, B2-U0-G0

ULR

ULOR

CIE flux code nº3

100

Dimming type

On/Off

Product colours

Stainless Steel

Weight

1.1 kg

Operating temperature

-20 °C to 50 °C

Cable

One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable

Through wiring

Single cable entry

Lens / Reflector / Optic

Clear toughened glass

MacAdam Ellipse

3 SDCM

Lifetime L90B10 (hours)

> 120,000

Lifetime L80B10 (hours)

> 120,000

Lifetime L80B50 (hours)

> 120,000

DOWNLOADS

For BIM files (Revit - RFA), please check the Variant code

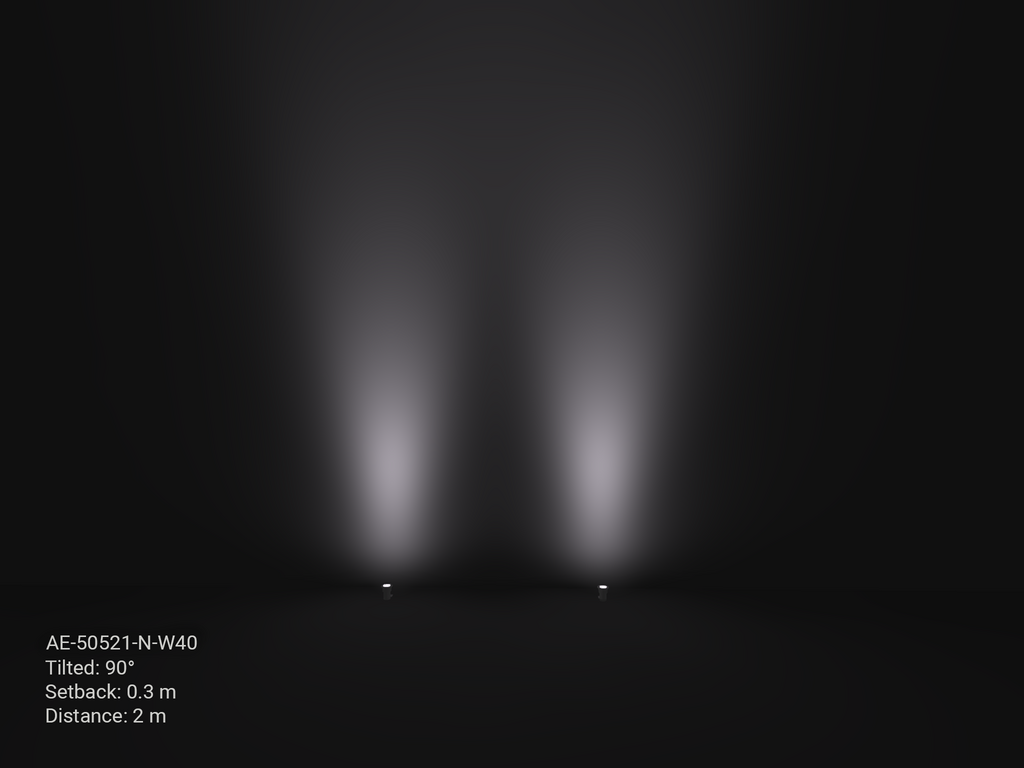

LIGHT EFFECT

Optic

N (23°)

M (31°)

W (51°)

CODE FINDER

Lumen (lm)

Optic

Optic value

CCT / CRI

Dimming type

Product colour

Variant code

Lumen (lm)

Optic

Optic value

CCT / CRI

Dimming type

Product colour

Variant code: AE-50521-N-8030-ND-00

Lumen (lm): 727 lm

Optic: N

Optic value: 23°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: AE-50521-N-8040-ND-00

Lumen (lm): 765 lm

Optic: N

Optic value: 23°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: AE-50521-M-8030-ND-00

Lumen (lm): 631 lm

Optic: M

Optic value: 31°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: AE-50521-M-8040-ND-00

Lumen (lm): 665 lm

Optic: M

Optic value: 31°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: AE-50521-W-8030-ND-00

Lumen (lm): 617 lm

Optic: W

Optic value: 51°

CCT / CRI: 3000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

Variant code: AE-50521-W-8040-ND-00

Lumen (lm): 650 lm

Optic: W

Optic value: 51°

CCT / CRI: 4000K CRI80

Dimming type: On/Off

Product colour: Stainless Steel

PROJECT REFERENCE (ANNET Underwater projectors, floodlights)

Vin University, Hanoi - Vietnam

Knights Bridge Prime, Bangkok - Thailand

Diamond Island, Ho Chi Minh - Vietnam

The Revenue Department, Nonthaburi - Thailand
