AQUA 4AQ-60031 (Version 1)
Recessed underwater projectors
Without remote driver - With recessing box - Constant voltage (CV) 24 V
TECHNICAL SPECIFICATIONS
Material
Stainless Steel
Light source
1 COB
Power (W)
12 W
Lumen (lm)
884 - 1004 lm
Efficacy (lm/W)
74 - 84 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
M, W, VW, EW
Optic value
36°, 44°, 52°, 66°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100, 99
Dimming type
On/Off
Product colours
Stainless Steel
Weight
1.1 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 2x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 60,500
Lifetime L80B10 (hours)
> 60,500
Lifetime L80B50 (hours)
> 60,500
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code

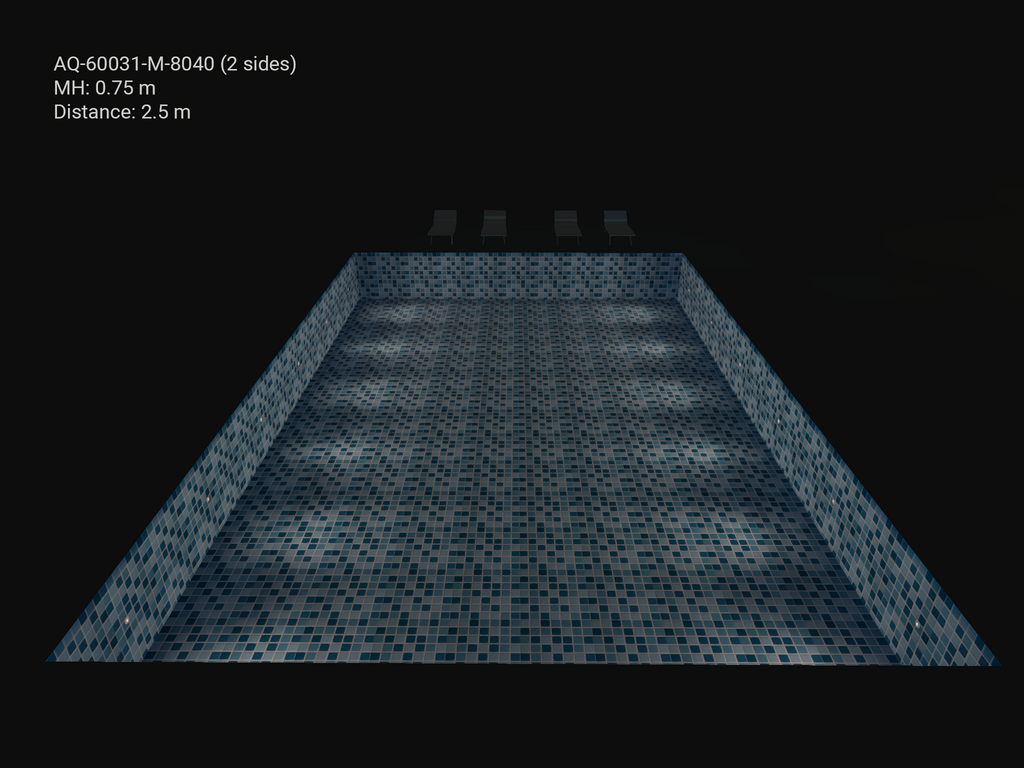

LIGHT EFFECT
Optic
M (36°)
W (44°)
VW (52°)
EW (66°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AQ-60031-M-8030-ND-00
Lumen (lm): 923 lm
Optic: M
Optic value: 36°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-M-8040-ND-00
Lumen (lm): 972 lm
Optic: M
Optic value: 36°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-W-8030-ND-00
Lumen (lm): 884 lm
Optic: W
Optic value: 44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-W-8040-ND-00
Lumen (lm): 930 lm
Optic: W
Optic value: 44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-VW-8030-ND-00
Lumen (lm): 942 lm
Optic: VW
Optic value: 52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-VW-8040-ND-00
Lumen (lm): 992 lm
Optic: VW
Optic value: 52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-EW-8030-ND-00
Lumen (lm): 954 lm
Optic: EW
Optic value: 66°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: AQ-60031-EW-8040-ND-00
Lumen (lm): 1004 lm
Optic: EW
Optic value: 66°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
