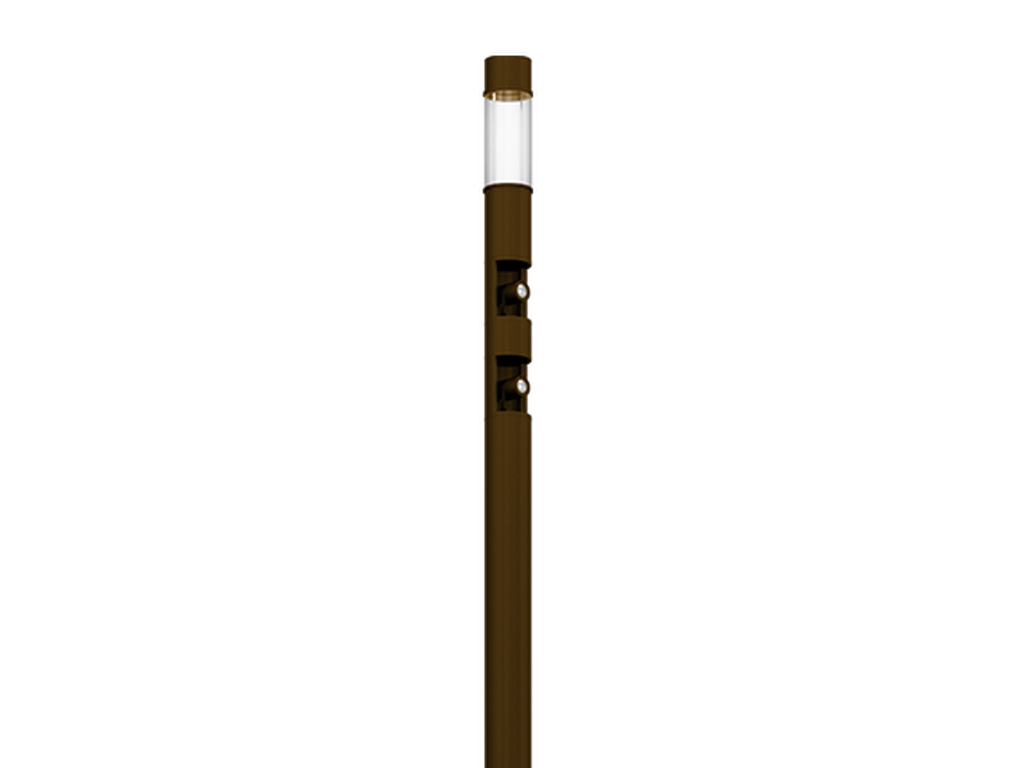

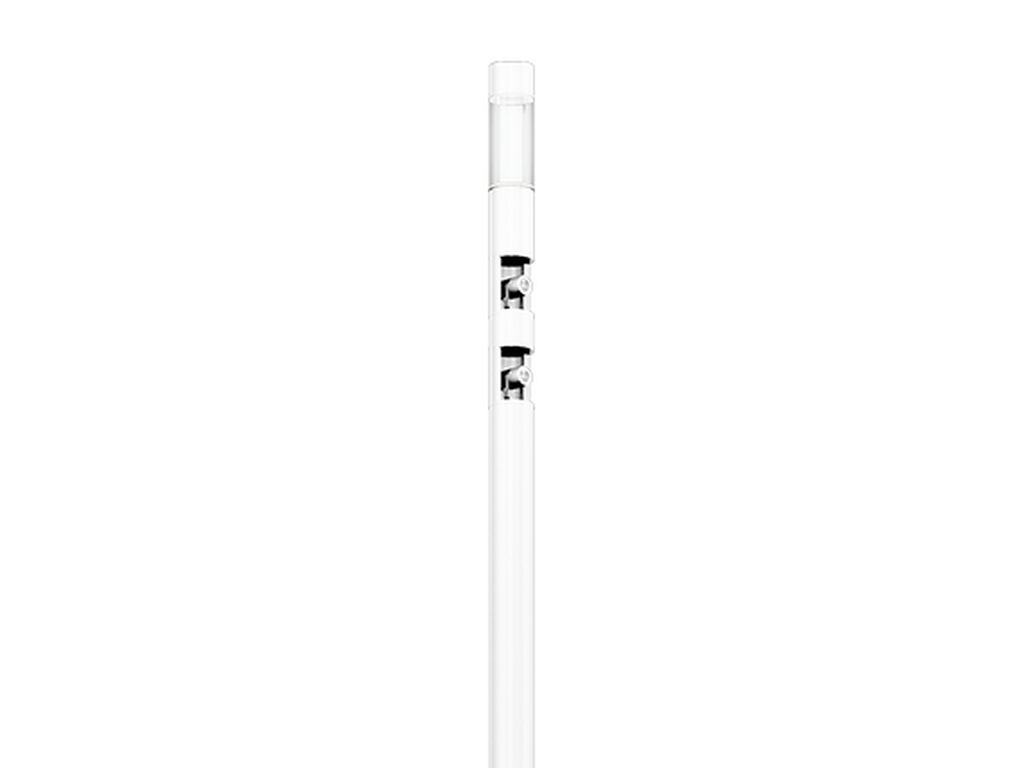

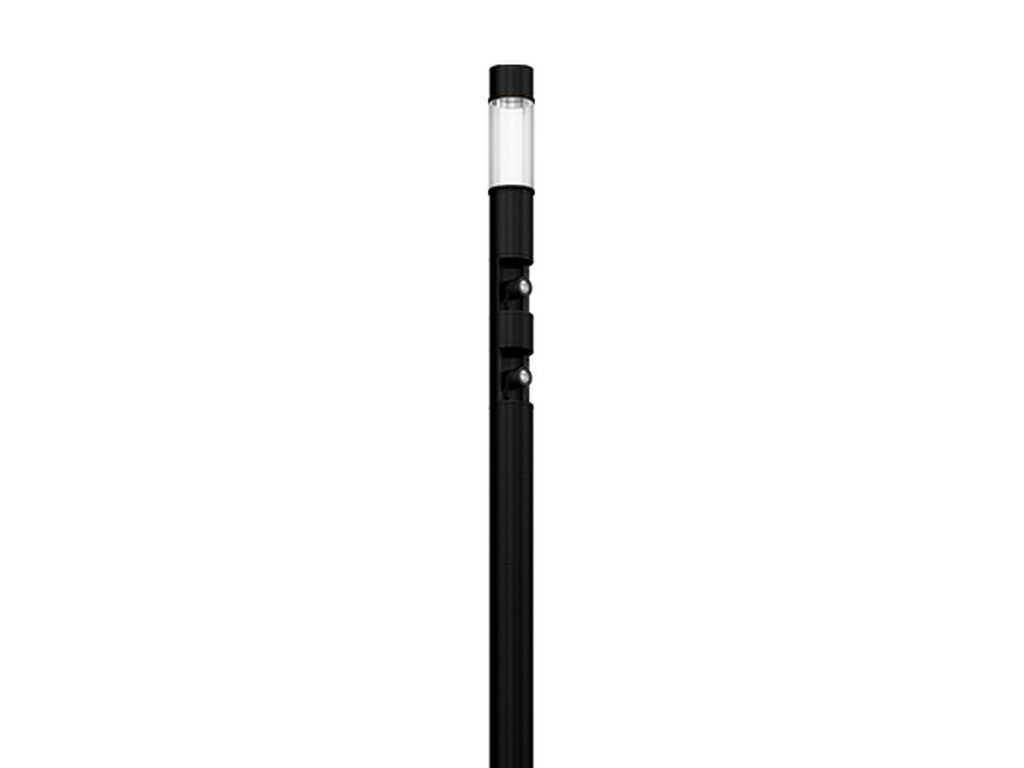

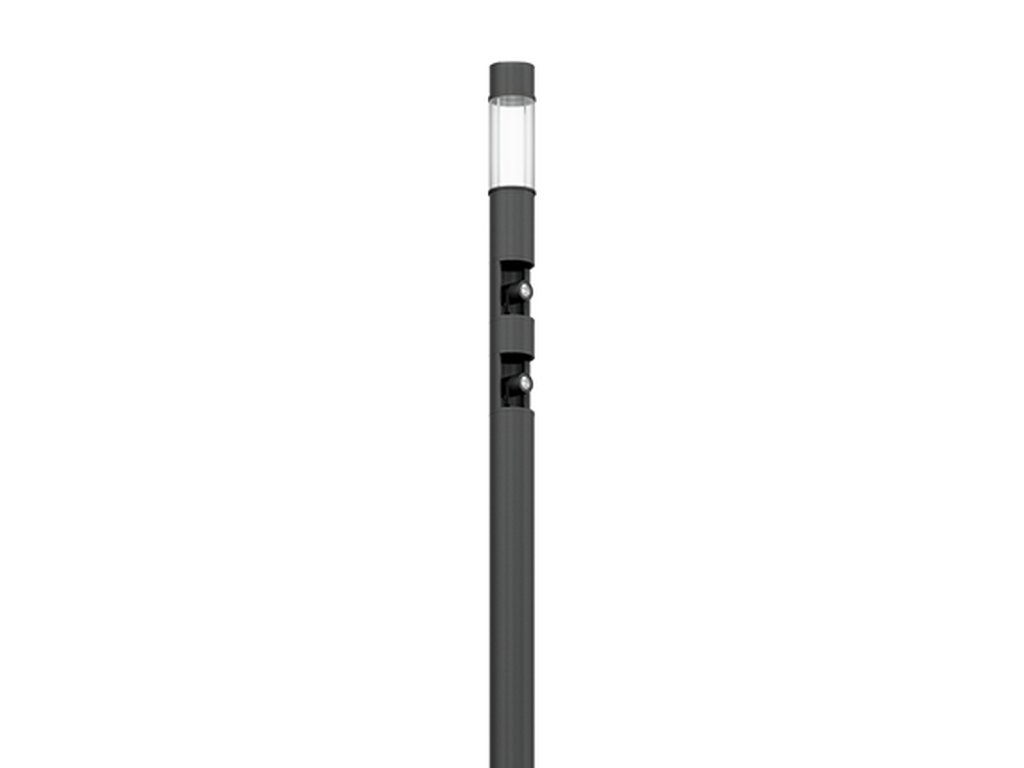

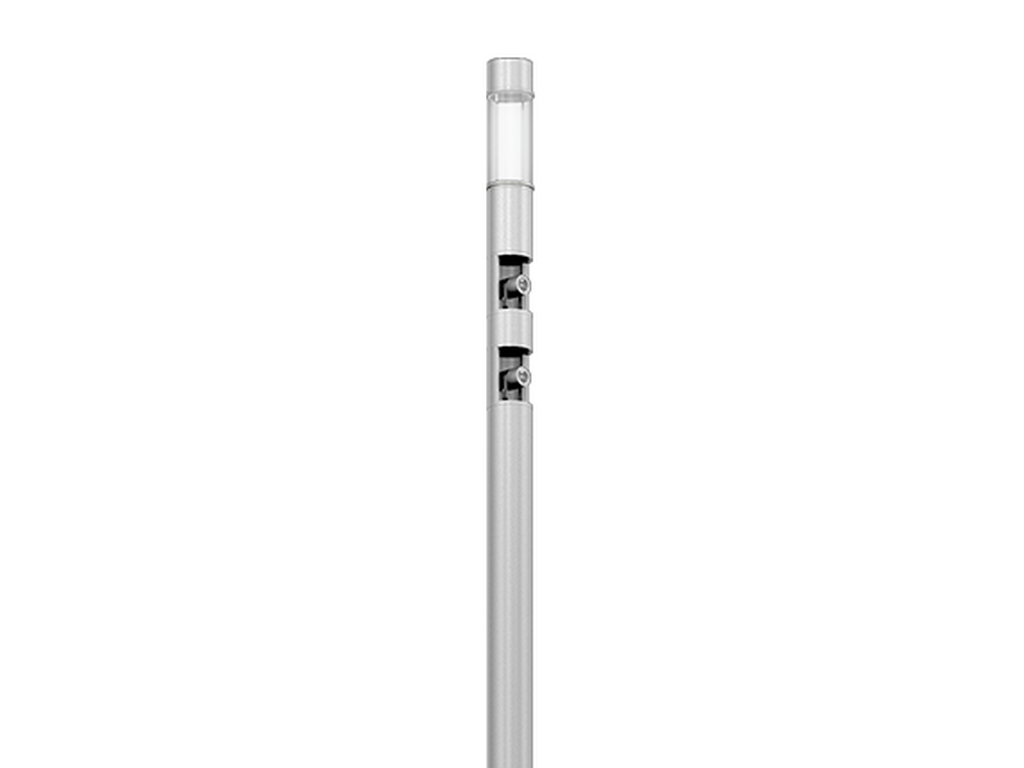

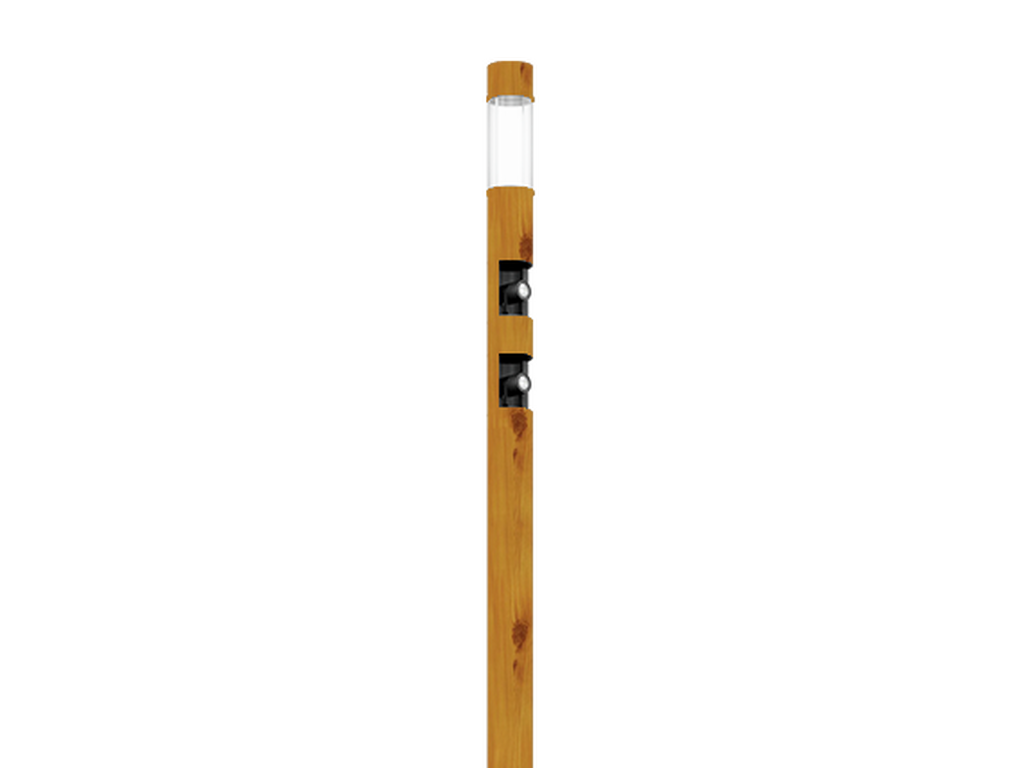

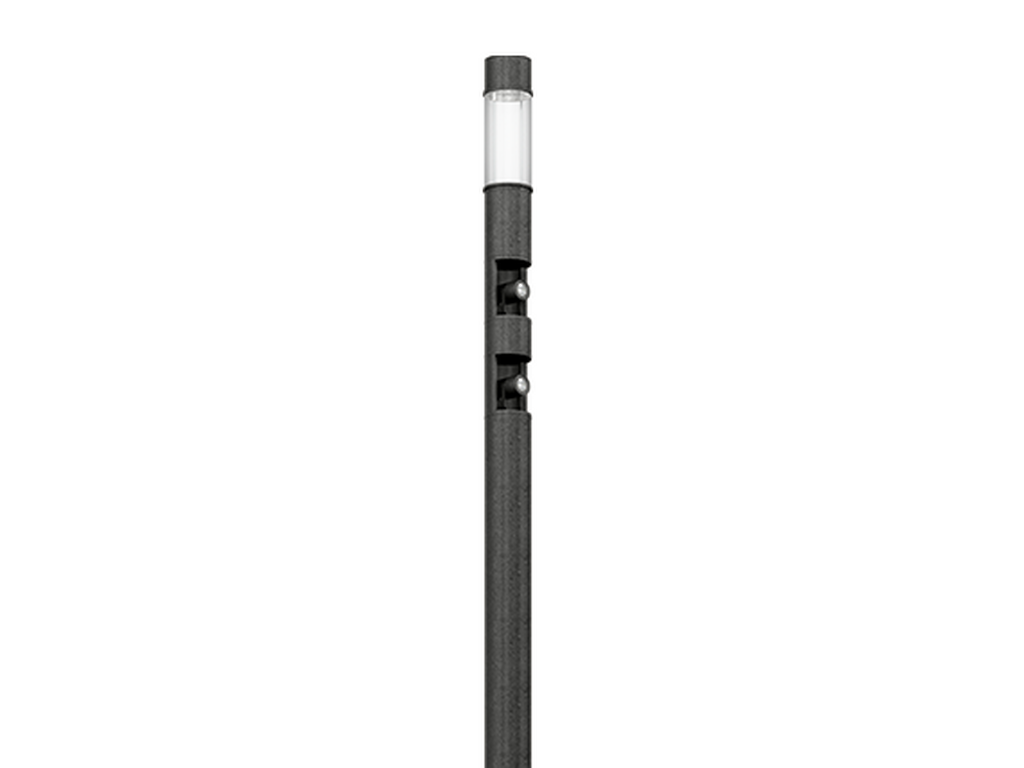

ARIZONA 6AR-21131ARIZONA
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Ø225 mm - Supplied with specific 3 m cylindrical, straight aluminium pole: APD130225-AR-21131 - 2 projectors - IP65 - IK06
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
3 COB
Power (W)
88 W
Lumen (lm)
6476 - 6703 lm
Efficacy (lm/W)
74 - 76 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
48 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
G (360°) / M (23°)
G (360°) / W (32°)
G (360°) / VW (47°)
