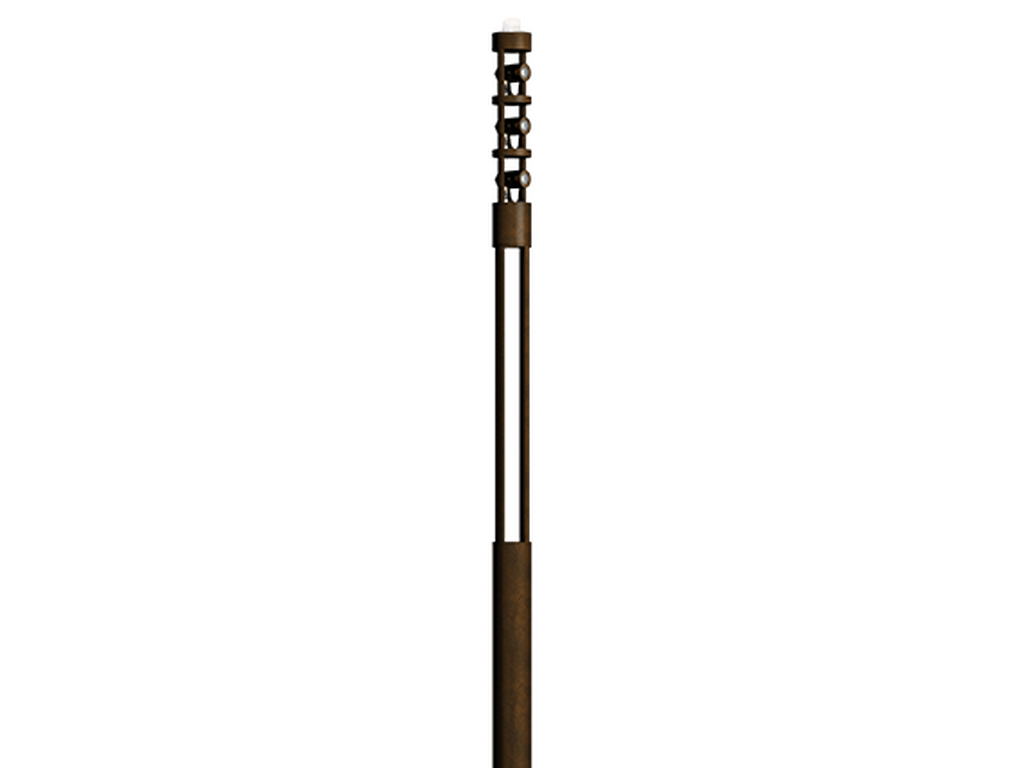

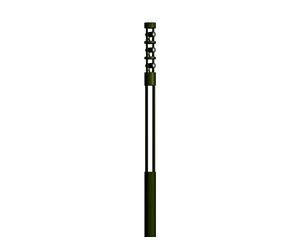

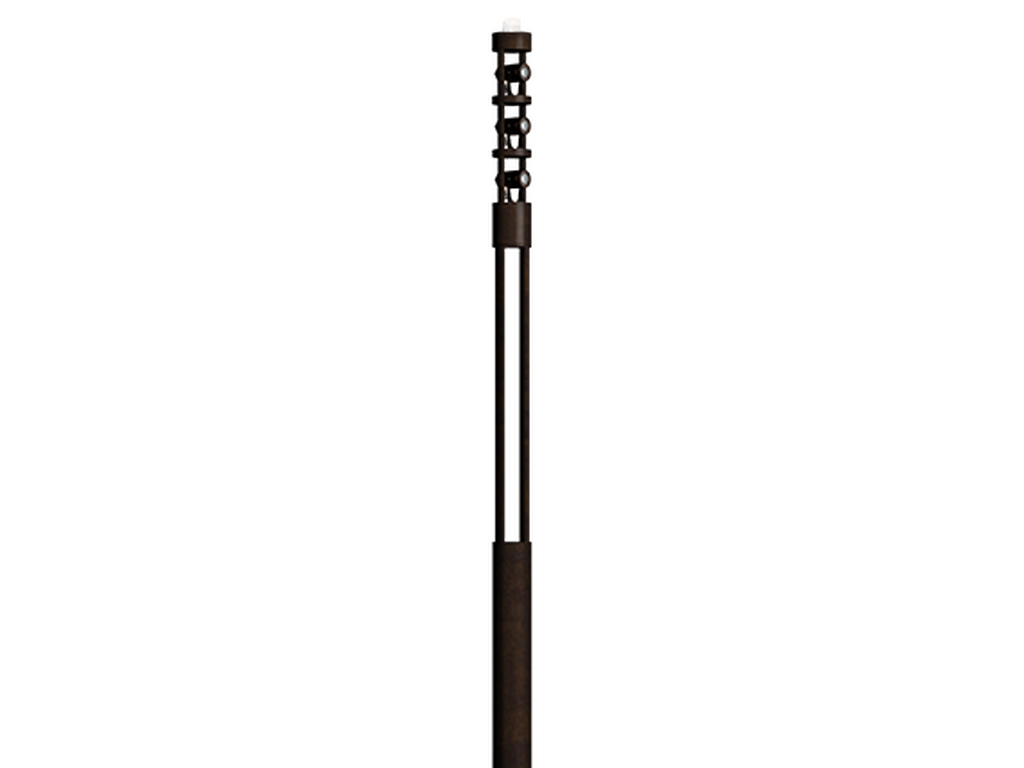

LIGMAN BENTON 5 BE-20023-LC.

BENTON 5BE-20023-LCBENTON

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

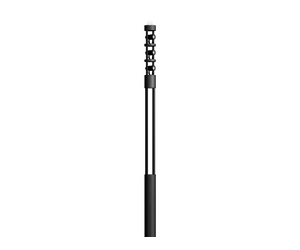

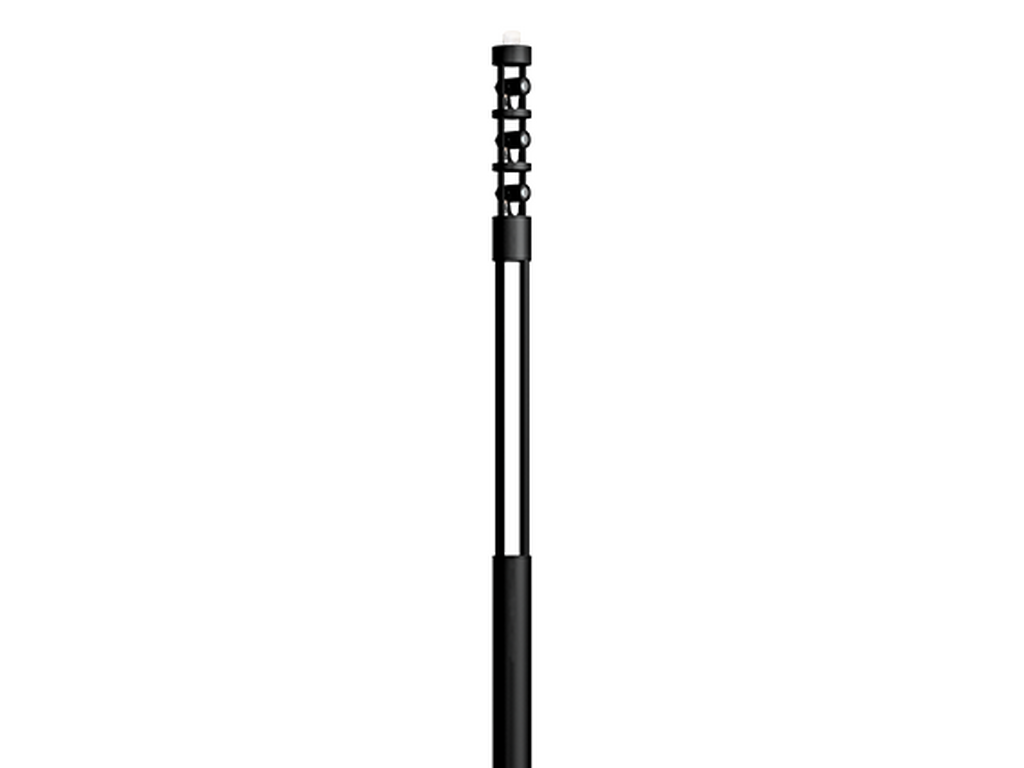

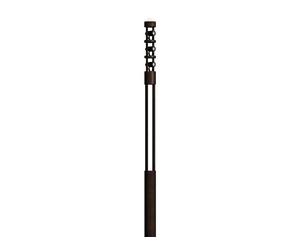

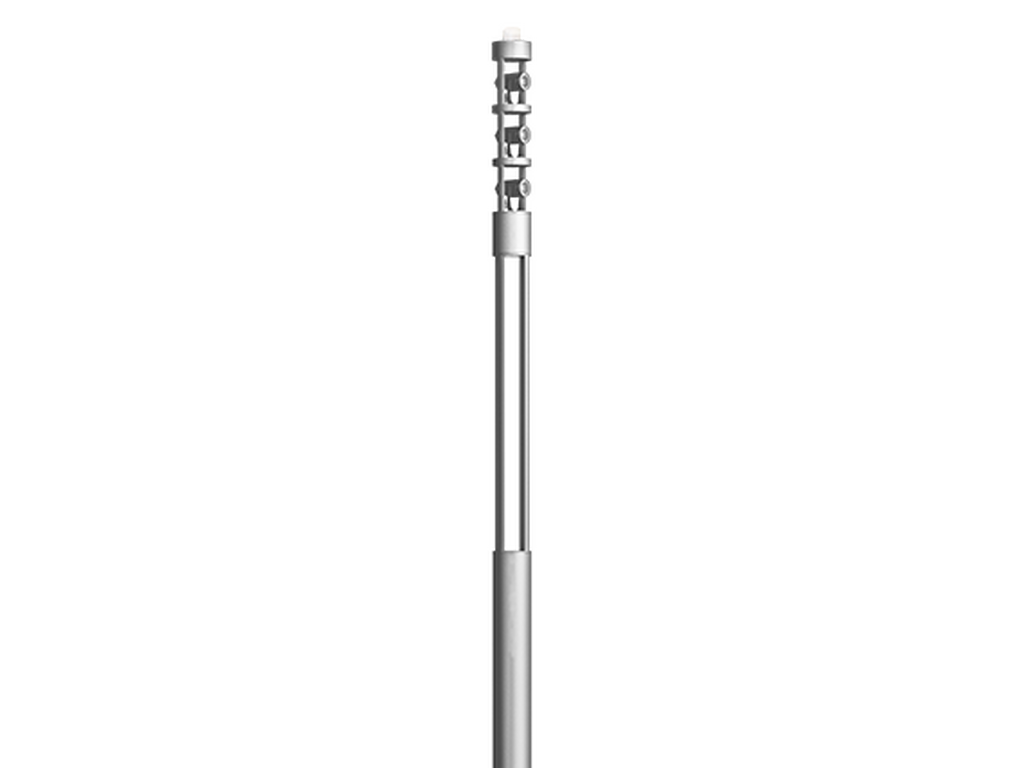

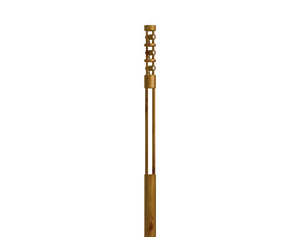

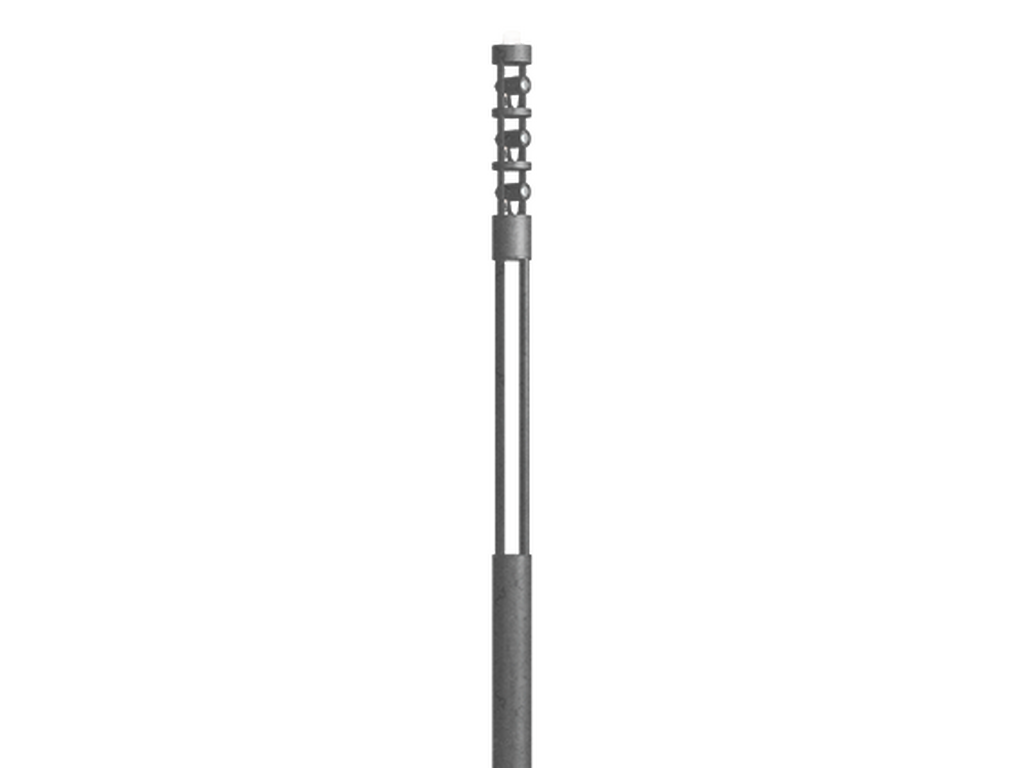

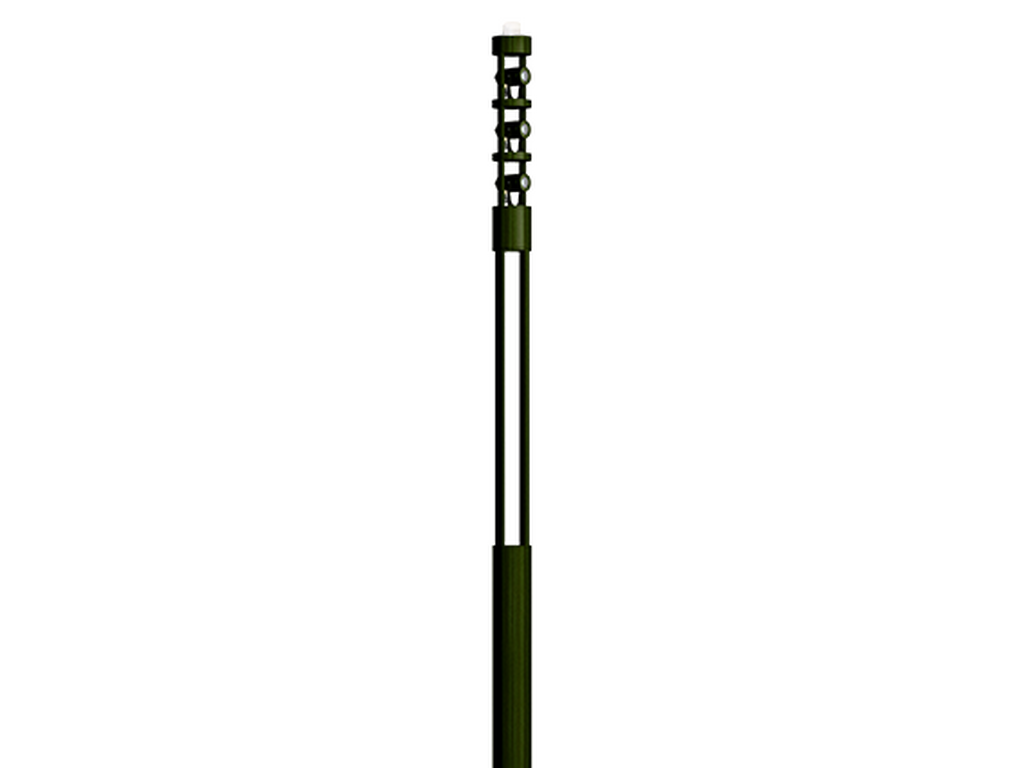

BENTON 5Black

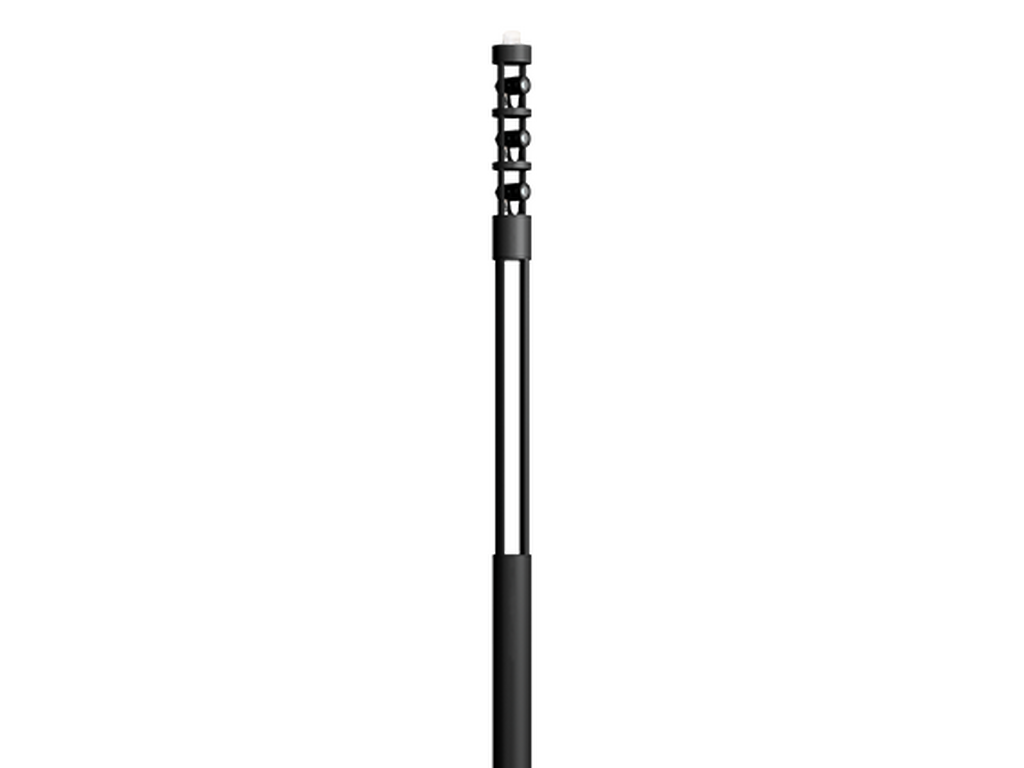

BENTON 5Dark Grey

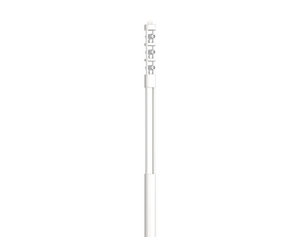

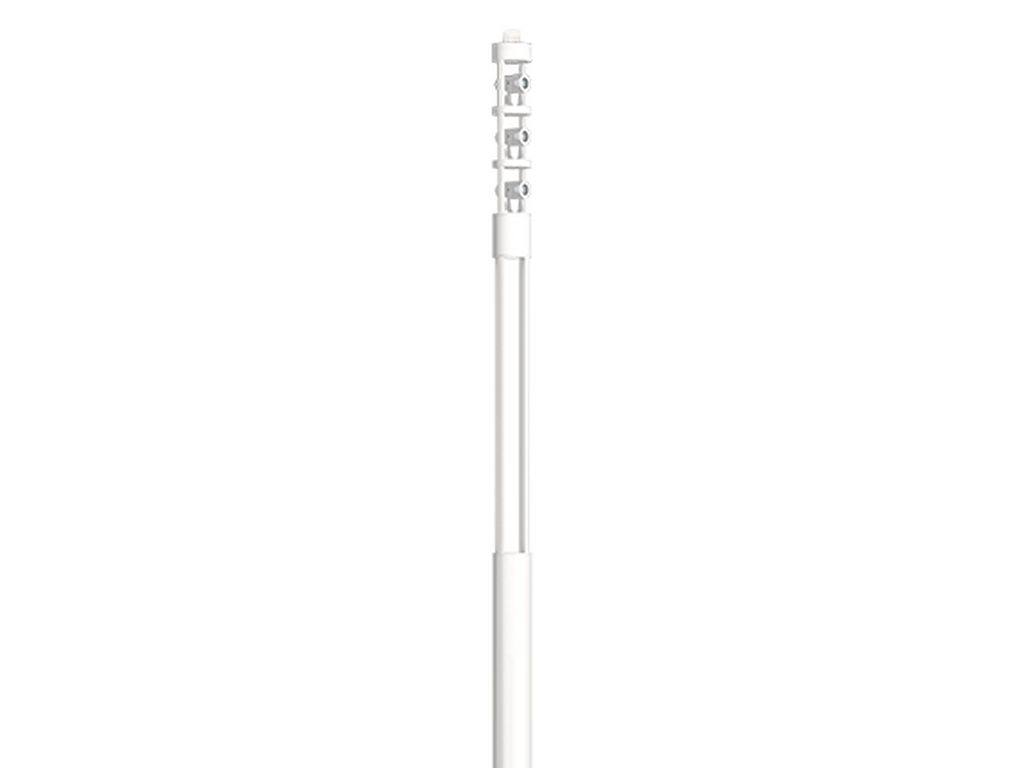

BENTON 5White

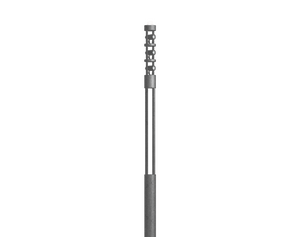

BENTON 5Matt Silver

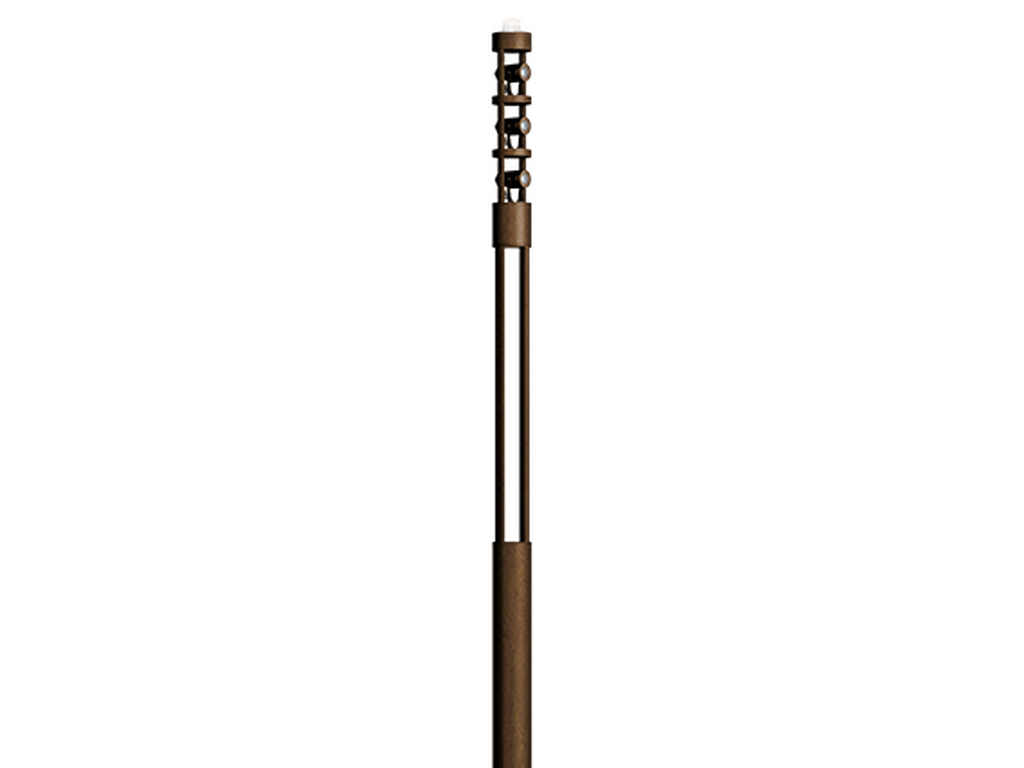

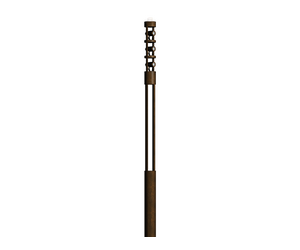

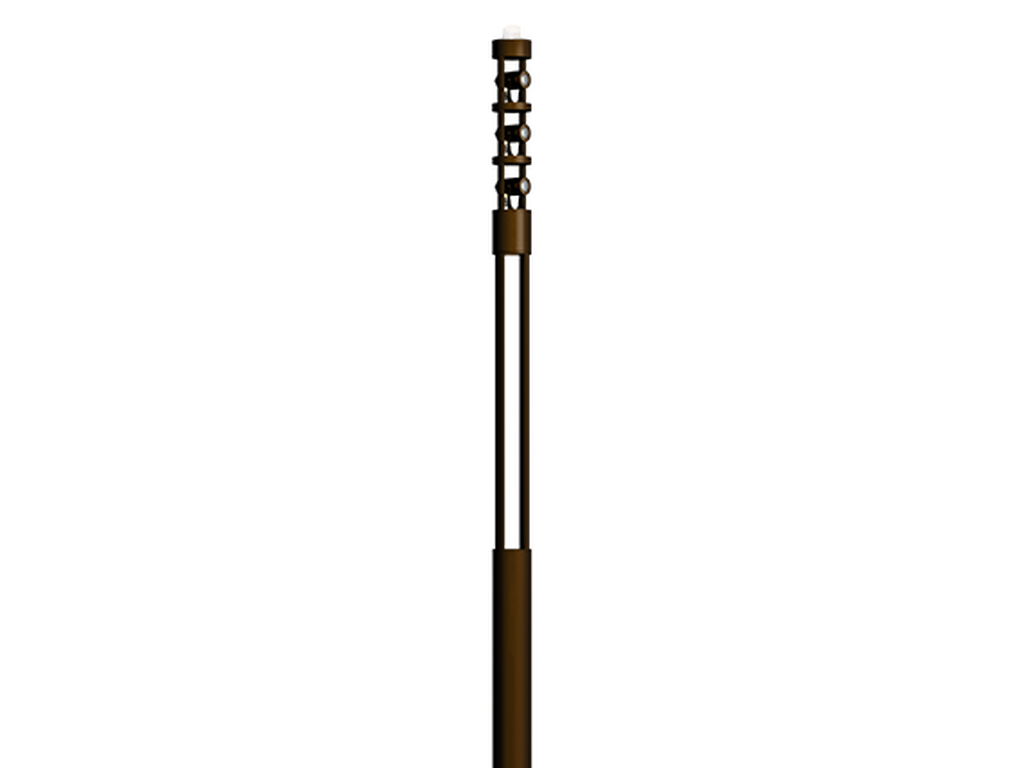

BENTON 5Bronze
BENTON 5Concrete - Urban
BENTON 5Softscape - Urban
BENTON 5Stone - Urban
BENTON 5Corten - Urban

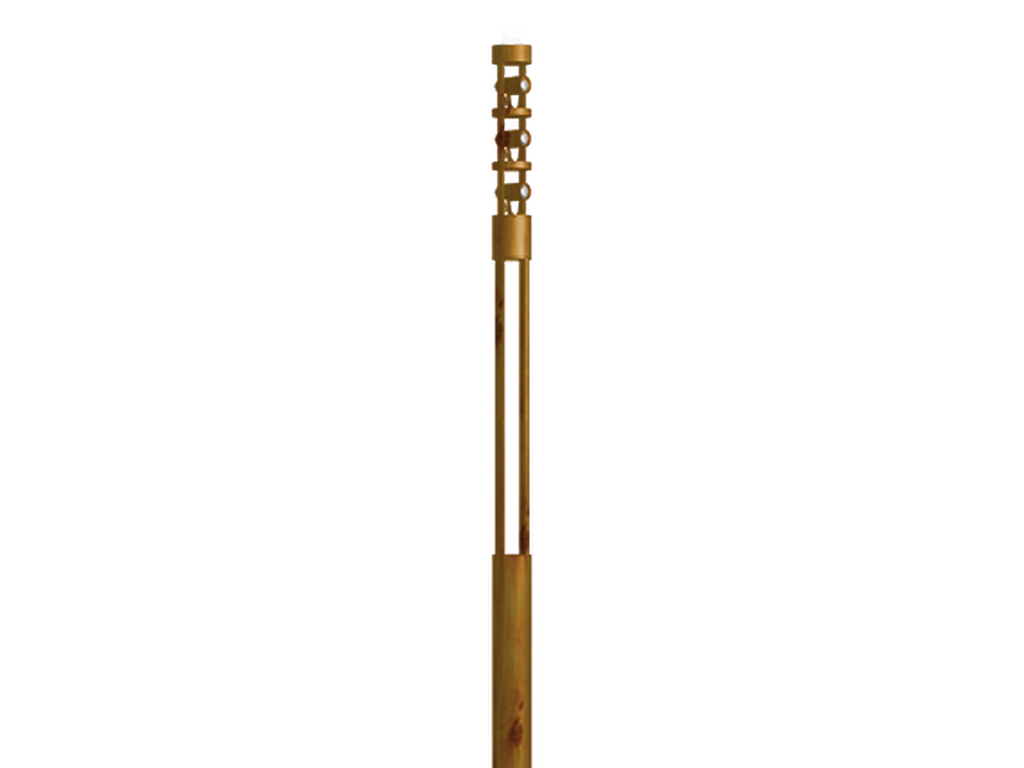

BENTON 5Oak - Woodland
BENTON 5Walnut - Woodland
BENTON 5Pine - Woodland
BENTON 5Black
BENTON 5Dark Grey
BENTON 5White
BENTON 5Matt Silver
BENTON 5Bronze
BENTON 5Concrete - Urban
BENTON 5Softscape - Urban
BENTON 5Stone - Urban
BENTON 5Corten - Urban
BENTON 5Oak - Woodland
BENTON 5Walnut - Woodland
BENTON 5Pine - Woodland

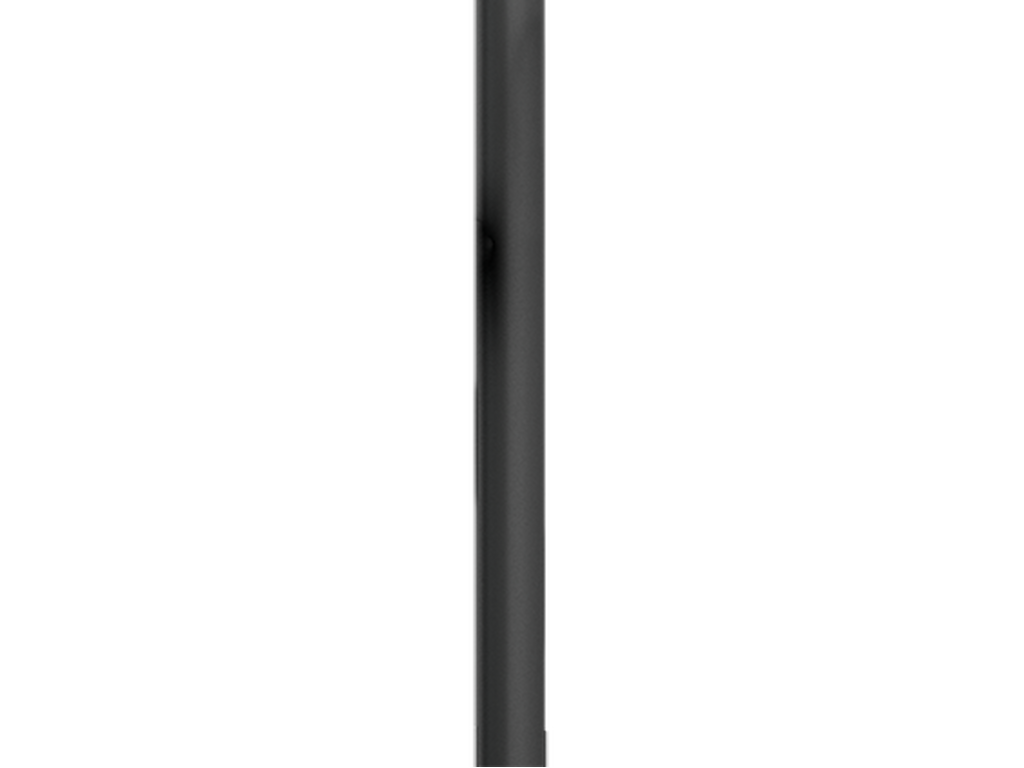

Ø225 mm - 3 projectors - Supplied with specific 4.5 m cylindrical, straight aluminium pole: APD125225-BE-20023 - LIGHTCONNECT™
BISCEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 & 3 COB (Projectors)
Power (W)
103 W
Lumen (lm)
7417 - 7553 lm
Efficacy (lm/W)
72 - 73 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
65°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
45.9 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency optical reflector
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500

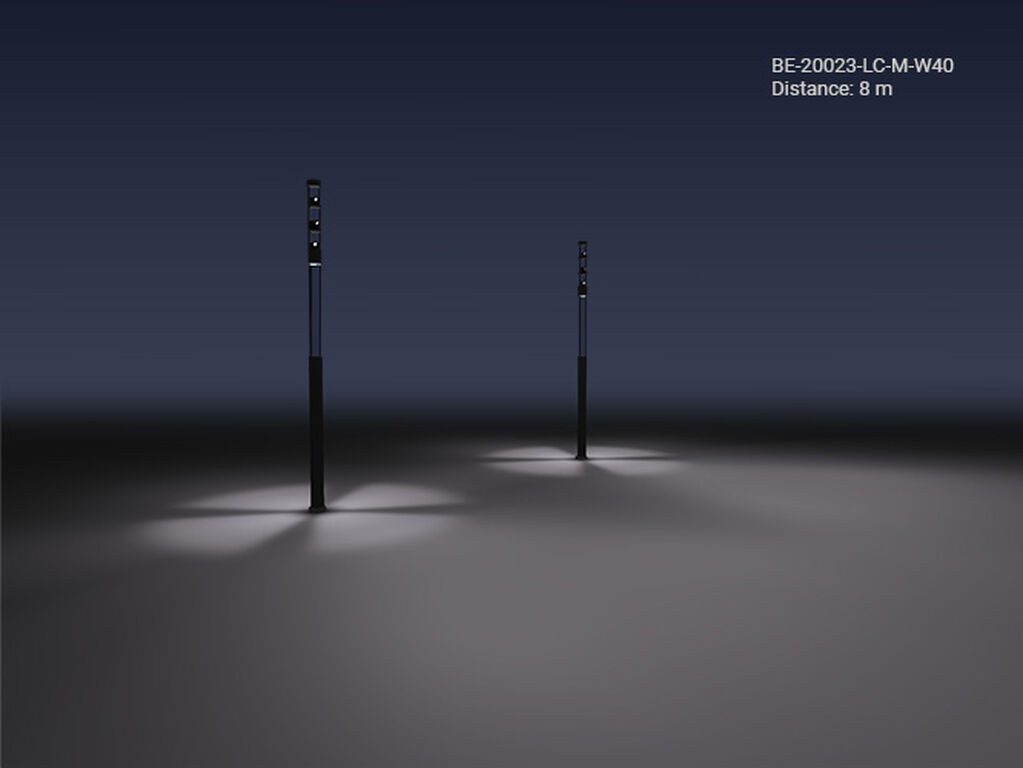

LIGHT EFFECT

Optic
G (65°) / M (23°)
G (65°) / W (32°)
G (65°) / VW (43°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BE-20023-LC-M-8030-DA-01
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: BE-20023-LC-M-8030-DA-02
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: BE-20023-LC-M-8030-DA-03
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: BE-20023-LC-M-8030-DA-05
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: BE-20023-LC-M-8030-DA-06
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: BE-20023-LC-M-8030-DA-SU01
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BE-20023-LC-M-8030-DA-SU02
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BE-20023-LC-M-8030-DA-SU03
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BE-20023-LC-M-8030-DA-SU04
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BE-20023-LC-M-8030-DA-SW01
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BE-20023-LC-M-8030-DA-SW02
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BE-20023-LC-M-8030-DA-SW03
Lumen (lm): 7417 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BE-20023-LC-M-8040-DA-01
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: BE-20023-LC-M-8040-DA-02
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: BE-20023-LC-M-8040-DA-03
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: BE-20023-LC-M-8040-DA-05
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: BE-20023-LC-M-8040-DA-06
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: BE-20023-LC-M-8040-DA-SU01
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BE-20023-LC-M-8040-DA-SU02
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BE-20023-LC-M-8040-DA-SU03
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BE-20023-LC-M-8040-DA-SU04
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BE-20023-LC-M-8040-DA-SW01
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BE-20023-LC-M-8040-DA-SW02
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BE-20023-LC-M-8040-DA-SW03
Lumen (lm): 7508 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BE-20023-LC-W-8030-DA-01
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: BE-20023-LC-W-8030-DA-02
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: BE-20023-LC-W-8030-DA-03
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: BE-20023-LC-W-8030-DA-05
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: BE-20023-LC-W-8030-DA-06
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: BE-20023-LC-W-8030-DA-SU01
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BE-20023-LC-W-8030-DA-SU02
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BE-20023-LC-W-8030-DA-SU03
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BE-20023-LC-W-8030-DA-SU04
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BE-20023-LC-W-8030-DA-SW01
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BE-20023-LC-W-8030-DA-SW02
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BE-20023-LC-W-8030-DA-SW03
Lumen (lm): 7462 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BE-20023-LC-W-8040-DA-01
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: BE-20023-LC-W-8040-DA-02
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: BE-20023-LC-W-8040-DA-03
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: BE-20023-LC-W-8040-DA-05
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: BE-20023-LC-W-8040-DA-06
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: BE-20023-LC-W-8040-DA-SU01
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BE-20023-LC-W-8040-DA-SU02
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BE-20023-LC-W-8040-DA-SU03
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BE-20023-LC-W-8040-DA-SU04
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BE-20023-LC-W-8040-DA-SW01
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BE-20023-LC-W-8040-DA-SW02
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BE-20023-LC-W-8040-DA-SW03
Lumen (lm): 7553 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BE-20023-LC-VW-8030-DA-01
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: BE-20023-LC-VW-8030-DA-02
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: BE-20023-LC-VW-8030-DA-03
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: BE-20023-LC-VW-8030-DA-05
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: BE-20023-LC-VW-8030-DA-06
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: BE-20023-LC-VW-8030-DA-SU01
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BE-20023-LC-VW-8030-DA-SU02
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BE-20023-LC-VW-8030-DA-SU03
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BE-20023-LC-VW-8030-DA-SU04
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BE-20023-LC-VW-8030-DA-SW01
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BE-20023-LC-VW-8030-DA-SW02
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BE-20023-LC-VW-8030-DA-SW03
Lumen (lm): 7447 lm
Optic: G
Optic value: 65°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BE-20023-LC-VW-8040-DA-01
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: BE-20023-LC-VW-8040-DA-02
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: BE-20023-LC-VW-8040-DA-03
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: BE-20023-LC-VW-8040-DA-05
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: BE-20023-LC-VW-8040-DA-06
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: BE-20023-LC-VW-8040-DA-SU01
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BE-20023-LC-VW-8040-DA-SU02
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BE-20023-LC-VW-8040-DA-SU03
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BE-20023-LC-VW-8040-DA-SU04
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BE-20023-LC-VW-8040-DA-SW01
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BE-20023-LC-VW-8040-DA-SW02
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BE-20023-LC-VW-8040-DA-SW03
Lumen (lm): 7538 lm
Optic: G
Optic value: 65°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (BENTON Light columns)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
