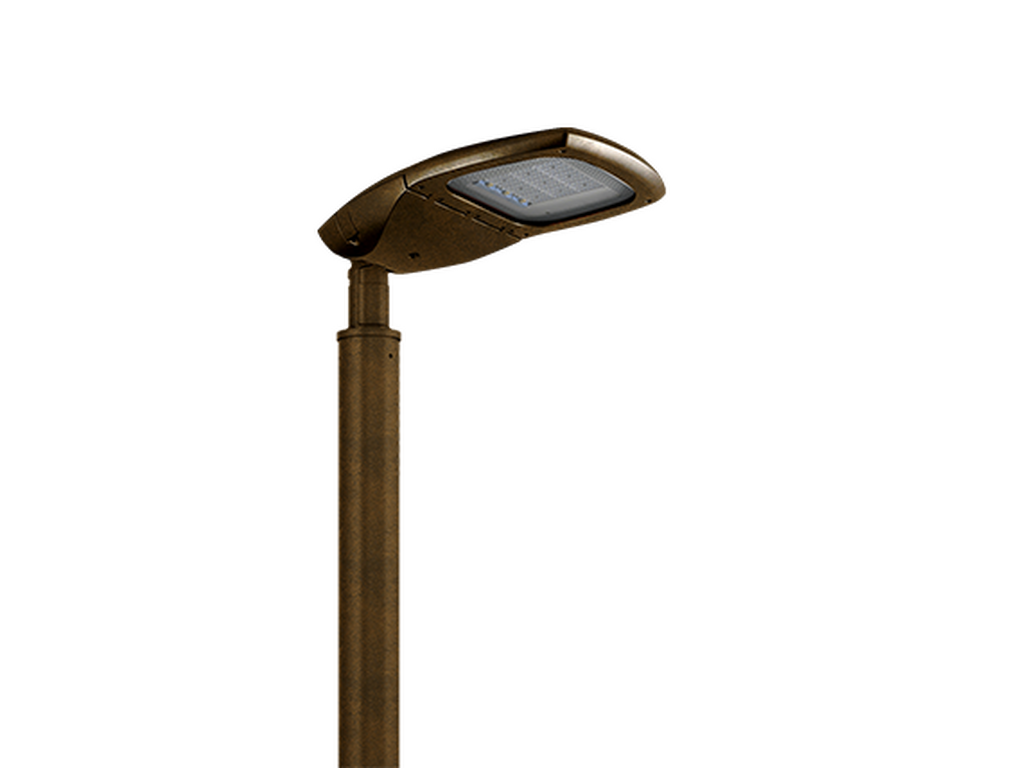

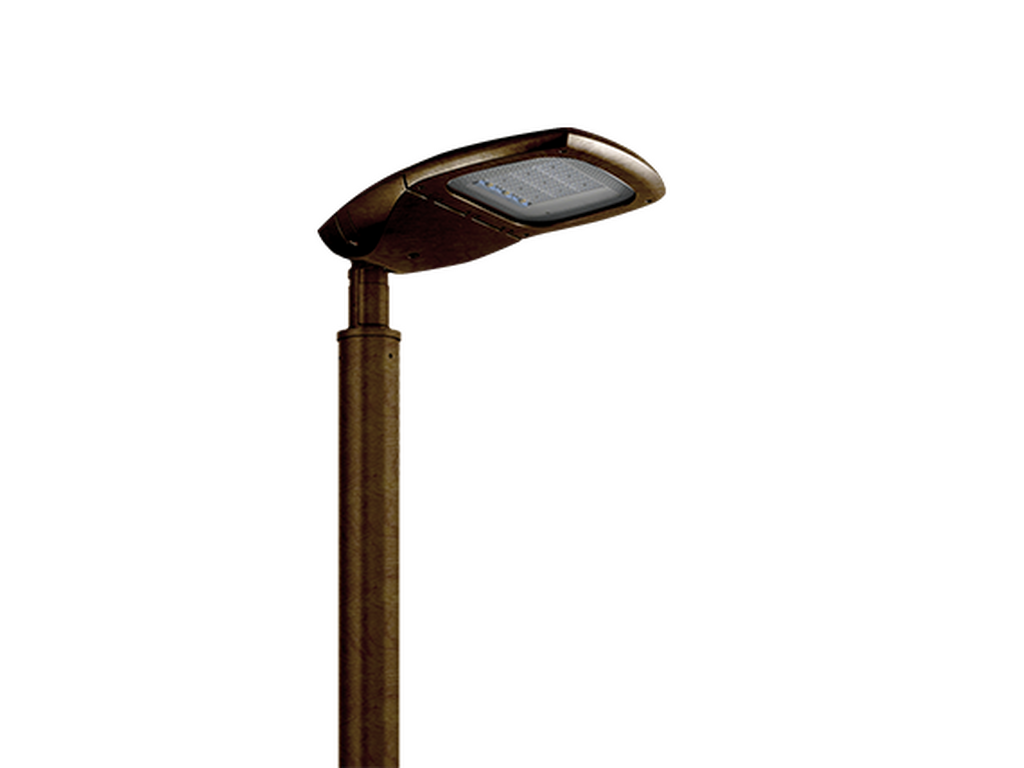

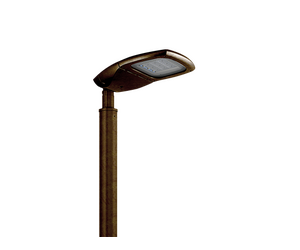

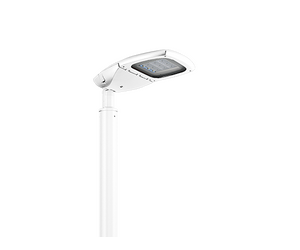

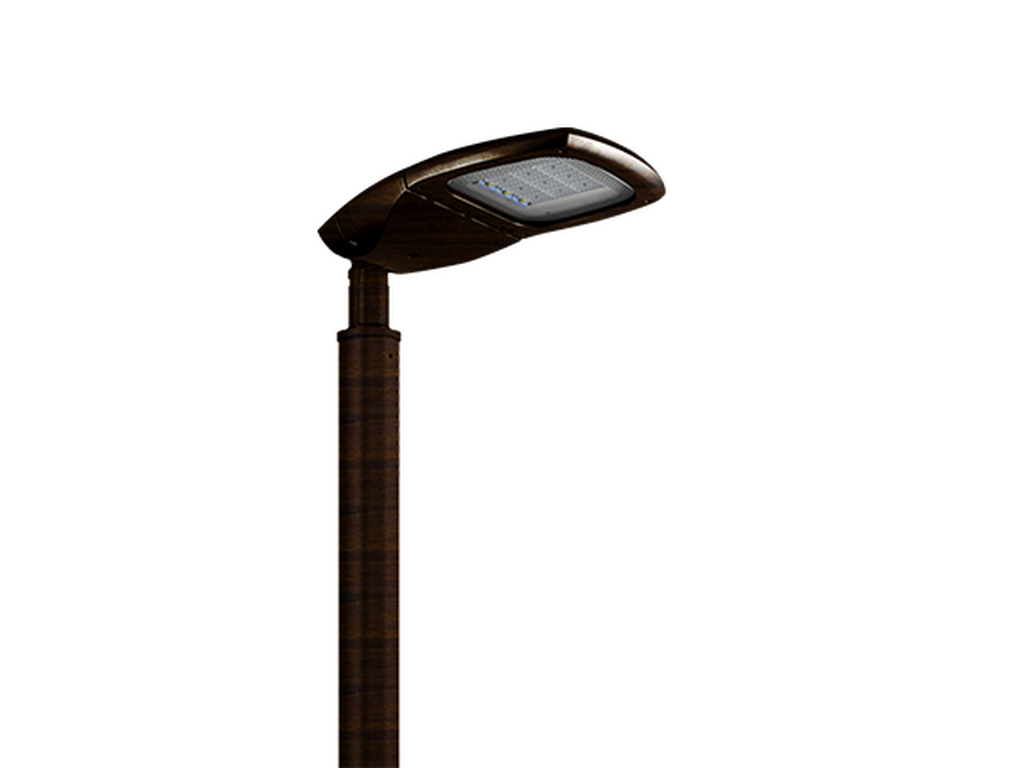

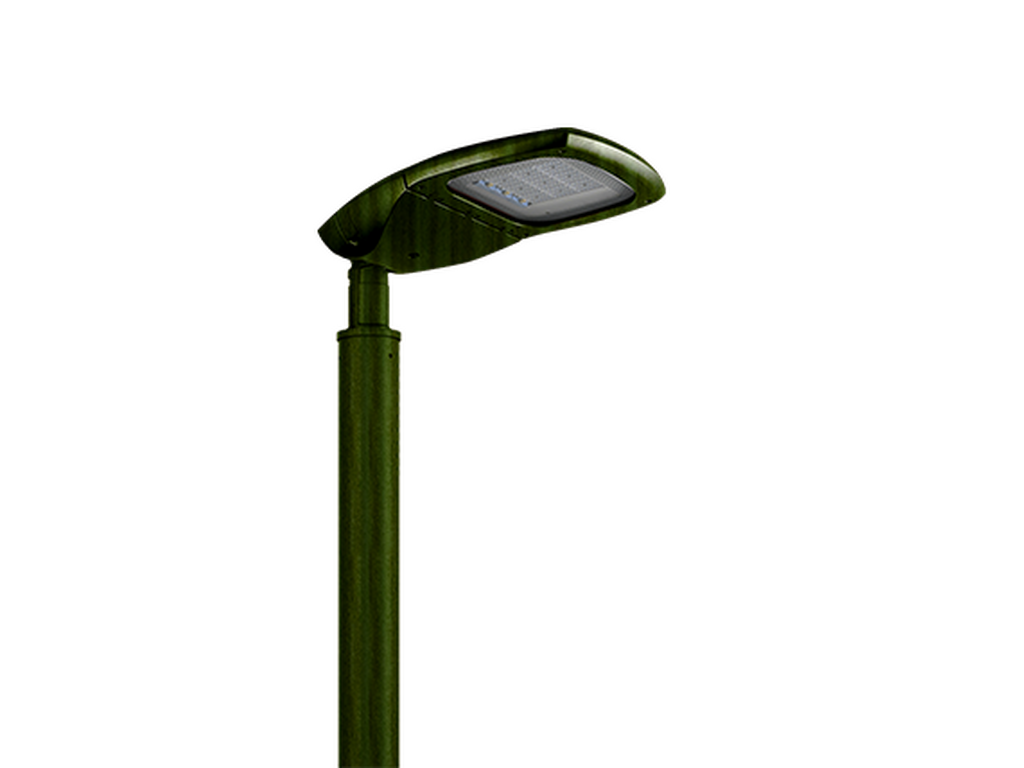

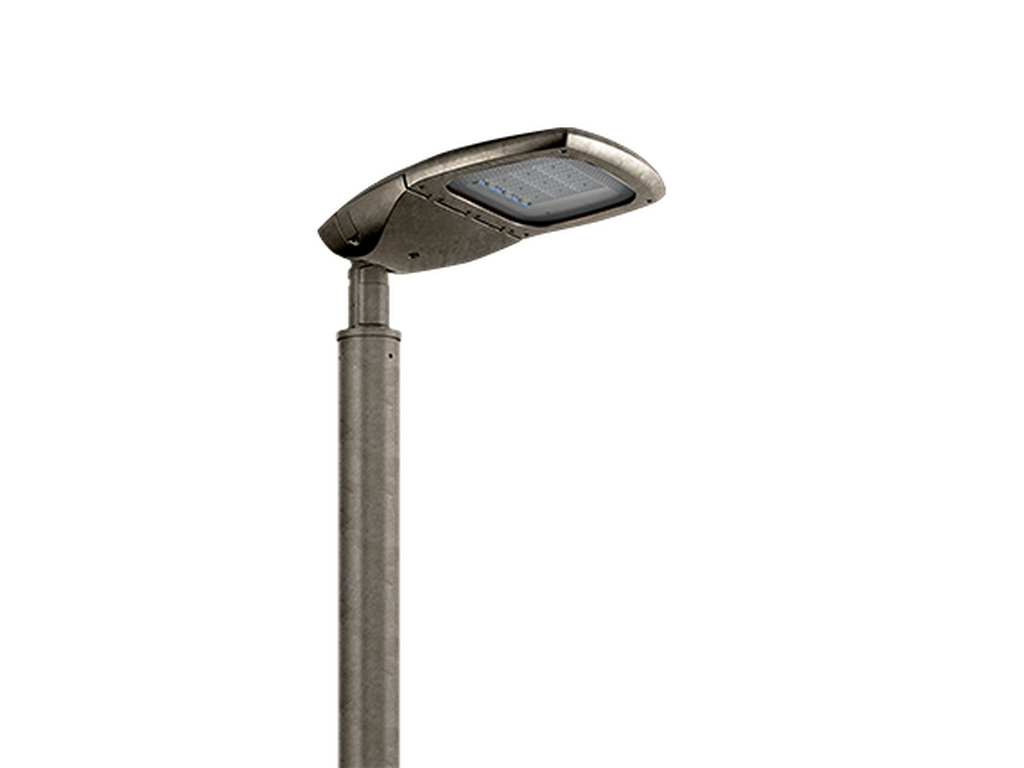

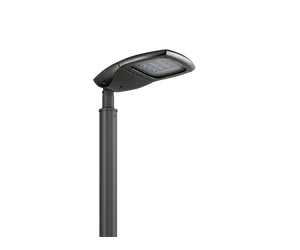

LIGMAN BILLUND 2 BIU-90056.

BILLUND 2BIU-90056BILLUND

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


BILLUND 2Black

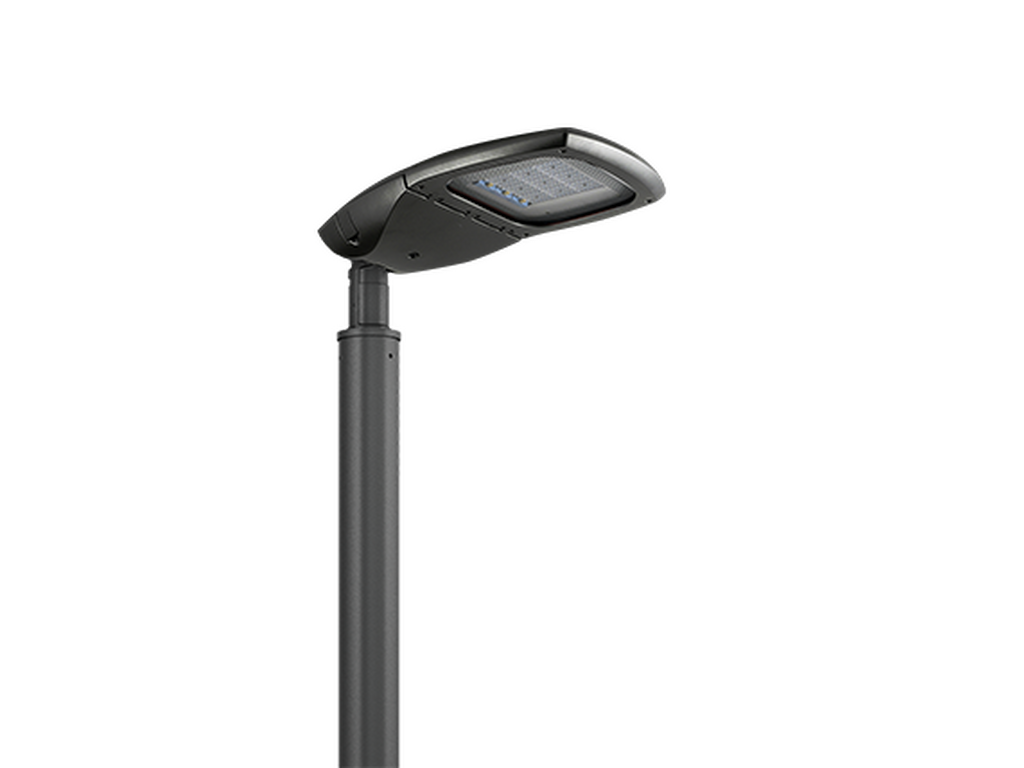

BILLUND 2Dark Grey

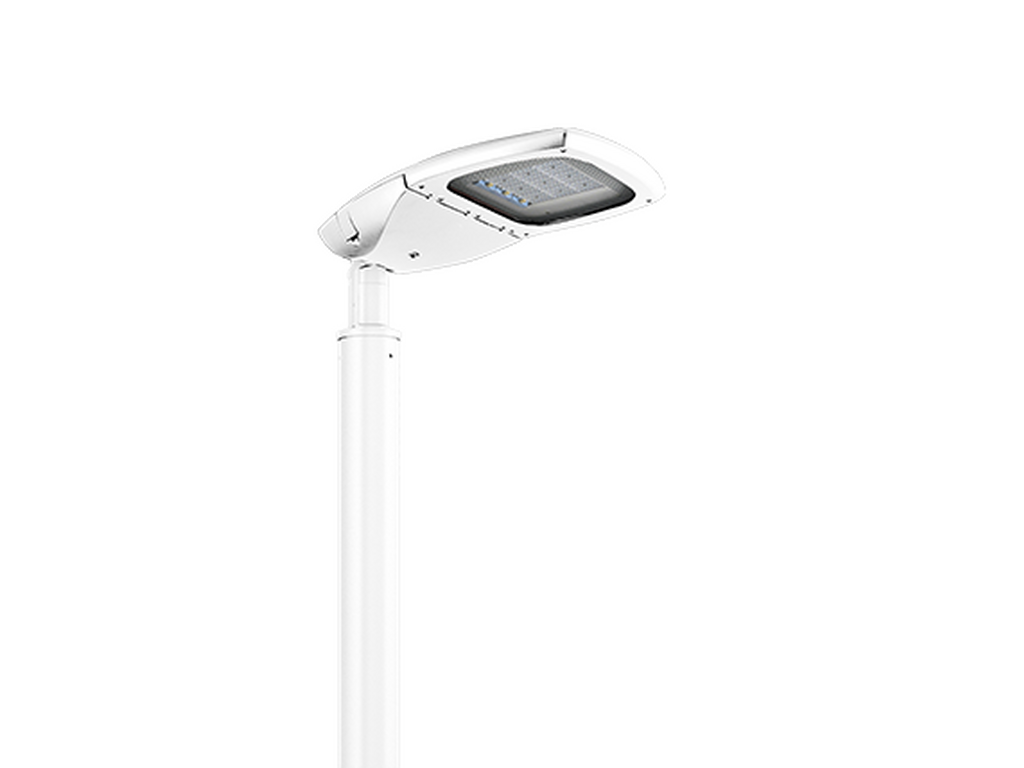

BILLUND 2White

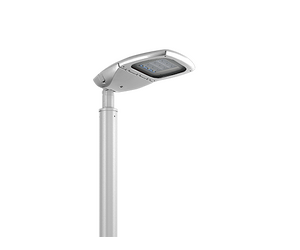

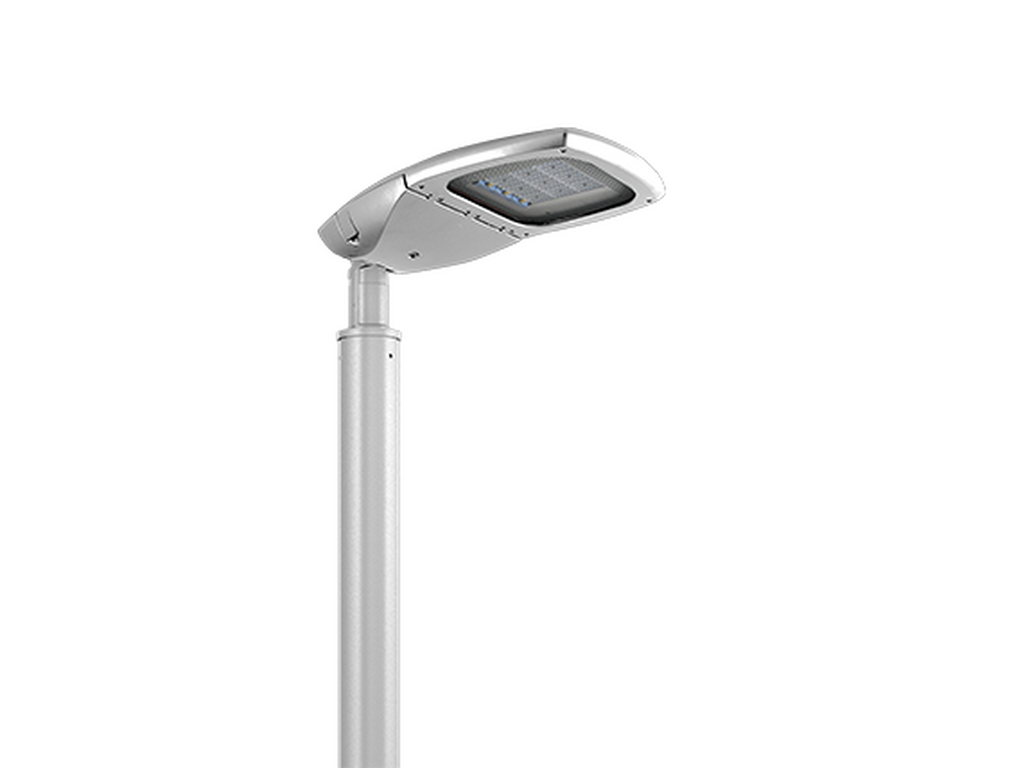

BILLUND 2Matt Silver

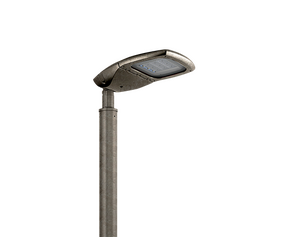

BILLUND 2Bronze
BILLUND 2Concrete - Urban
BILLUND 2Softscape - Urban
BILLUND 2Stone - Urban
BILLUND 2Corten - Urban
BILLUND 2Oak - Woodland
BILLUND 2Walnut - Woodland
BILLUND 2Black
BILLUND 2Dark Grey
BILLUND 2White
BILLUND 2Matt Silver
BILLUND 2Bronze
BILLUND 2Concrete - Urban
BILLUND 2Softscape - Urban
BILLUND 2Stone - Urban
BILLUND 2Corten - Urban
BILLUND 2Oak - Woodland
BILLUND 2Walnut - Woodland
Medium - Nature Friendly Lighting
Class IIP66IK09

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
48 LED
Power (W)
40 W
Lumen (lm)
3980 - 4386 lm
Efficacy (lm/W)
100 - 110 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, T5, ME
Optic value
24°, 50°, 108°, 146°x66°, 142°x47°, 141°x59°, 100°x78°, 105°, 136°x32°
CCT / CRI
TW(AMBER - 3000K)
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
11.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000

LIGHT EFFECT

Optic
M (24°)
W (50°)
EW (108°)
T1 (146°x66°)
T2 (142°x47°)
T3 (141°x59°)
T4 (100°x78°)
T5 (105°)
ME (136°x32°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BIU-90056-M-TW30AM-DA-01
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-M-TW30AM-DA-02
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-M-TW30AM-DA-03
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-M-TW30AM-DA-05
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-M-TW30AM-DA-06
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-M-TW30AM-DA-SU01
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-M-TW30AM-DA-SU02
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-M-TW30AM-DA-SU03
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-M-TW30AM-DA-SU04
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-M-TW30AM-DA-SW01
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-M-TW30AM-DA-SW02
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-M-TW30AM-DA-SW03
Lumen (lm): 4386 lm
Optic: M
Optic value: 24°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-W-TW30AM-DA-01
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-W-TW30AM-DA-02
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-W-TW30AM-DA-03
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-W-TW30AM-DA-05
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-W-TW30AM-DA-06
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-W-TW30AM-DA-SU01
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-W-TW30AM-DA-SU02
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-W-TW30AM-DA-SU03
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-W-TW30AM-DA-SU04
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-W-TW30AM-DA-SW01
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-W-TW30AM-DA-SW02
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-W-TW30AM-DA-SW03
Lumen (lm): 4344 lm
Optic: W
Optic value: 50°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-EW-TW30AM-DA-01
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-EW-TW30AM-DA-02
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-EW-TW30AM-DA-03
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-EW-TW30AM-DA-05
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-EW-TW30AM-DA-06
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-EW-TW30AM-DA-SU01
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-EW-TW30AM-DA-SU02
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-EW-TW30AM-DA-SU03
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-EW-TW30AM-DA-SU04
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-EW-TW30AM-DA-SW01
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-EW-TW30AM-DA-SW02
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-EW-TW30AM-DA-SW03
Lumen (lm): 0 lm
Optic: EW
Optic value: 108°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-T1-TW30AM-DA-01
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-T1-TW30AM-DA-02
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-T1-TW30AM-DA-03
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-T1-TW30AM-DA-05
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-T1-TW30AM-DA-06
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-T1-TW30AM-DA-SU01
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-T1-TW30AM-DA-SU02
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-T1-TW30AM-DA-SU03
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-T1-TW30AM-DA-SU04
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-T1-TW30AM-DA-SW01
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-T1-TW30AM-DA-SW02
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-T1-TW30AM-DA-SW03
Lumen (lm): 3980 lm
Optic: T1
Optic value: 146°x66°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-T2-TW30AM-DA-01
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-T2-TW30AM-DA-02
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-T2-TW30AM-DA-03
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-T2-TW30AM-DA-05
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-T2-TW30AM-DA-06
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-T2-TW30AM-DA-SU01
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-T2-TW30AM-DA-SU02
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-T2-TW30AM-DA-SU03
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-T2-TW30AM-DA-SU04
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-T2-TW30AM-DA-SW01
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-T2-TW30AM-DA-SW02
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-T2-TW30AM-DA-SW03
Lumen (lm): 4095 lm
Optic: T2
Optic value: 142°x47°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-T3-TW30AM-DA-01
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-T3-TW30AM-DA-02
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-T3-TW30AM-DA-03
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-T3-TW30AM-DA-05
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-T3-TW30AM-DA-06
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-T3-TW30AM-DA-SU01
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-T3-TW30AM-DA-SU02
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-T3-TW30AM-DA-SU03
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-T3-TW30AM-DA-SU04
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-T3-TW30AM-DA-SW01
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-T3-TW30AM-DA-SW02
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-T3-TW30AM-DA-SW03
Lumen (lm): 4077 lm
Optic: T3
Optic value: 141°x59°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-T4-TW30AM-DA-01
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-T4-TW30AM-DA-02
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-T4-TW30AM-DA-03
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-T4-TW30AM-DA-05
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-T4-TW30AM-DA-06
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-T4-TW30AM-DA-SU01
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-T4-TW30AM-DA-SU02
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-T4-TW30AM-DA-SU03
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-T4-TW30AM-DA-SU04
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-T4-TW30AM-DA-SW01
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-T4-TW30AM-DA-SW02
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-T4-TW30AM-DA-SW03
Lumen (lm): 4075 lm
Optic: T4
Optic value: 100°x78°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-T5-TW30AM-DA-01
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-T5-TW30AM-DA-02
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-T5-TW30AM-DA-03
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-T5-TW30AM-DA-05
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-T5-TW30AM-DA-06
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-T5-TW30AM-DA-SU01
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-T5-TW30AM-DA-SU02
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-T5-TW30AM-DA-SU03
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-T5-TW30AM-DA-SU04
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-T5-TW30AM-DA-SW01
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-T5-TW30AM-DA-SW02
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-T5-TW30AM-DA-SW03
Lumen (lm): 4222 lm
Optic: T5
Optic value: 105°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: BIU-90056-ME-TW30AM-DA-01
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Black
Variant code: BIU-90056-ME-TW30AM-DA-02
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Dark Grey
Variant code: BIU-90056-ME-TW30AM-DA-03
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: White
Variant code: BIU-90056-ME-TW30AM-DA-05
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Matt Silver
Variant code: BIU-90056-ME-TW30AM-DA-06
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Bronze
Variant code: BIU-90056-ME-TW30AM-DA-SU01
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: BIU-90056-ME-TW30AM-DA-SU02
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: BIU-90056-ME-TW30AM-DA-SU03
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Stone - Urban
Variant code: BIU-90056-ME-TW30AM-DA-SU04
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Corten - Urban
Variant code: BIU-90056-ME-TW30AM-DA-SW01
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: BIU-90056-ME-TW30AM-DA-SW02
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: BIU-90056-ME-TW30AM-DA-SW03
Lumen (lm): 4035 lm
Optic: ME
Optic value: 136°x32°
CCT / CRI: TW(AMBER - 3000K)
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (BILLUND Street & area lighting luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
