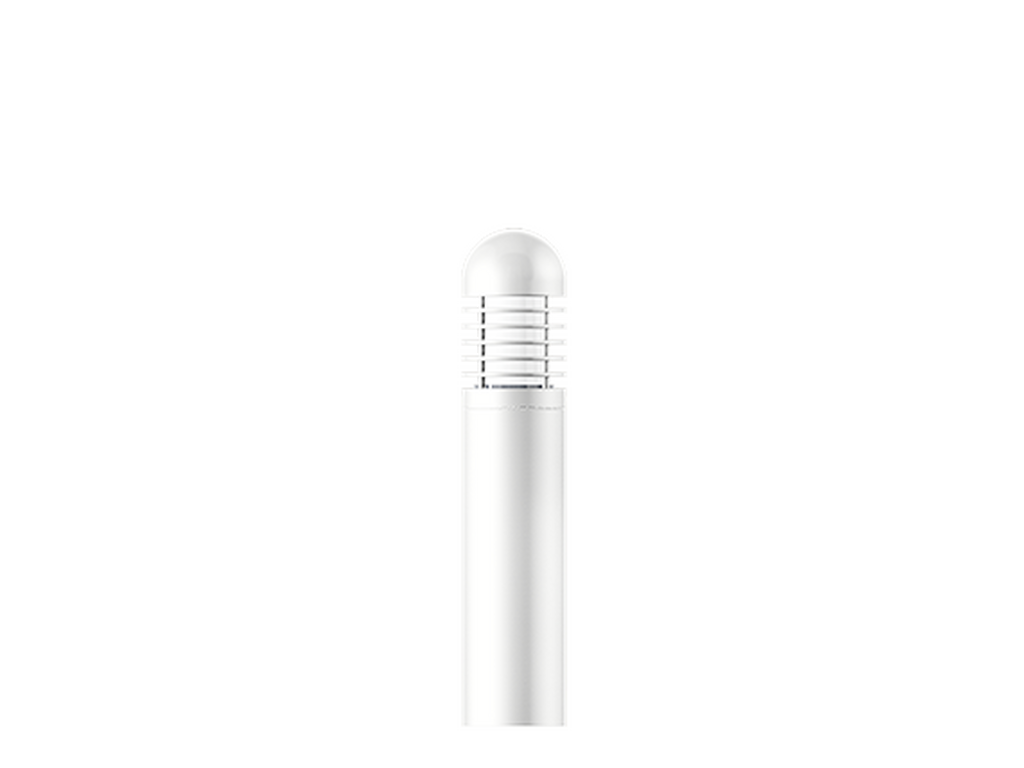

DUOMO 2White

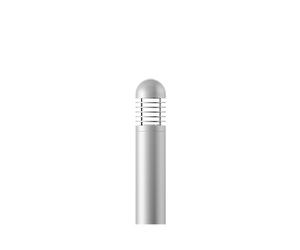

DUOMO 2Matt Silver
DUOMO 2Bronze
DUOMO 2Concrete - Urban
DUOMO 2Softscape - Urban
DUOMO 2Stone - Urban

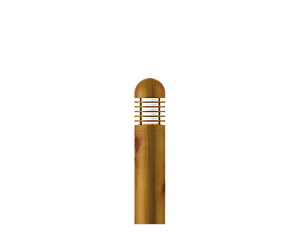

DUOMO 2Corten - Urban
DUOMO 2Oak - Woodland
DUOMO 2Walnut - Woodland
DUOMO 2Pine - Woodland
DUOMO 2Black
DUOMO 2Dark Grey
DUOMO 2White

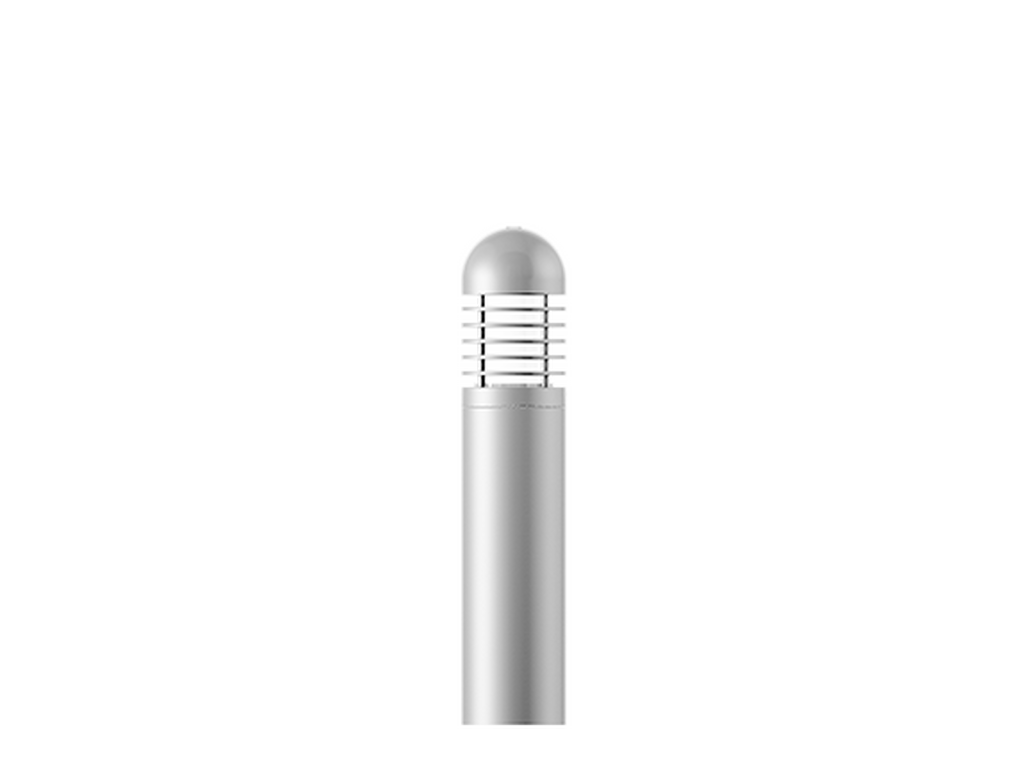

DUOMO 2Matt Silver
DUOMO 2Bronze
DUOMO 2Concrete - Urban
DUOMO 2Softscape - Urban
DUOMO 2Stone - Urban
DUOMO 2Corten - Urban
DUOMO 2Oak - Woodland
DUOMO 2Walnut - Woodland
DUOMO 2Pine - Woodland
Ø186 - 792 mm - Dome top - With integrated security core (Anti-traffic)
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Light source
1 COB
Power (W)
41 W
Lumen (lm)
664 - 673 lm
Efficacy (lm/W)
16 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U3-G1
ULR
46%
ULOR
46%
CIE flux code nº3
45
Dimming type
On/Off, 1-10V, DALI
Weight
8.8 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Opal toughened glass diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 55,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

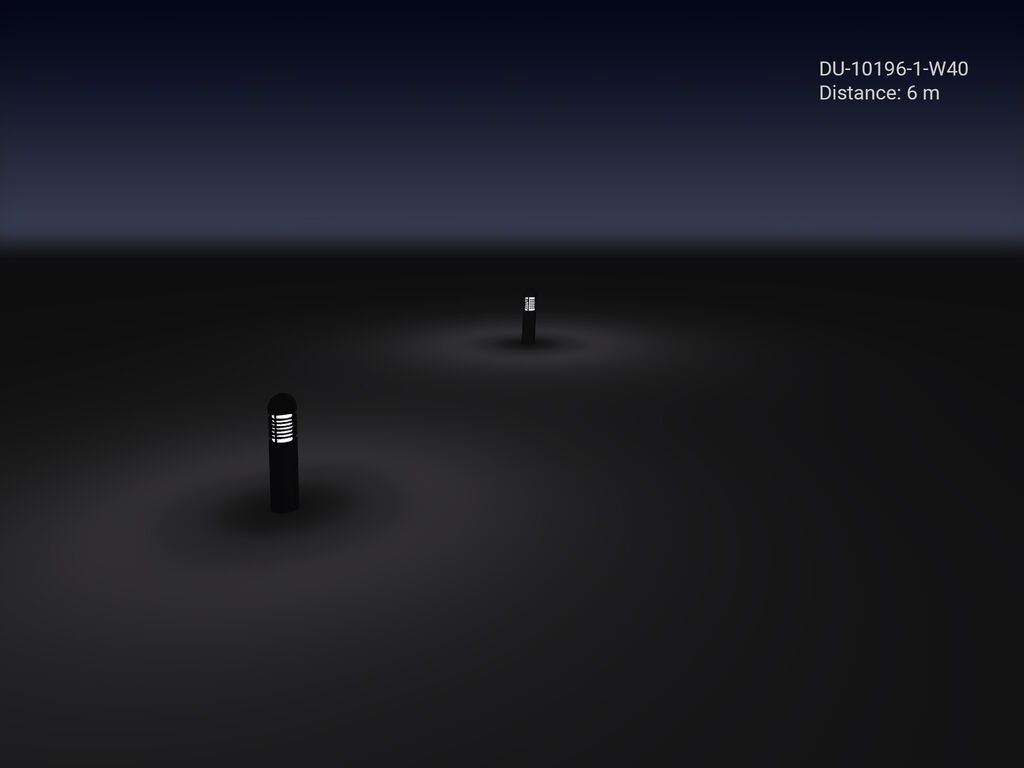

LIGHT EFFECT

Optic
G (360°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: DU-10196-1-SB-G-8030-ND
Lumen (lm): 664 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: DU-10196-1-SB-G-8040-ND
Lumen (lm): 673 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: DU-10196-1-SB-G-8030-DI
Lumen (lm): 664 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: DU-10196-1-SB-G-8040-DI
Lumen (lm): 673 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: DU-10196-1-SB-G-8030-DA
Lumen (lm): 664 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: DU-10196-1-SB-G-8040-DA
Lumen (lm): 673 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
