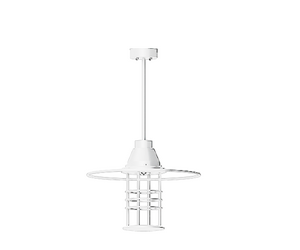

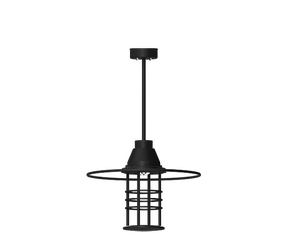

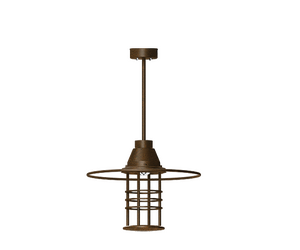

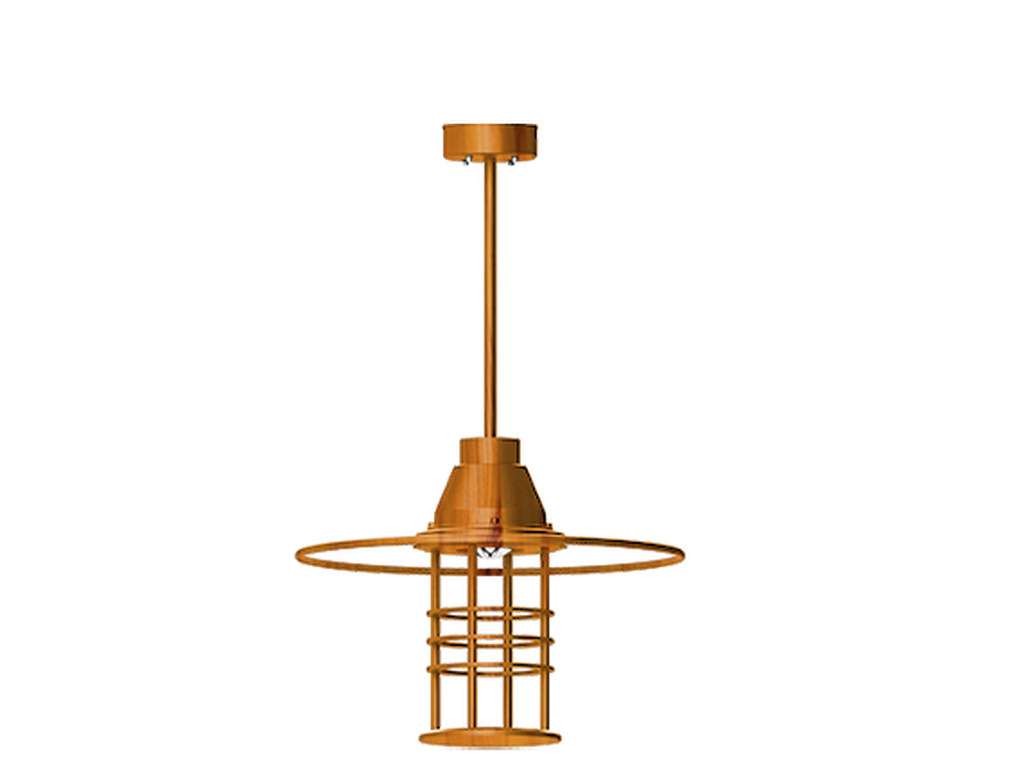

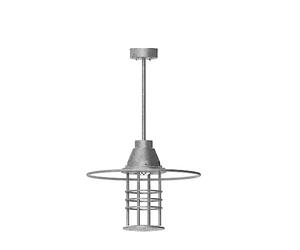

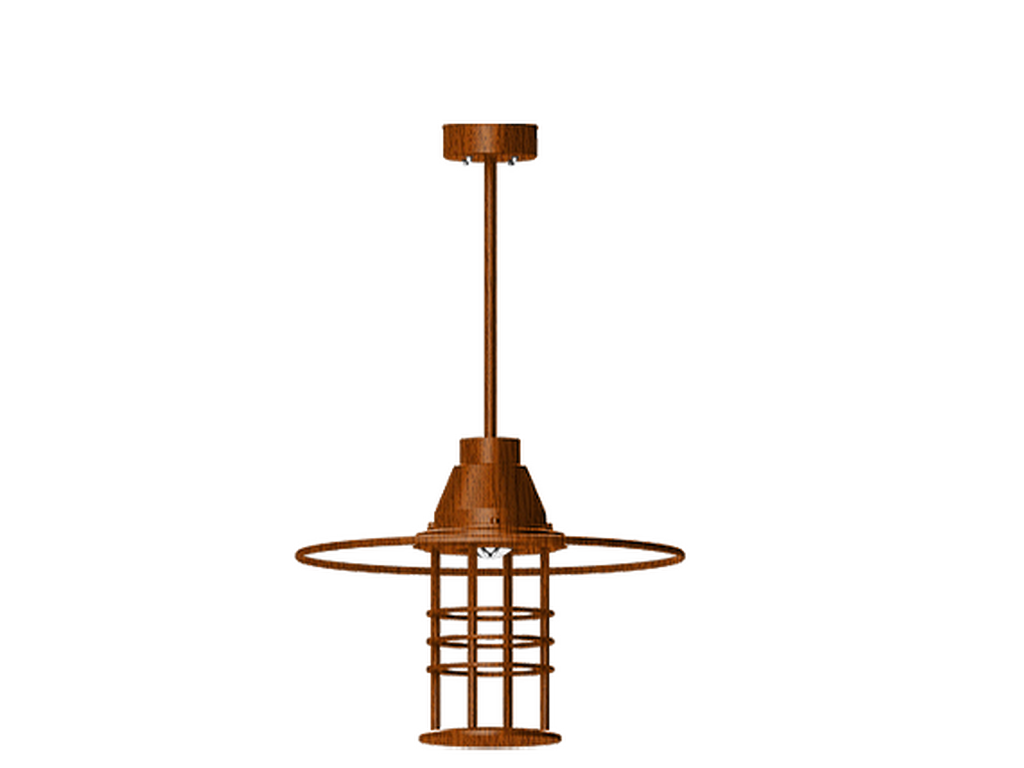

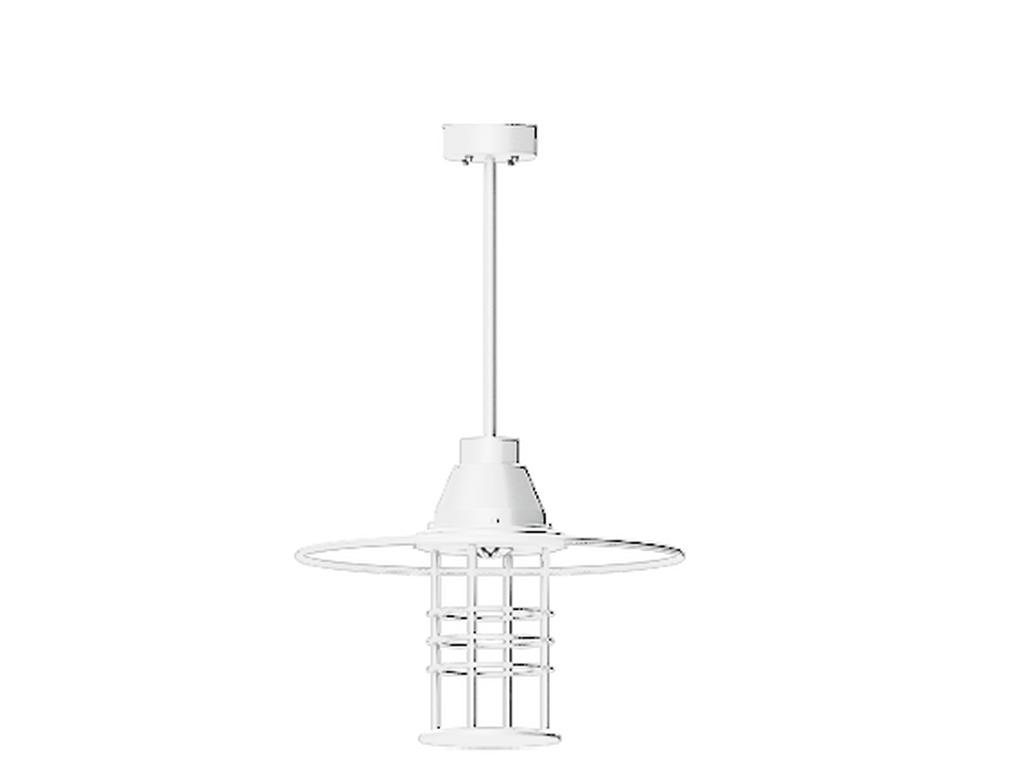

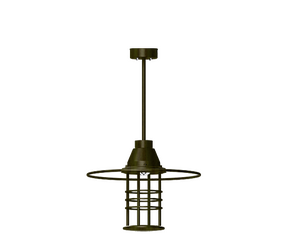

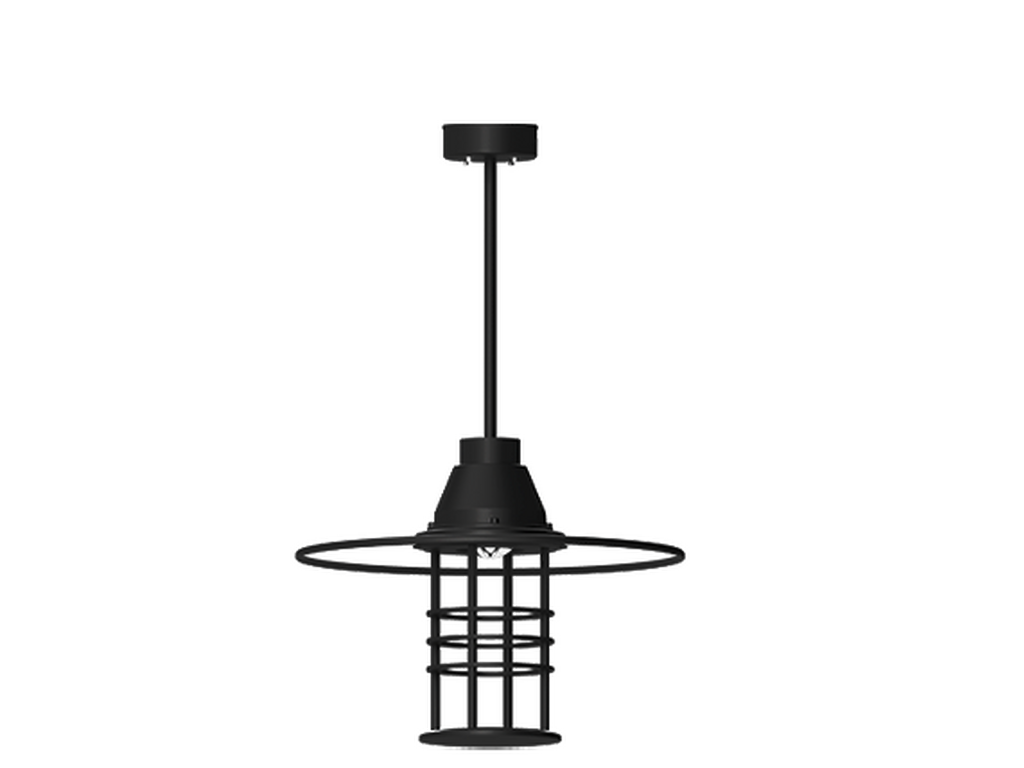

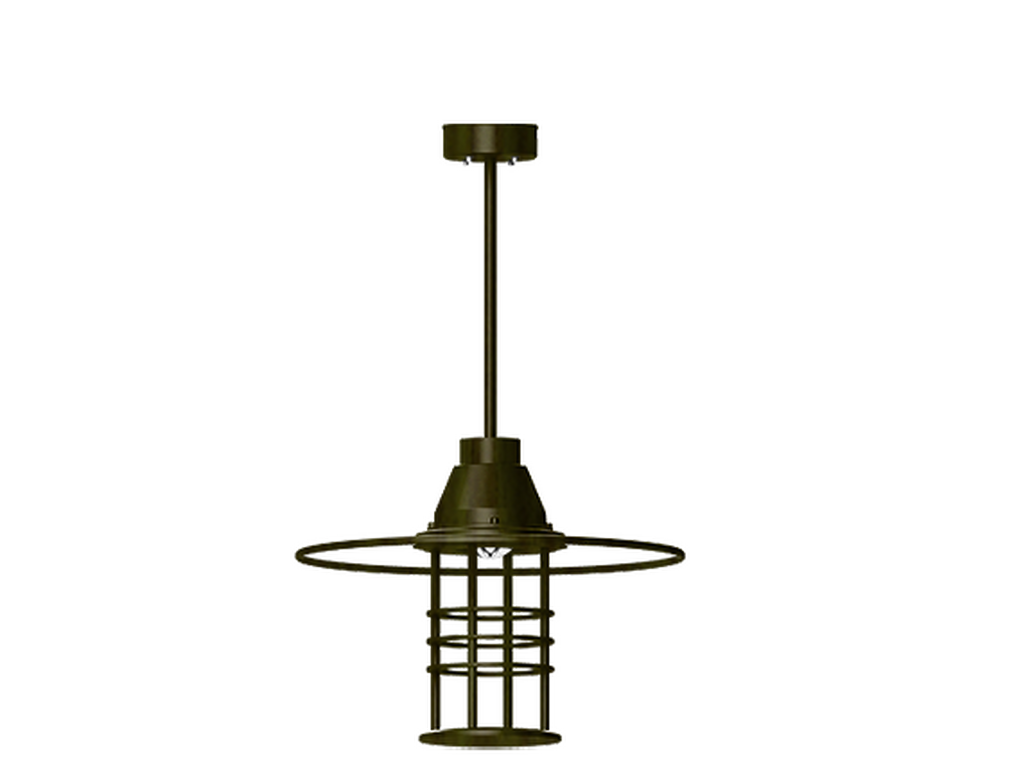

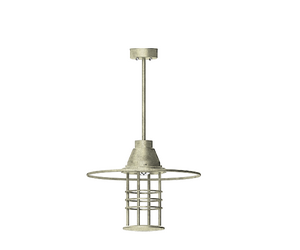

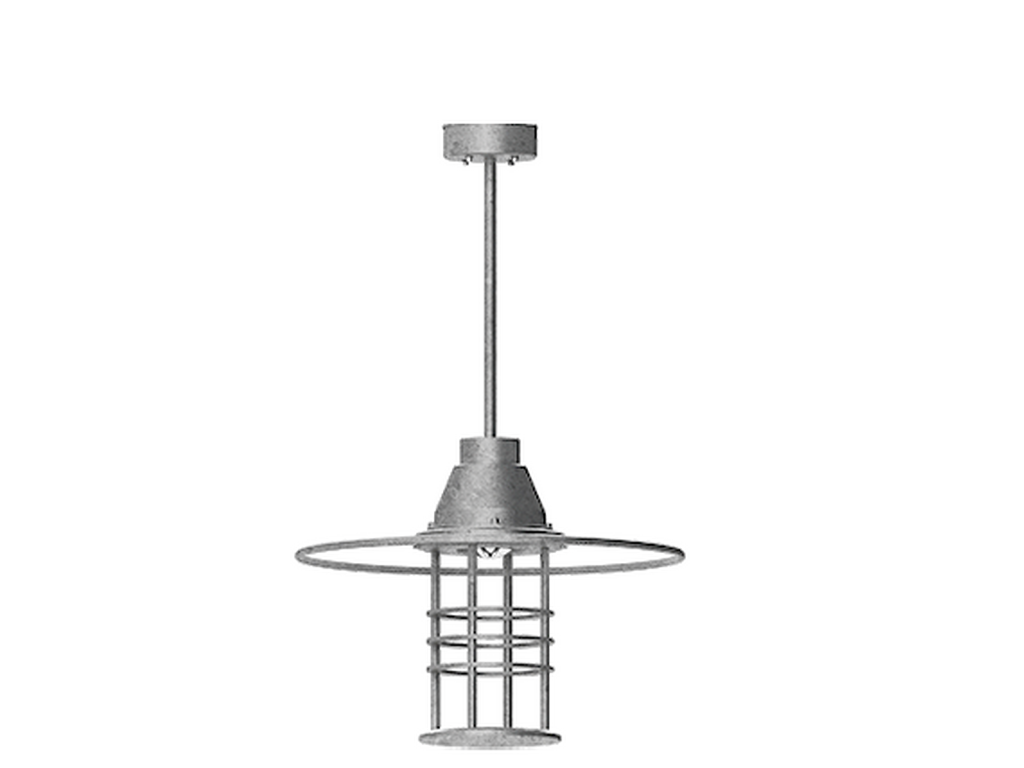

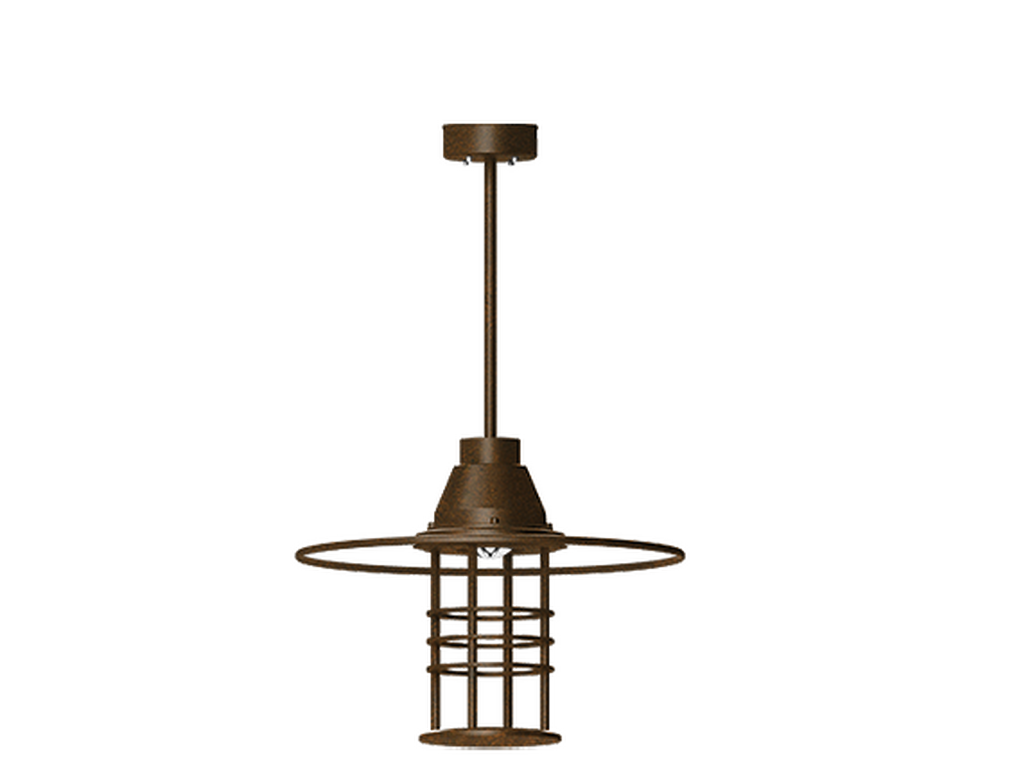

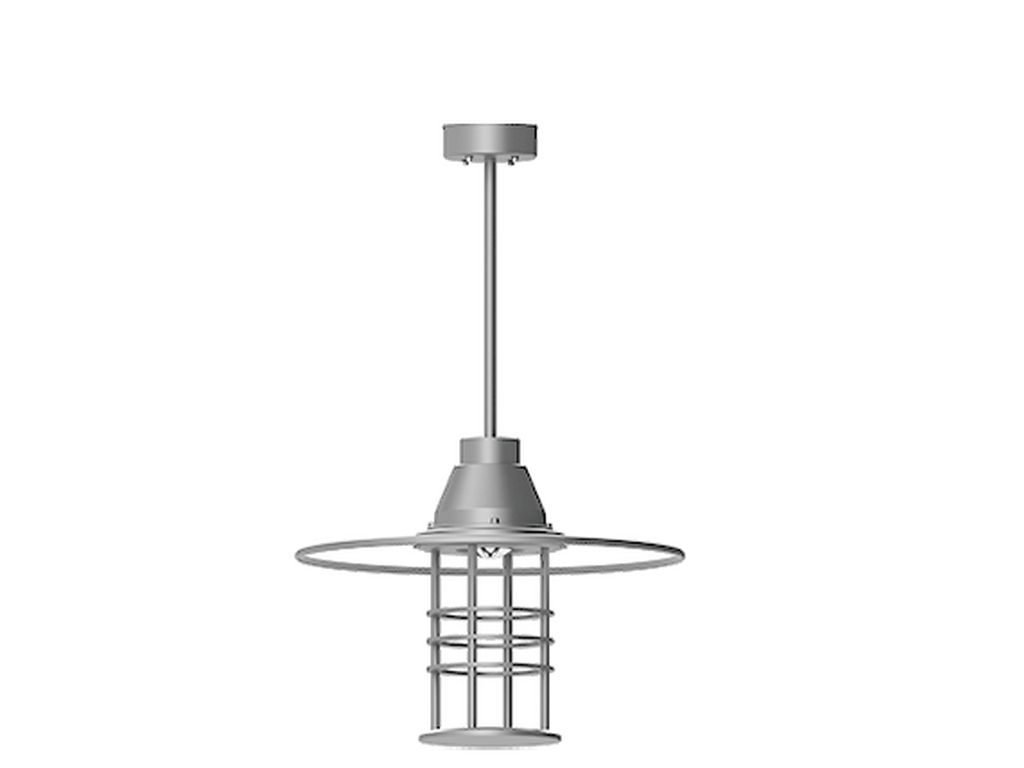

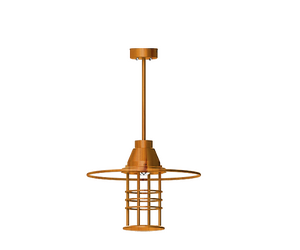

FORREY 26FOR-95002FORREY
Ø660 - 1046 mm - With shade & louver
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
1 COB
Power (W)
47.5 W
Lumen (lm)
3413 - 3749 lm
Efficacy (lm/W)
72 - 79 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
143˚x84˚, 141˚x89˚, 129˚x115˚, 143˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G2, B3-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
93, 94, 95, 96
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.0 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code

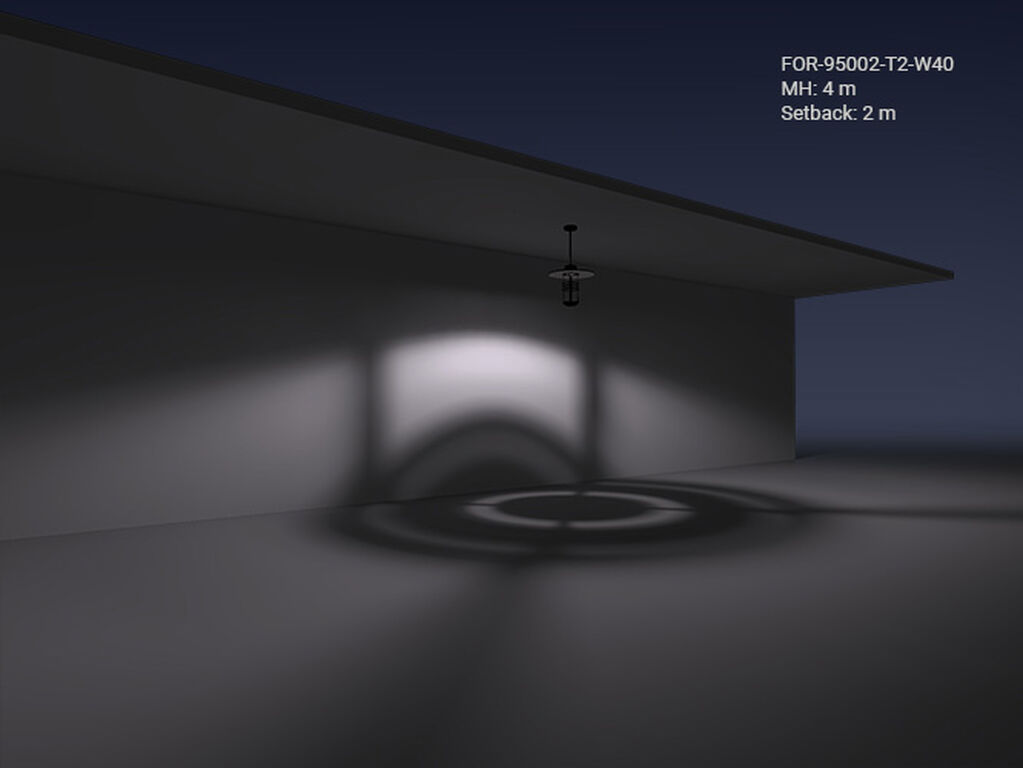

LIGHT EFFECT
Optic
T2 (143˚x84˚)
T3 (141˚x89˚)
T4 (129˚x115˚)
T5 (143˚)
