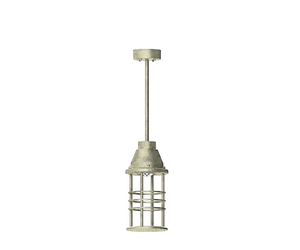

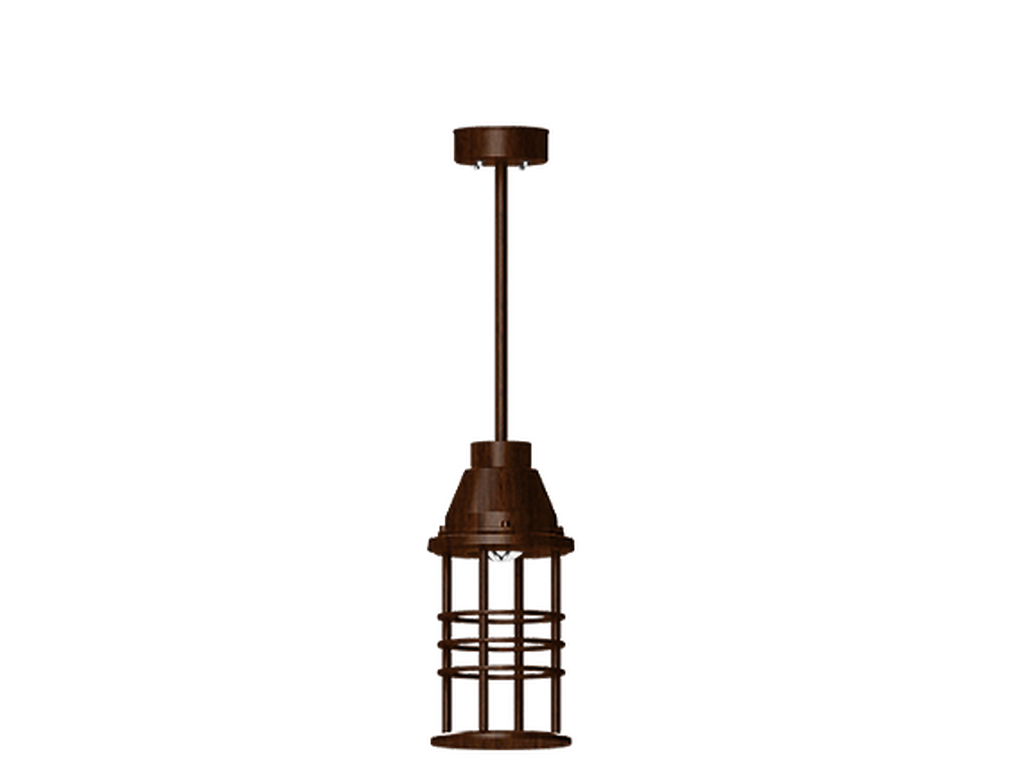

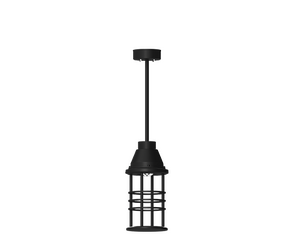

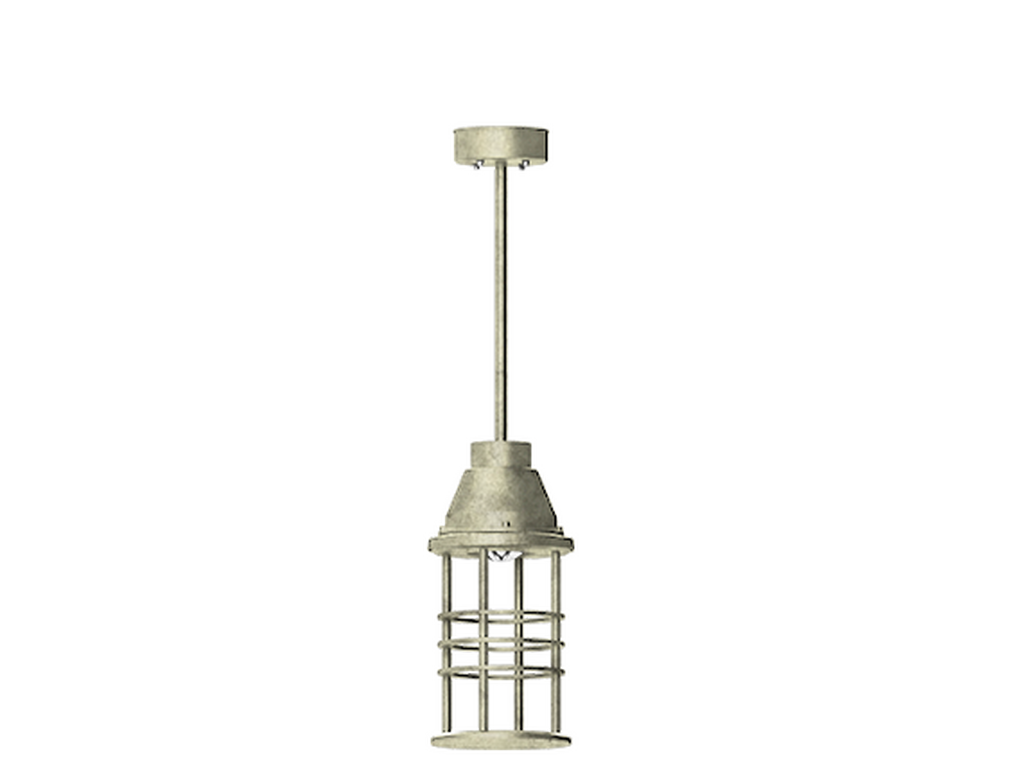

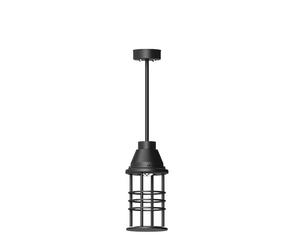

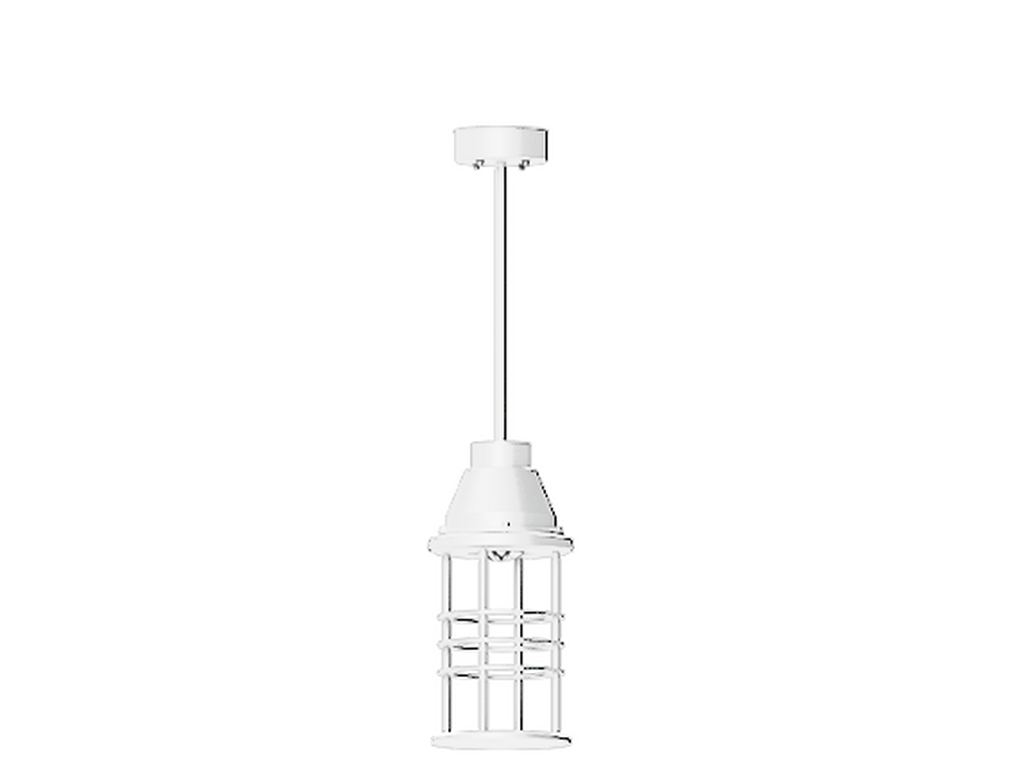

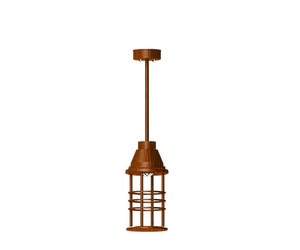

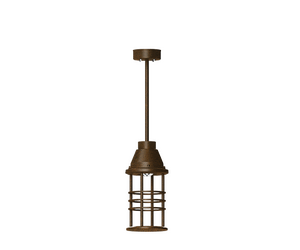

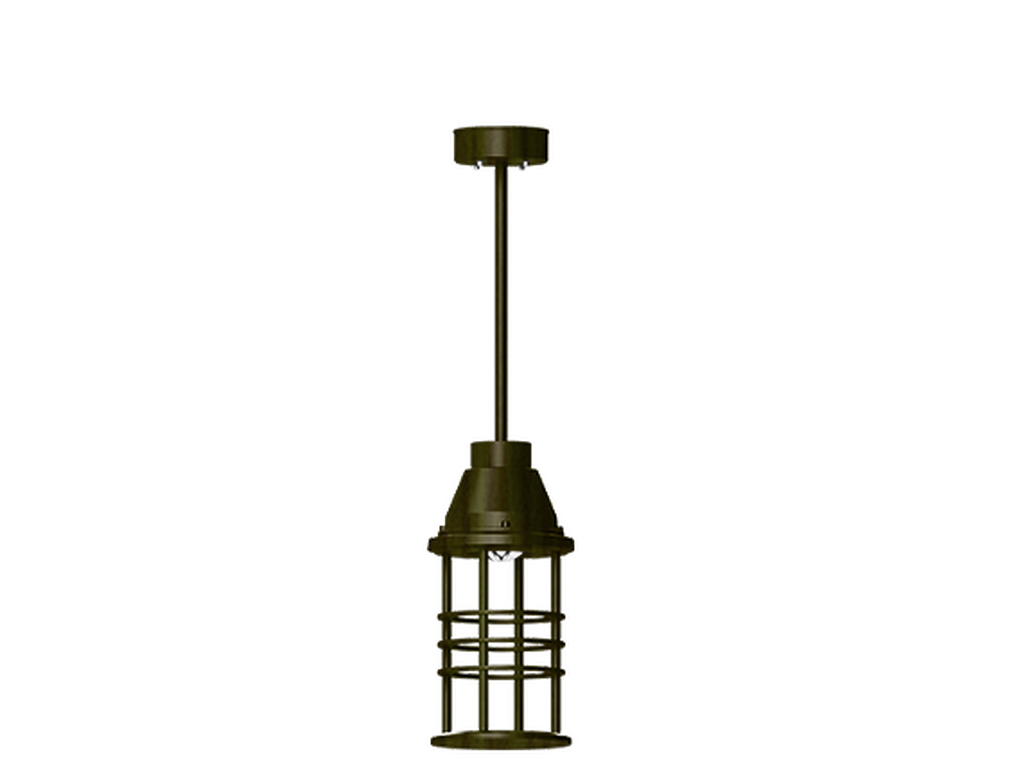

FORREY 30
Ø250 - 1046 mm - With louver
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
47.5 W
Lumen (lm)
3191 - 3711 lm
Efficacy (lm/W)
67 - 78 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
140˚x100˚, 132˚x103˚, 137˚x117˚, 73˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
6.8 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
T2 (140˚x100˚)
T3 (132˚x103˚)
T4 (137˚x117˚)
T5 (73˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

PROJECT REFERENCE (FORREY Pendant luminaires)
