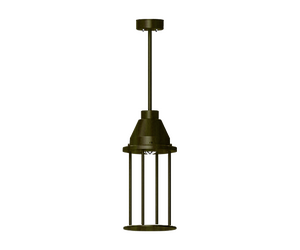

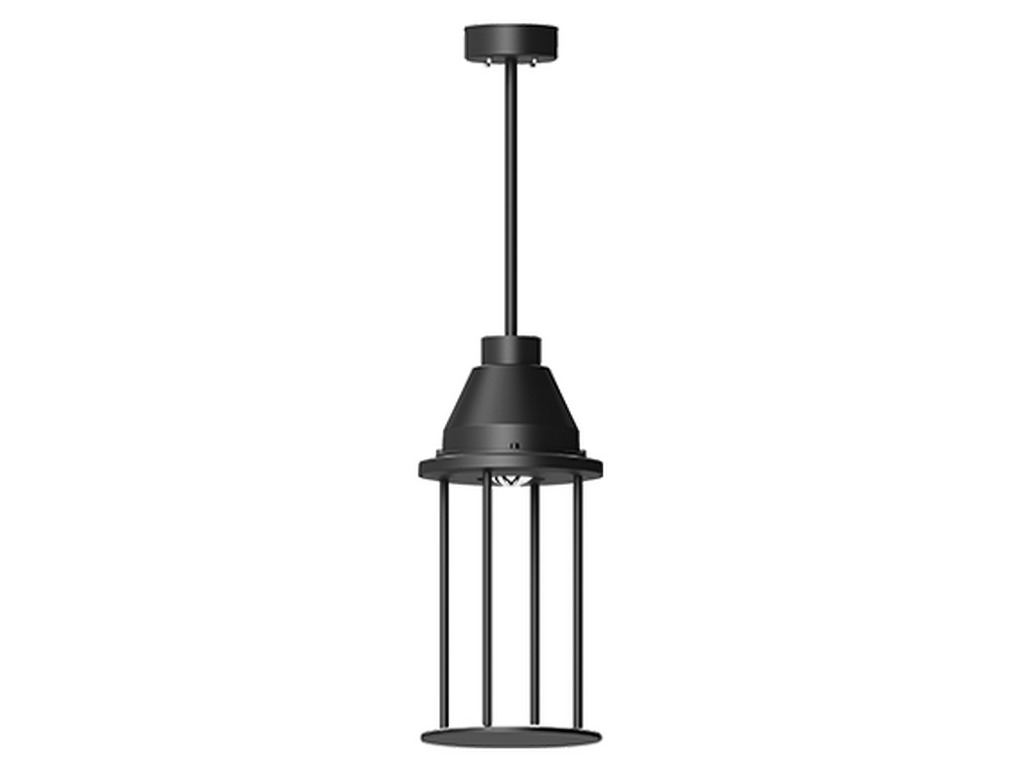

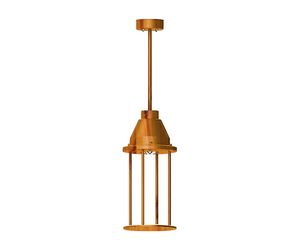

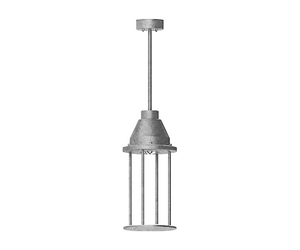

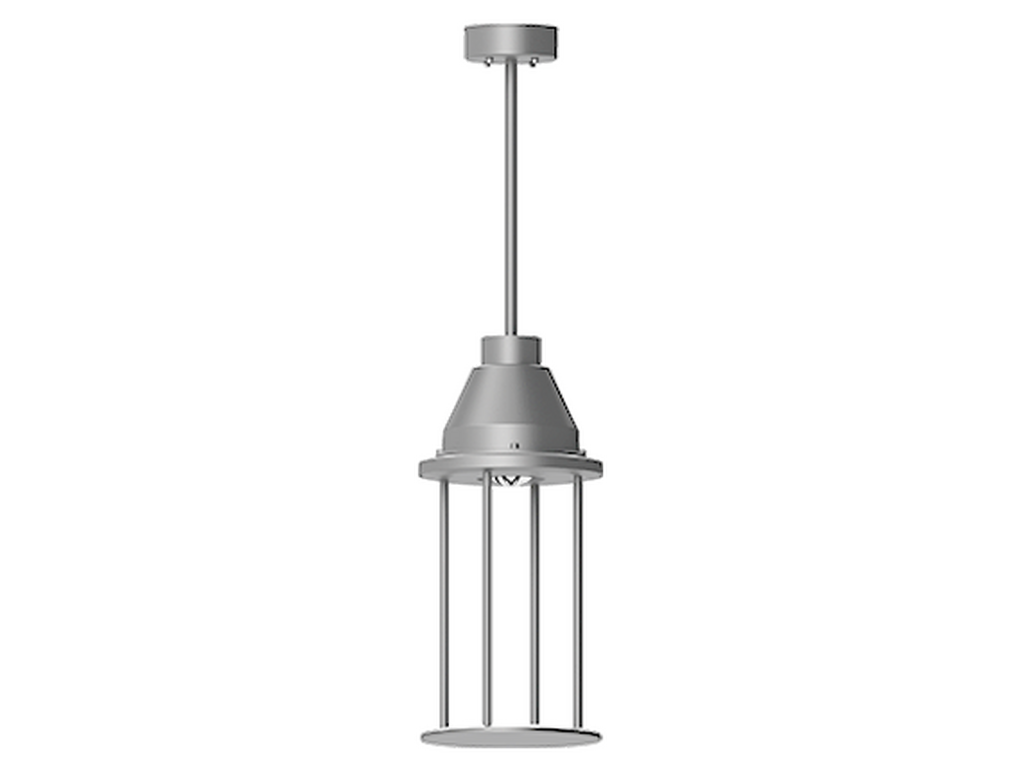

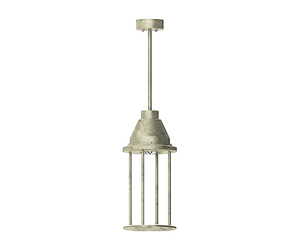

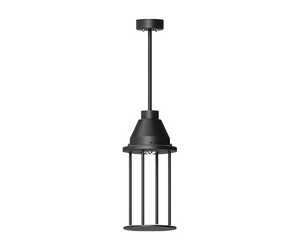

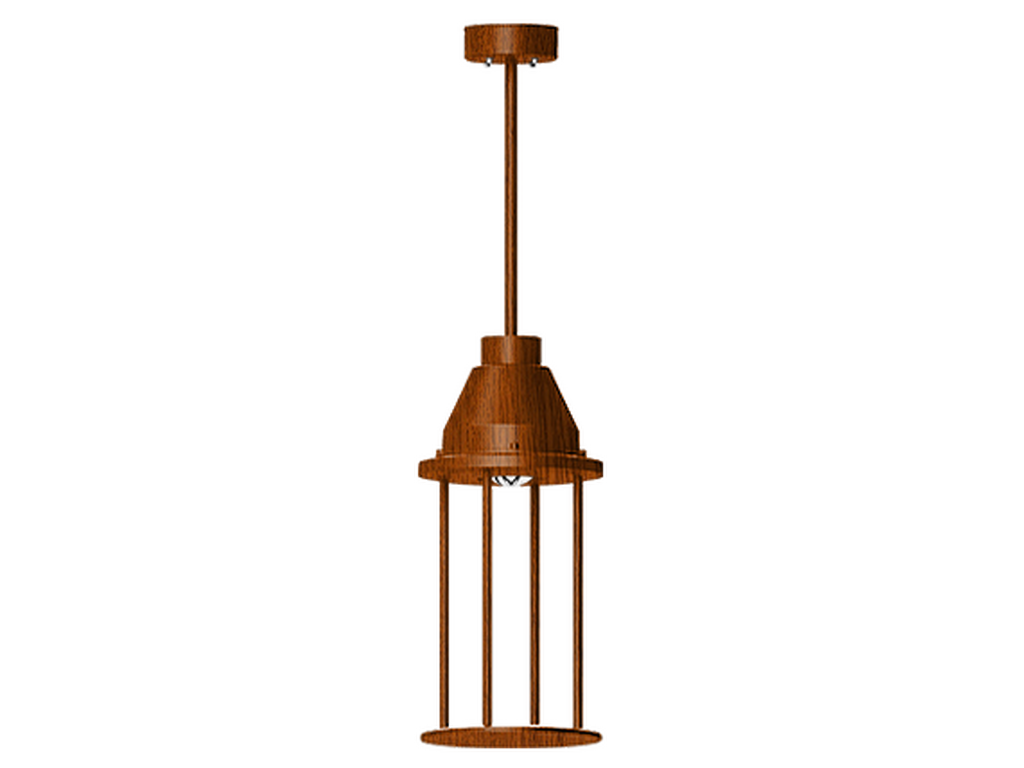

FORREY 31
Ø320 - 1224 mm
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
69.6 W
Lumen (lm)
7196 - 8415 lm
Efficacy (lm/W)
103 - 121 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
145˚x87˚, 141˚x91˚, 134˚x118˚, 145˚
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B3-U2-G1, B3-U2-G3
ULR
1%
ULOR
1%
CIE flux code nº3
93, 94, 96
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
9.6 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
T2 (145˚x87˚)
T3 (141˚x91˚)
T4 (134˚x118˚)
T5 (145˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

PROJECT REFERENCE (FORREY Pendant luminaires)
