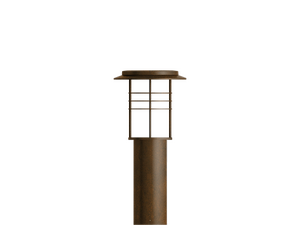

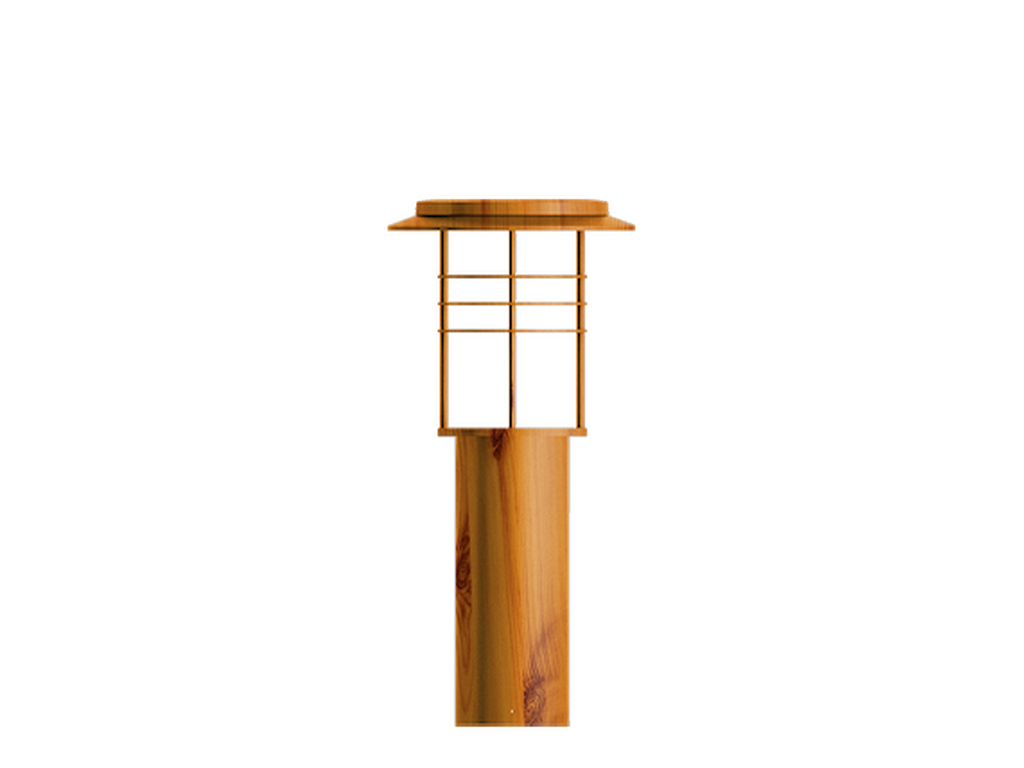

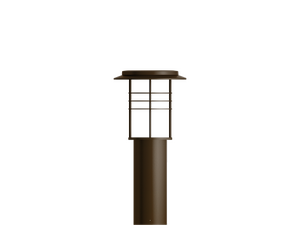

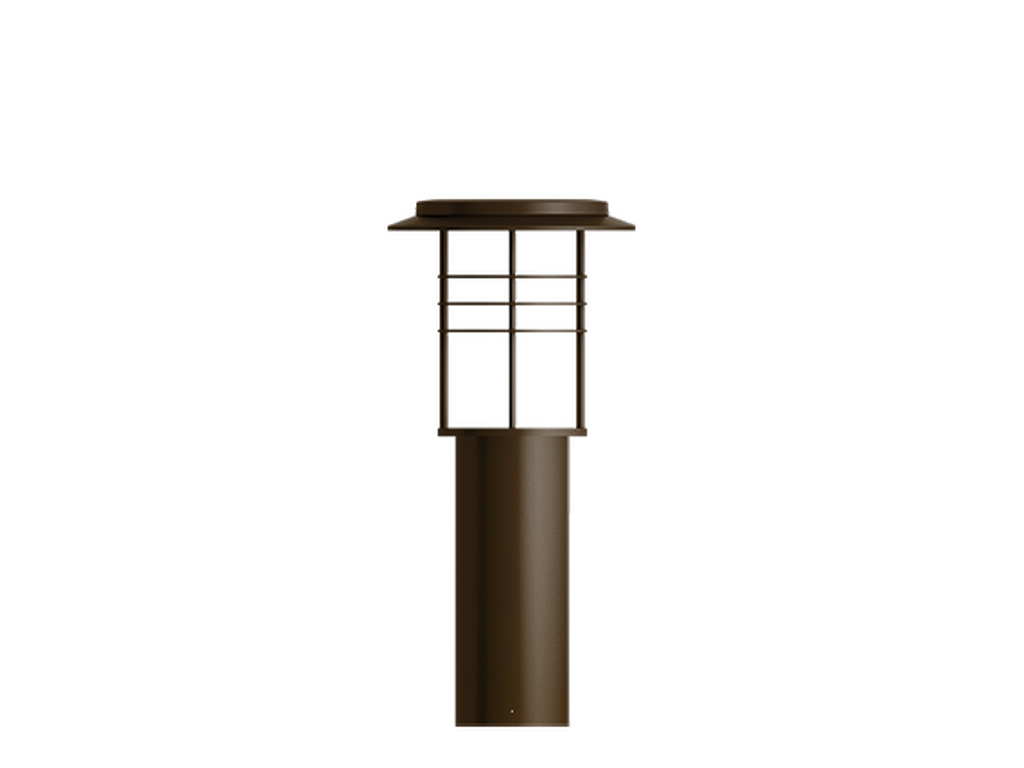

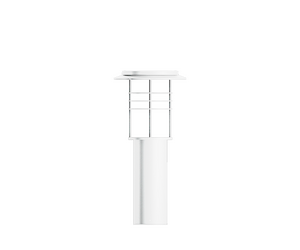

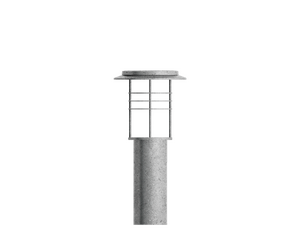

FORREY 4
Ø186 - 874 mm - With shade & louver - With integrated security core (Anti-traffic)
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Light source
1 COB
Power (W)
47.5 W
Lumen (lm)
3234 - 3527 lm
Efficacy (lm/W)
68 - 74 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
140˚x100˚, 132˚x103˚, 137˚x117˚, 73˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Weight
12.3 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
T2 (140˚x100˚)
T3 (132˚x103˚)
T4 (137˚x117˚)
T5 (73˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-10082-SB-T2-8030-ND
Lumen (lm): 3269 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T2-8040-ND
Lumen (lm): 3515 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T2-8030-DI
Lumen (lm): 3269 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T2-8040-DI
Lumen (lm): 3515 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T2-8030-DA
Lumen (lm): 3269 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T2-8040-DA
Lumen (lm): 3515 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T3-8030-ND
Lumen (lm): 3234 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T3-8040-ND
Lumen (lm): 3478 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T3-8030-DI
Lumen (lm): 3234 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T3-8040-DI
Lumen (lm): 3478 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T3-8030-DA
Lumen (lm): 3234 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T3-8040-DA
Lumen (lm): 3478 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T4-8030-ND
Lumen (lm): 3273 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T4-8040-ND
Lumen (lm): 3520 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T4-8030-DI
Lumen (lm): 3273 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T4-8040-DI
Lumen (lm): 3520 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T4-8030-DA
Lumen (lm): 3273 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T4-8040-DA
Lumen (lm): 3520 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T5-8030-ND
Lumen (lm): 3280 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T5-8040-ND
Lumen (lm): 3527 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10082-SB-T5-8030-DI
Lumen (lm): 3280 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T5-8040-DI
Lumen (lm): 3527 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10082-SB-T5-8030-DA
Lumen (lm): 3280 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10082-SB-T5-8040-DA
Lumen (lm): 3527 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
