FORREY 4FOR-10102-SBFORREY

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

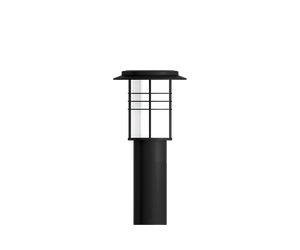

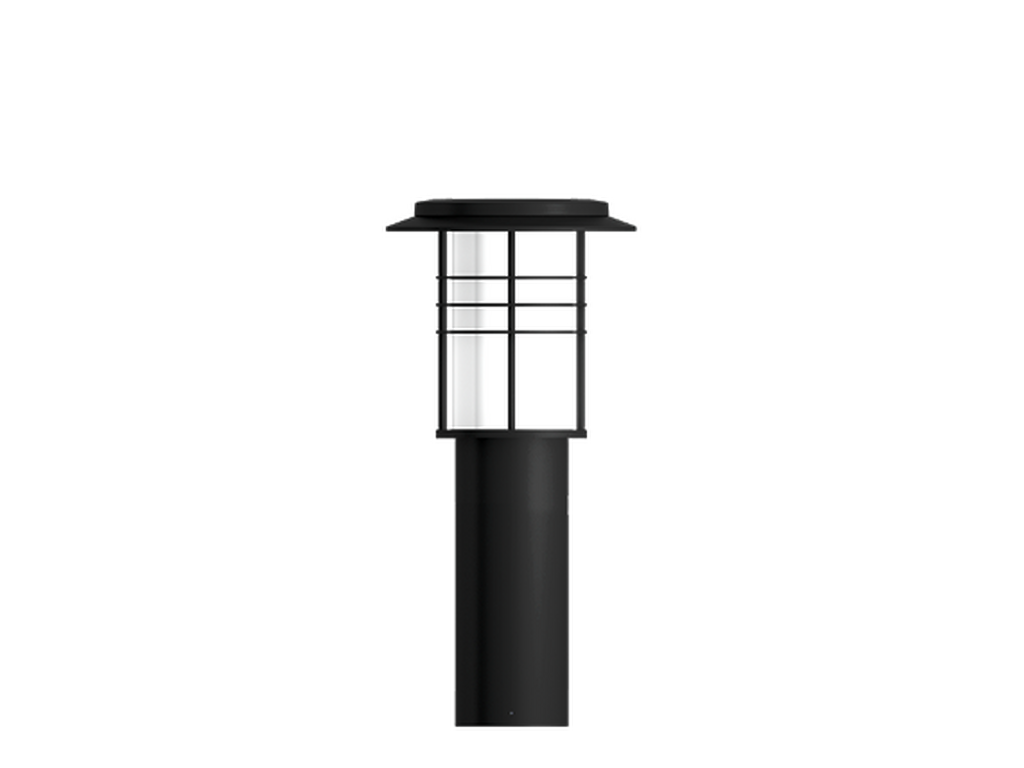

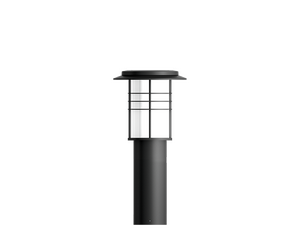

FORREY 4Black

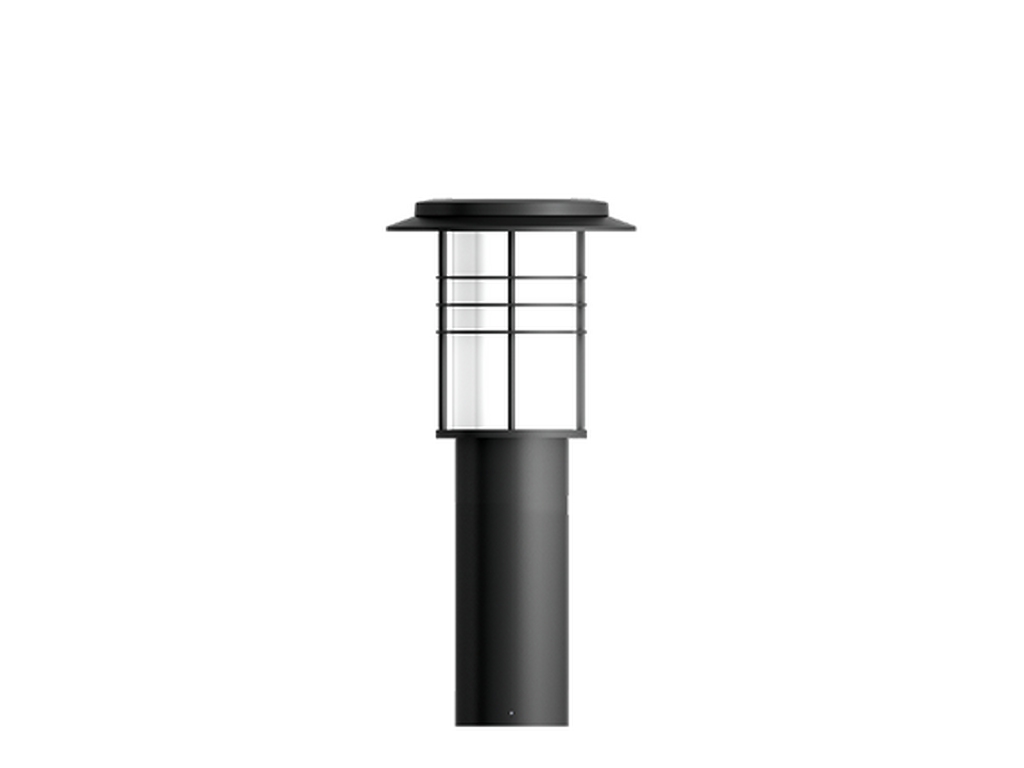

FORREY 4Dark Grey

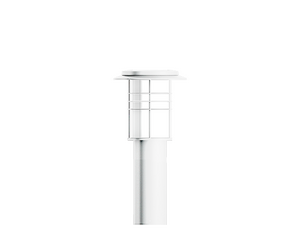

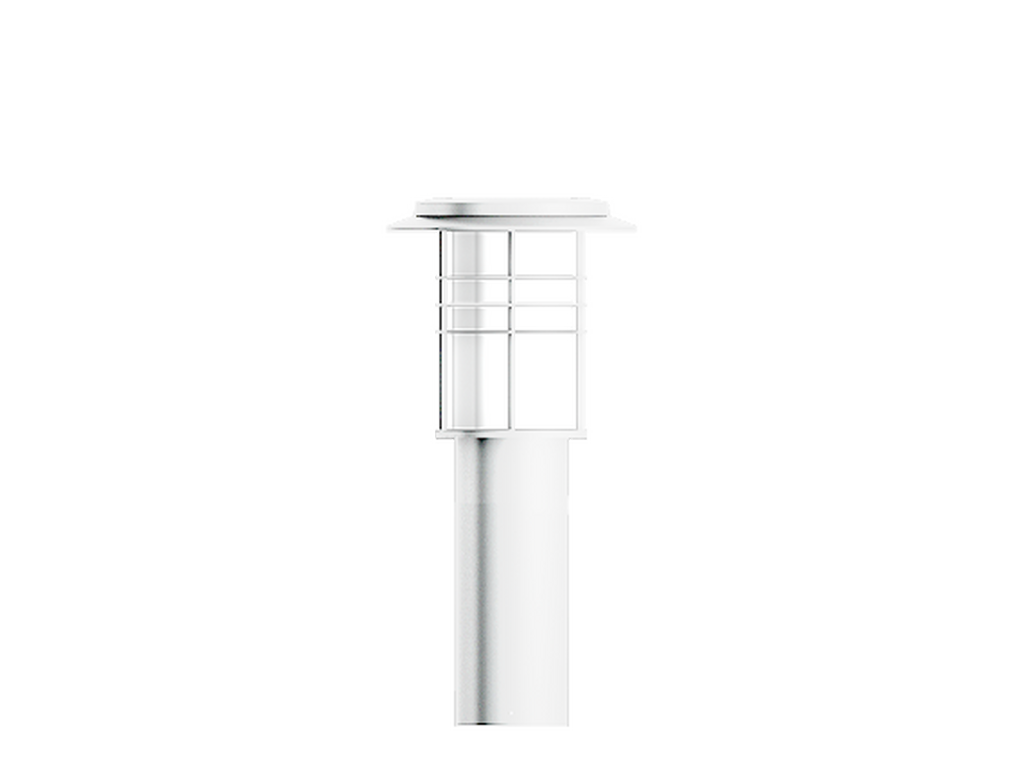

FORREY 4White
FORREY 4Matt Silver

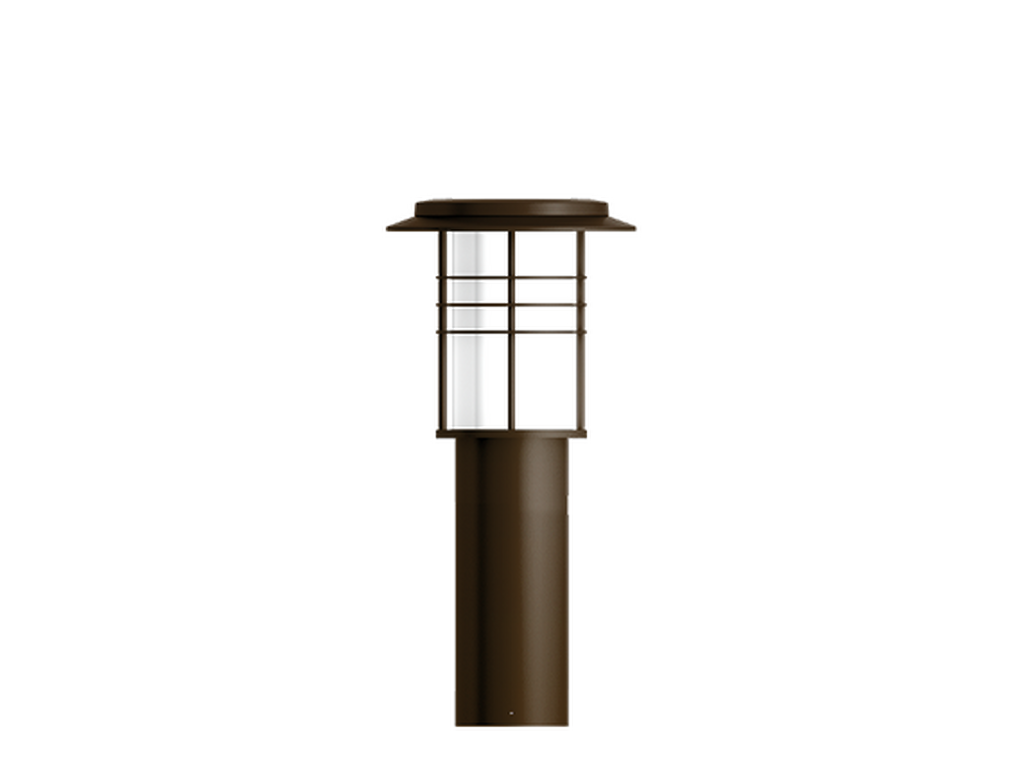

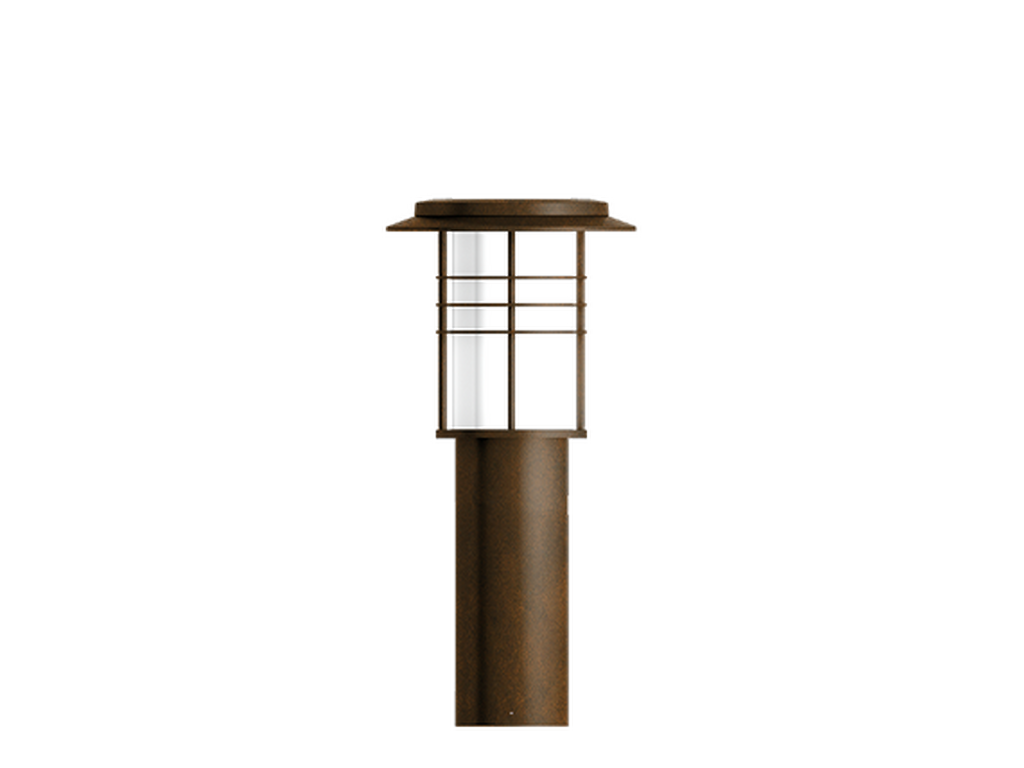

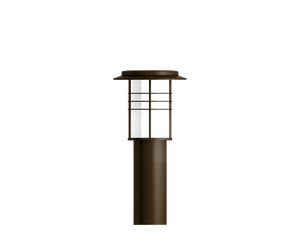

FORREY 4Bronze

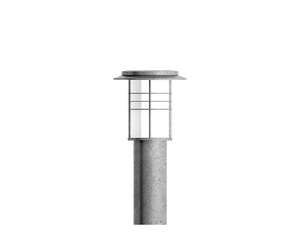

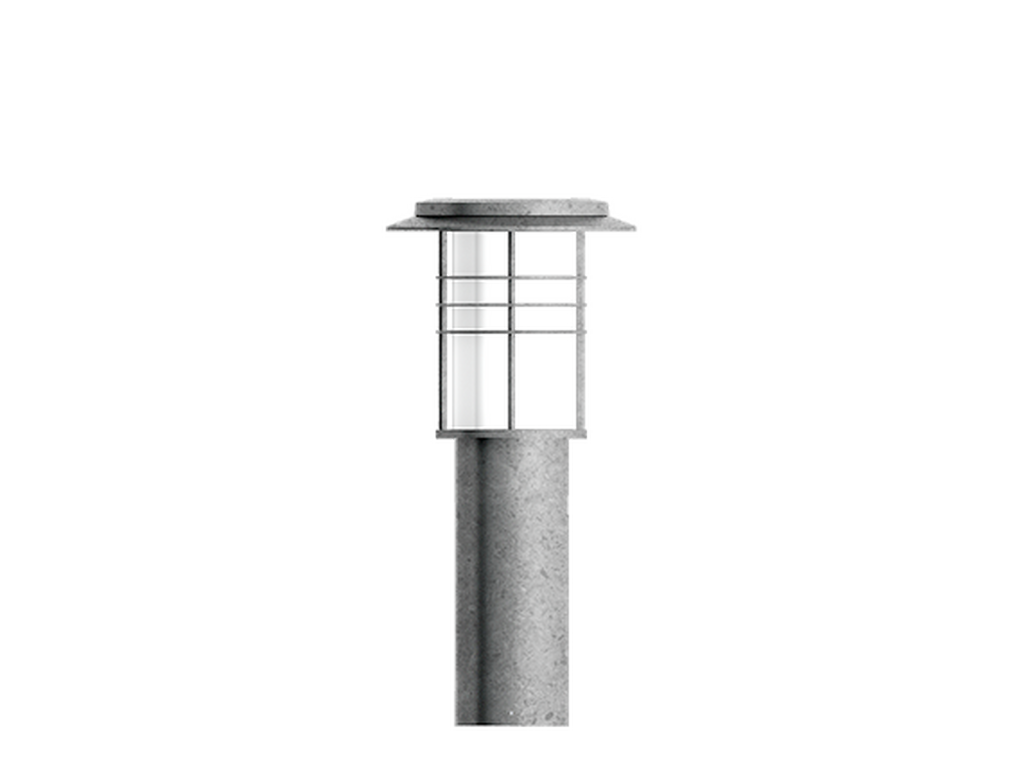

FORREY 4Concrete - Urban
FORREY 4Softscape - Urban

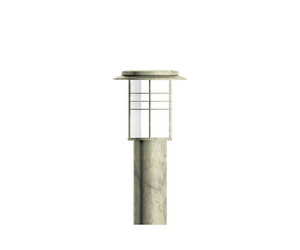

FORREY 4Stone - Urban

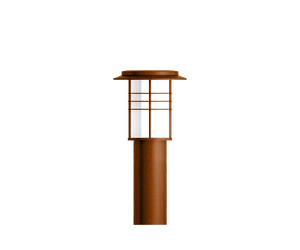

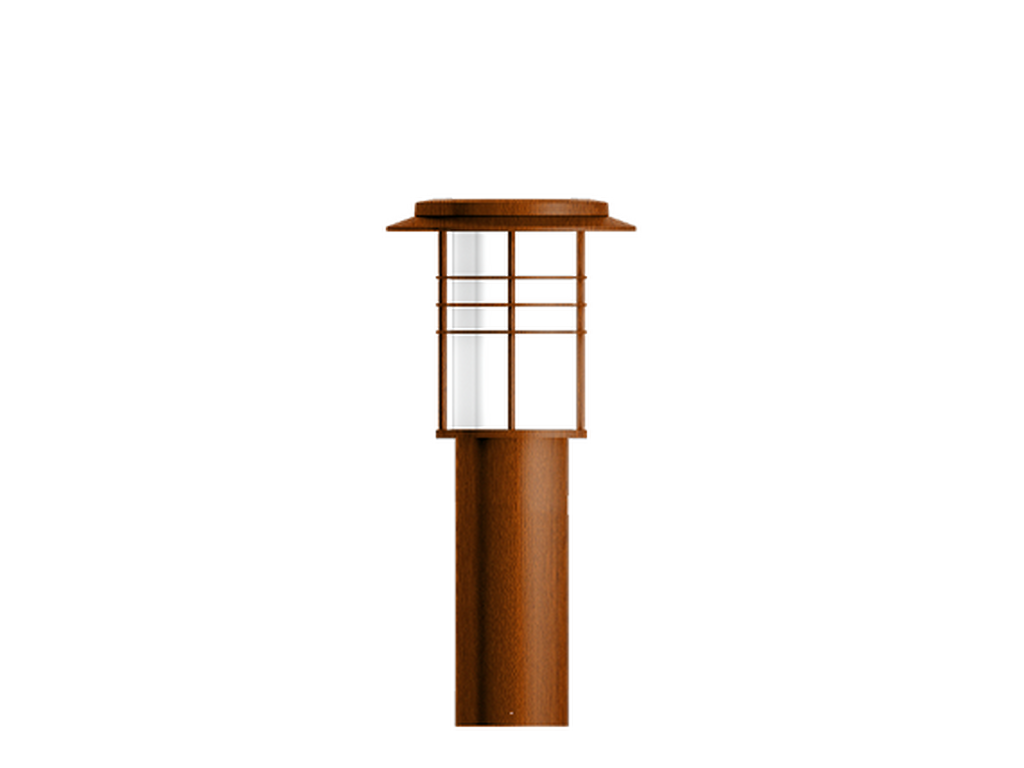

FORREY 4Corten - Urban

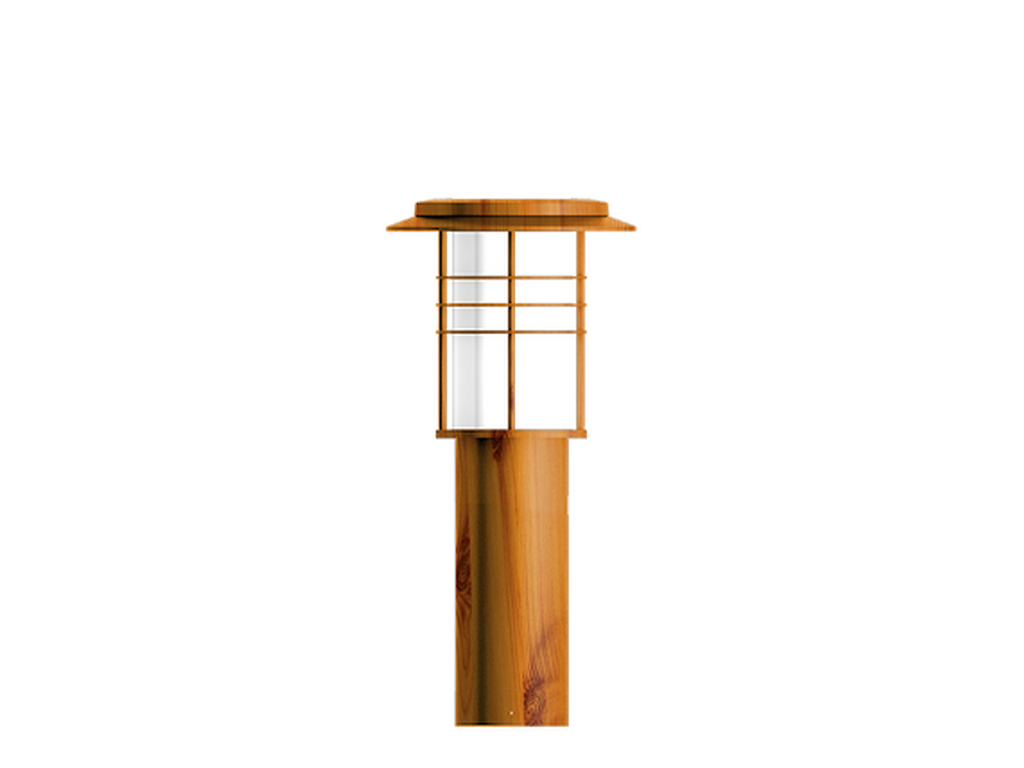

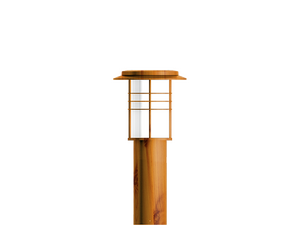

FORREY 4Oak - Woodland

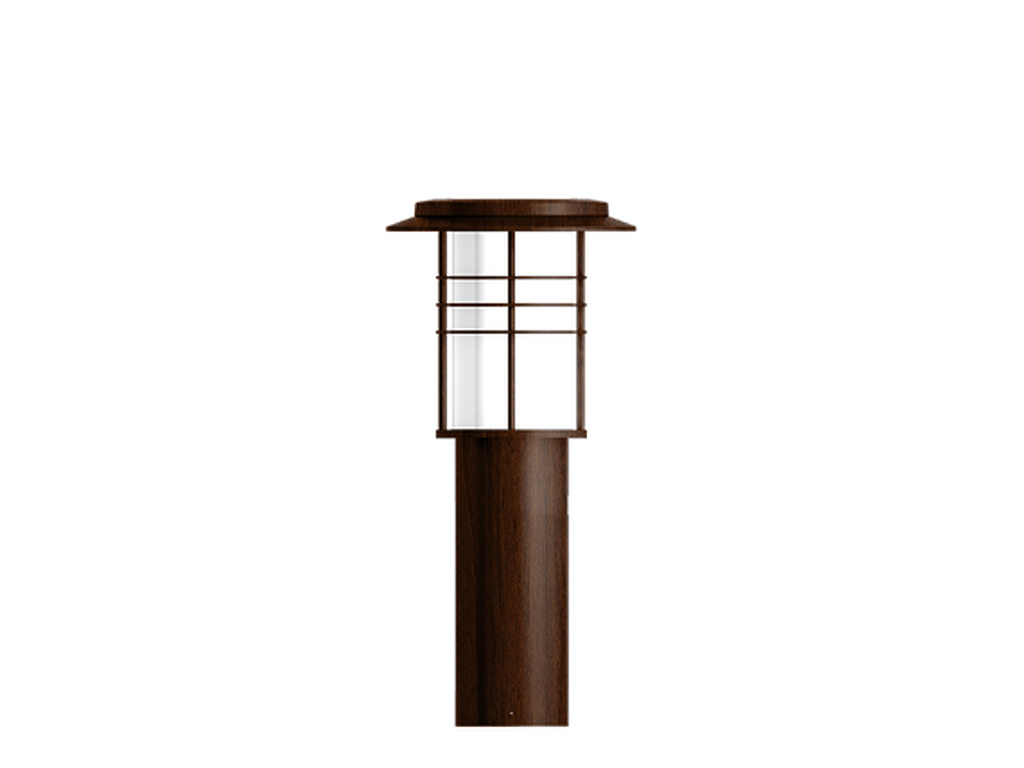

FORREY 4Walnut - Woodland

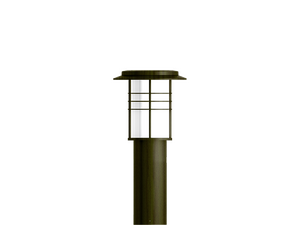

FORREY 4Pine - Woodland
FORREY 4Black
FORREY 4Dark Grey
FORREY 4White
FORREY 4Matt Silver
FORREY 4Bronze
FORREY 4Concrete - Urban
FORREY 4Softscape - Urban
FORREY 4Stone - Urban
FORREY 4Corten - Urban
FORREY 4Oak - Woodland
FORREY 4Walnut - Woodland
FORREY 4Pine - Woodland
Ø186 - 874 mm - With shade & louver - With integrated security core (Anti-traffic)
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Light source
1 COB
Power (W)
50.2 W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Weight
14.0 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
White coated aluminium reflector on the top of luminaire, Opal UV-stabilised polycarbonate diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (360˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-10102-SB-G-8030-ND
Lumen (lm): lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10102-SB-G-8040-ND
Lumen (lm): lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10102-SB-G-8030-DI
Lumen (lm): lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10102-SB-G-8040-DI
Lumen (lm): lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10102-SB-G-8030-DA
Lumen (lm): lm
Optic: G
Optic value: 360˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10102-SB-G-8040-DA
Lumen (lm): lm
Optic: G
Optic value: 360˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
