LIGMAN FORREY 7 FOR-10131-SB.

FORREY 7FOR-10131-SBFORREY

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

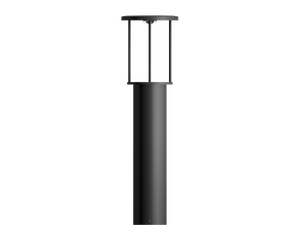

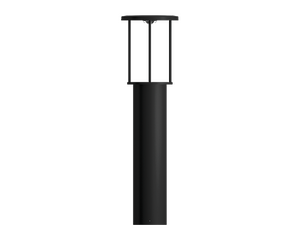

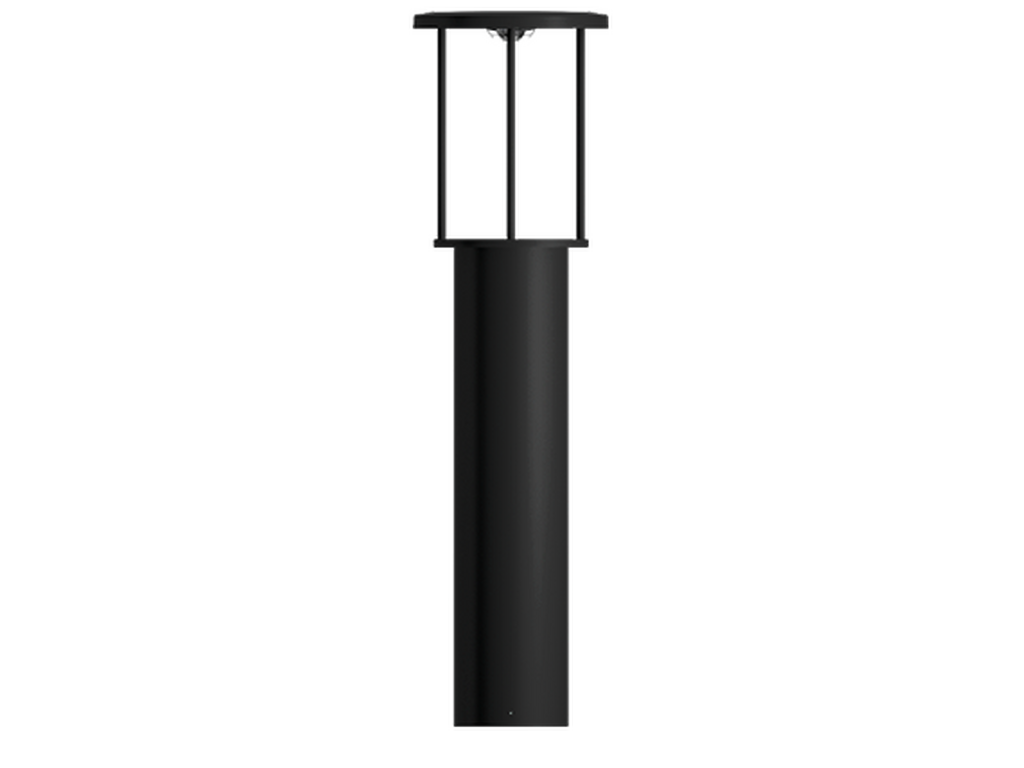

FORREY 7Black

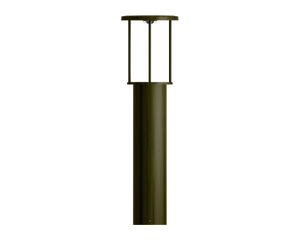

FORREY 7Dark Grey

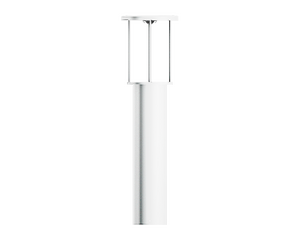

FORREY 7White

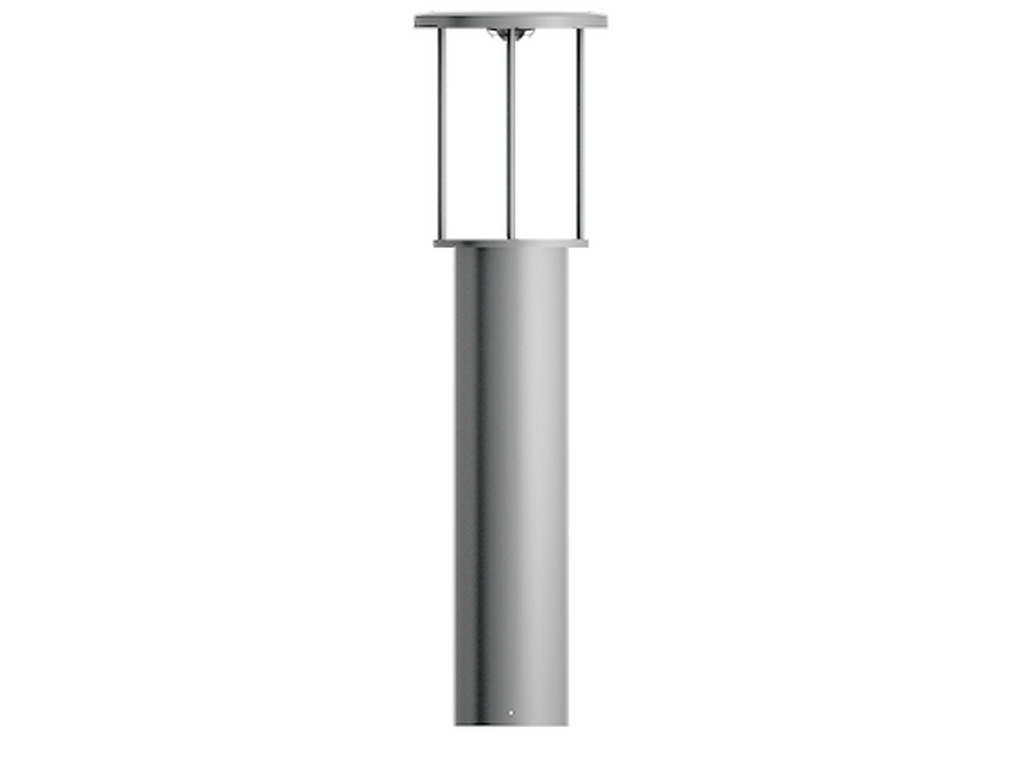

FORREY 7Matt Silver

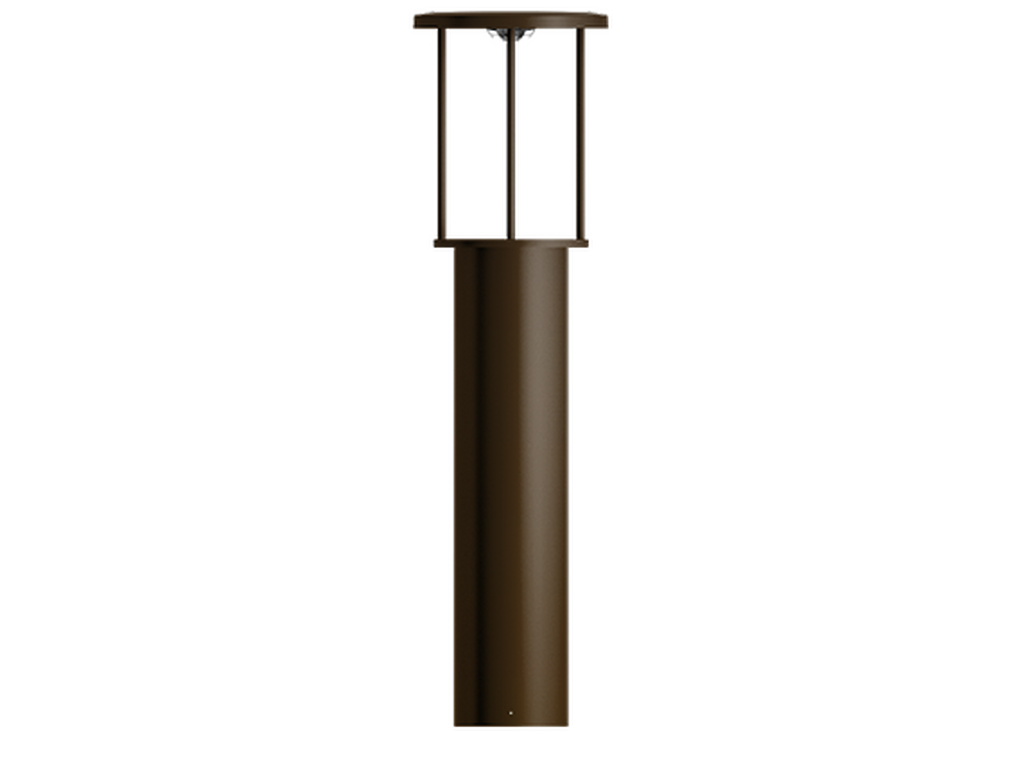

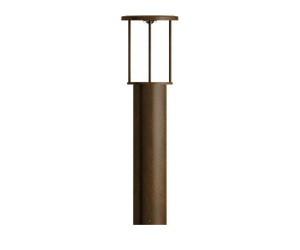

FORREY 7Bronze

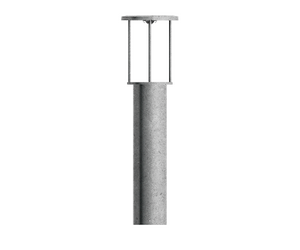

FORREY 7Concrete - Urban
FORREY 7Softscape - Urban
FORREY 7Stone - Urban

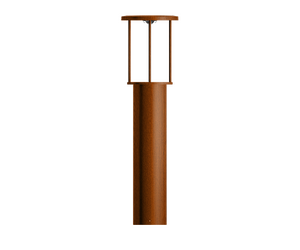

FORREY 7Corten - Urban
FORREY 7Oak - Woodland

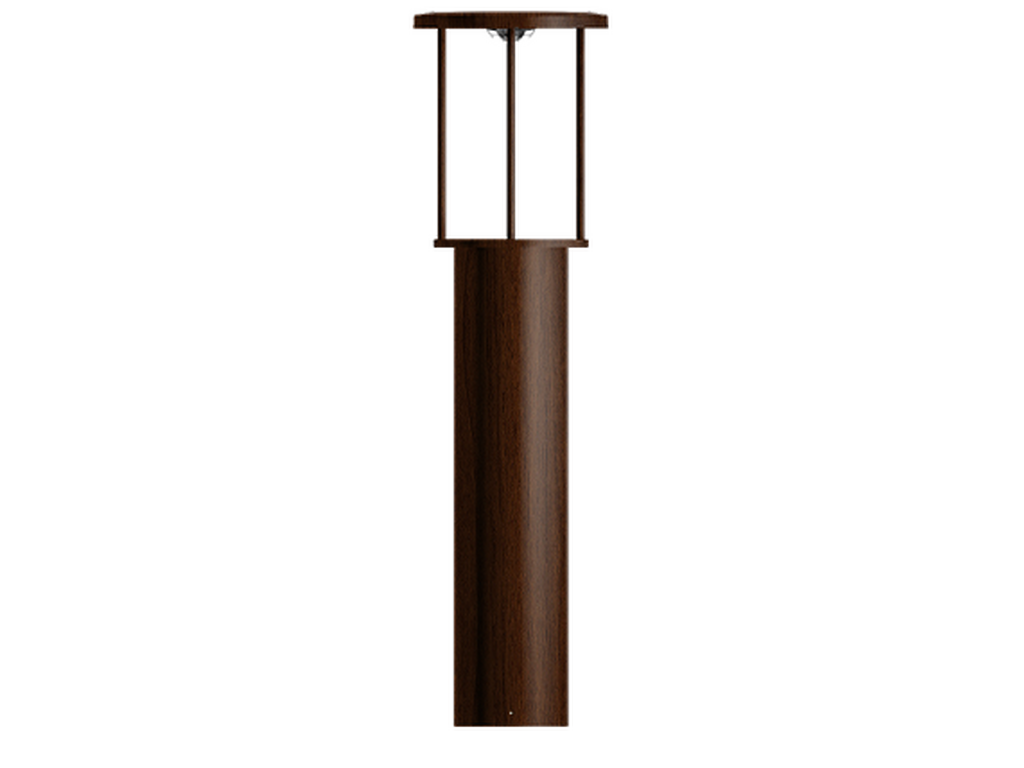

FORREY 7Walnut - Woodland

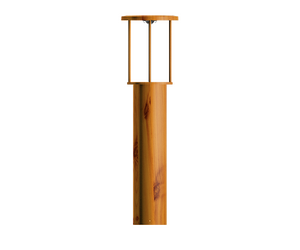

FORREY 7Pine - Woodland
FORREY 7Black
FORREY 7Dark Grey
FORREY 7White
FORREY 7Matt Silver
FORREY 7Bronze

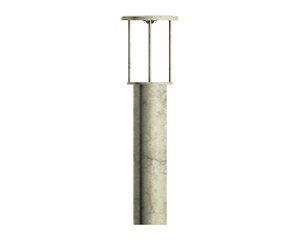

FORREY 7Concrete - Urban
FORREY 7Softscape - Urban
FORREY 7Stone - Urban
FORREY 7Corten - Urban
FORREY 7Oak - Woodland
FORREY 7Walnut - Woodland
FORREY 7Pine - Woodland
Ø186 - 1179 mm - With opal diffuser - With integrated security core (Anti-traffic)
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Light source
160 LED
Power (W)
47.5 W
Lumen (lm)
4221 - 4780 lm
Efficacy (lm/W)
89 - 101 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
142˚x87˚, 131˚x100˚, 128˚x118˚, 143˚x89˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Weight
11.5 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
T2 (142˚x87˚)
T3 (131˚x100˚)
T4 (128˚x118˚)
T5 (143˚x89˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-10131-SB-T2-8030-ND
Lumen (lm): 4445 lm
Optic: T2
Optic value: 142˚x87˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T2-8040-ND
Lumen (lm): 4780 lm
Optic: T2
Optic value: 142˚x87˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T2-8030-DI
Lumen (lm): 4445 lm
Optic: T2
Optic value: 142˚x87˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T2-8040-DI
Lumen (lm): 4780 lm
Optic: T2
Optic value: 142˚x87˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T2-8030-DA
Lumen (lm): 4445 lm
Optic: T2
Optic value: 142˚x87˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T2-8040-DA
Lumen (lm): 4780 lm
Optic: T2
Optic value: 142˚x87˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T3-8030-ND
Lumen (lm): 4363 lm
Optic: T3
Optic value: 131˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T3-8040-ND
Lumen (lm): 4691 lm
Optic: T3
Optic value: 131˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T3-8030-DI
Lumen (lm): 4363 lm
Optic: T3
Optic value: 131˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T3-8040-DI
Lumen (lm): 4691 lm
Optic: T3
Optic value: 131˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T3-8030-DA
Lumen (lm): 4363 lm
Optic: T3
Optic value: 131˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T3-8040-DA
Lumen (lm): 4691 lm
Optic: T3
Optic value: 131˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T4-8030-ND
Lumen (lm): 4347 lm
Optic: T4
Optic value: 128˚x118˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T4-8040-ND
Lumen (lm): 4674 lm
Optic: T4
Optic value: 128˚x118˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T4-8030-DI
Lumen (lm): 4347 lm
Optic: T4
Optic value: 128˚x118˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T4-8040-DI
Lumen (lm): 4674 lm
Optic: T4
Optic value: 128˚x118˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T4-8030-DA
Lumen (lm): 4347 lm
Optic: T4
Optic value: 128˚x118˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T4-8040-DA
Lumen (lm): 4674 lm
Optic: T4
Optic value: 128˚x118˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T5-8030-ND
Lumen (lm): 4221 lm
Optic: T5
Optic value: 143˚x89˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T5-8040-ND
Lumen (lm): 4539 lm
Optic: T5
Optic value: 143˚x89˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10131-SB-T5-8030-DI
Lumen (lm): 4221 lm
Optic: T5
Optic value: 143˚x89˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T5-8040-DI
Lumen (lm): 4539 lm
Optic: T5
Optic value: 143˚x89˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10131-SB-T5-8030-DA
Lumen (lm): 4221 lm
Optic: T5
Optic value: 143˚x89˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10131-SB-T5-8040-DA
Lumen (lm): 4539 lm
Optic: T5
Optic value: 143˚x89˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:

ACCESSORY

PROJECT REFERENCE (FORREY Bollards)
