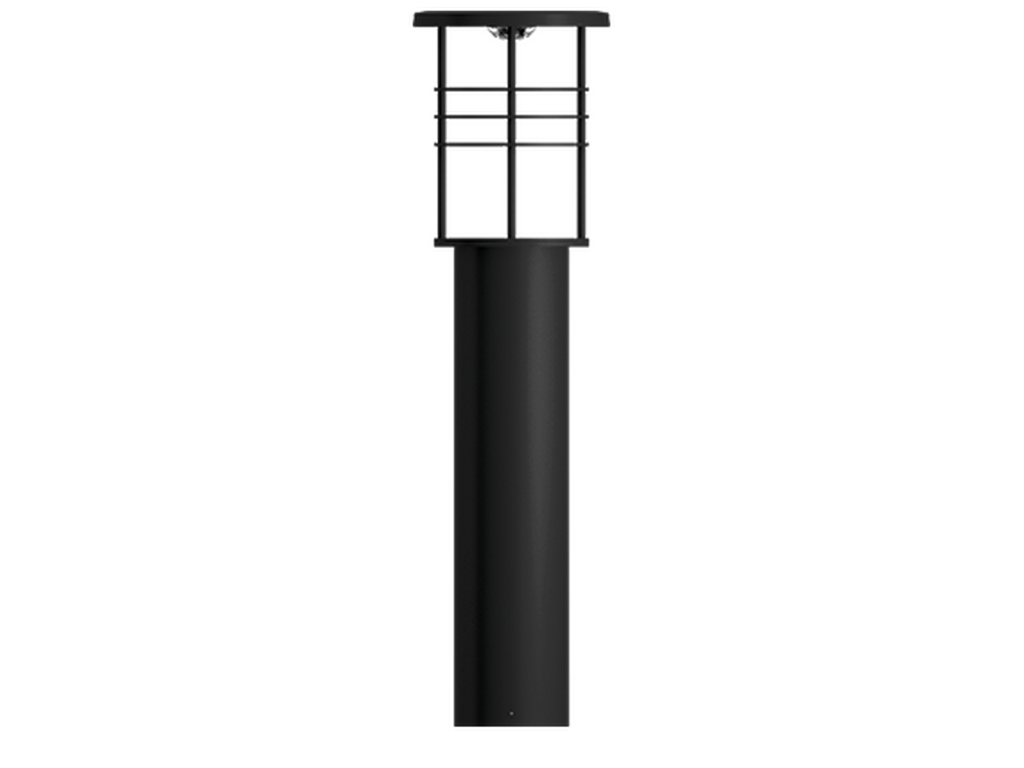

LIGMAN FORREY 8 FOR-10132-SB.

FORREY 8FOR-10132-SBFORREY

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

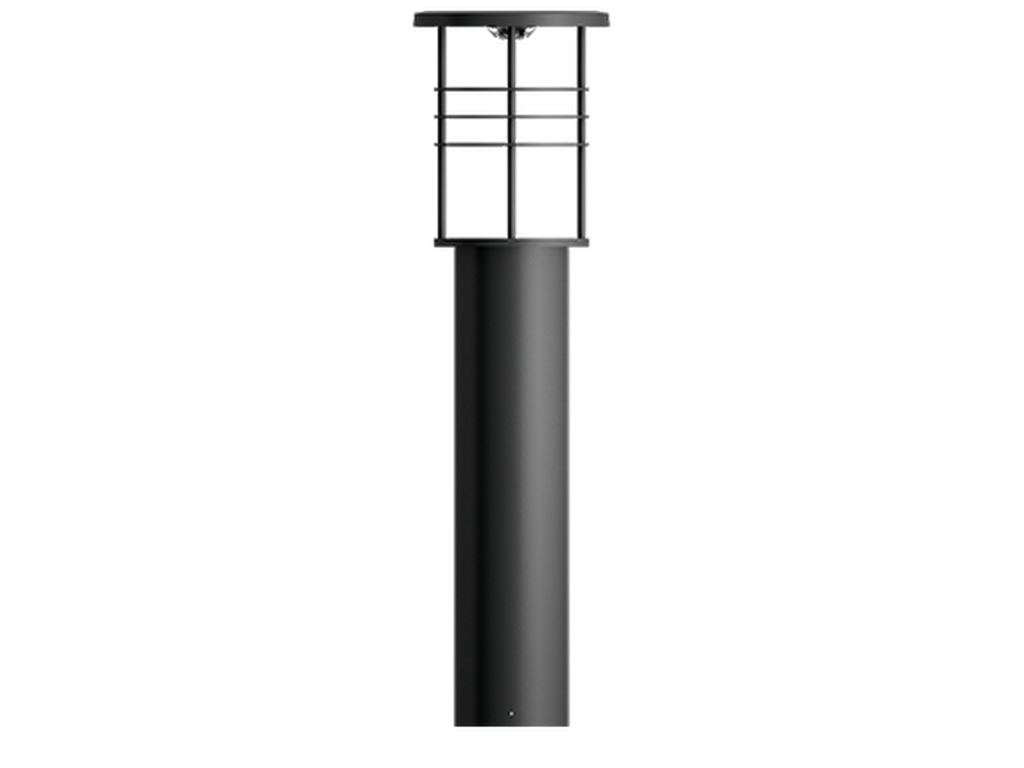

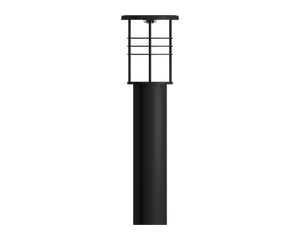

FORREY 8Black

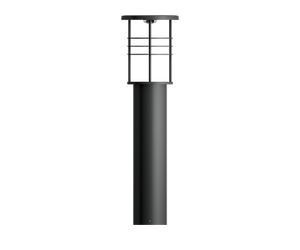

FORREY 8Dark Grey

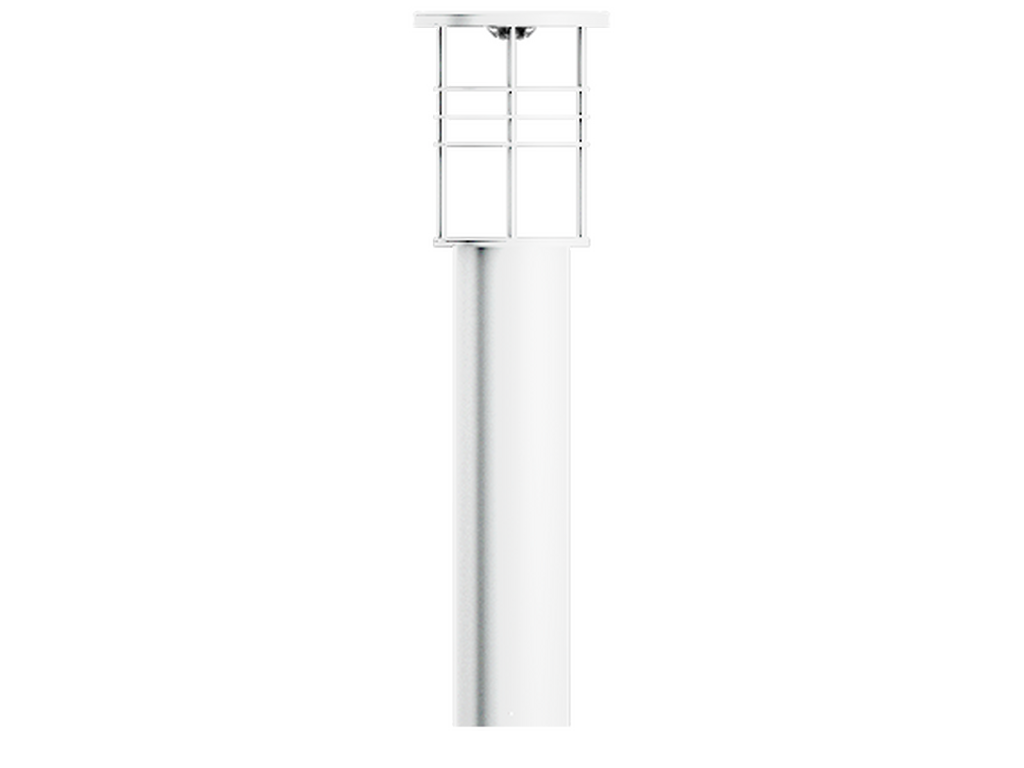

FORREY 8White

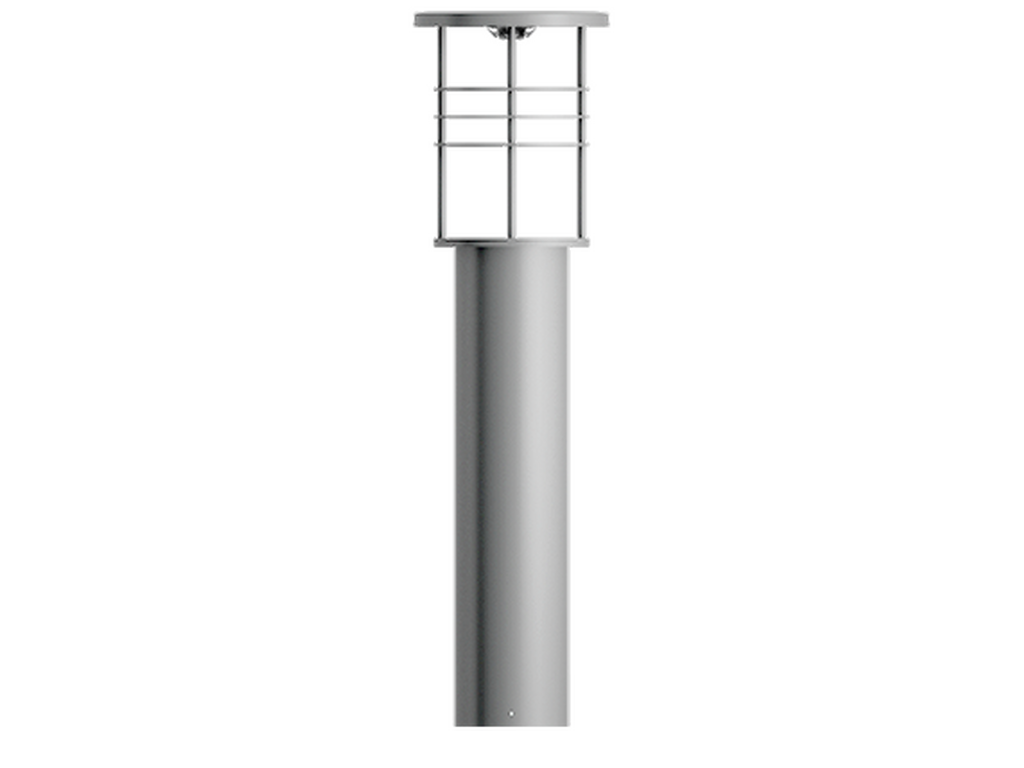

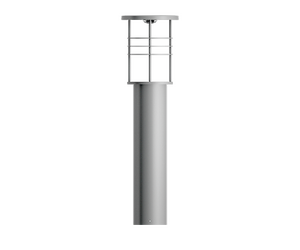

FORREY 8Matt Silver

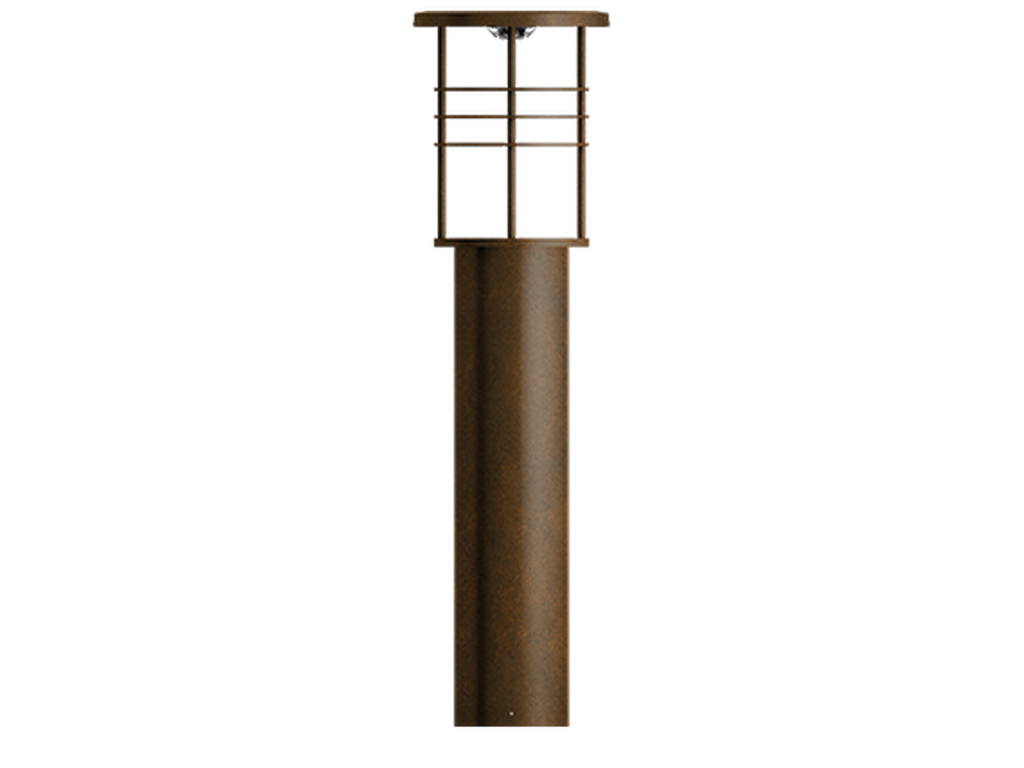

FORREY 8Bronze

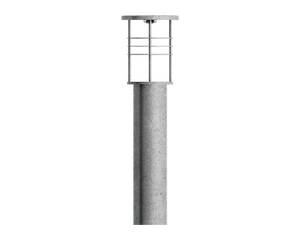

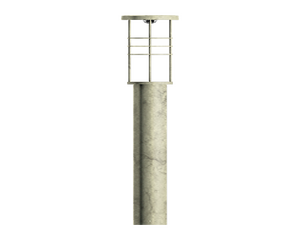

FORREY 8Concrete - Urban
FORREY 8Softscape - Urban
FORREY 8Stone - Urban

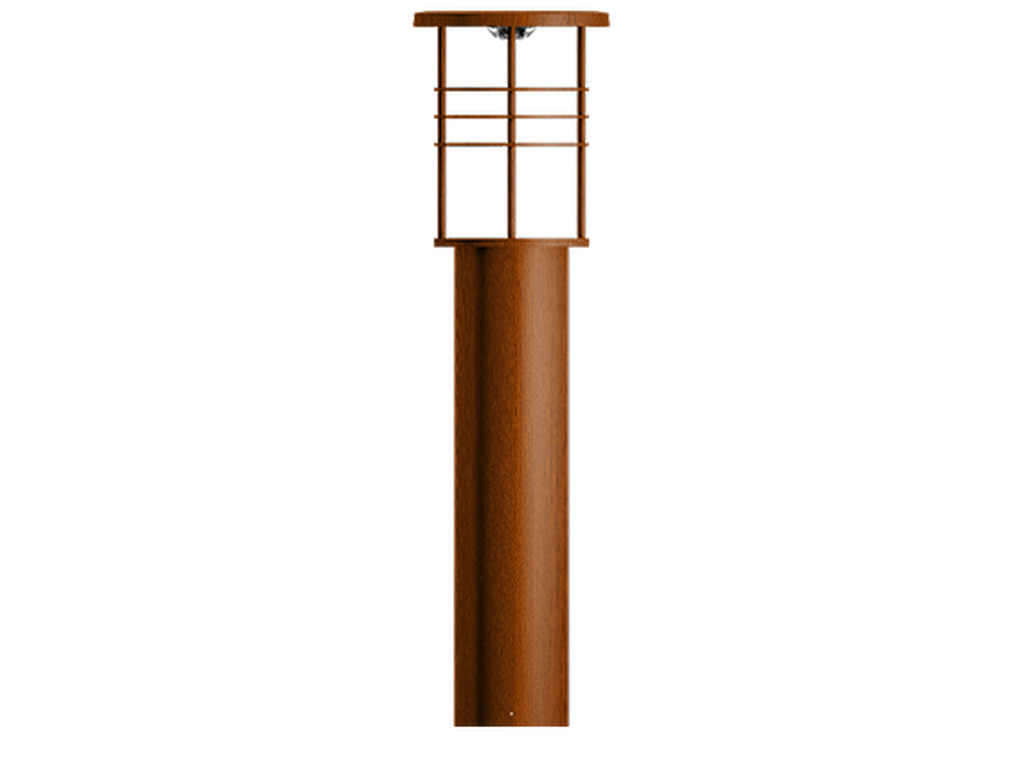

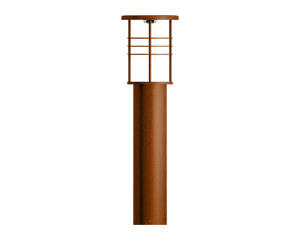

FORREY 8Corten - Urban
FORREY 8Oak - Woodland

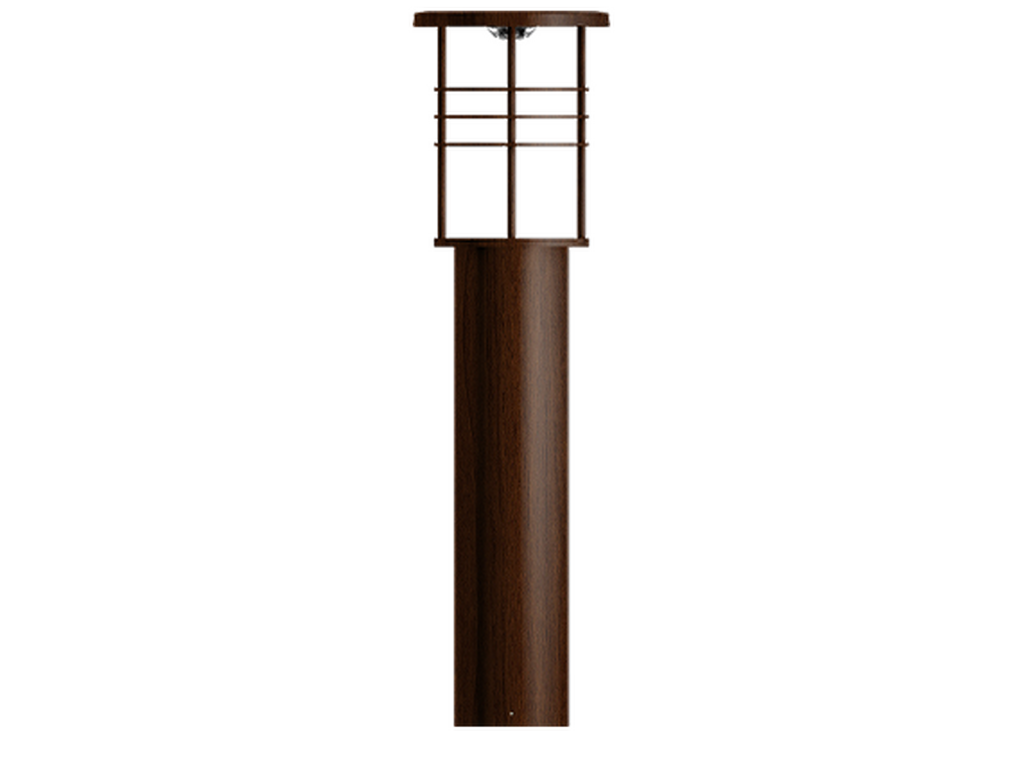

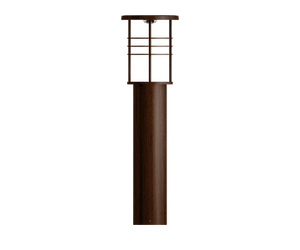

FORREY 8Walnut - Woodland

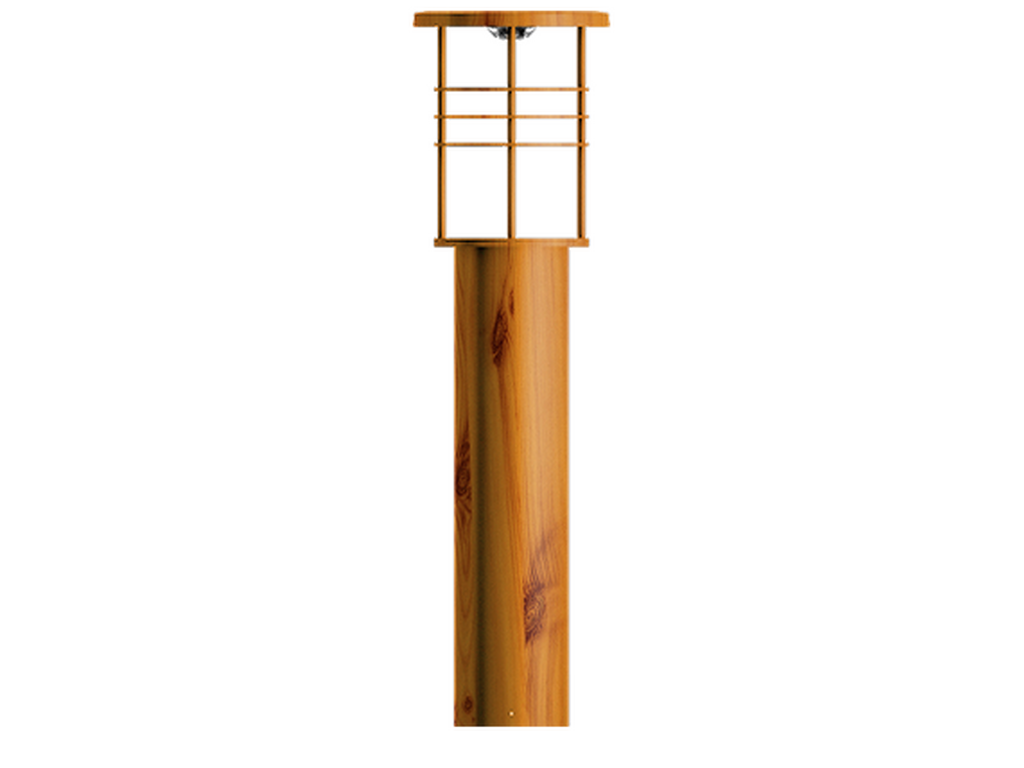

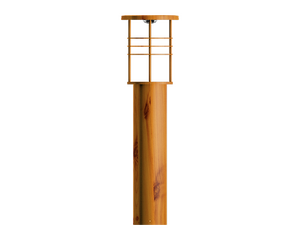

FORREY 8Pine - Woodland
FORREY 8Black
FORREY 8Dark Grey
FORREY 8White
FORREY 8Matt Silver
FORREY 8Bronze
FORREY 8Concrete - Urban
FORREY 8Softscape - Urban
FORREY 8Stone - Urban
FORREY 8Corten - Urban
FORREY 8Oak - Woodland
FORREY 8Walnut - Woodland
FORREY 8Pine - Woodland
Ø186 - 1179 mm - With louver & opal diffuser - With integrated security core (Anti-traffic)
Class IIP65IK08

TECHNICAL SPECIFICATIONS

Light source
160 LED
Power (W)
47.5 W
Lumen (lm)
3191 - 3711 lm
Efficacy (lm/W)
67 - 78 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, T5
Optic value
140˚x100˚, 132˚x103˚, 137˚x117˚, 73˚
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Weight
13.0 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
T2 (140˚x100˚)
T3 (132˚x103˚)
T4 (137˚x117˚)
T5 (73˚)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: FOR-10132-SB-T2-8030-ND
Lumen (lm): 3320 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T2-8040-ND
Lumen (lm): 3570 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T2-8030-DI
Lumen (lm): 3320 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T2-8040-DI
Lumen (lm): 3570 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T2-8030-DA
Lumen (lm): 3320 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T2-8040-DA
Lumen (lm): 3570 lm
Optic: T2
Optic value: 140˚x100˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T3-8030-ND
Lumen (lm): 3191 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T3-8040-ND
Lumen (lm): 3431 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T3-8030-DI
Lumen (lm): 3191 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T3-8040-DI
Lumen (lm): 3431 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T3-8030-DA
Lumen (lm): 3191 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T3-8040-DA
Lumen (lm): 3431 lm
Optic: T3
Optic value: 132˚x103˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T4-8030-ND
Lumen (lm): 3382 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T4-8040-ND
Lumen (lm): 3637 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T4-8030-DI
Lumen (lm): 3382 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T4-8040-DI
Lumen (lm): 3637 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T4-8030-DA
Lumen (lm): 3382 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T4-8040-DA
Lumen (lm): 3637 lm
Optic: T4
Optic value: 137˚x117˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T5-8030-ND
Lumen (lm): 3451 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T5-8040-ND
Lumen (lm): 3711 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour:
Variant code: FOR-10132-SB-T5-8030-DI
Lumen (lm): 3451 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T5-8040-DI
Lumen (lm): 3711 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour:
Variant code: FOR-10132-SB-T5-8030-DA
Lumen (lm): 3451 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour:
Variant code: FOR-10132-SB-T5-8040-DA
Lumen (lm): 3711 lm
Optic: T5
Optic value: 73˚
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour:

ACCESSORY

PROJECT REFERENCE (FORREY Bollards)
