LIGMAN JET 48 JE-10565.

JET 48JE-10565JET

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

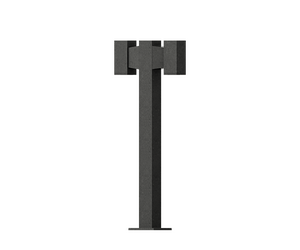

JET 48Black

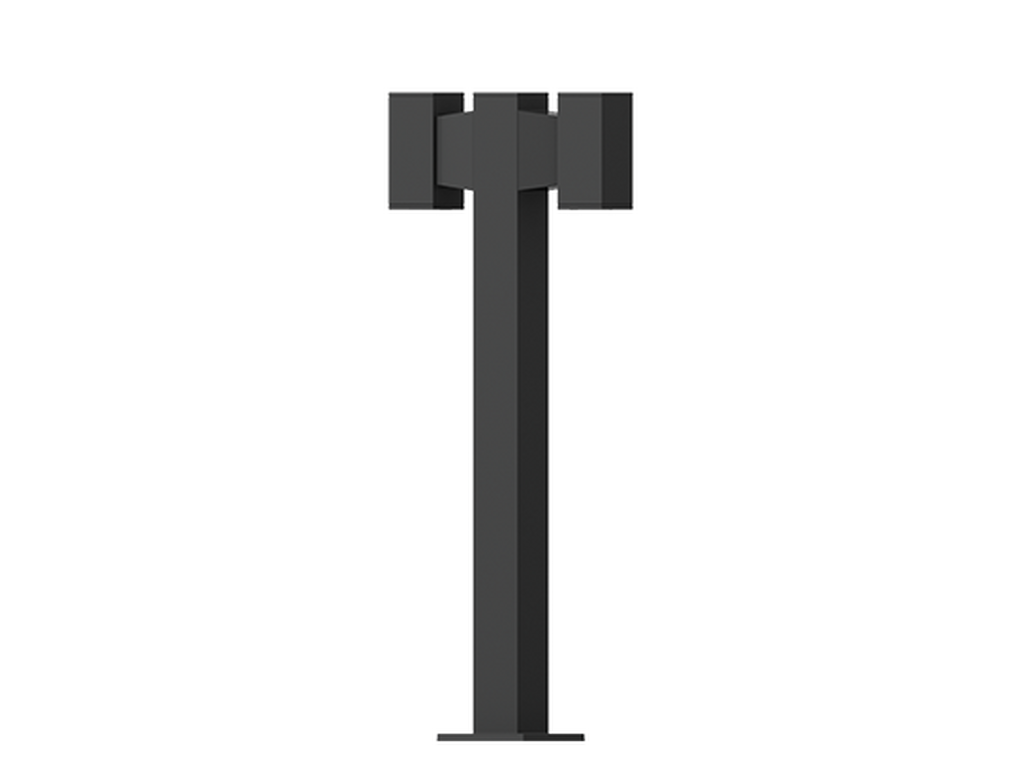

JET 48Dark Grey
JET 48White

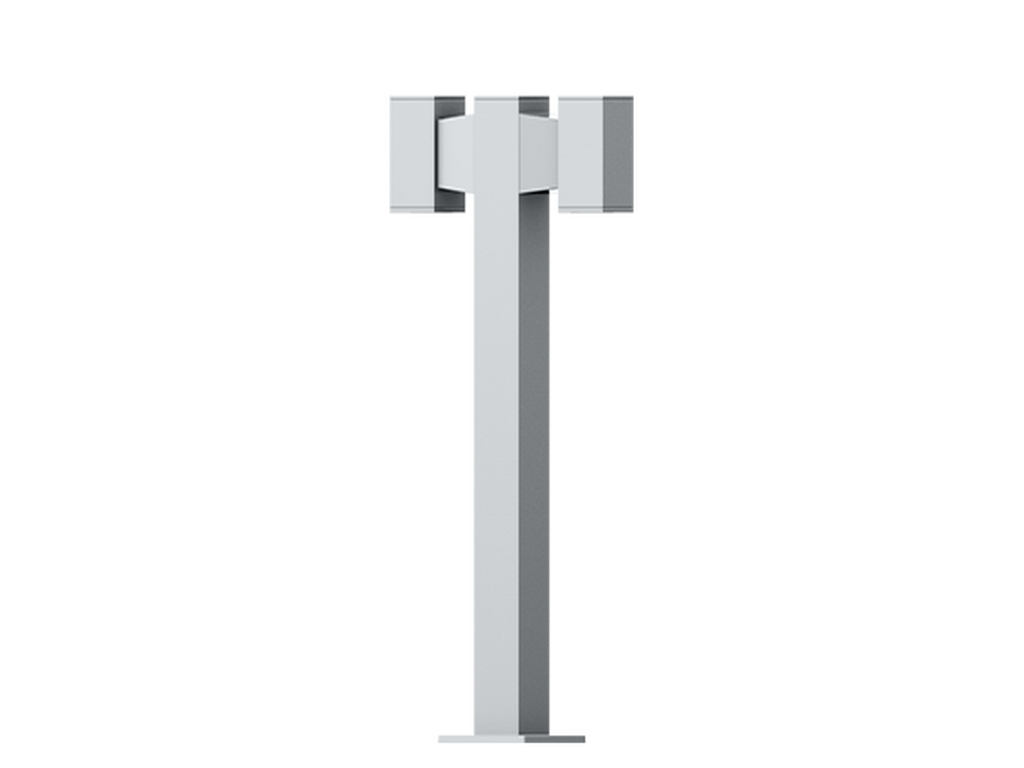

JET 48Matt Silver
JET 48Bronze
JET 48Concrete - Urban
JET 48Softscape - Urban

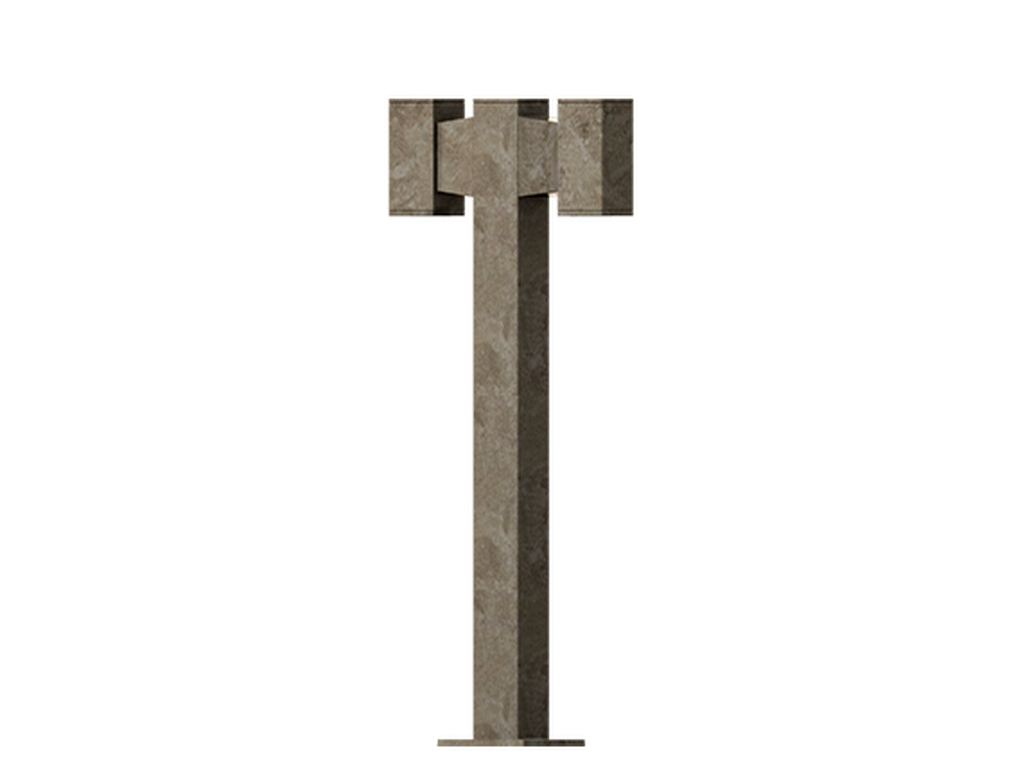

JET 48Stone - Urban
JET 48Corten - Urban
JET 48Oak - Woodland

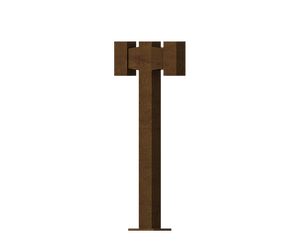

JET 48Walnut - Woodland

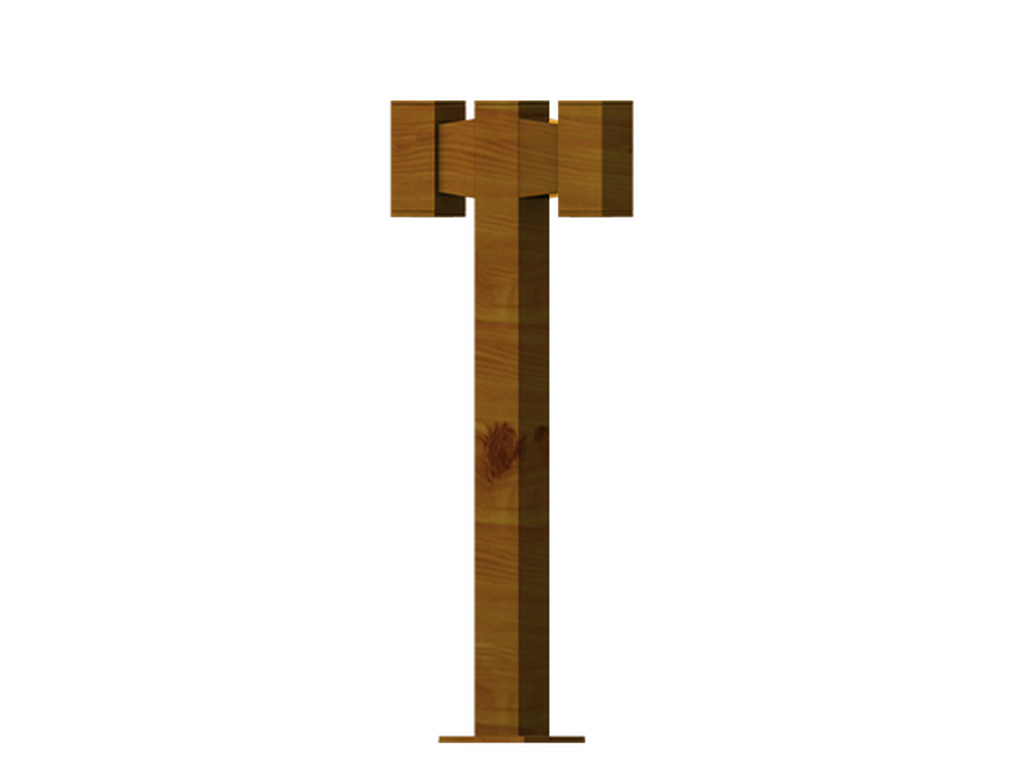

JET 48Pine - Woodland
JET 48Black
JET 48Dark Grey
JET 48White
JET 48Matt Silver
JET 48Bronze
JET 48Concrete - Urban
JET 48Softscape - Urban
JET 48Stone - Urban
JET 48Corten - Urban
JET 48Oak - Woodland
JET 48Walnut - Woodland
JET 48Pine - Woodland
102x102 mm - 1200 mm - 2 sides - Square
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
2 x 1 COB
Power (W)
27 W
Lumen (lm)
2744 - 3270 lm
Efficacy (lm/W)
91 - 109 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
18°, 21°, 31°, 70°x44°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U2-G0, B2-U2-G0
ULR
2%, 3%, <1%
ULOR
2%, 3%
CIE flux code nº3
99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.1 kg
Operating temperature
-20 °C to 50 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 55,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

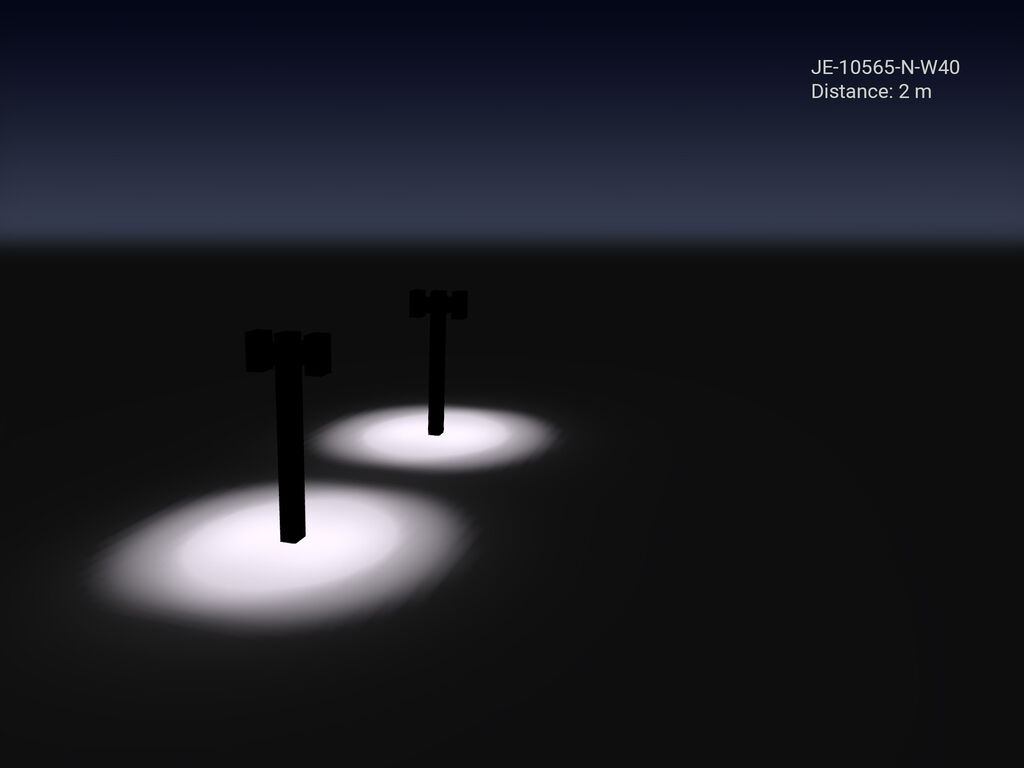

Light effect

Optic
N (18°)
M (21°)
W (31°)
VW (70°x44°)

Code finder

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour

Accessory

Project reference (JET Bollards)
