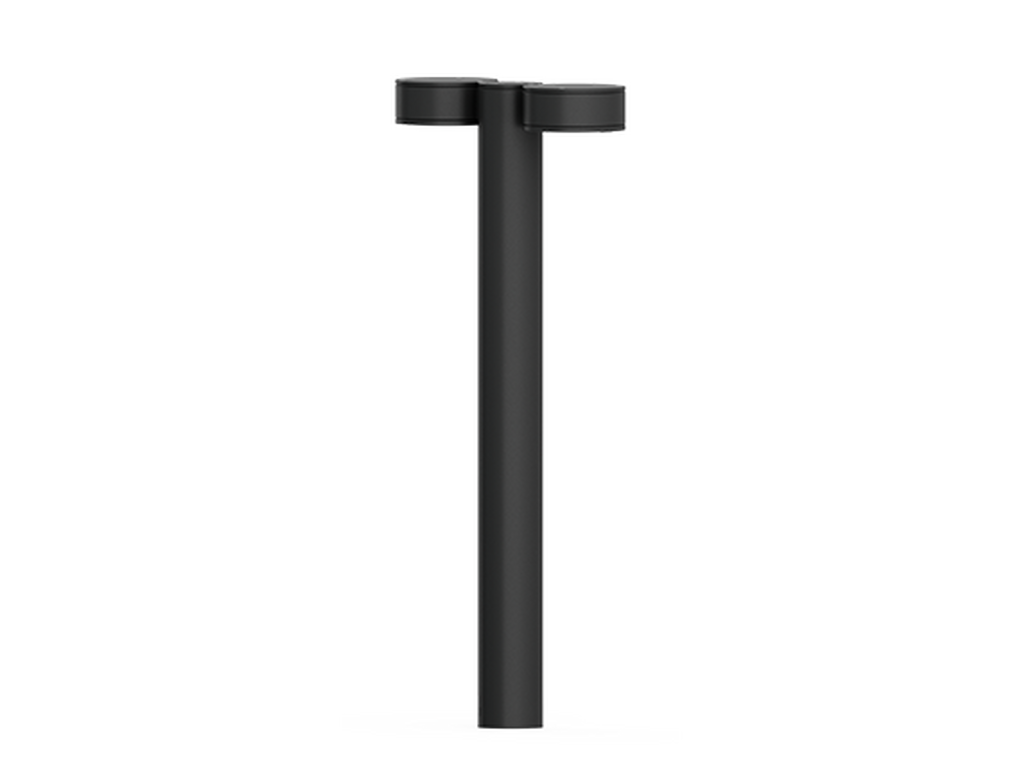

LIGMAN JET 58 JE-10583.

JET 58JE-10583JET

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

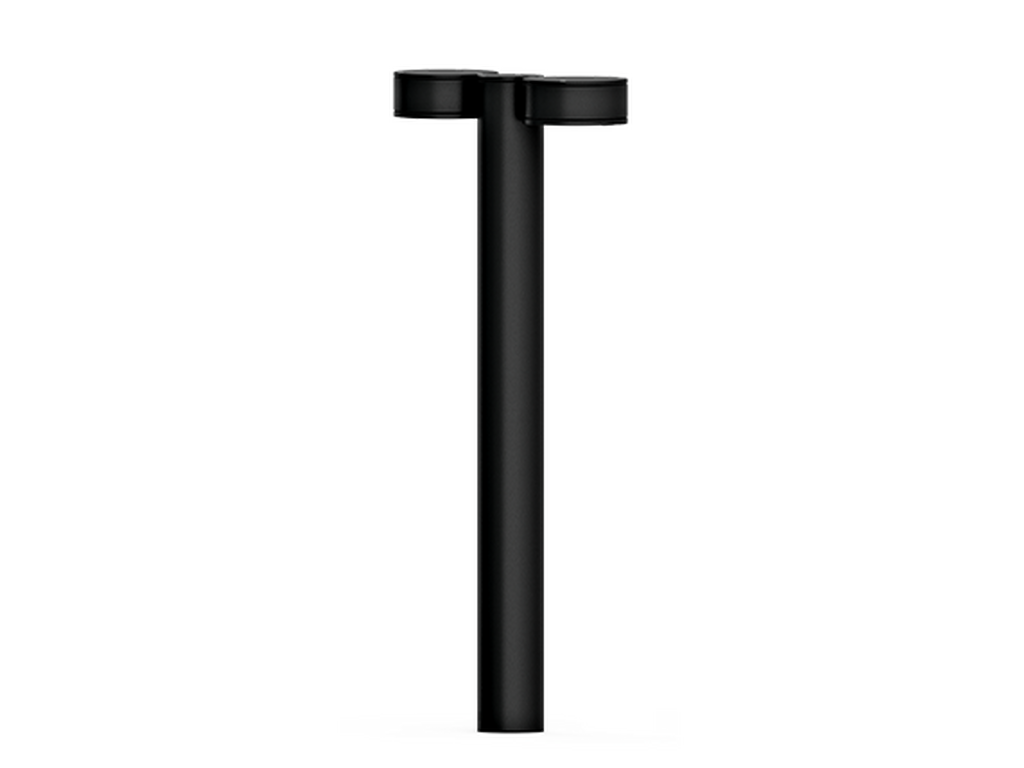

JET 58Black

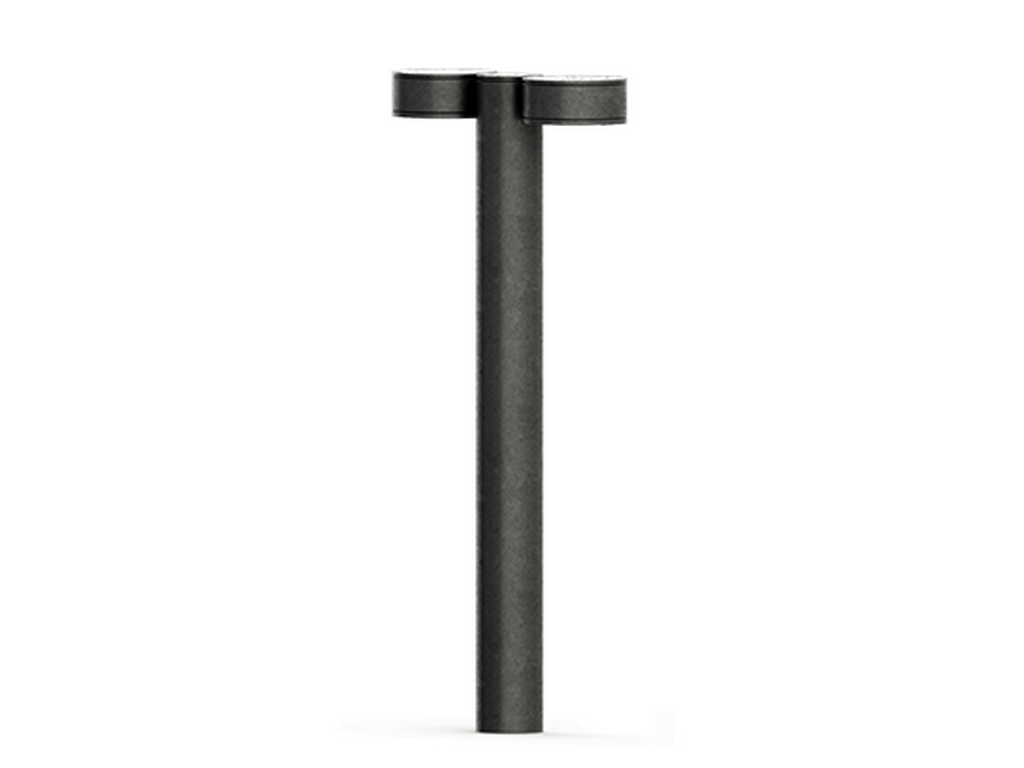

JET 58Dark Grey

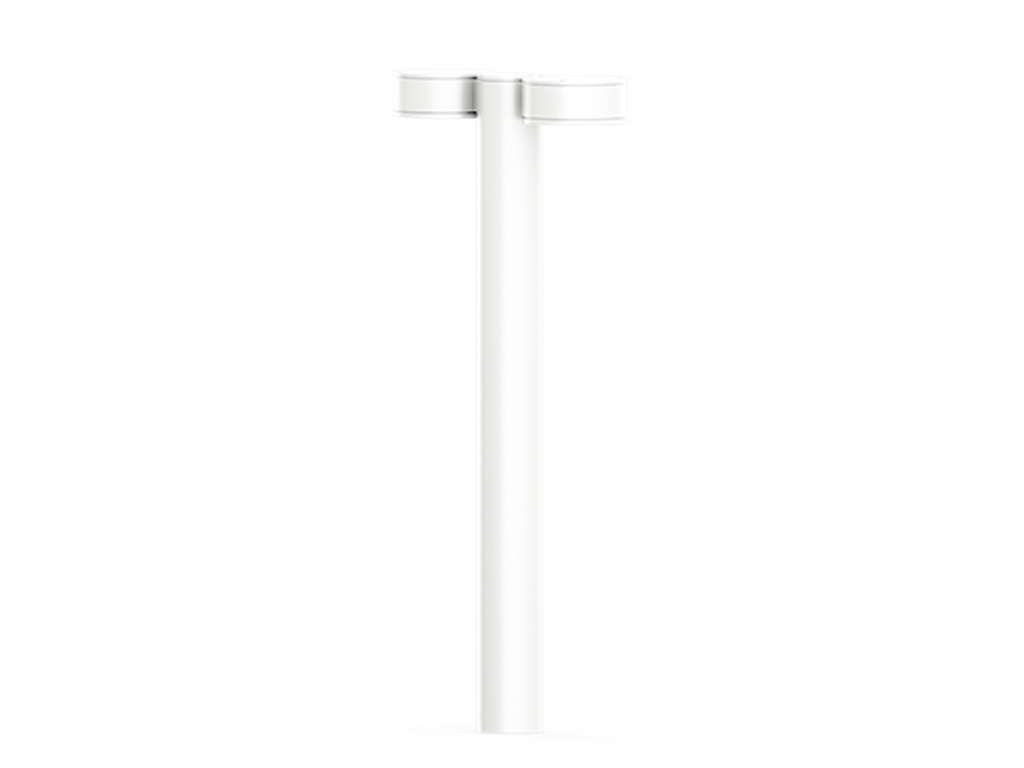

JET 58White
JET 58Matt Silver

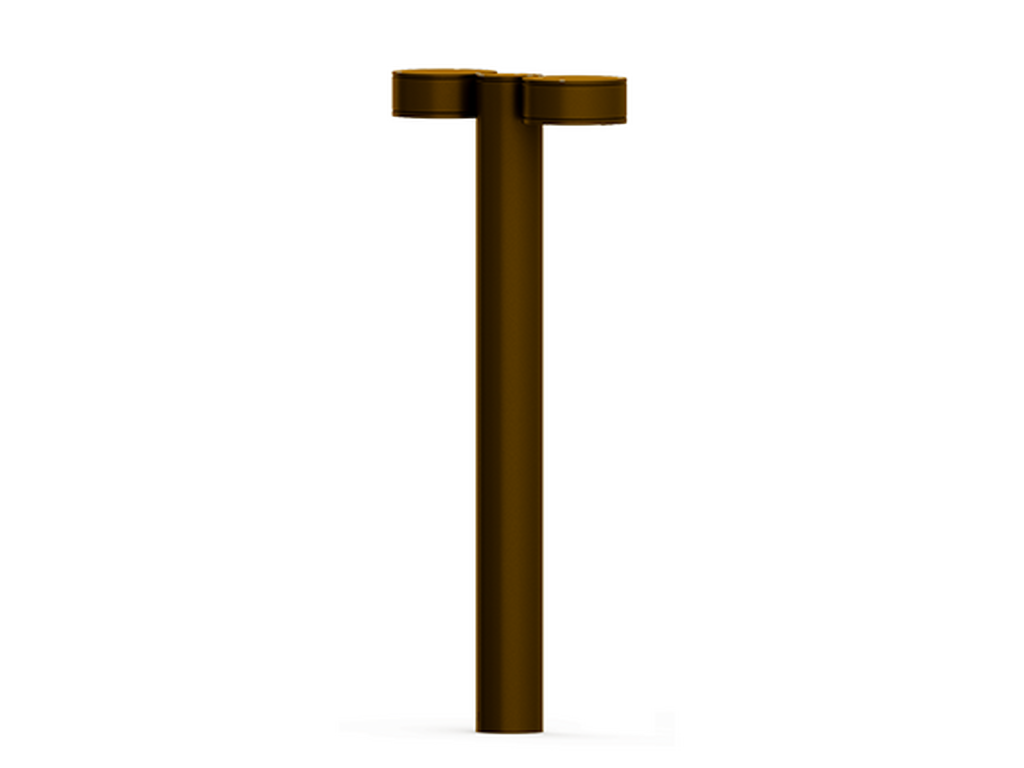

JET 58Bronze
JET 58Concrete - Urban
JET 58Softscape - Urban

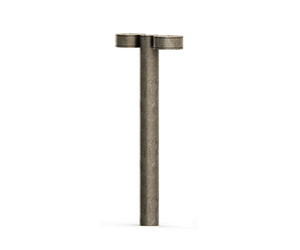

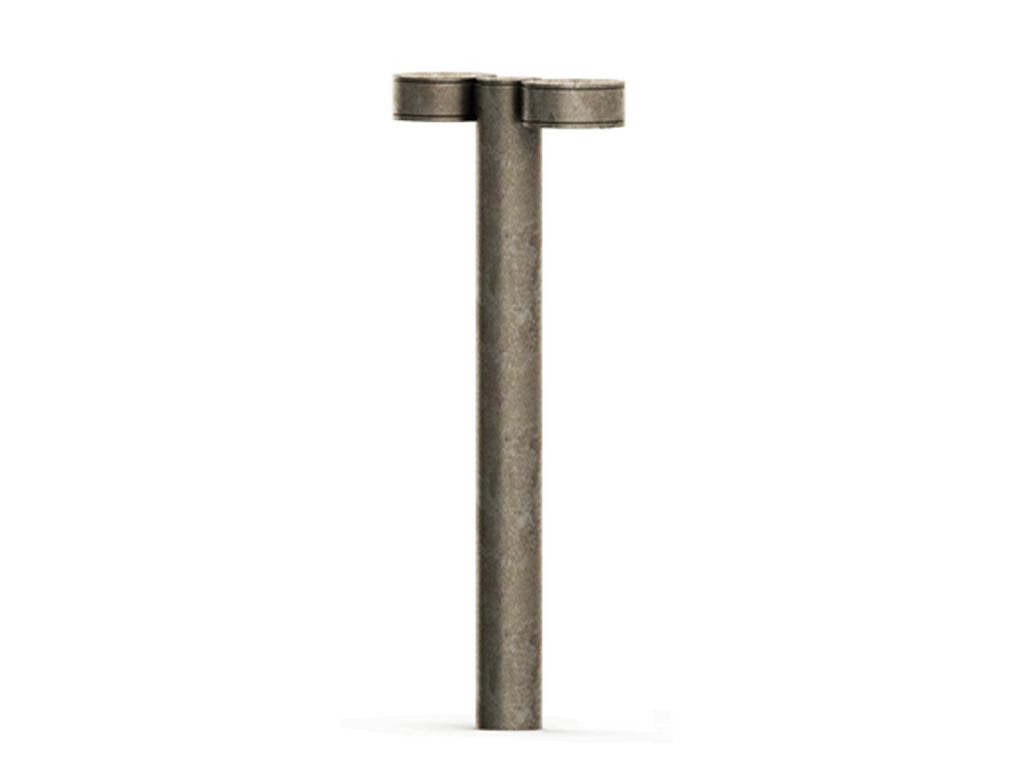

JET 58Stone - Urban

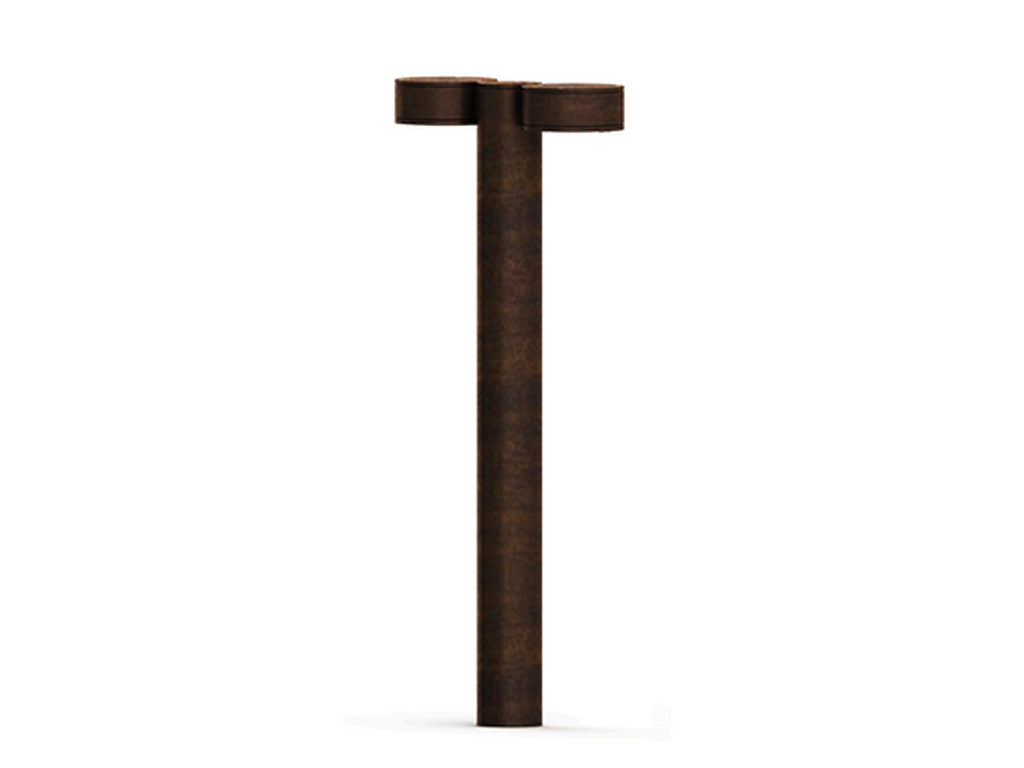

JET 58Corten - Urban
JET 58Oak - Woodland
JET 58Walnut - Woodland

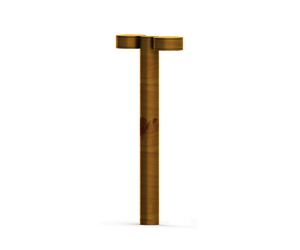

JET 58Pine - Woodland
JET 58Black
JET 58Dark Grey
JET 58White
JET 58Matt Silver
JET 58Bronze
JET 58Concrete - Urban
JET 58Softscape - Urban
JET 58Stone - Urban
JET 58Corten - Urban

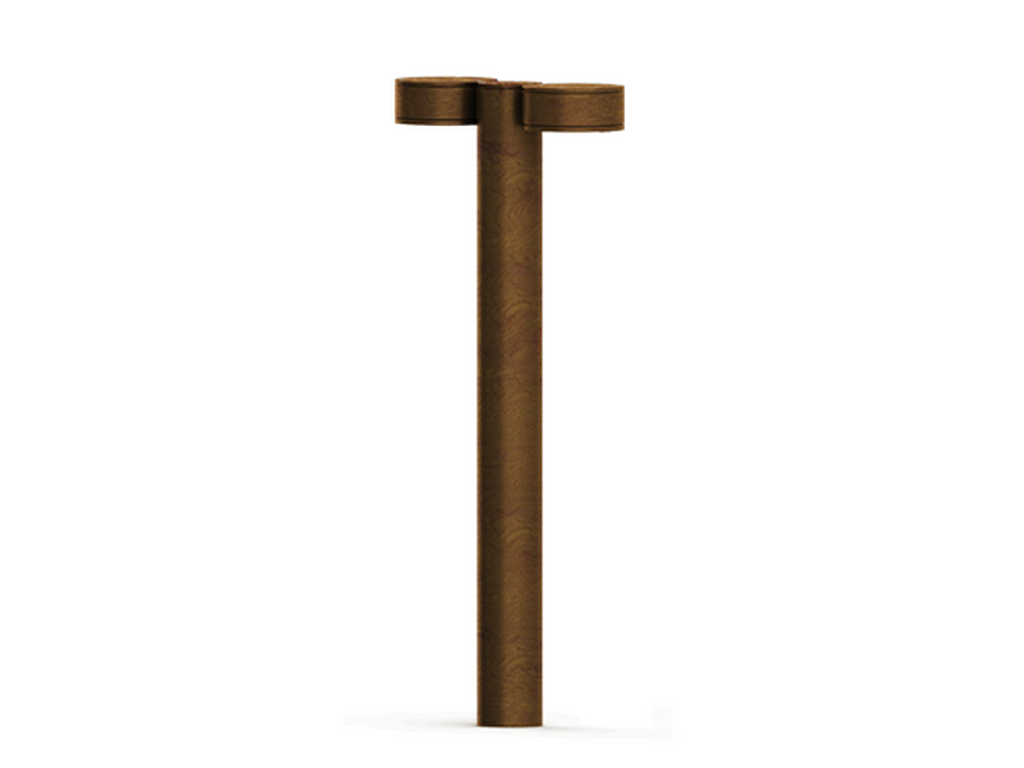

JET 58Oak - Woodland
JET 58Walnut - Woodland

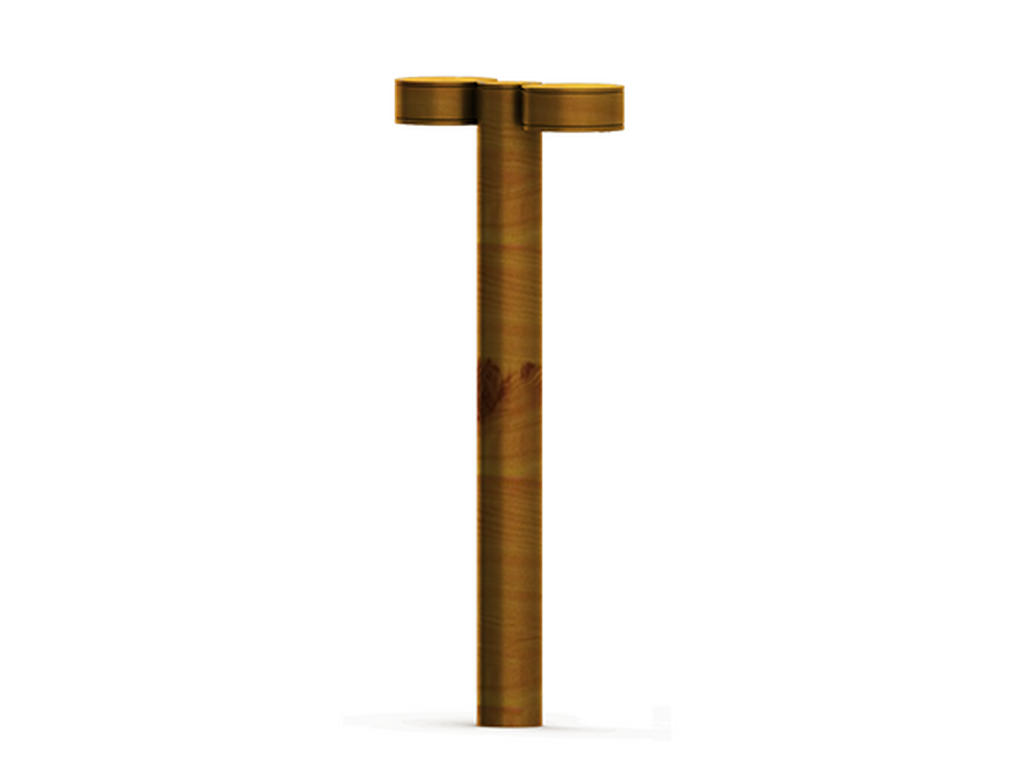

JET 58Pine - Woodland
Ø102 - 1000 mm - 2 sides - Round
CERETILAPClass IIP65IK08

Technical information

Material
Aluminium
Light source
2 x 1 COB
Power (W)
28 W
Lumen (lm)
2078 - 2238 lm
Efficacy (lm/W)
74 - 80 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
VW
Optic value
74°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U1-G0
ULR
1%
ULOR
1%
CIE flux code nº3
99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
7.0 kg
Operating temperature
-20 °C to 50 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 55,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

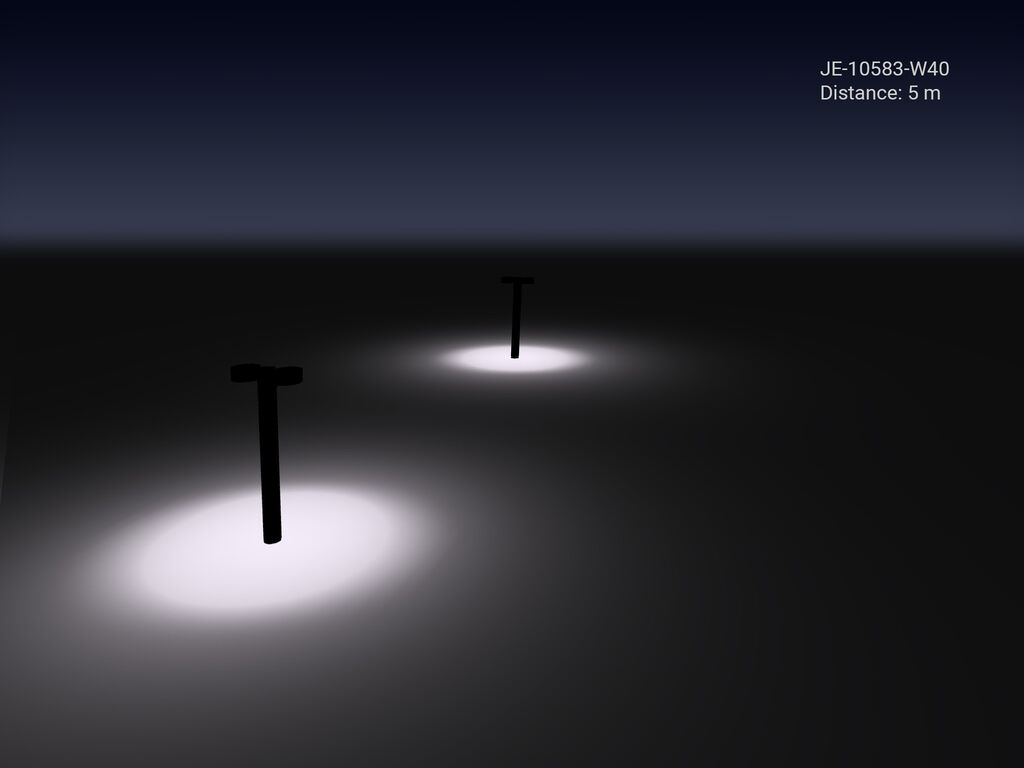

Light effect

Optic
VW (74°)

Code finder

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code: JE-10583-VW-8027-ND-01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Black
Variant code: JE-10583-VW-8027-ND-02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8027-ND-03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: White
Variant code: JE-10583-VW-8027-ND-05
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8027-ND-06
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8027-ND-SU01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8027-ND-SU02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8027-ND-SU03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8027-ND-SU04
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8027-ND-SW01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8027-ND-SW02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8027-ND-SW03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 2700K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8030-ND-01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Black
Variant code: JE-10583-VW-8030-ND-02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8030-ND-03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: White
Variant code: JE-10583-VW-8030-ND-05
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8030-ND-06
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8030-ND-SU01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8030-ND-SU02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8030-ND-SU03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8030-ND-SU04
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8030-ND-SW01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8030-ND-SW02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8030-ND-SW03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8040-ND-01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Black
Variant code: JE-10583-VW-8040-ND-02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8040-ND-03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: White
Variant code: JE-10583-VW-8040-ND-05
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8040-ND-06
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8040-ND-SU01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8040-ND-SU02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8040-ND-SU03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8040-ND-SU04
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8040-ND-SW01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8040-ND-SW02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8040-ND-SW03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8027-DI-01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Black
Variant code: JE-10583-VW-8027-DI-02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8027-DI-03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: White
Variant code: JE-10583-VW-8027-DI-05
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8027-DI-06
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8027-DI-SU01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8027-DI-SU02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8027-DI-SU03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8027-DI-SU04
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8027-DI-SW01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8027-DI-SW02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8027-DI-SW03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 2700K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8030-DI-01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Black
Variant code: JE-10583-VW-8030-DI-02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8030-DI-03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: White
Variant code: JE-10583-VW-8030-DI-05
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8030-DI-06
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8030-DI-SU01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8030-DI-SU02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8030-DI-SU03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8030-DI-SU04
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8030-DI-SW01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8030-DI-SW02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8030-DI-SW03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8040-DI-01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Black
Variant code: JE-10583-VW-8040-DI-02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8040-DI-03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: White
Variant code: JE-10583-VW-8040-DI-05
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8040-DI-06
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8040-DI-SU01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8040-DI-SU02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8040-DI-SU03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8040-DI-SU04
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8040-DI-SW01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8040-DI-SW02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8040-DI-SW03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: 1-10V
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8027-DA-01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Black
Variant code: JE-10583-VW-8027-DA-02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8027-DA-03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: White
Variant code: JE-10583-VW-8027-DA-05
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8027-DA-06
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8027-DA-SU01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8027-DA-SU02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8027-DA-SU03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8027-DA-SU04
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8027-DA-SW01
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8027-DA-SW02
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8027-DA-SW03
Lumen (lm): 2078 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 2700K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8030-DA-01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Black
Variant code: JE-10583-VW-8030-DA-02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8030-DA-03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: White
Variant code: JE-10583-VW-8030-DA-05
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8030-DA-06
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8030-DA-SU01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8030-DA-SU02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8030-DA-SU03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8030-DA-SU04
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8030-DA-SW01
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8030-DA-SW02
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8030-DA-SW03
Lumen (lm): 2210 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: JE-10583-VW-8040-DA-01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Black
Variant code: JE-10583-VW-8040-DA-02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: JE-10583-VW-8040-DA-03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: White
Variant code: JE-10583-VW-8040-DA-05
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: JE-10583-VW-8040-DA-06
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: JE-10583-VW-8040-DA-SU01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: JE-10583-VW-8040-DA-SU02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: JE-10583-VW-8040-DA-SU03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: JE-10583-VW-8040-DA-SU04
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: JE-10583-VW-8040-DA-SW01
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: JE-10583-VW-8040-DA-SW02
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: JE-10583-VW-8040-DA-SW03
Lumen (lm): 2238 lm
Optic: VW
Optic value: 74°
Optic (2nd):
Optic (2nd) Value:
CCT / CRI: DALI
Dimming type: 4000K CRI80
Product colour: Pine - Woodland

Accessory

Project reference (JET Bollards)

Need professional lighting expertise? Chat with our specialists.
LIGMAN.AIBETA
LIGMAN.AI Assistant
Online
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Rename
