LIGMAN LIGHTSOFT 20 LH-10821.

LIGHTSOFT 20LH-10821Solar integrated bollards

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

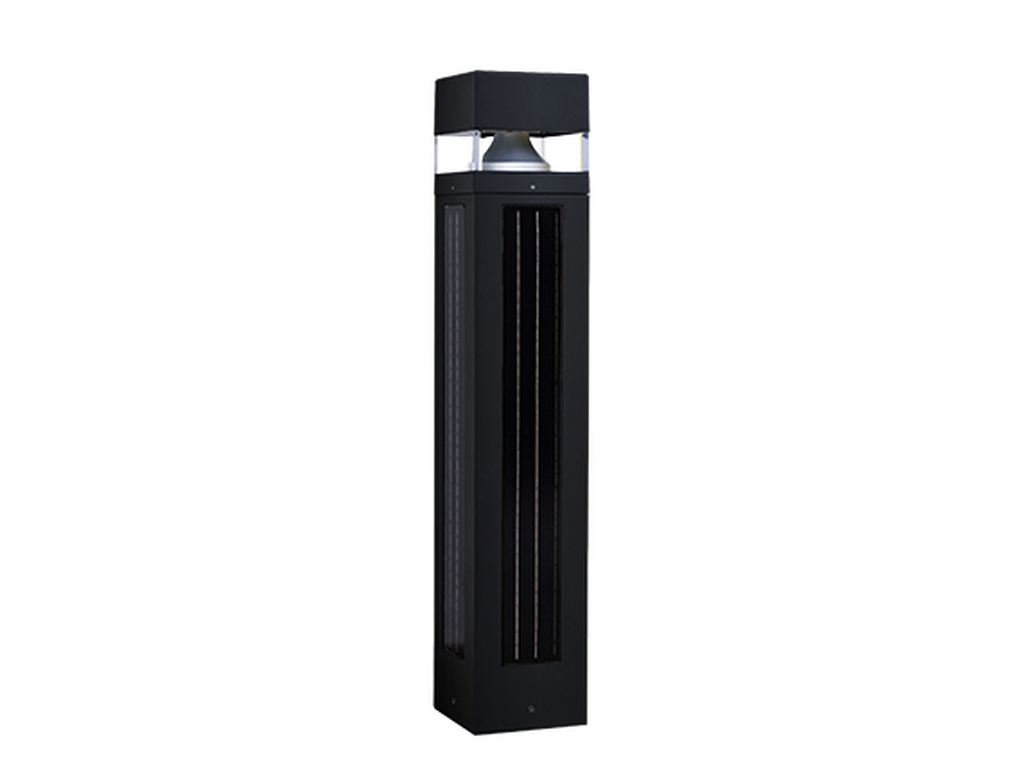

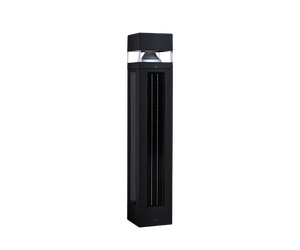

LIGHTSOFT 20Black

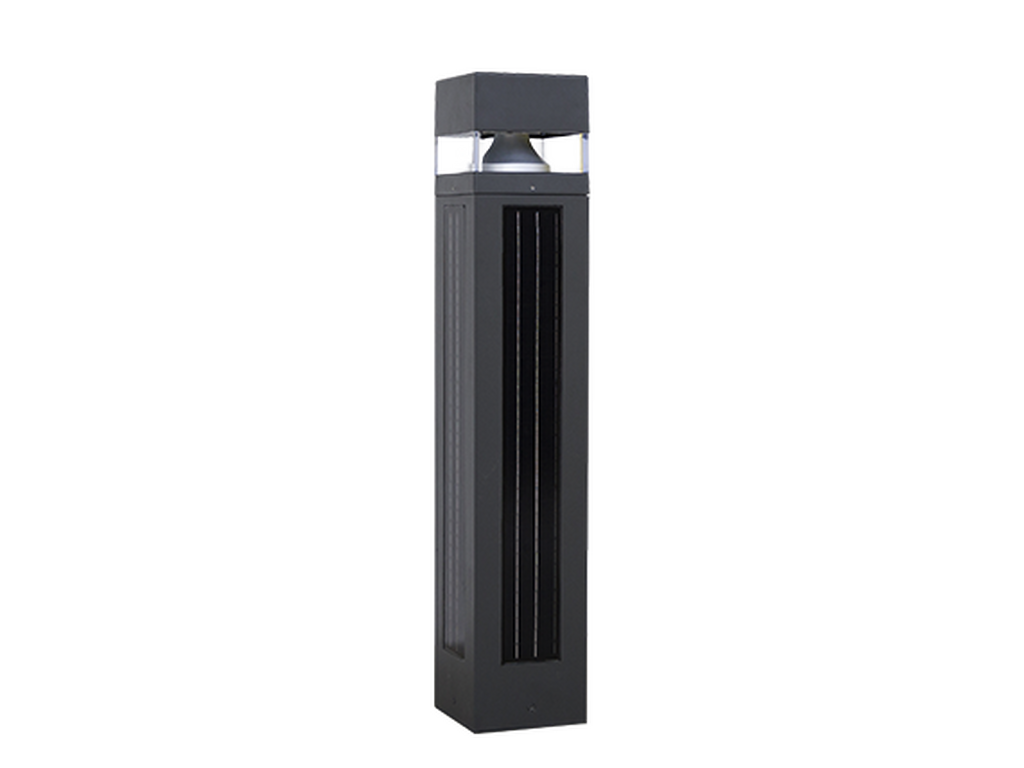

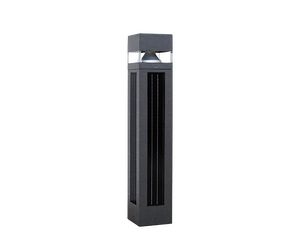

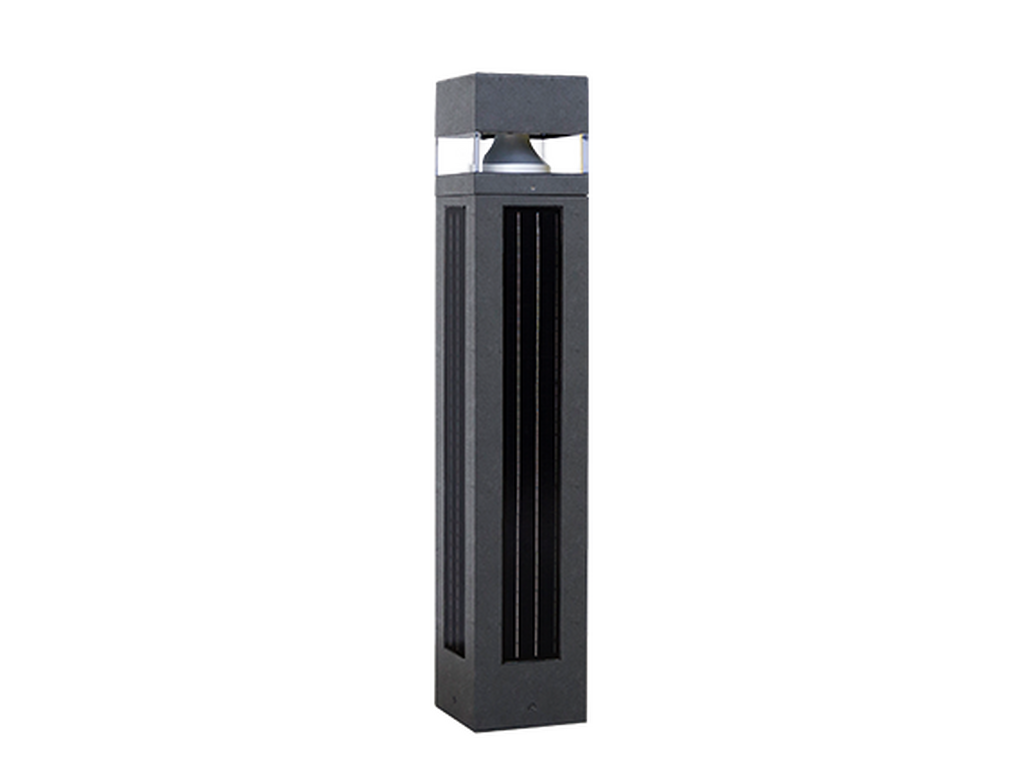

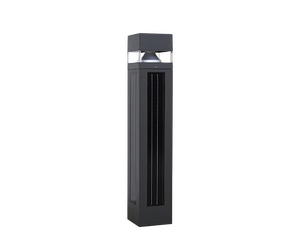

LIGHTSOFT 20Dark Grey

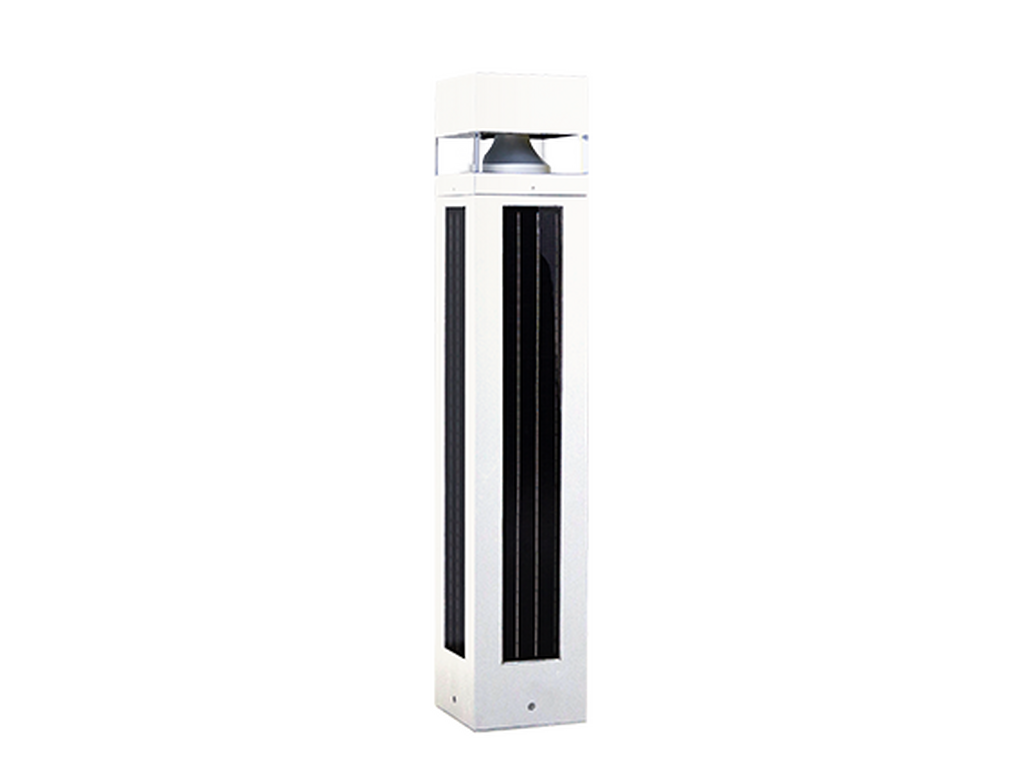

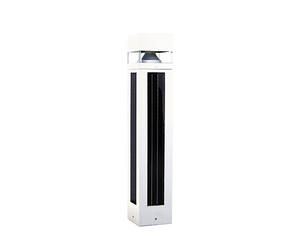

LIGHTSOFT 20White

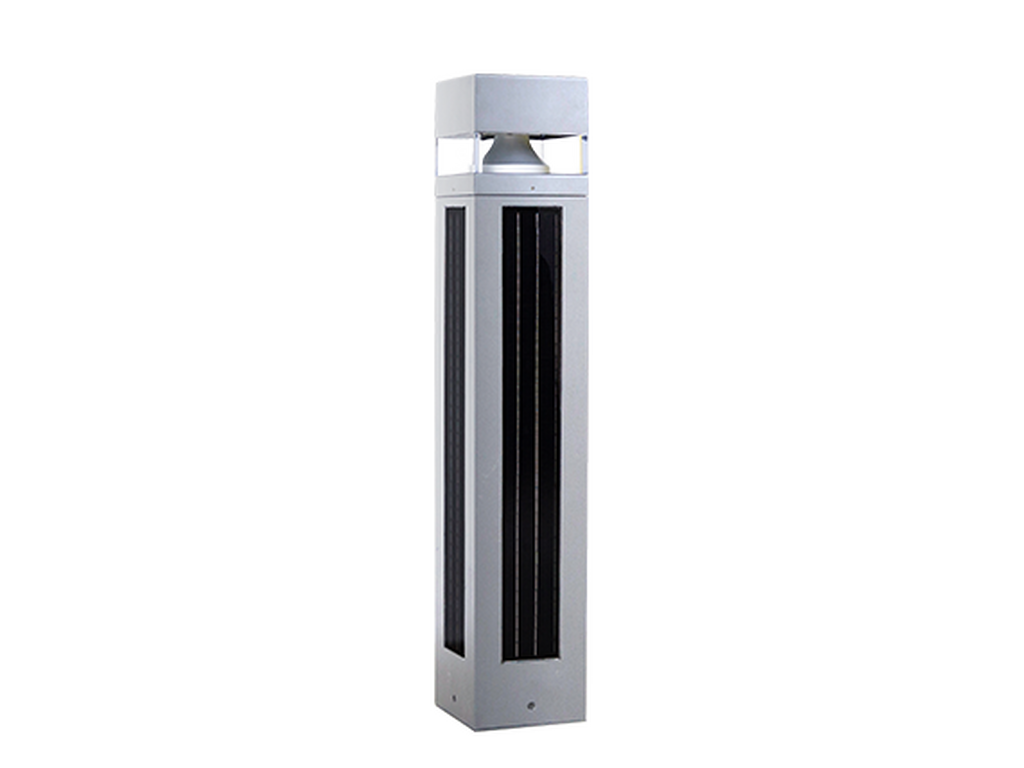

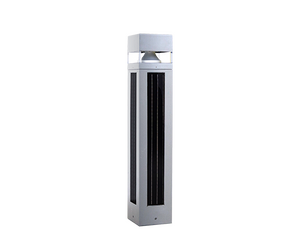

LIGHTSOFT 20Matt Silver
LIGHTSOFT 20Bronze
LIGHTSOFT 20Concrete - Urban
LIGHTSOFT 20Softscape - Urban

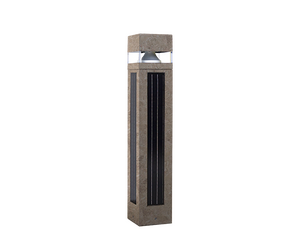

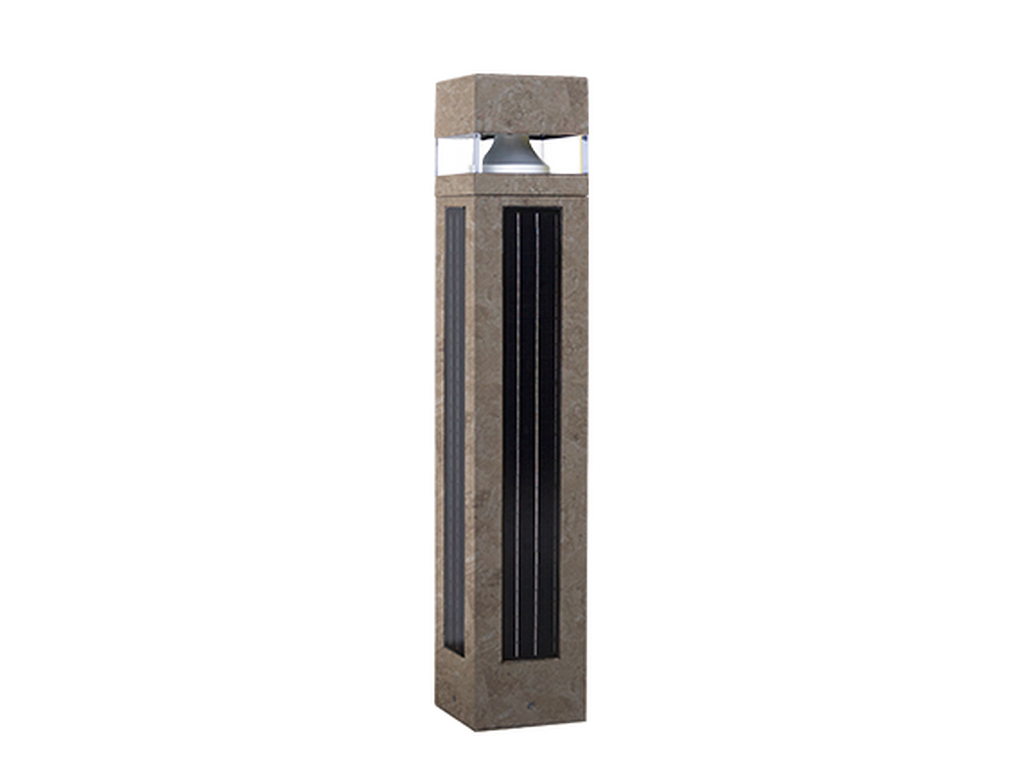

LIGHTSOFT 20Stone - Urban

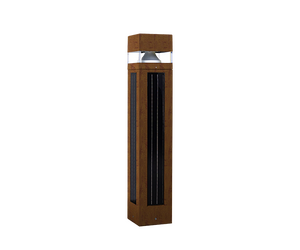

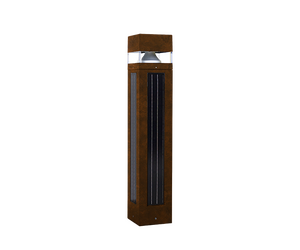

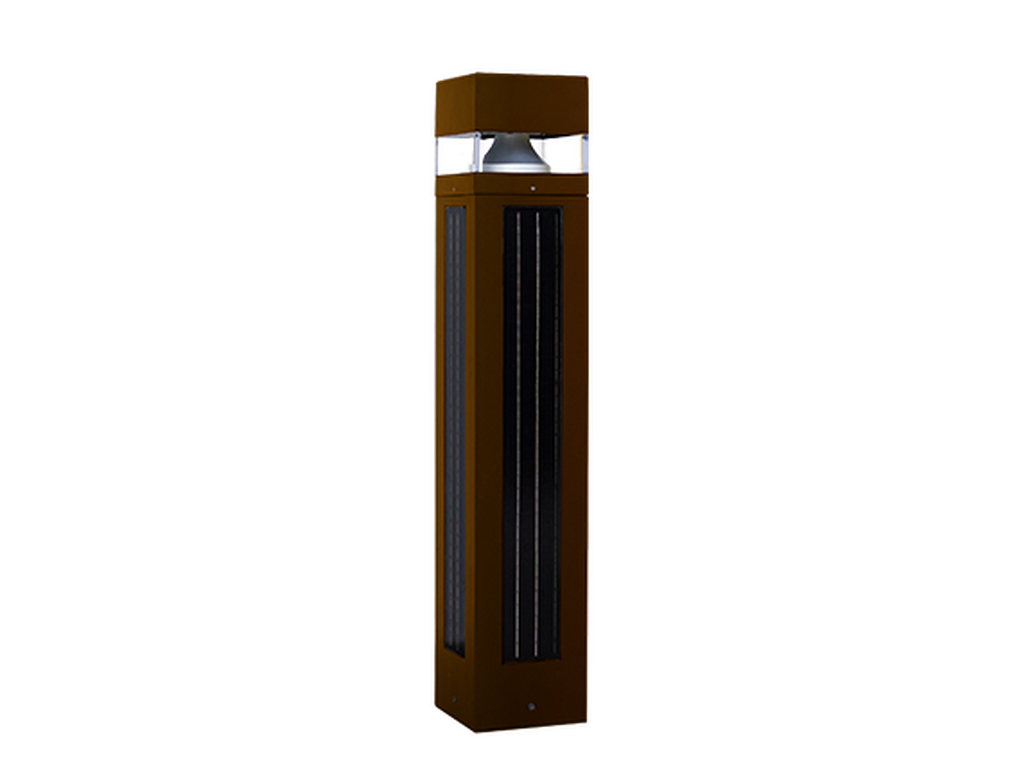

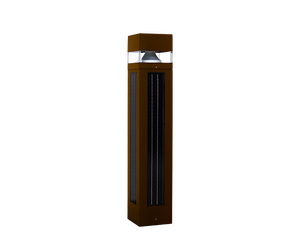

LIGHTSOFT 20Corten - Urban

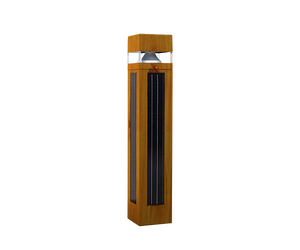

LIGHTSOFT 20Oak - Woodland

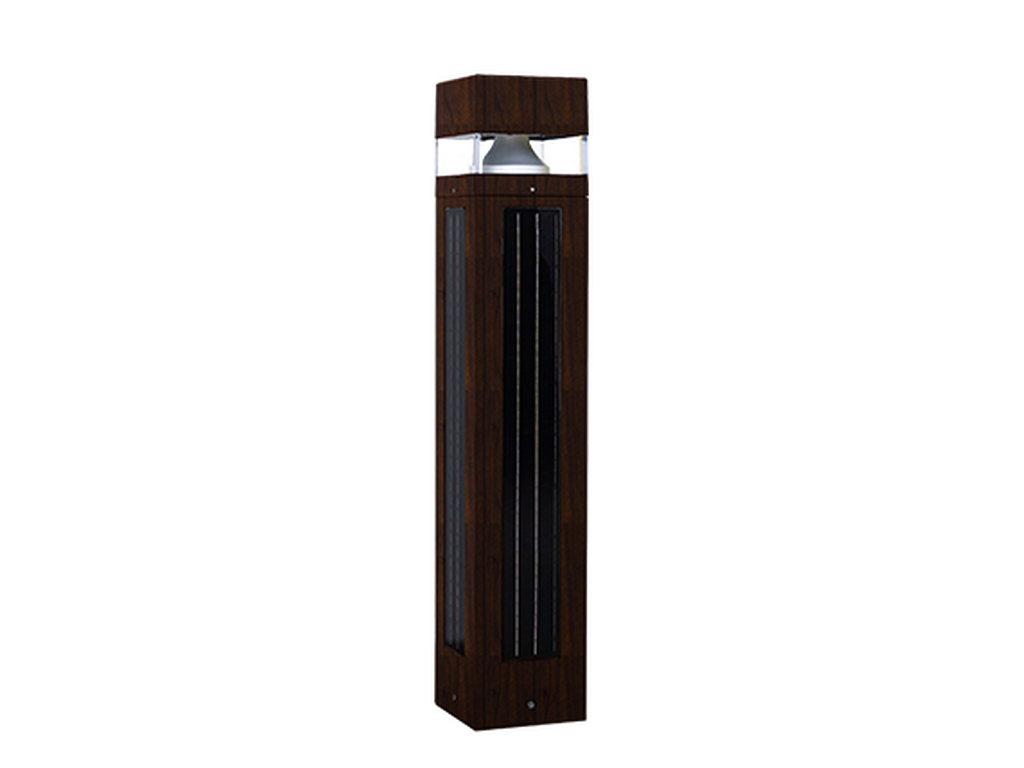

LIGHTSOFT 20Walnut - Woodland
LIGHTSOFT 20Pine - Woodland
LIGHTSOFT 20Black
LIGHTSOFT 20Dark Grey
LIGHTSOFT 20White
LIGHTSOFT 20Matt Silver
LIGHTSOFT 20Bronze
LIGHTSOFT 20Concrete - Urban
LIGHTSOFT 20Softscape - Urban
LIGHTSOFT 20Stone - Urban
LIGHTSOFT 20Corten - Urban
LIGHTSOFT 20Oak - Woodland
LIGHTSOFT 20Walnut - Woodland
LIGHTSOFT 20Pine - Woodland
186x186 mm - 1000 mm - 27 hours of operation time (Dimming with motion sensor override) - 5 days of autonomy
CEClass IIIIP65IK07

Technical information

Material
Aluminium
Light source
18 LED
Power (W)
2 W
Lumen (lm)
147 - 194 lm
Efficacy (lm/W)
74 - 97 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
Solar
Optic
W, VW, T2, T3, T4
Optic value
108°, 120°, 136°x22°, 140°x44°, 148°x78°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U2-G0, B0-U2-G1
ULR
14%, 17%, 20%, 23%
ULOR
14%, 17%, 20%, 23%
CIE flux code nº3
78, 79, 83
Dimming type
Dusk to Dawn, 2 Step dimming with motion sensor override, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
19.0 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear UV-stabilised polycarbonate diffuser, Anodised, high-purity aluminium reflector
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000

Light effect

Optic
W (108°)
VW (120°)
T2 (136°x22°)
T3 (140°x44°)
T4 (148°x78°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory
