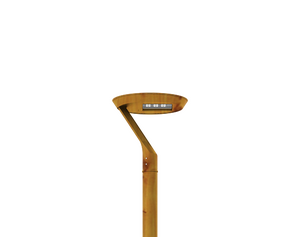

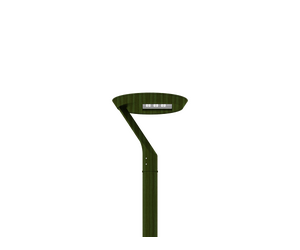

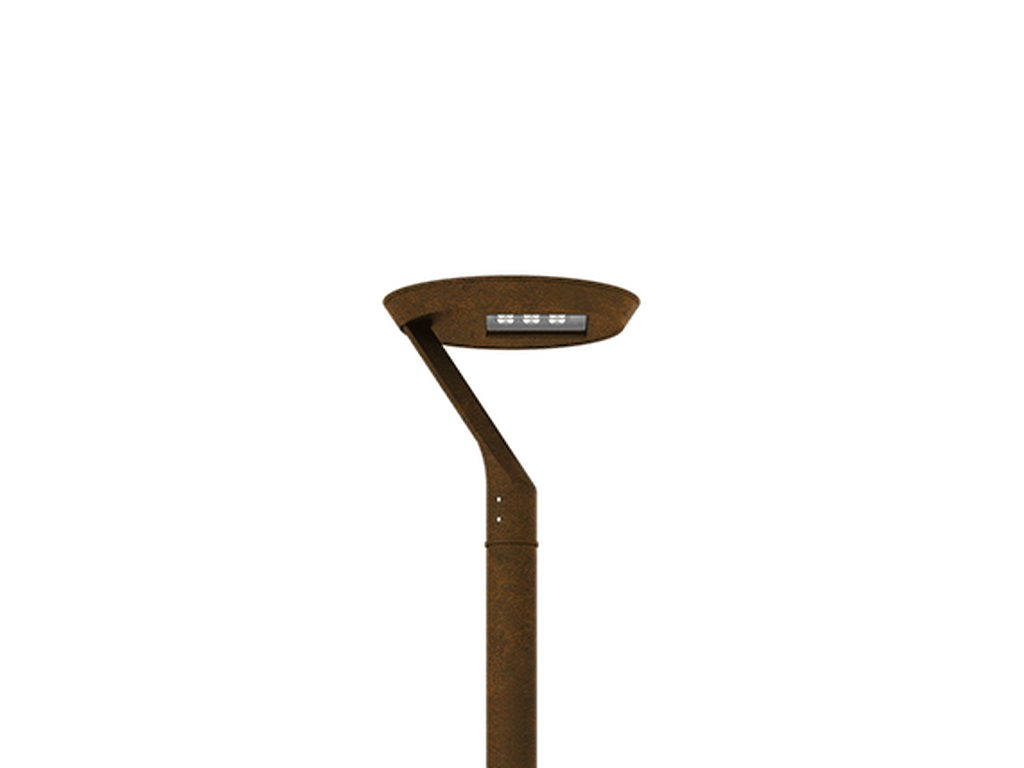

MACARON 1MC-20003MACARON
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
2 x 24 LED & 4 x 4 LED
Power (W)
158 W
Lumen (lm)
15649 - 17015 lm
Efficacy (lm/W)
99 - 108 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
W, EW, T2, T3, T4, ME
Optic value
51°x56°, 106°x115°, 137°x54°, 120°x85°, 99°x72°, 137°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B3-U1-G3, B4-U1-G1, B4-U1-G2, B4-U1-G3
ULR
0.01
CIE flux code nº3
97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.5 kg
EPA (m2)
0.068
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
W (51°x56°)
EW (106°x115°)
T2 (137°x54°)
T3 (120°x85°)
T4 (99°x72°)
ME (137°x58°)
