LIGMAN MACARON 2 MC-20011-LC.

MACARON 2MC-20011-LCMACARON

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

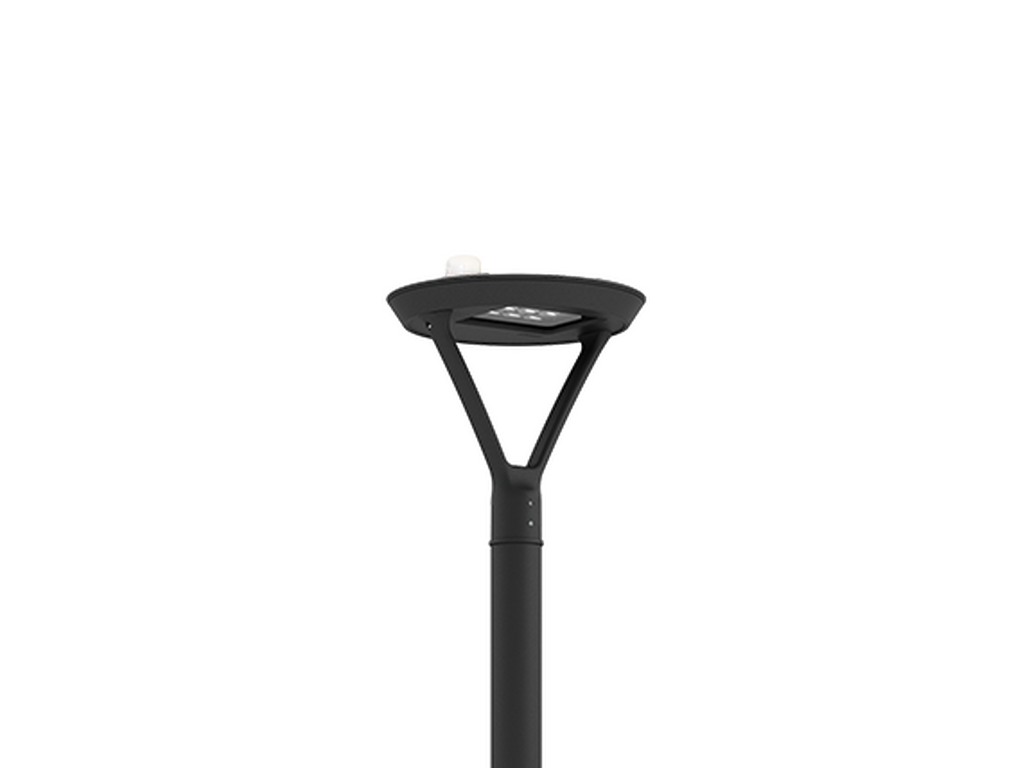

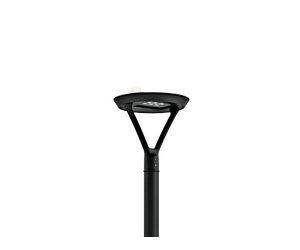

MACARON 2Black

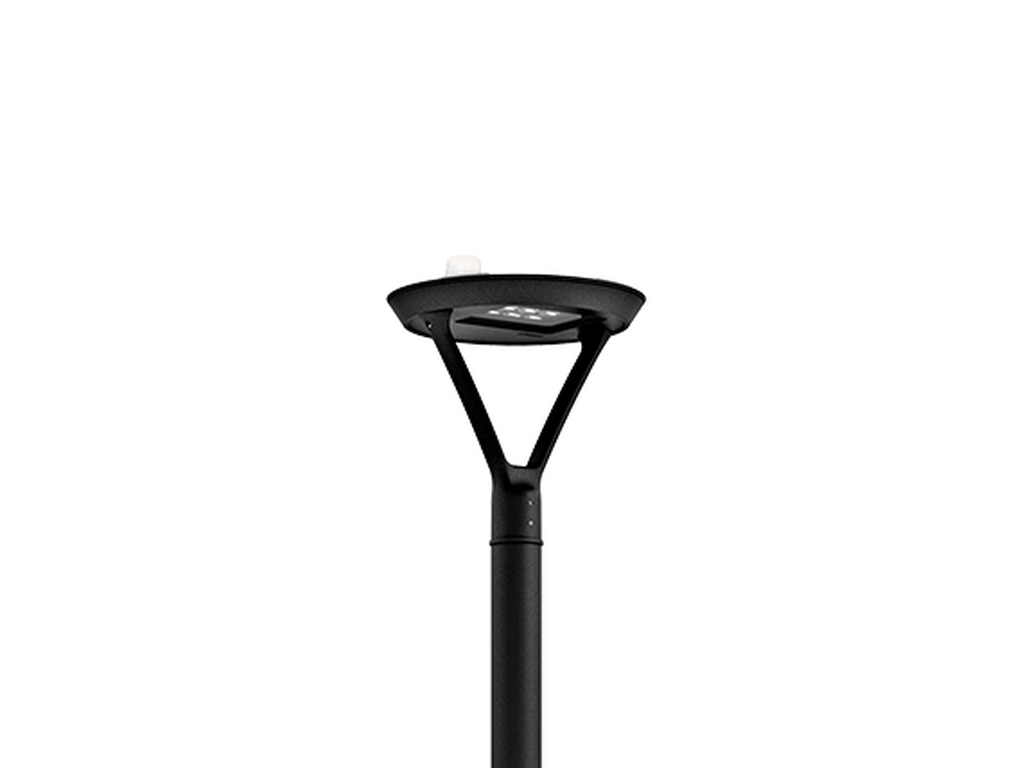

MACARON 2Dark Grey

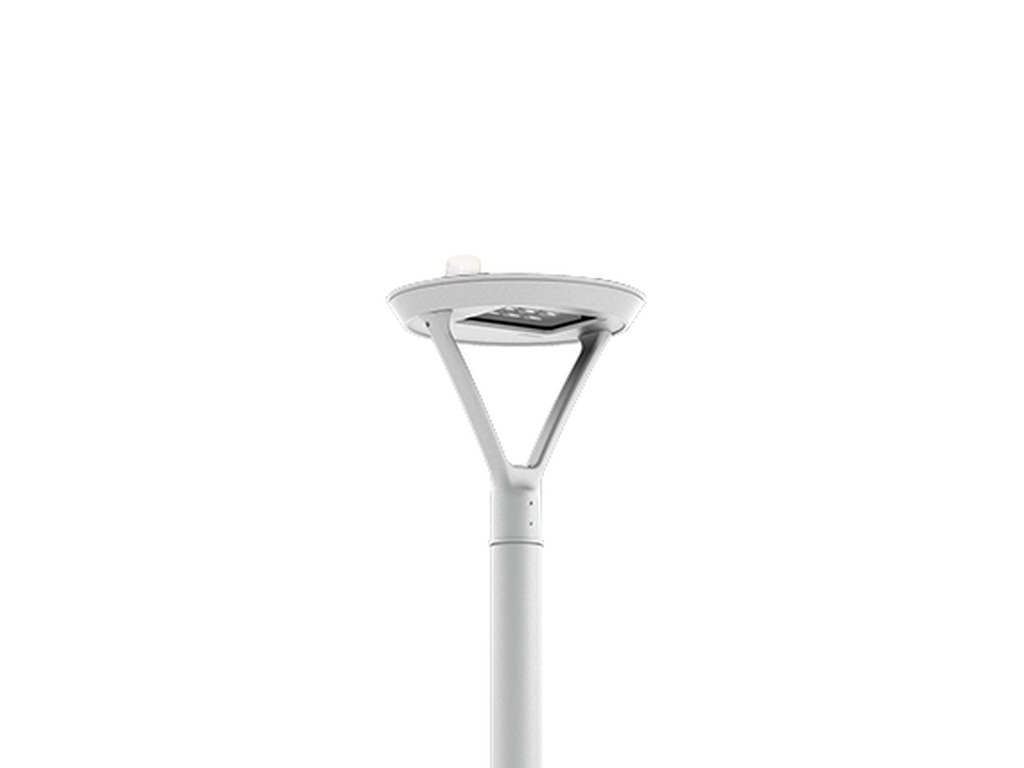

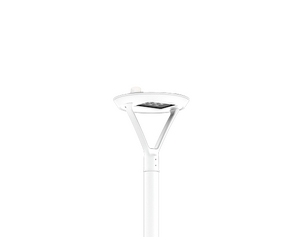

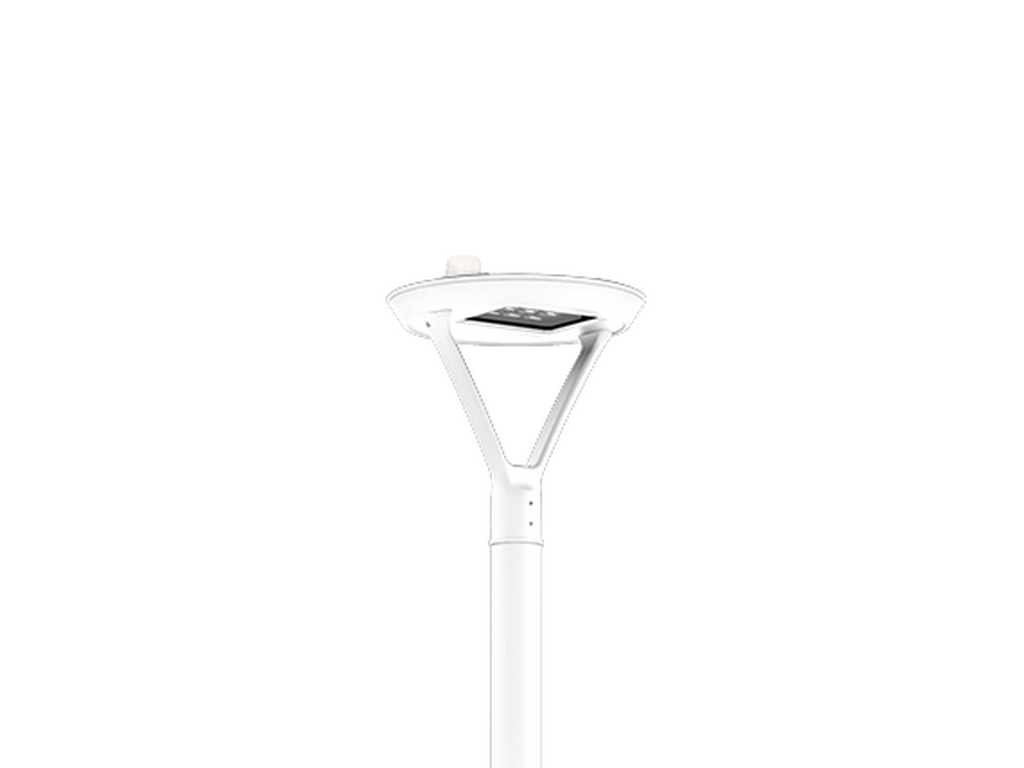

MACARON 2White
MACARON 2Matt Silver

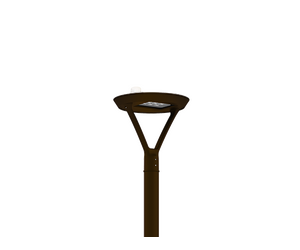

MACARON 2Bronze

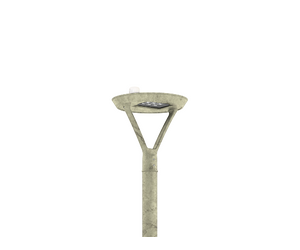

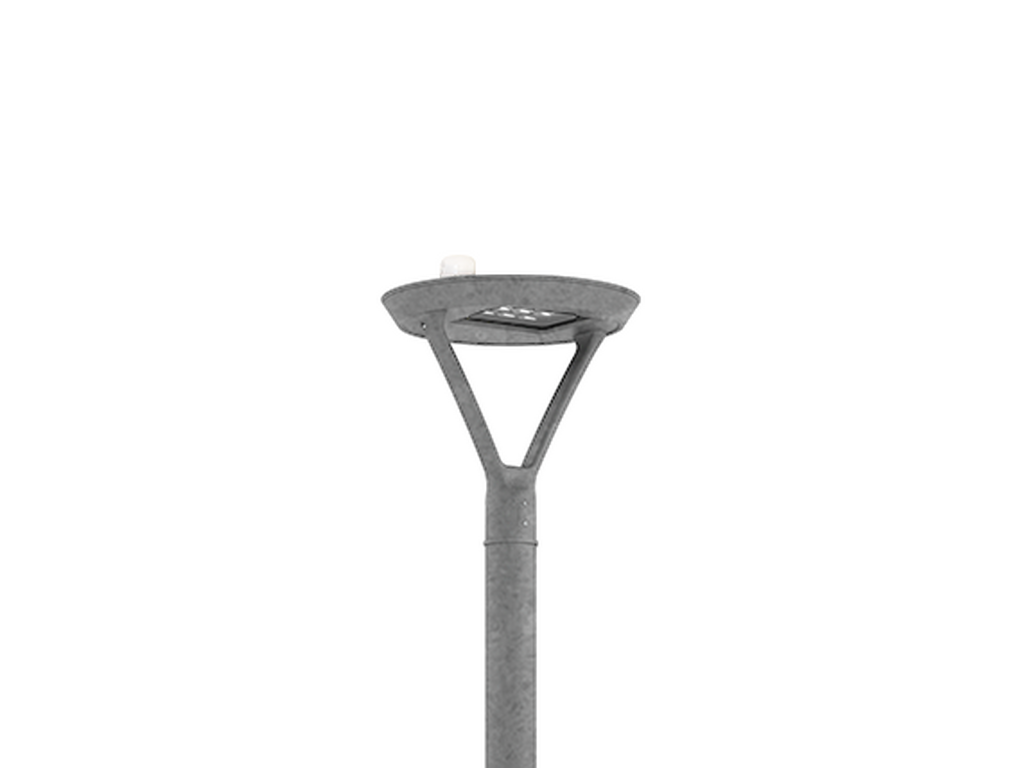

MACARON 2Concrete - Urban
MACARON 2Softscape - Urban

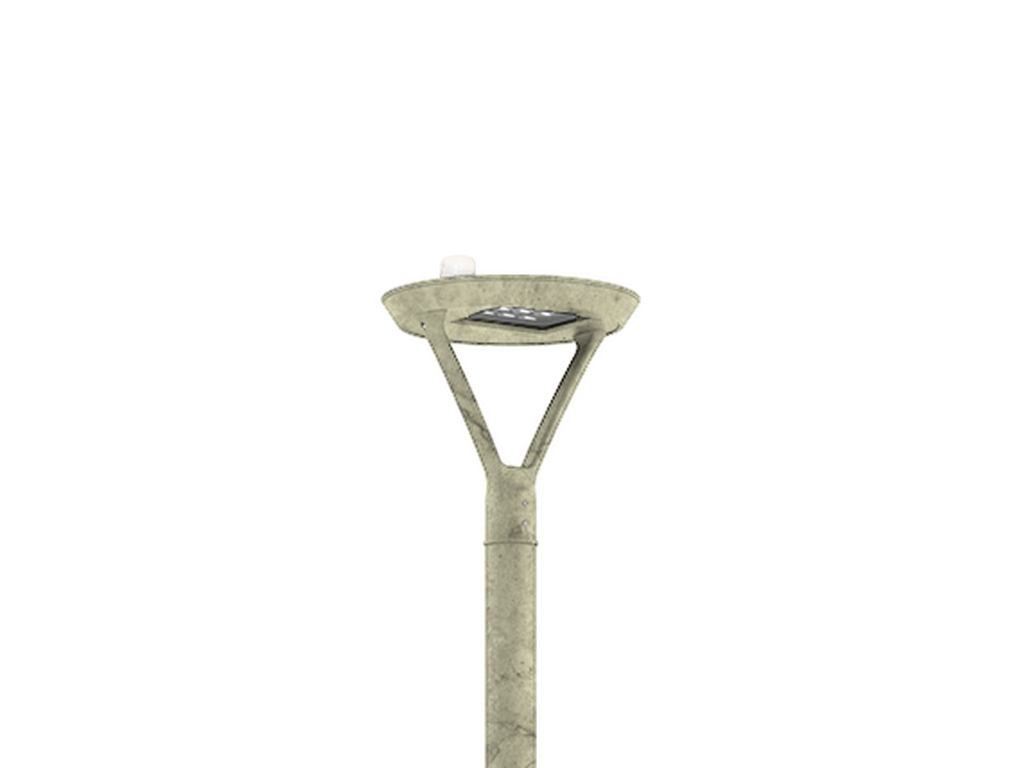

MACARON 2Stone - Urban

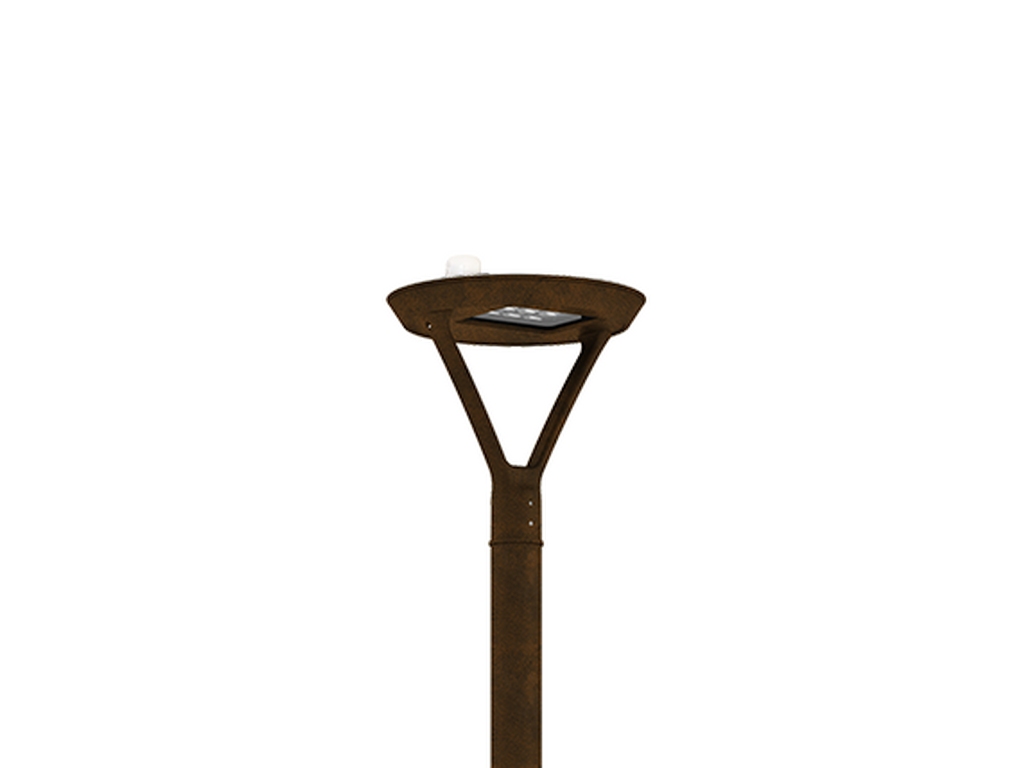

MACARON 2Corten - Urban

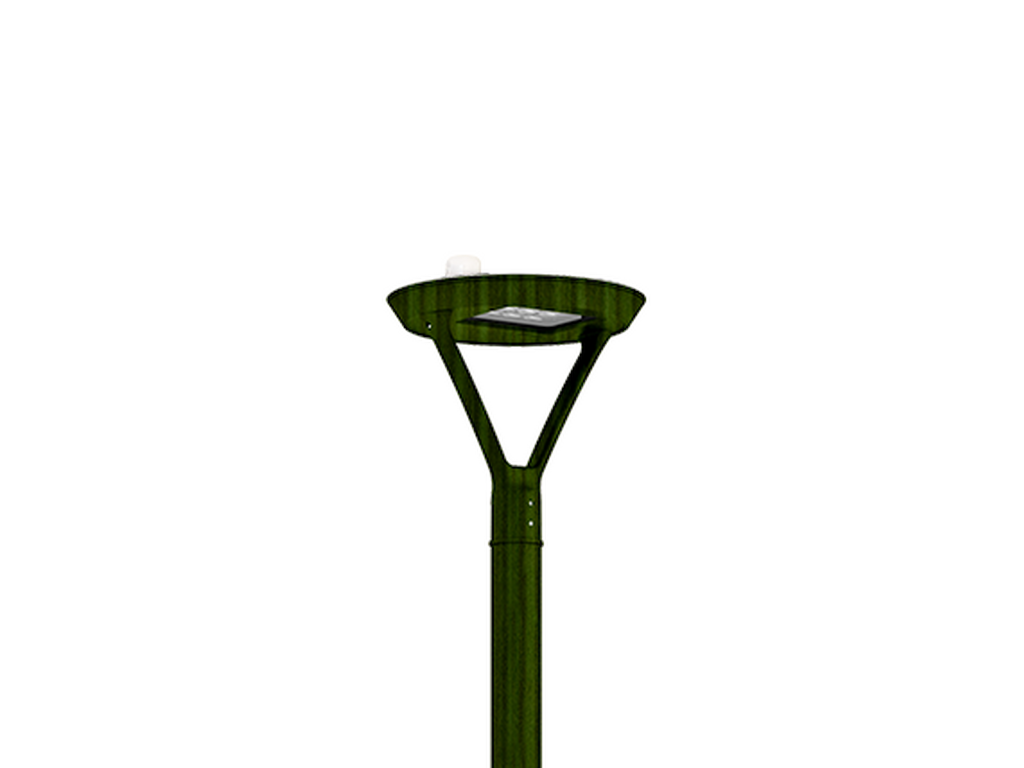

MACARON 2Oak - Woodland

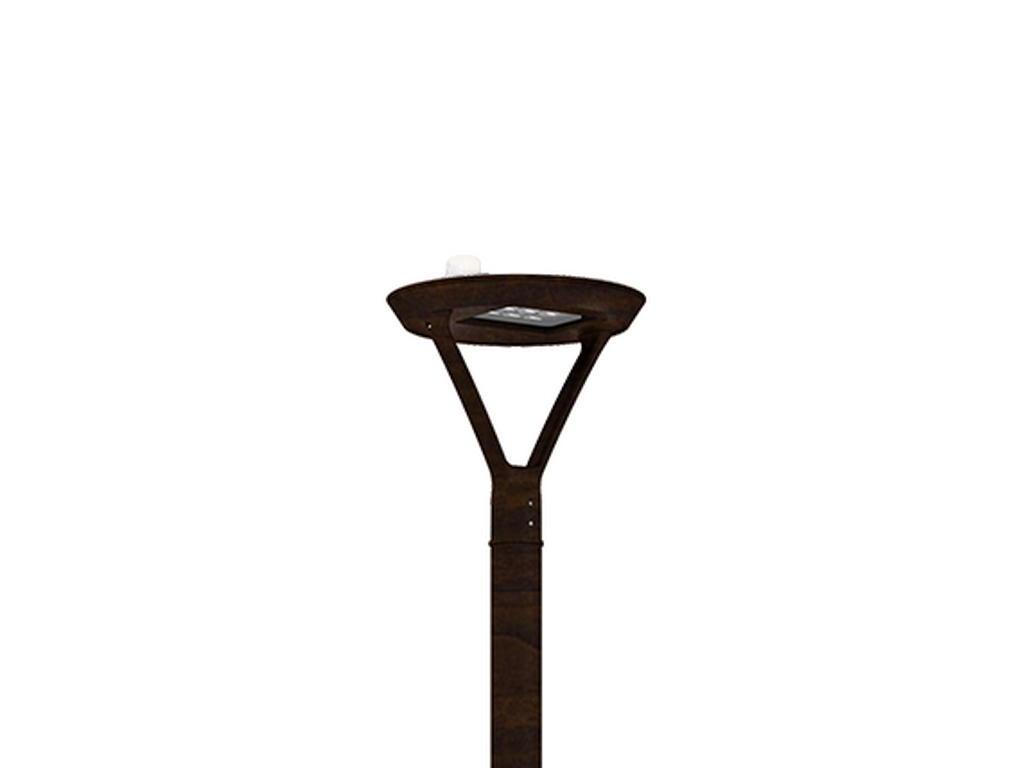

MACARON 2Walnut - Woodland

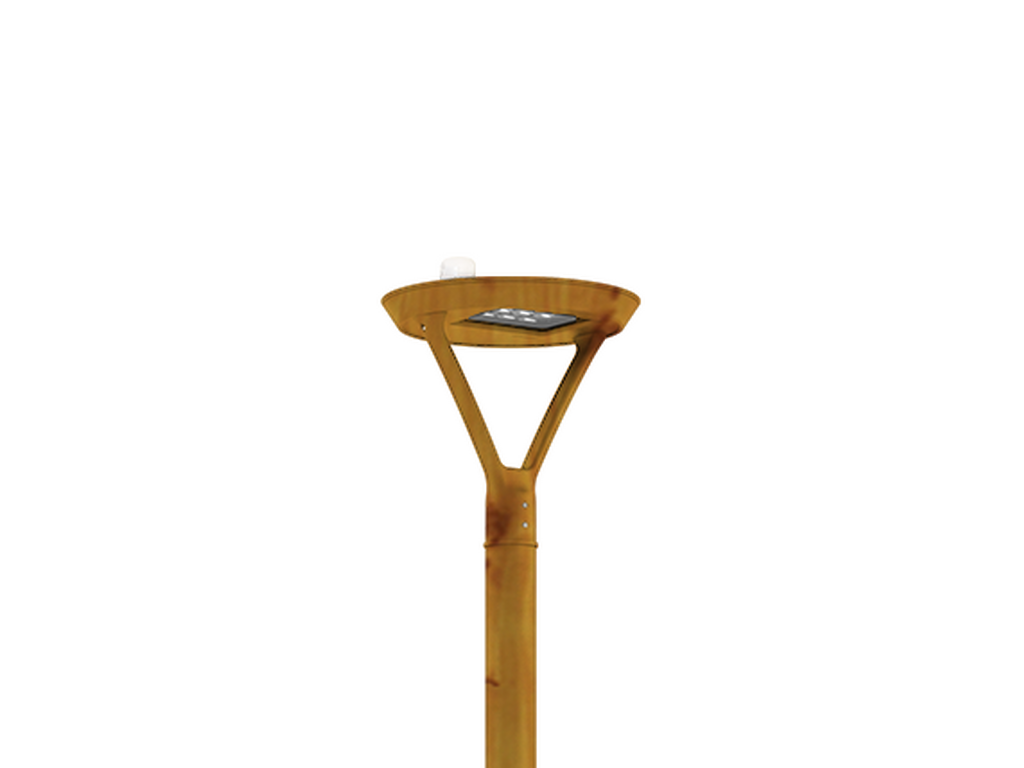

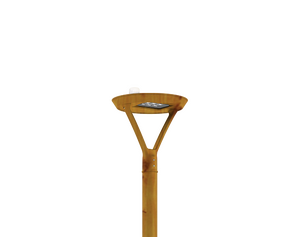

MACARON 2Pine - Woodland
MACARON 2Black
MACARON 2Dark Grey
MACARON 2White
MACARON 2Matt Silver
MACARON 2Bronze
MACARON 2Concrete - Urban
MACARON 2Softscape - Urban
MACARON 2Stone - Urban
MACARON 2Corten - Urban
MACARON 2Oak - Woodland
MACARON 2Walnut - Woodland
MACARON 2Pine - Woodland
LIGHTCONNECT™
CEClass IIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 24 LED
Power (W)
81 W
Lumen (lm)
8358 - 9391 lm
Efficacy (lm/W)
103 - 116 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
W, EW, T2, T3, T4, ME
Optic value
54°x57°, 104°x116°, 45°x136°, 60°x121°, 61°x97°, 46°x137°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U1-G2, B3-U0-G1, B3-U1-G2, B3-U1-G3
ULR
0%, 0.01
ULOR
0, 0%
CIE flux code nº3
97, 98, 99
Dimming type
DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.5 kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.069
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

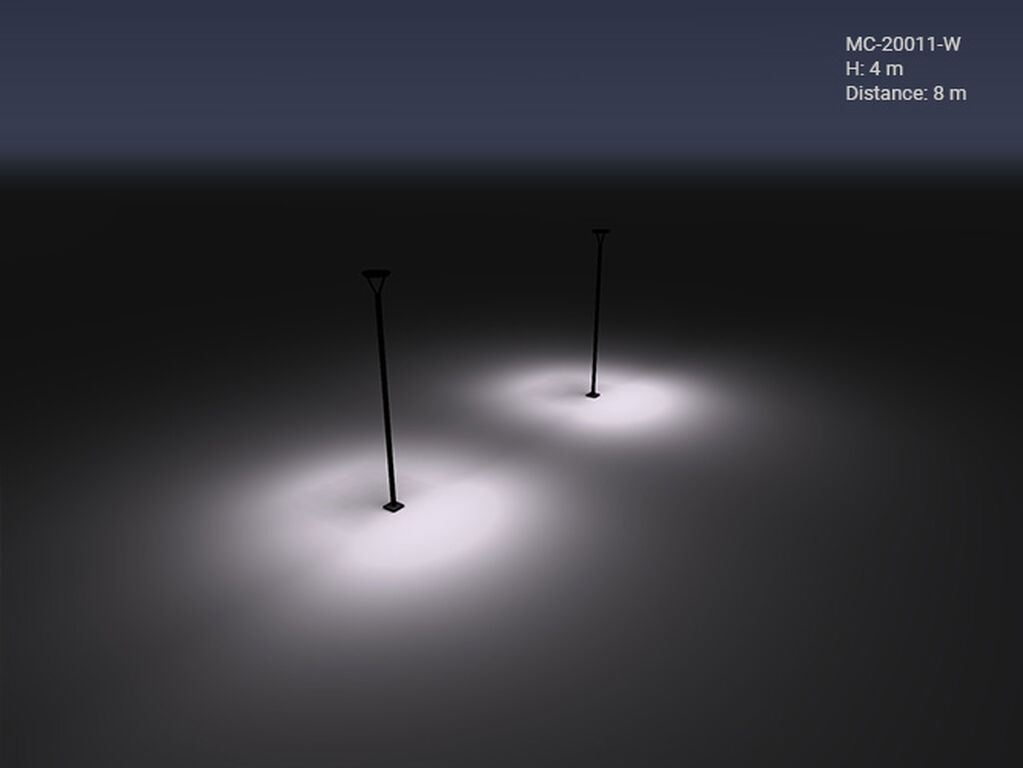

LIGHT EFFECT

Optic
W (54°x57°)
EW (104°x116°)
T2 (45°x136°)
T3 (60°x121°)
T4 (61°x97°)
ME (46°x137°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MC-20011-LC-W-8030-DA-01
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-W-8030-DA-02
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-W-8030-DA-03
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-W-8030-DA-05
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-W-8030-DA-06
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-W-8030-DA-SU01
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-W-8030-DA-SU02
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-W-8030-DA-SU03
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-W-8030-DA-SU04
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-W-8030-DA-SW01
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-W-8030-DA-SW02
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-W-8030-DA-SW03
Lumen (lm): 8358 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-W-8040-DA-01
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-W-8040-DA-02
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-W-8040-DA-03
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-W-8040-DA-05
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-W-8040-DA-06
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-W-8040-DA-SU01
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-W-8040-DA-SU02
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-W-8040-DA-SU03
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-W-8040-DA-SU04
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-W-8040-DA-SW01
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-W-8040-DA-SW02
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-W-8040-DA-SW03
Lumen (lm): 8957 lm
Optic: W
Optic value: 54°x57°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-EW-8030-DA-01
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-EW-8030-DA-02
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-EW-8030-DA-03
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-EW-8030-DA-05
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-EW-8030-DA-06
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-EW-8030-DA-SU01
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-EW-8030-DA-SU02
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-EW-8030-DA-SU03
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-EW-8030-DA-SU04
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-EW-8030-DA-SW01
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-EW-8030-DA-SW02
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-EW-8030-DA-SW03
Lumen (lm): 9079 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-EW-8040-DA-01
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-EW-8040-DA-02
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-EW-8040-DA-03
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-EW-8040-DA-05
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-EW-8040-DA-06
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-EW-8040-DA-SU01
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-EW-8040-DA-SU02
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-EW-8040-DA-SU03
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-EW-8040-DA-SU04
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-EW-8040-DA-SW01
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-EW-8040-DA-SW02
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-EW-8040-DA-SW03
Lumen (lm): 9363 lm
Optic: EW
Optic value: 104°x116°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-T2-8030-DA-01
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-T2-8030-DA-02
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-T2-8030-DA-03
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-T2-8030-DA-05
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-T2-8030-DA-06
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-T2-8030-DA-SU01
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-T2-8030-DA-SU02
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-T2-8030-DA-SU03
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-T2-8030-DA-SU04
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-T2-8030-DA-SW01
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-T2-8030-DA-SW02
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-T2-8030-DA-SW03
Lumen (lm): 8796 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-T2-8040-DA-01
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-T2-8040-DA-02
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-T2-8040-DA-03
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-T2-8040-DA-05
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-T2-8040-DA-06
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-T2-8040-DA-SU01
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-T2-8040-DA-SU02
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-T2-8040-DA-SU03
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-T2-8040-DA-SU04
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-T2-8040-DA-SW01
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-T2-8040-DA-SW02
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-T2-8040-DA-SW03
Lumen (lm): 9072 lm
Optic: T2
Optic value: 45°x136°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-T3-8030-DA-01
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-T3-8030-DA-02
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-T3-8030-DA-03
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-T3-8030-DA-05
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-T3-8030-DA-06
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-T3-8030-DA-SU01
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-T3-8030-DA-SU02
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-T3-8030-DA-SU03
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-T3-8030-DA-SU04
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-T3-8030-DA-SW01
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-T3-8030-DA-SW02
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-T3-8030-DA-SW03
Lumen (lm): 8555 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-T3-8040-DA-01
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-T3-8040-DA-02
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-T3-8040-DA-03
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-T3-8040-DA-05
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-T3-8040-DA-06
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-T3-8040-DA-SU01
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-T3-8040-DA-SU02
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-T3-8040-DA-SU03
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-T3-8040-DA-SU04
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-T3-8040-DA-SW01
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-T3-8040-DA-SW02
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-T3-8040-DA-SW03
Lumen (lm): 8823 lm
Optic: T3
Optic value: 60°x121°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-T4-8030-DA-01
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-T4-8030-DA-02
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-T4-8030-DA-03
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-T4-8030-DA-05
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-T4-8030-DA-06
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-T4-8030-DA-SU01
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-T4-8030-DA-SU02
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-T4-8030-DA-SU03
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-T4-8030-DA-SU04
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-T4-8030-DA-SW01
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-T4-8030-DA-SW02
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-T4-8030-DA-SW03
Lumen (lm): 9106 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-T4-8040-DA-01
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-T4-8040-DA-02
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-T4-8040-DA-03
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-T4-8040-DA-05
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-T4-8040-DA-06
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-T4-8040-DA-SU01
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-T4-8040-DA-SU02
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-T4-8040-DA-SU03
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-T4-8040-DA-SU04
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-T4-8040-DA-SW01
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-T4-8040-DA-SW02
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-T4-8040-DA-SW03
Lumen (lm): 9391 lm
Optic: T4
Optic value: 61°x97°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-ME-8030-DA-01
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-ME-8030-DA-02
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-ME-8030-DA-03
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-ME-8030-DA-05
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-ME-8030-DA-06
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-ME-8030-DA-SU01
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-ME-8030-DA-SU02
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-ME-8030-DA-SU03
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-ME-8030-DA-SU04
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-ME-8030-DA-SW01
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-ME-8030-DA-SW02
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-ME-8030-DA-SW03
Lumen (lm): 8689 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MC-20011-LC-ME-8040-DA-01
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MC-20011-LC-ME-8040-DA-02
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MC-20011-LC-ME-8040-DA-03
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MC-20011-LC-ME-8040-DA-05
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MC-20011-LC-ME-8040-DA-06
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MC-20011-LC-ME-8040-DA-SU01
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MC-20011-LC-ME-8040-DA-SU02
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MC-20011-LC-ME-8040-DA-SU03
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MC-20011-LC-ME-8040-DA-SU04
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MC-20011-LC-ME-8040-DA-SW01
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MC-20011-LC-ME-8040-DA-SW02
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MC-20011-LC-ME-8040-DA-SW03
Lumen (lm): 8961 lm
Optic: ME
Optic value: 46°x137°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (MACARON Post top luminaires)
