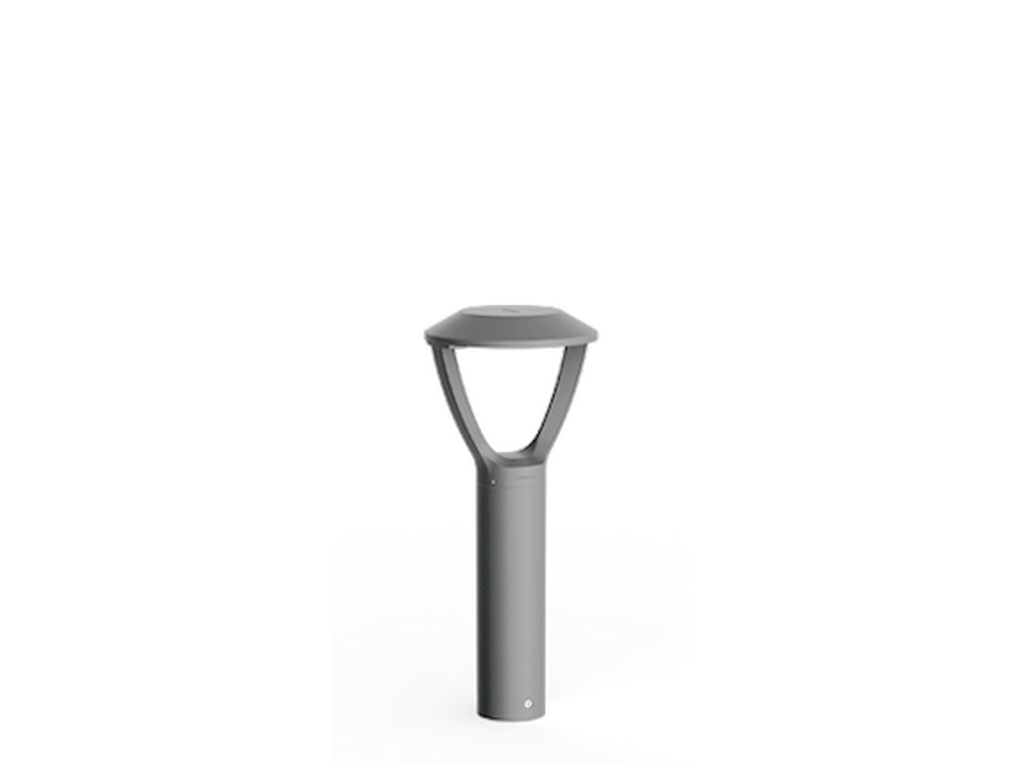

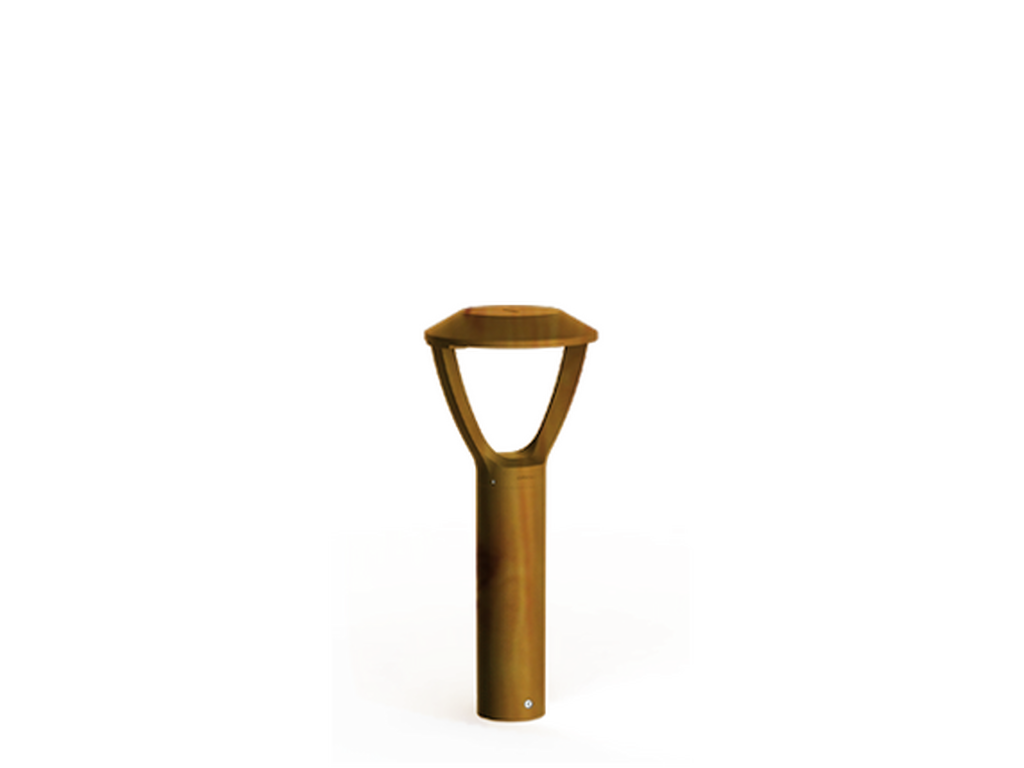

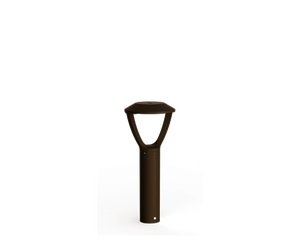

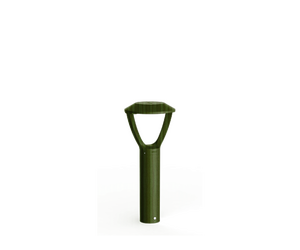

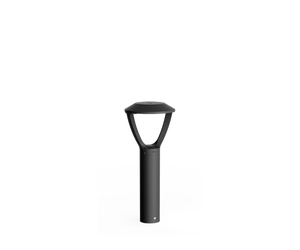

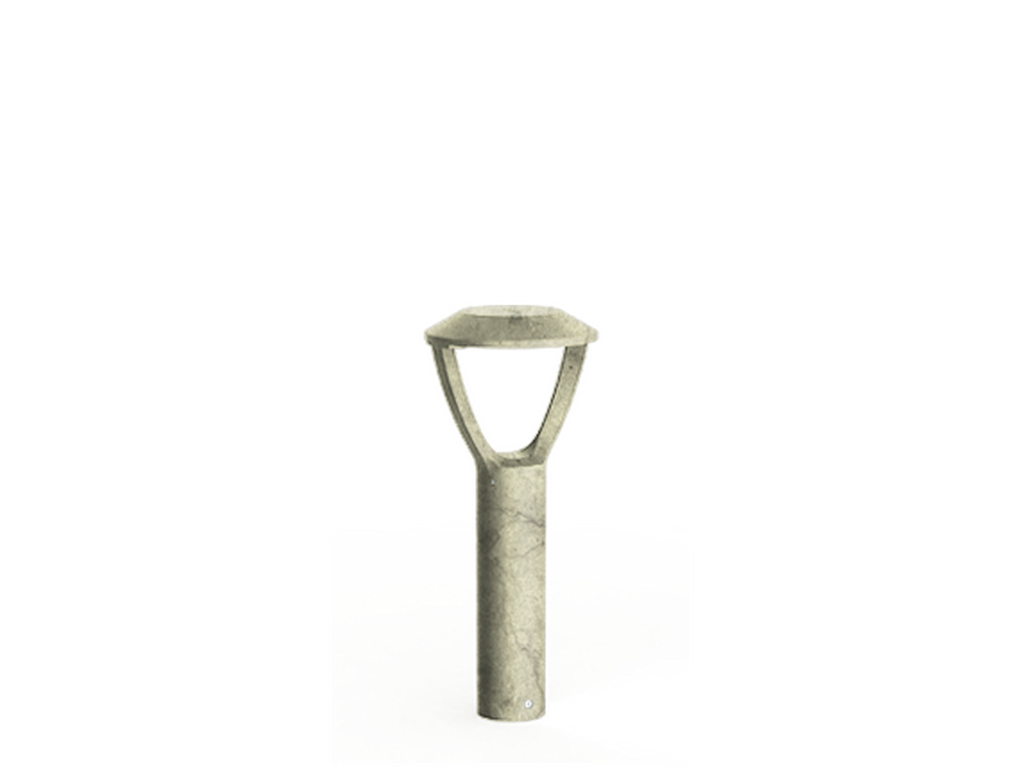

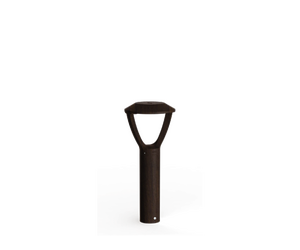

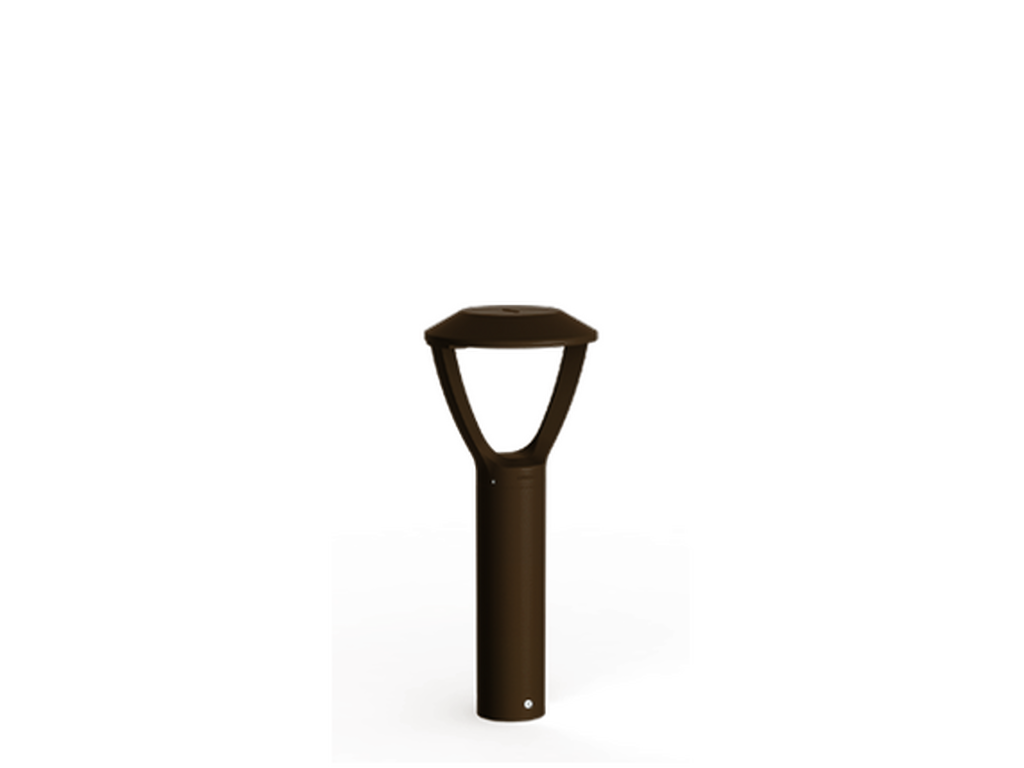

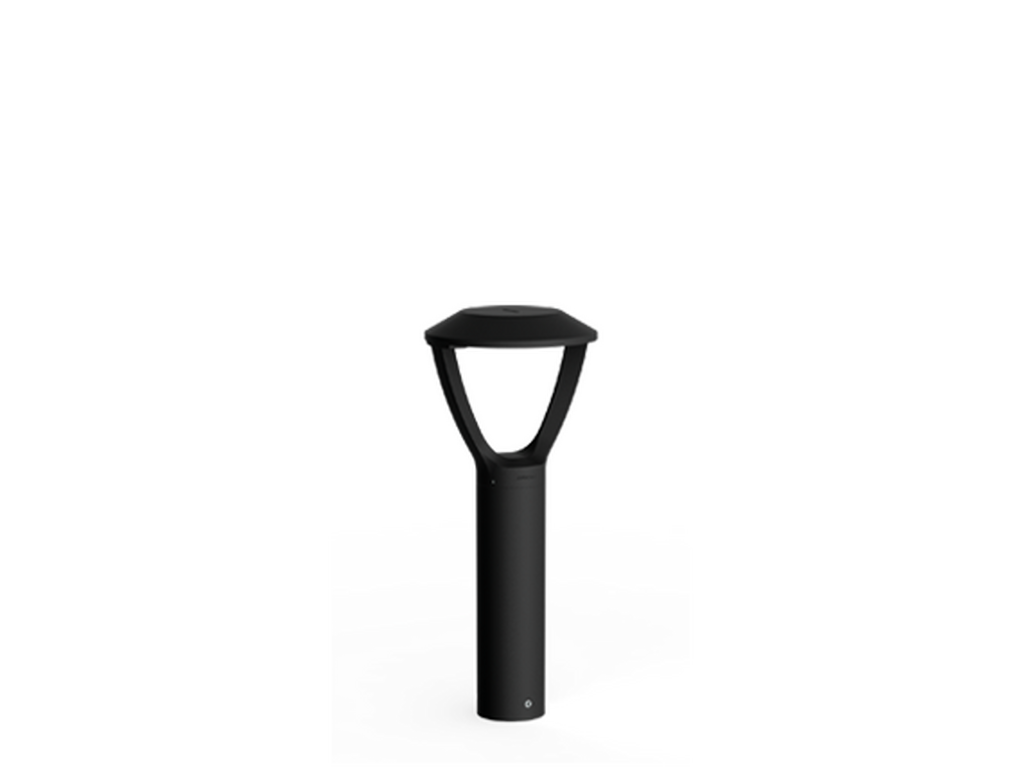

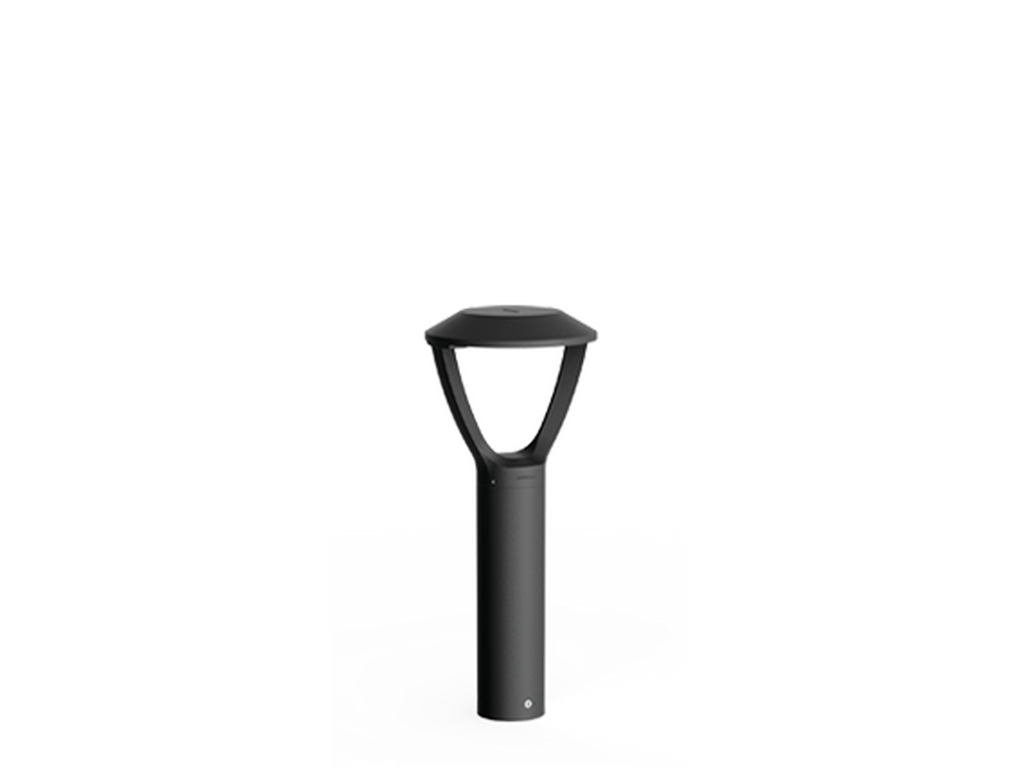

MACARON 4
Ø102 - 600 mm - 1000 mA
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
28 LED
Power (W)
46 W
Lumen (lm)
3848 - 5021 lm
Efficacy (lm/W)
84 - 109 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
W, VW, T2, T3
Optic value
76°x97°, 109°x125°, 140°x52°, 123°x37°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G1, B2-U0-G2
ULR
0%
ULOR
0%
CIE flux code nº3
95, 96, 97
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.1 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens

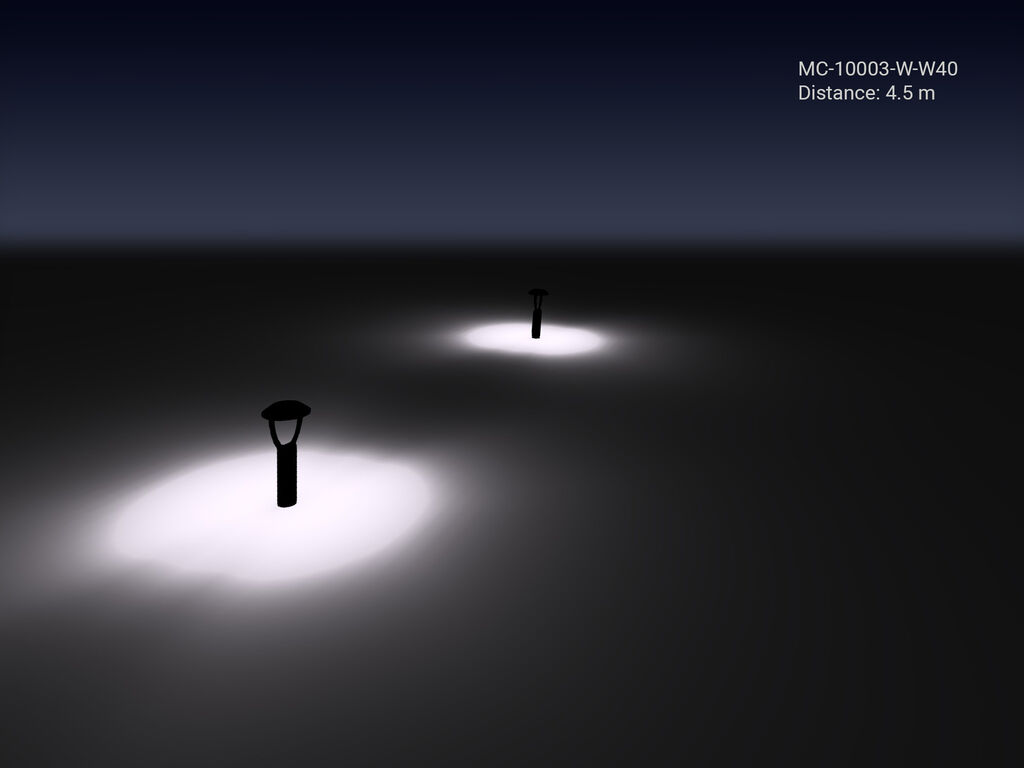

LIGHT EFFECT

Optic
W (76°x97°)
VW (109°x125°)
T2 (140°x52°)
T3 (123°x37°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MC-10003-W-8030-ND-01
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-W-8030-ND-02
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-W-8030-ND-03
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-W-8030-ND-05
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-W-8030-ND-06
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-W-8030-ND-SU01
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-W-8030-ND-SU02
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-W-8030-ND-SU03
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-W-8030-ND-SU04
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-W-8030-ND-SW01
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-W-8030-ND-SW02
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-W-8030-ND-SW03
Lumen (lm): 4146 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-W-8040-ND-01
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-W-8040-ND-02
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-W-8040-ND-03
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-W-8040-ND-05
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-W-8040-ND-06
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-W-8040-ND-SU01
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-W-8040-ND-SU02
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-W-8040-ND-SU03
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-W-8040-ND-SU04
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-W-8040-ND-SW01
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-W-8040-ND-SW02
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-W-8040-ND-SW03
Lumen (lm): 4432 lm
Optic: W
Optic value: 76°x97°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-VW-8030-ND-01
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-VW-8030-ND-02
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-VW-8030-ND-03
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-VW-8030-ND-05
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-VW-8030-ND-06
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-VW-8030-ND-SU01
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-VW-8030-ND-SU02
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-VW-8030-ND-SU03
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-VW-8030-ND-SU04
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-VW-8030-ND-SW01
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-VW-8030-ND-SW02
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-VW-8030-ND-SW03
Lumen (lm): 4697 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-VW-8040-ND-01
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-VW-8040-ND-02
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-VW-8040-ND-03
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-VW-8040-ND-05
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-VW-8040-ND-06
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-VW-8040-ND-SU01
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-VW-8040-ND-SU02
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-VW-8040-ND-SU03
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-VW-8040-ND-SU04
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-VW-8040-ND-SW01
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-VW-8040-ND-SW02
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-VW-8040-ND-SW03
Lumen (lm): 5021 lm
Optic: VW
Optic value: 109°x125°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-T2-8030-ND-01
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-T2-8030-ND-02
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-T2-8030-ND-03
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-T2-8030-ND-05
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-T2-8030-ND-06
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-T2-8030-ND-SU01
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-T2-8030-ND-SU02
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-T2-8030-ND-SU03
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-T2-8030-ND-SU04
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-T2-8030-ND-SW01
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-T2-8030-ND-SW02
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-T2-8030-ND-SW03
Lumen (lm): 3848 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-T2-8040-ND-01
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-T2-8040-ND-02
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-T2-8040-ND-03
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-T2-8040-ND-05
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-T2-8040-ND-06
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-T2-8040-ND-SU01
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-T2-8040-ND-SU02
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-T2-8040-ND-SU03
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-T2-8040-ND-SU04
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-T2-8040-ND-SW01
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-T2-8040-ND-SW02
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-T2-8040-ND-SW03
Lumen (lm): 4113 lm
Optic: T2
Optic value: 140°x52°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-T3-8030-ND-01
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-T3-8030-ND-02
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-T3-8030-ND-03
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-T3-8030-ND-05
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-T3-8030-ND-06
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-T3-8030-ND-SU01
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-T3-8030-ND-SU02
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-T3-8030-ND-SU03
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-T3-8030-ND-SU04
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-T3-8030-ND-SW01
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-T3-8030-ND-SW02
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-T3-8030-ND-SW03
Lumen (lm): 4245 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MC-10003-T3-8040-ND-01
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MC-10003-T3-8040-ND-02
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MC-10003-T3-8040-ND-03
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MC-10003-T3-8040-ND-05
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MC-10003-T3-8040-ND-06
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MC-10003-T3-8040-ND-SU01
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MC-10003-T3-8040-ND-SU02
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MC-10003-T3-8040-ND-SU03
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MC-10003-T3-8040-ND-SU04
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MC-10003-T3-8040-ND-SW01
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MC-10003-T3-8040-ND-SW02
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MC-10003-T3-8040-ND-SW03
Lumen (lm): 4538 lm
Optic: T3
Optic value: 123°x37°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
