NEW

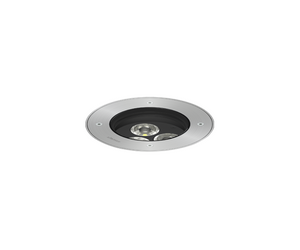

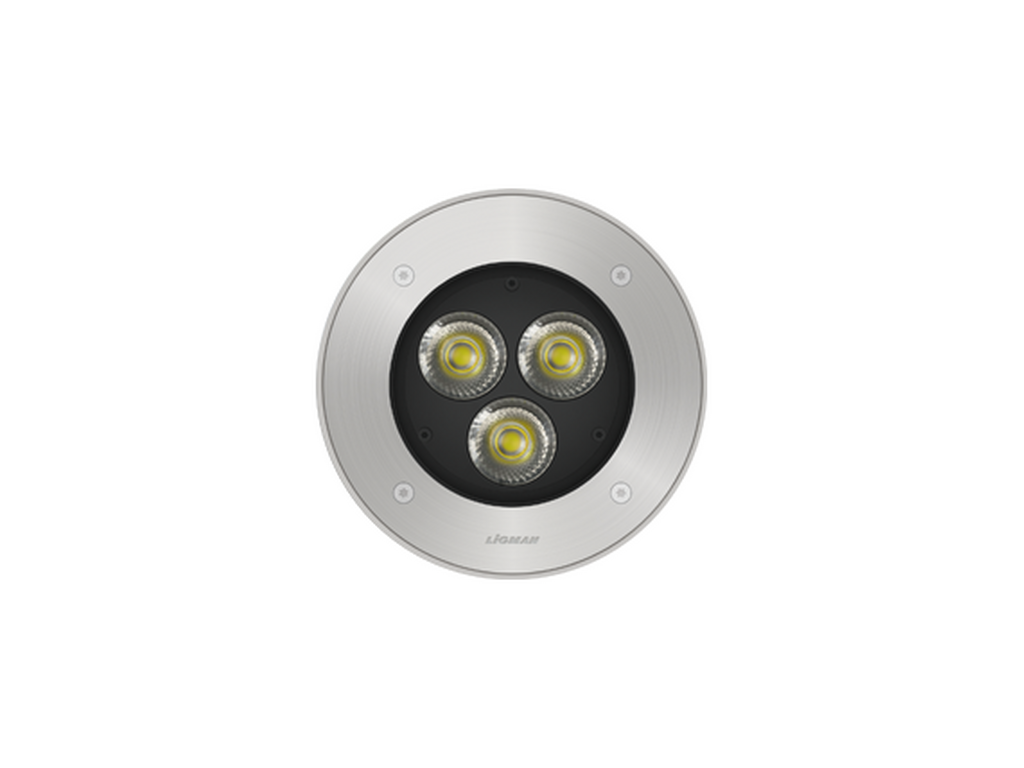

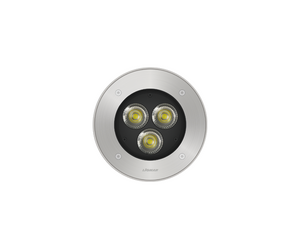

MELBOURNE 4
MELBOURNE 4
MELBOURNE 4
MELBOURNE 4
MELBOURNE 4
MELBOURNE 4

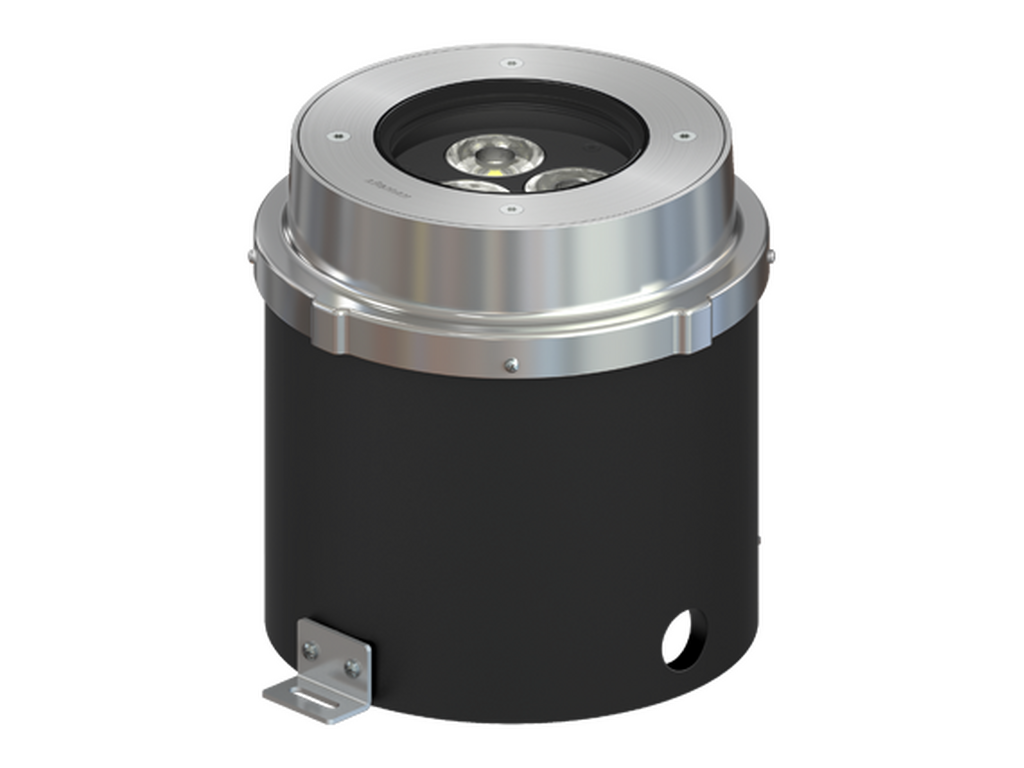

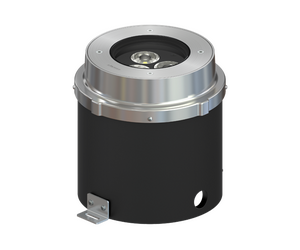

Ø215 - With recessing box / driver
CEClass IIP68IK10

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
3 LED
Power (W)
20 W
Lumen (lm)
1452 - 1528 lm
Efficacy (lm/W)
73 - 76 lm/W
Driver option
Integral control gear
Input voltage
220-240V 50/60Hz
Optic
VN
Optic value
8°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U5-G0
ULR
100
ULOR
100
Dimming type
On/Off, 1-10V, DALI
Product colours
Stainless Steel
Weight
11.0 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

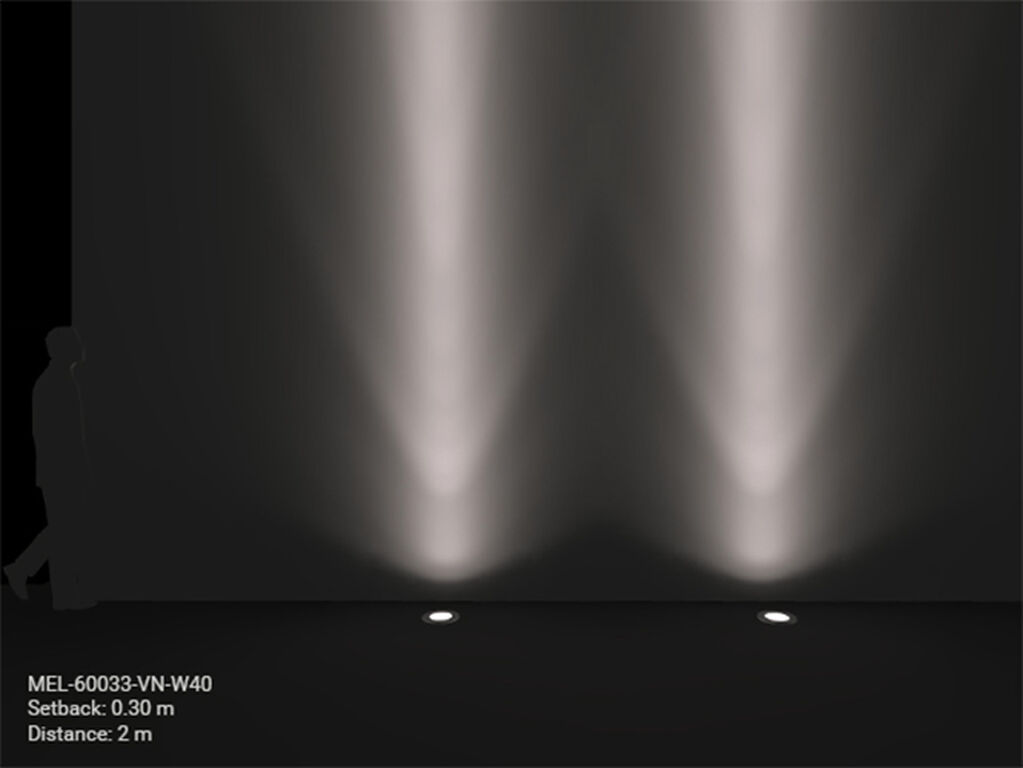

LIGHT EFFECT

Optic
VN (8°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MEL-60033-VN-8030-ND-00
Lumen (lm): 1452 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60033-VN-8040-ND-00
Lumen (lm): 1528 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stainless Steel
Variant code: MEL-60033-VN-8030-DI-00
Lumen (lm): 1452 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60033-VN-8040-DI-00
Lumen (lm): 1528 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stainless Steel
Variant code: MEL-60033-VN-8030-DA-00
Lumen (lm): 1452 lm
Optic: VN
Optic value: 8°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stainless Steel
Variant code: MEL-60033-VN-8040-DA-00
Lumen (lm): 1528 lm
Optic: VN
Optic value: 8°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stainless Steel

ACCESSORY
