ALDO 7ALD-30272

(Version 1)

ALDO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

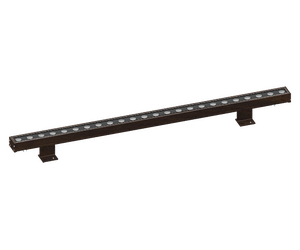

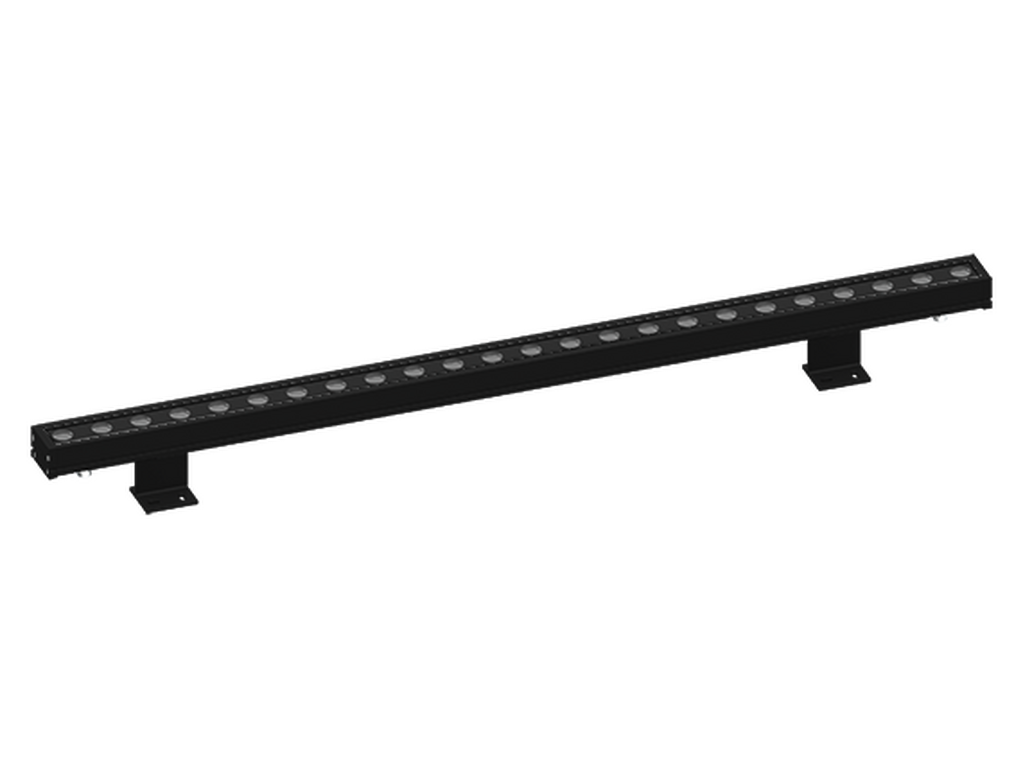

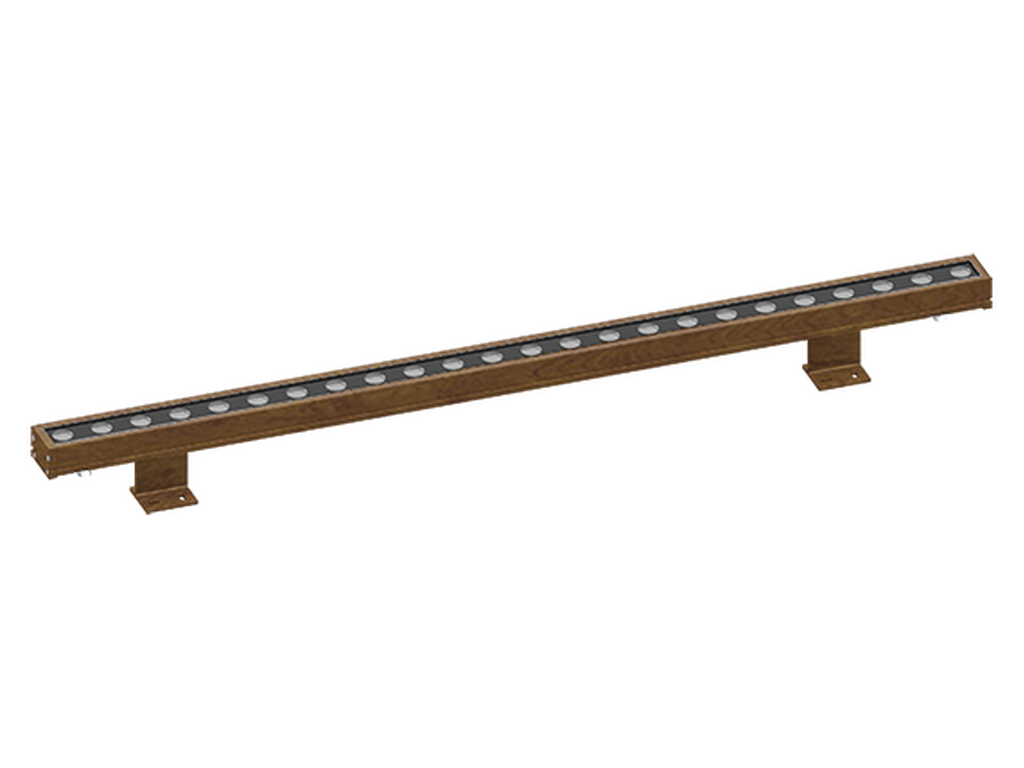

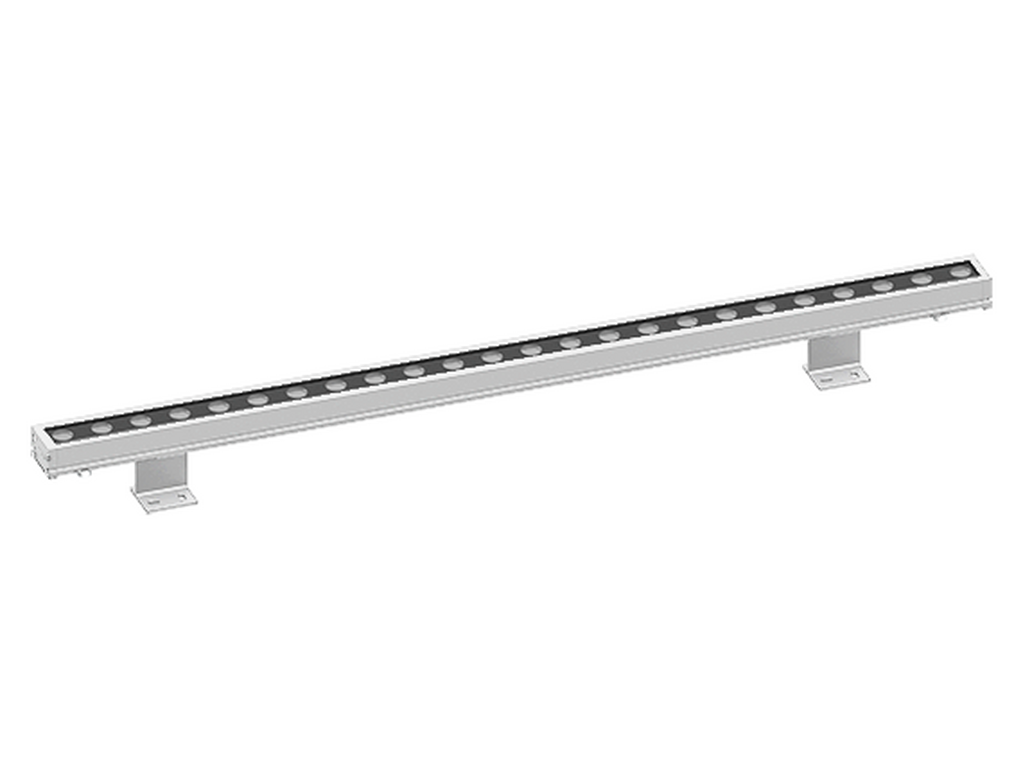

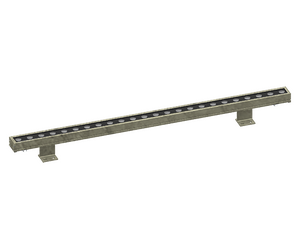

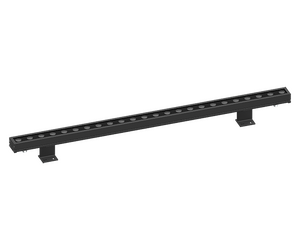

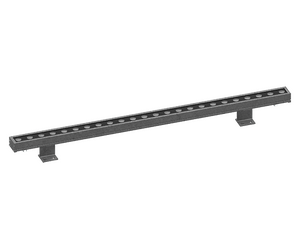

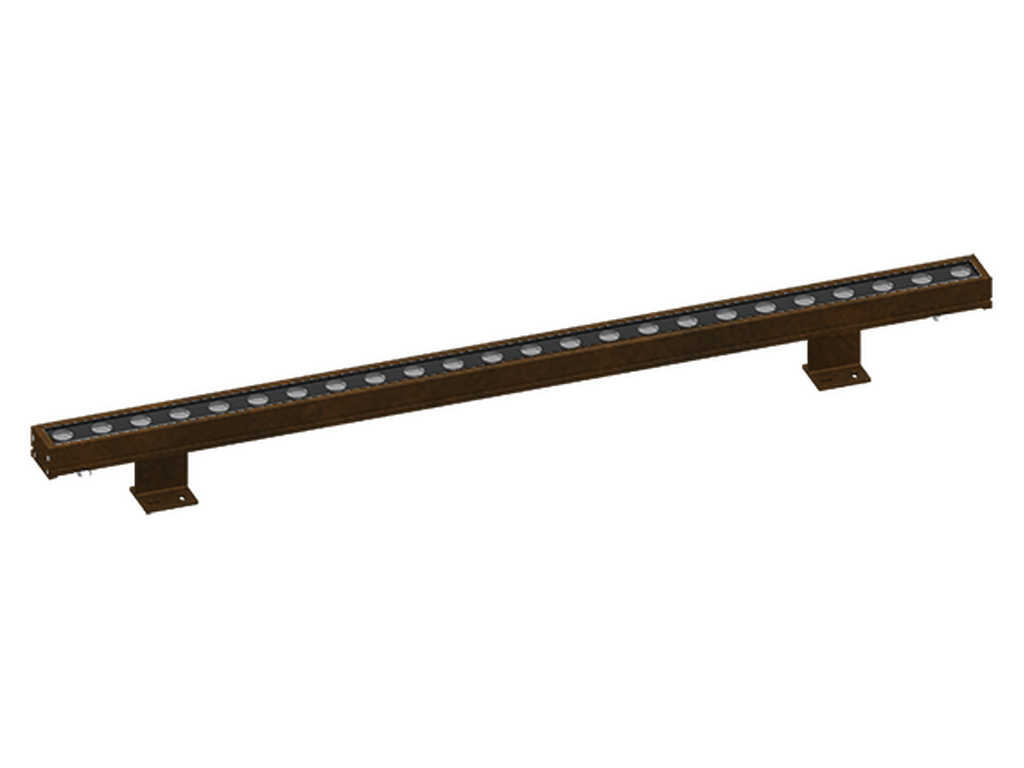

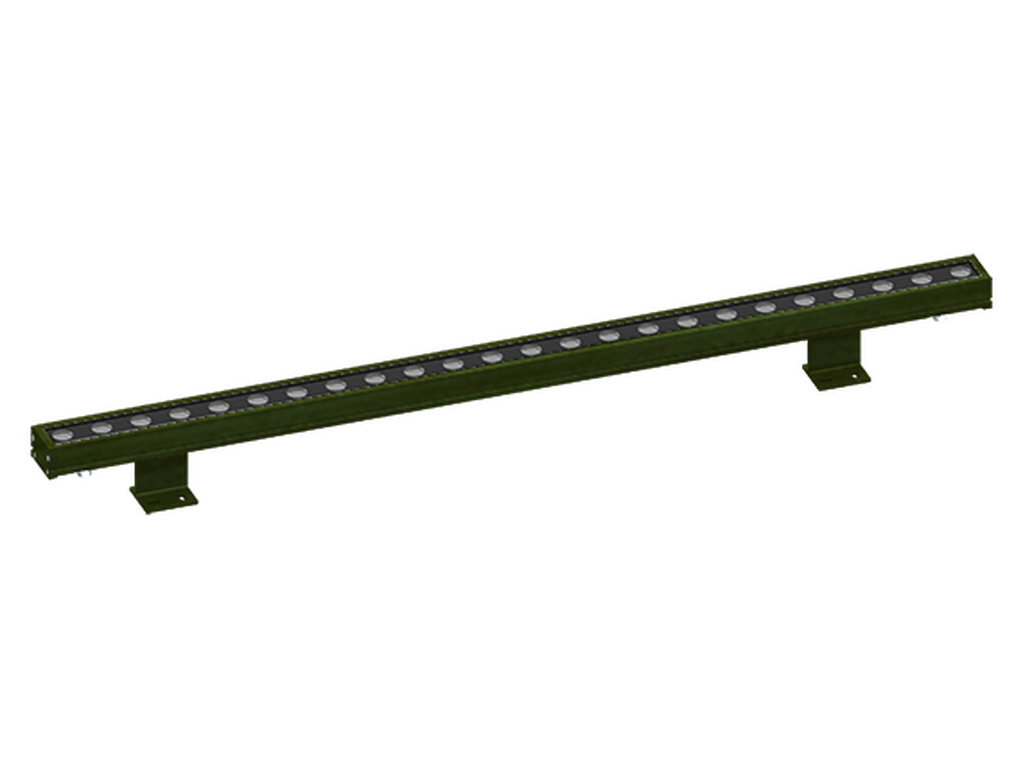

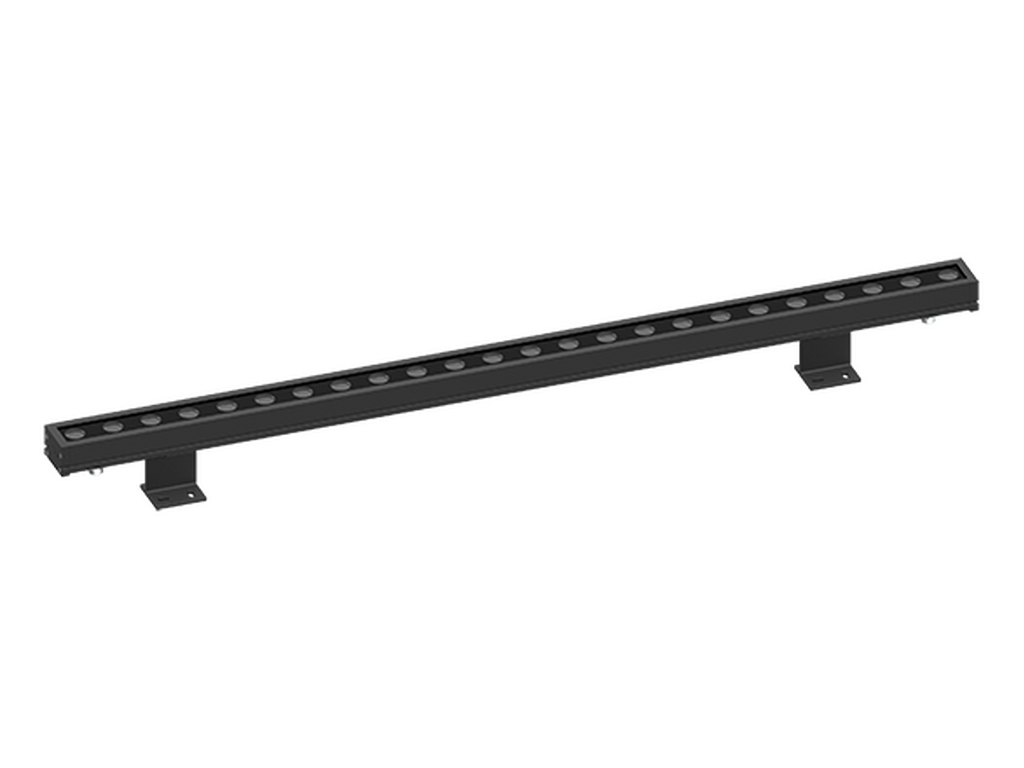

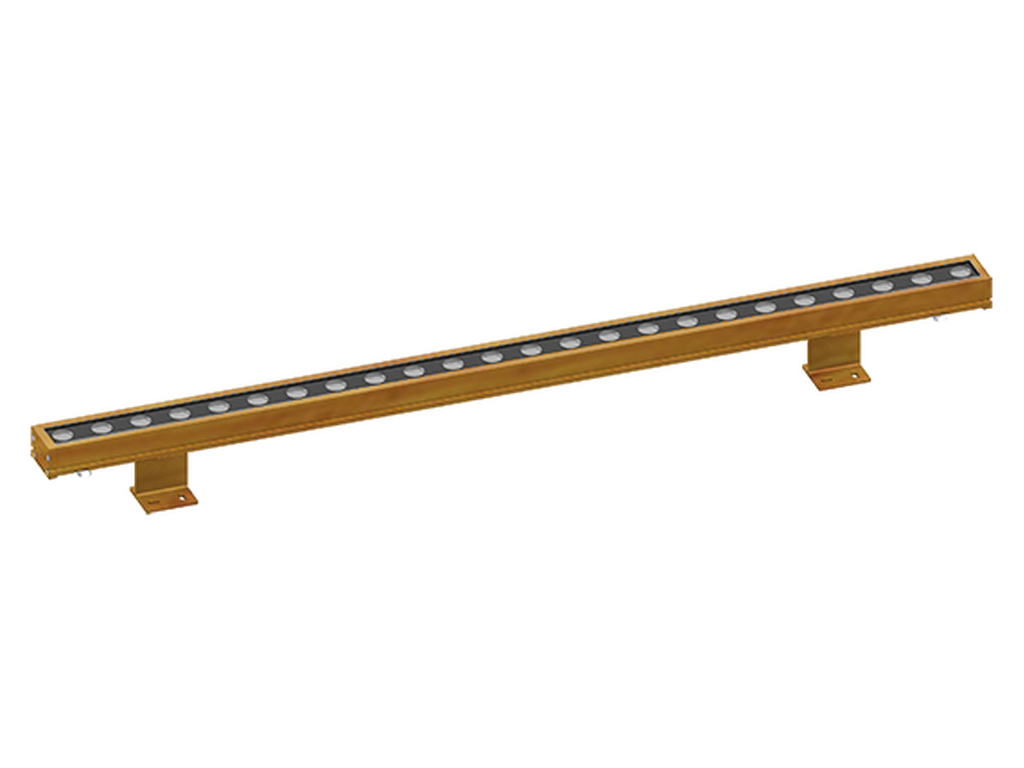

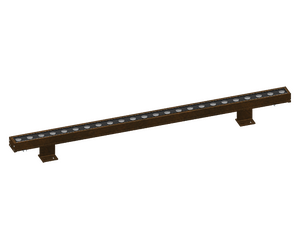

ALDO 7Black
ALDO 7Dark Grey
ALDO 7White
ALDO 7Matt Silver
ALDO 7Bronze
ALDO 7Concrete - Urban
ALDO 7Softscape - Urban
ALDO 7Stone - Urban
ALDO 7Corten - Urban
ALDO 7Oak - Woodland
ALDO 7Walnut - Woodland
ALDO 7Pine - Woodland
ALDO 7Black
ALDO 7Dark Grey
ALDO 7White
ALDO 7Matt Silver
ALDO 7Bronze
ALDO 7Concrete - Urban
ALDO 7Softscape - Urban
ALDO 7Stone - Urban
ALDO 7Corten - Urban
ALDO 7Oak - Woodland
ALDO 7Walnut - Woodland
ALDO 7Pine - Woodland
Without remote driver - Constant voltage (CV) 24 V - 50x95 mm - 1000 mm - Class III - IK07
CEClass IIIIP66IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
24 LED
Power (W)
49 W
Lumen (lm)
5123 - 6208 lm
Efficacy (lm/W)
105 - 127 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, VW, E
Optic value
11°, 17°, 33°, 72°, 12°x44°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B3-U0-G0, B4-U0-G0
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
2.4 kg
Operating temperature
-20 °C to 40 °C
Cable
Two IP67 connectors supplied with 2x0.2 m of 2x1.0 sqmm outdoor cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000

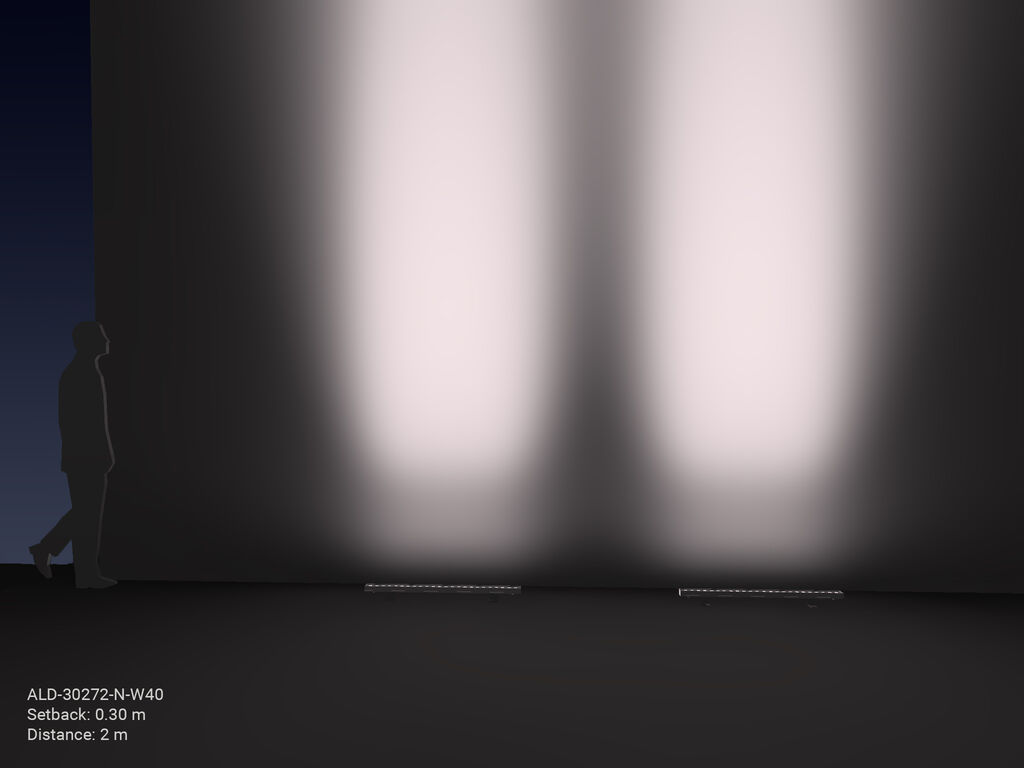

LIGHT EFFECT

Optic
N (11°)
M (17°)
W (33°)
VW (72°)
E (12°x44°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: ALD-30272-N-8030-ND-01
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-N-8030-ND-02
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-N-8030-ND-03
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-N-8030-ND-05
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-N-8030-ND-06
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-N-8030-ND-SU01
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-N-8030-ND-SU02
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-N-8030-ND-SU03
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-N-8030-ND-SU04
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-N-8030-ND-SW01
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-N-8030-ND-SW02
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-N-8030-ND-SW03
Lumen (lm): 5897 lm
Optic: N
Optic value: 11°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-N-8040-ND-01
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-N-8040-ND-02
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-N-8040-ND-03
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-N-8040-ND-05
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-N-8040-ND-06
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-N-8040-ND-SU01
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-N-8040-ND-SU02
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-N-8040-ND-SU03
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-N-8040-ND-SU04
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-N-8040-ND-SW01
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-N-8040-ND-SW02
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-N-8040-ND-SW03
Lumen (lm): 6208 lm
Optic: N
Optic value: 11°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-M-8030-ND-01
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-M-8030-ND-02
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-M-8030-ND-03
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-M-8030-ND-05
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-M-8030-ND-06
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-M-8030-ND-SU01
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-M-8030-ND-SU02
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-M-8030-ND-SU03
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-M-8030-ND-SU04
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-M-8030-ND-SW01
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-M-8030-ND-SW02
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-M-8030-ND-SW03
Lumen (lm): 5286 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-M-8040-ND-01
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-M-8040-ND-02
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-M-8040-ND-03
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-M-8040-ND-05
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-M-8040-ND-06
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-M-8040-ND-SU01
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-M-8040-ND-SU02
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-M-8040-ND-SU03
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-M-8040-ND-SU04
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-M-8040-ND-SW01
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-M-8040-ND-SW02
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-M-8040-ND-SW03
Lumen (lm): 5564 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-W-8030-ND-01
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-W-8030-ND-02
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-W-8030-ND-03
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-W-8030-ND-05
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-W-8030-ND-06
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-W-8030-ND-SU01
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-W-8030-ND-SU02
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-W-8030-ND-SU03
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-W-8030-ND-SU04
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-W-8030-ND-SW01
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-W-8030-ND-SW02
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-W-8030-ND-SW03
Lumen (lm): 5274 lm
Optic: W
Optic value: 33°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-W-8040-ND-01
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-W-8040-ND-02
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-W-8040-ND-03
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-W-8040-ND-05
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-W-8040-ND-06
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-W-8040-ND-SU01
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-W-8040-ND-SU02
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-W-8040-ND-SU03
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-W-8040-ND-SU04
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-W-8040-ND-SW01
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-W-8040-ND-SW02
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-W-8040-ND-SW03
Lumen (lm): 5551 lm
Optic: W
Optic value: 33°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-VW-8030-ND-01
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-VW-8030-ND-02
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-VW-8030-ND-03
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-VW-8030-ND-05
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-VW-8030-ND-06
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-VW-8030-ND-SU01
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-VW-8030-ND-SU02
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-VW-8030-ND-SU03
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-VW-8030-ND-SU04
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-VW-8030-ND-SW01
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-VW-8030-ND-SW02
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-VW-8030-ND-SW03
Lumen (lm): 5123 lm
Optic: VW
Optic value: 72°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-VW-8040-ND-01
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-VW-8040-ND-02
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-VW-8040-ND-03
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-VW-8040-ND-05
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-VW-8040-ND-06
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-VW-8040-ND-SU01
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-VW-8040-ND-SU02
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-VW-8040-ND-SU03
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-VW-8040-ND-SU04
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-VW-8040-ND-SW01
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-VW-8040-ND-SW02
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-VW-8040-ND-SW03
Lumen (lm): 5392 lm
Optic: VW
Optic value: 72°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-E-8030-ND-01
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-E-8030-ND-02
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-E-8030-ND-03
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-E-8030-ND-05
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-E-8030-ND-06
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-E-8030-ND-SU01
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-E-8030-ND-SU02
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-E-8030-ND-SU03
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-E-8030-ND-SU04
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-E-8030-ND-SW01
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-E-8030-ND-SW02
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-E-8030-ND-SW03
Lumen (lm): 5659 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30272-E-8040-ND-01
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30272-E-8040-ND-02
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30272-E-8040-ND-03
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30272-E-8040-ND-05
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30272-E-8040-ND-06
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30272-E-8040-ND-SU01
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30272-E-8040-ND-SU02
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30272-E-8040-ND-SU03
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30272-E-8040-ND-SU04
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30272-E-8040-ND-SW01
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30272-E-8040-ND-SW02
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30272-E-8040-ND-SW03
Lumen (lm): 5956 lm
Optic: E
Optic value: 12°x44°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
