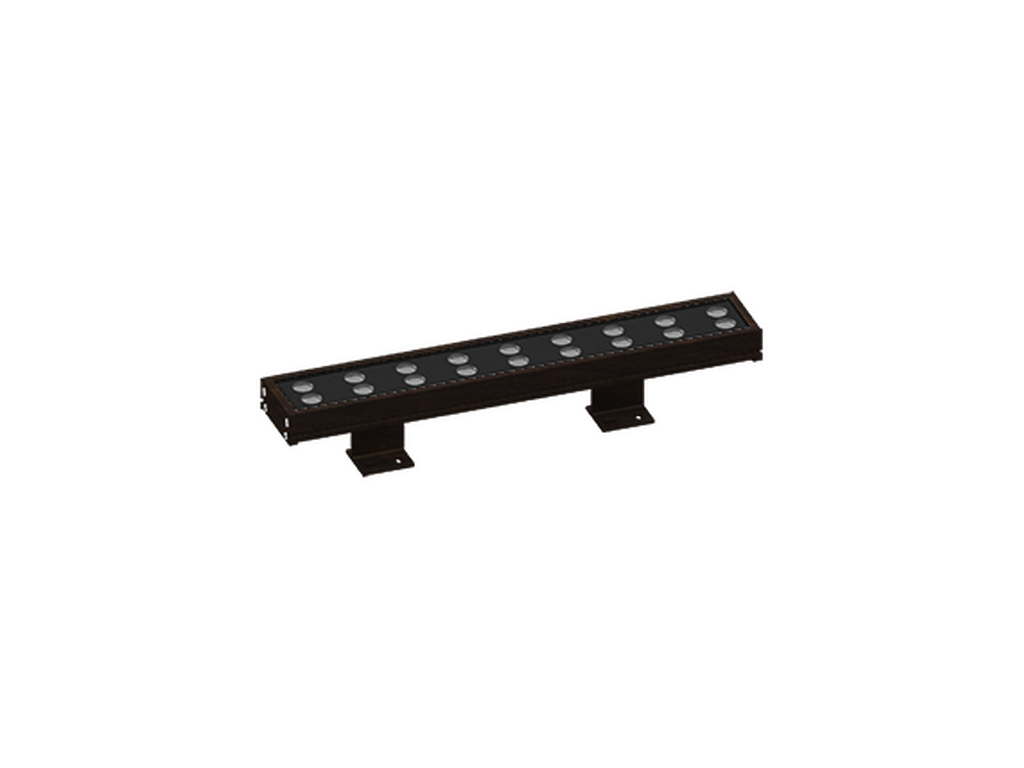

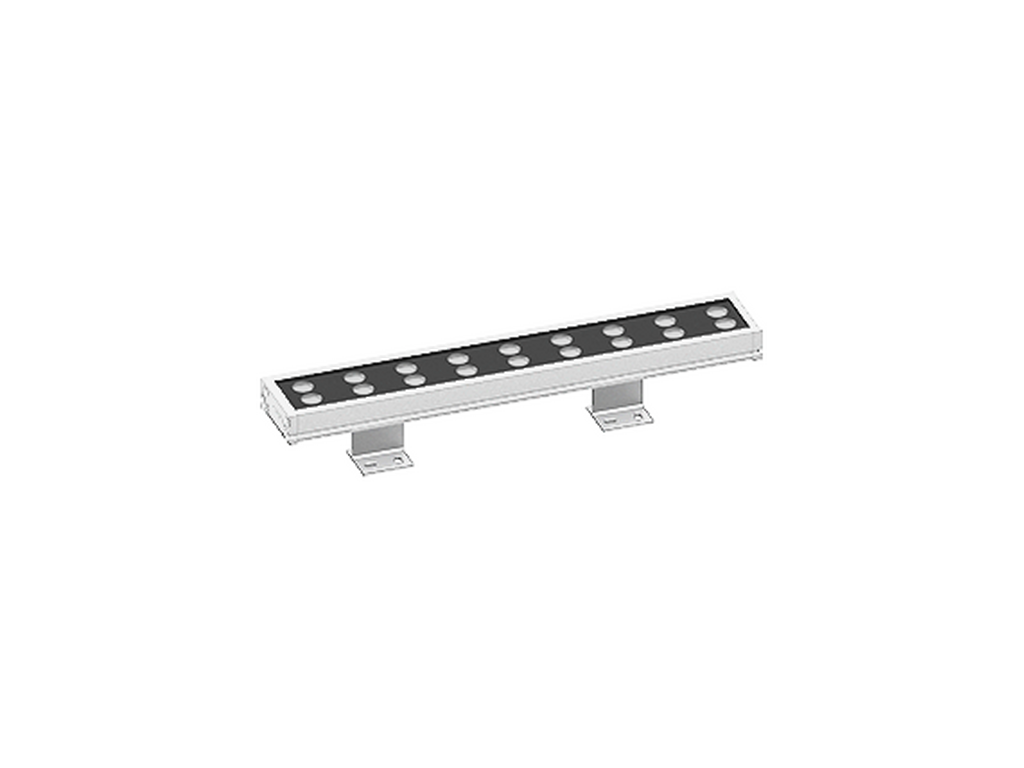

LIGMAN ALDO 8 ALD-30291.

ALDO 8ALD-30291

(Version 1)

ALDO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

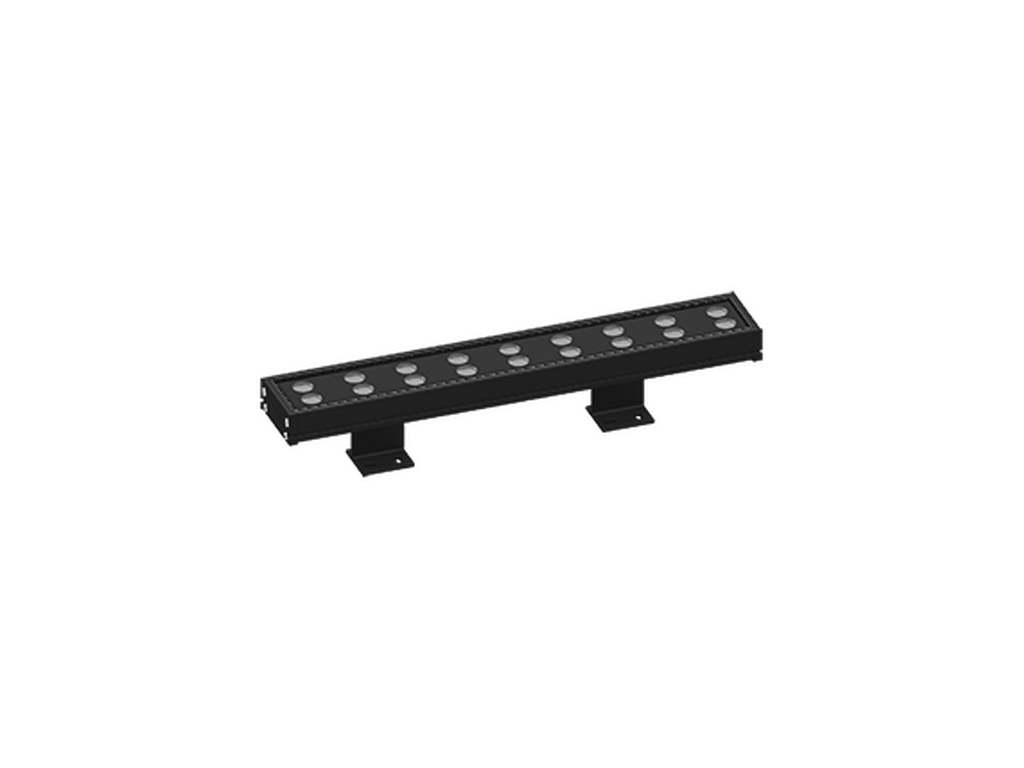

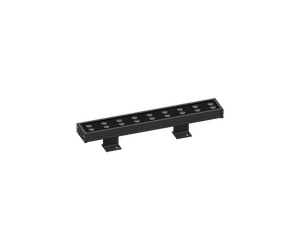

ALDO 8Black

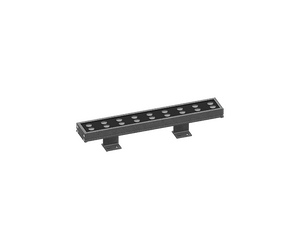

ALDO 8Dark Grey
ALDO 8White
ALDO 8Matt Silver
ALDO 8Bronze
ALDO 8Concrete - Urban
ALDO 8Softscape - Urban
ALDO 8Stone - Urban

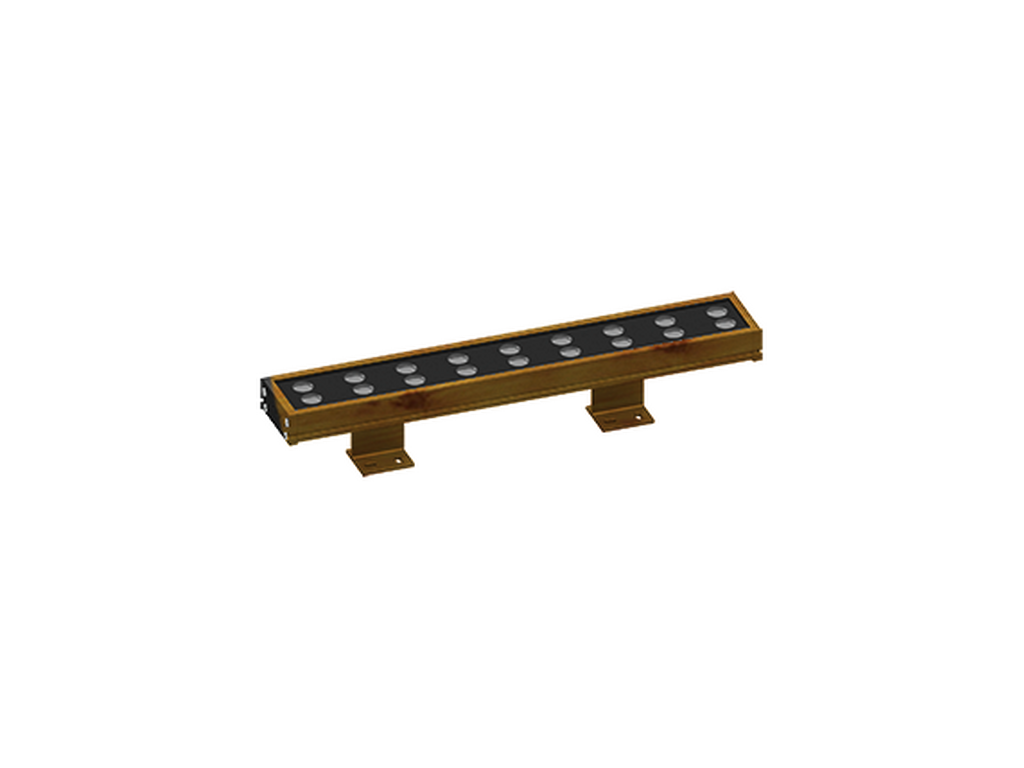

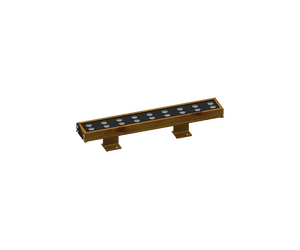

ALDO 8Corten - Urban
ALDO 8Oak - Woodland
ALDO 8Walnut - Woodland
ALDO 8Pine - Woodland
ALDO 8Black
ALDO 8Dark Grey
ALDO 8White
ALDO 8Matt Silver
ALDO 8Bronze
ALDO 8Concrete - Urban
ALDO 8Softscape - Urban
ALDO 8Stone - Urban
ALDO 8Corten - Urban
ALDO 8Oak - Woodland
ALDO 8Walnut - Woodland
ALDO 8Pine - Woodland
Without remote driver - Constant voltage (CV) 24 V - 80x95 mm - 500 mm - Class III - IK07
CEClass IIIIP66IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
18 LED
Power (W)
36 W
Lumen (lm)
3746 - 4741 lm
Efficacy (lm/W)
104 - 132 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, VW, E
Optic value
10°, 17°, 32°, 71°, 12°x43°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B3-U0-G0
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.6 kg
Operating temperature
-20 °C to 40 °C
Cable
Two IP67 connectors supplied with 2x0.2 m of 2x1.0 sqmm outdoor cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass

LIGHT EFFECT

Optic

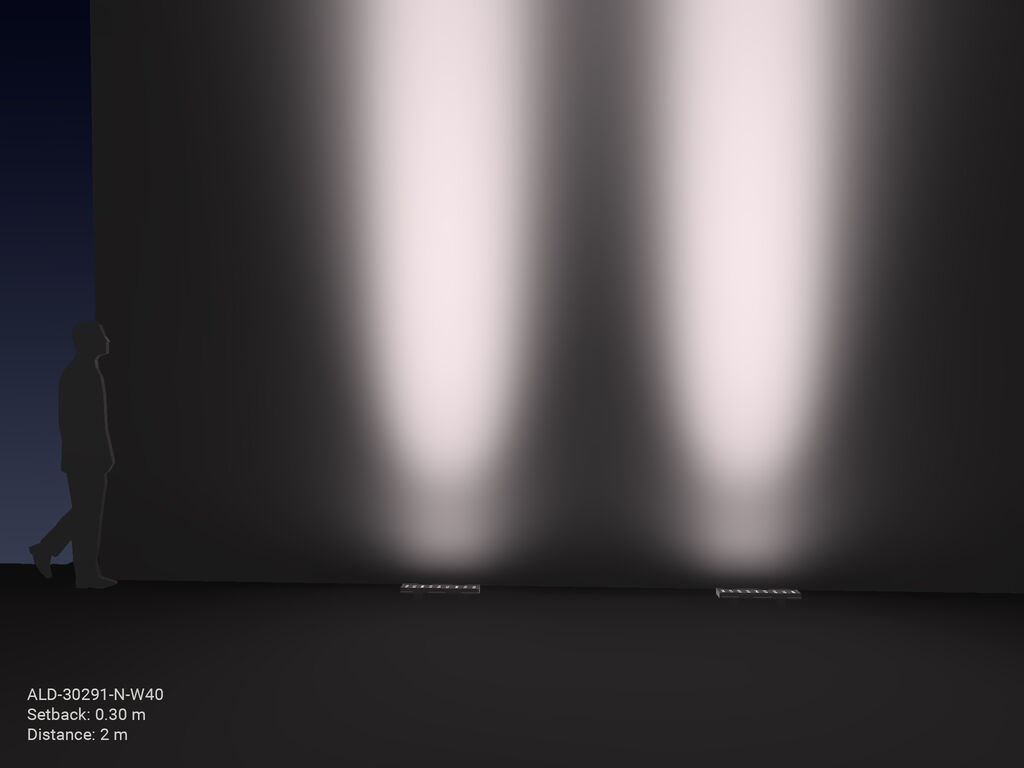

N (10°)
M (17°)
W (32°)
VW (71°)
E (12°x43°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: ALD-30291-N-8030-ND-01
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-N-8030-ND-02
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-N-8030-ND-03
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-N-8030-ND-05
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-N-8030-ND-06
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-N-8030-ND-SU01
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-N-8030-ND-SU02
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-N-8030-ND-SU03
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-N-8030-ND-SU04
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-N-8030-ND-SW01
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-N-8030-ND-SW02
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-N-8030-ND-SW03
Lumen (lm): 4504 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-N-8040-ND-01
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-N-8040-ND-02
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-N-8040-ND-03
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-N-8040-ND-05
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-N-8040-ND-06
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-N-8040-ND-SU01
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-N-8040-ND-SU02
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-N-8040-ND-SU03
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-N-8040-ND-SU04
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-N-8040-ND-SW01
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-N-8040-ND-SW02
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-N-8040-ND-SW03
Lumen (lm): 4741 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-M-8030-ND-01
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-M-8030-ND-02
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-M-8030-ND-03
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-M-8030-ND-05
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-M-8030-ND-06
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-M-8030-ND-SU01
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-M-8030-ND-SU02
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-M-8030-ND-SU03
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-M-8030-ND-SU04
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-M-8030-ND-SW01
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-M-8030-ND-SW02
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-M-8030-ND-SW03
Lumen (lm): 3923 lm
Optic: M
Optic value: 17°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-M-8040-ND-01
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-M-8040-ND-02
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-M-8040-ND-03
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-M-8040-ND-05
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-M-8040-ND-06
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-M-8040-ND-SU01
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-M-8040-ND-SU02
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-M-8040-ND-SU03
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-M-8040-ND-SU04
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-M-8040-ND-SW01
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-M-8040-ND-SW02
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-M-8040-ND-SW03
Lumen (lm): 4129 lm
Optic: M
Optic value: 17°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-W-8030-ND-01
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-W-8030-ND-02
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-W-8030-ND-03
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-W-8030-ND-05
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-W-8030-ND-06
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-W-8030-ND-SU01
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-W-8030-ND-SU02
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-W-8030-ND-SU03
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-W-8030-ND-SU04
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-W-8030-ND-SW01
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-W-8030-ND-SW02
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-W-8030-ND-SW03
Lumen (lm): 3989 lm
Optic: W
Optic value: 32°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-W-8040-ND-01
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-W-8040-ND-02
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-W-8040-ND-03
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-W-8040-ND-05
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-W-8040-ND-06
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-W-8040-ND-SU01
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-W-8040-ND-SU02
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-W-8040-ND-SU03
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-W-8040-ND-SU04
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-W-8040-ND-SW01
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-W-8040-ND-SW02
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-W-8040-ND-SW03
Lumen (lm): 4199 lm
Optic: W
Optic value: 32°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-VW-8030-ND-01
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-VW-8030-ND-02
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-VW-8030-ND-03
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-VW-8030-ND-05
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-VW-8030-ND-06
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-VW-8030-ND-SU01
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-VW-8030-ND-SU02
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-VW-8030-ND-SU03
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-VW-8030-ND-SU04
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-VW-8030-ND-SW01
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-VW-8030-ND-SW02
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-VW-8030-ND-SW03
Lumen (lm): 3746 lm
Optic: VW
Optic value: 71°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-VW-8040-ND-01
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-VW-8040-ND-02
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-VW-8040-ND-03
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-VW-8040-ND-05
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-VW-8040-ND-06
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-VW-8040-ND-SU01
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-VW-8040-ND-SU02
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-VW-8040-ND-SU03
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-VW-8040-ND-SU04
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-VW-8040-ND-SW01
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-VW-8040-ND-SW02
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-VW-8040-ND-SW03
Lumen (lm): 3943 lm
Optic: VW
Optic value: 71°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-E-8030-ND-01
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-E-8030-ND-02
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-E-8030-ND-03
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-E-8030-ND-05
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-E-8030-ND-06
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-E-8030-ND-SU01
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-E-8030-ND-SU02
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-E-8030-ND-SU03
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-E-8030-ND-SU04
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-E-8030-ND-SW01
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-E-8030-ND-SW02
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-E-8030-ND-SW03
Lumen (lm): 4206 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: ALD-30291-E-8040-ND-01
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: ALD-30291-E-8040-ND-02
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: ALD-30291-E-8040-ND-03
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: ALD-30291-E-8040-ND-05
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: ALD-30291-E-8040-ND-06
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: ALD-30291-E-8040-ND-SU01
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: ALD-30291-E-8040-ND-SU02
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: ALD-30291-E-8040-ND-SU03
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: ALD-30291-E-8040-ND-SU04
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: ALD-30291-E-8040-ND-SW01
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: ALD-30291-E-8040-ND-SW02
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: ALD-30291-E-8040-ND-SW03
Lumen (lm): 4428 lm
Optic: E
Optic value: 12°x43°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (ALDO Surface facade luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
