BORNHOLM 4BOH-60032

(Version 1)

Recessed underwater projectors

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


BORNHOLM 4
Without remote driver - Constant voltage (CV) 24 V - RGBW
CERETILAPClass IIIIP68IK07

TECHNICAL SPECIFICATIONS

Material
Stainless Steel
Light source
16 LED
Power (W)
20 W
Lumen (lm)
1273 - 1600 lm
Efficacy (lm/W)
64 - 80 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, VW, E
Optic value
8°, 17°, 26°, 65°, 43°x11°
CCT / CRI
RGBW30, RGBW40
Bug
B1-U0-G0, B2-U0-G0
ULR
0%
ULOR
0%
CIE flux code nº3
100
Dimming type
DMX, DMX/RDM
Product colours
Stainless Steel
Weight
3.6 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 2 m of 5x0.75 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
7 SDCM
Lifetime L90B10 (hours)
> 50,000
Lifetime L80B10 (hours)
> 68,000
Lifetime L80B50 (hours)
> 100,000

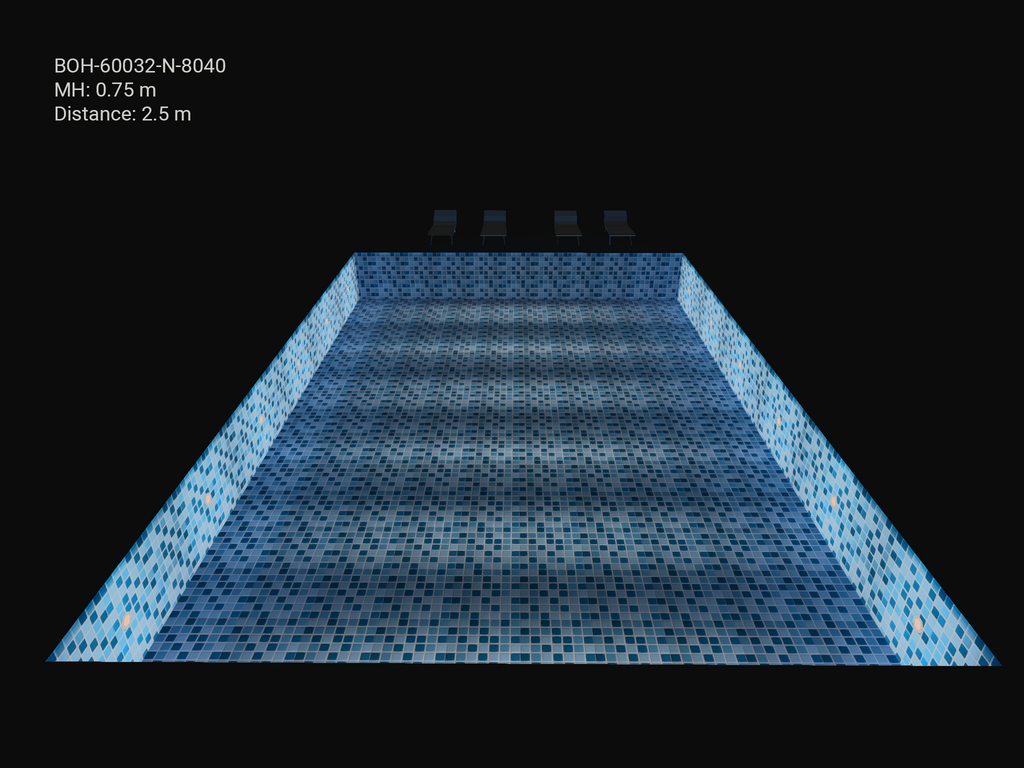

LIGHT EFFECT

Optic
N (8°)
M (17°)
W (26°)
VW (65°)
E (43°x11°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: BOH-60032-N-30-DMX-00
Lumen (lm): 1493 lm
Optic: N
Optic value:
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-N-40-DMX-00
Lumen (lm): 1600 lm
Optic: N
Optic value:
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-N-30-DMXRDM-00
Lumen (lm): 1493 lm
Optic: N
Optic value:
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-N-40-DMXRDM-00
Lumen (lm): 1600 lm
Optic: N
Optic value:
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-M-30-DMX-00
Lumen (lm): 1322 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-M-40-DMX-00
Lumen (lm): 1417 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-M-30-DMXRDM-00
Lumen (lm): 1322 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-M-40-DMXRDM-00
Lumen (lm): 1417 lm
Optic: M
Optic value: 17°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-W-30-DMX-00
Lumen (lm): 1335 lm
Optic: W
Optic value: 26°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-W-40-DMX-00
Lumen (lm): 1431 lm
Optic: W
Optic value: 26°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-W-30-DMXRDM-00
Lumen (lm): 1335 lm
Optic: W
Optic value: 26°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-W-40-DMXRDM-00
Lumen (lm): 1431 lm
Optic: W
Optic value: 26°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-VW-30-DMX-00
Lumen (lm): 1273 lm
Optic: VW
Optic value: 65°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-VW-40-DMX-00
Lumen (lm): 1364 lm
Optic: VW
Optic value: 65°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-VW-30-DMXRDM-00
Lumen (lm): 1273 lm
Optic: VW
Optic value: 65°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-VW-40-DMXRDM-00
Lumen (lm): 1364 lm
Optic: VW
Optic value: 65°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-E-30-DMX-00
Lumen (lm): 1437 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-E-40-DMX-00
Lumen (lm): 1540 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stainless Steel
Variant code: BOH-60032-E-30-DMXRDM-00
Lumen (lm): 1437 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stainless Steel
Variant code: BOH-60032-E-40-DMXRDM-00
Lumen (lm): 1540 lm
Optic: E
Optic value: 43°x11°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stainless Steel
