BRISBANE 3BRB-95021BRISBANE

Name: BRISBANE 3
Brand: LIGMAN
SKU: BRB-95021
Availability: InStock

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.

Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.

Your request was successfully sent.

Ø100 mm

TECHNICAL SPECIFICATIONS

Material

Aluminium

Light source

1 COB

Power (W)

19 W

Lumen (lm)

1772 - 1807 lm

Efficacy (lm/W)

93 - 95 lm/W

Driver option

Remote driver (included)

Driver

Constant current (CC)

Input voltage

500 mA, 36 VDC

Optic

M, W

Optic value

31°, 60°

CCT / CRI

3000K CRI95, 4000K CRI95

Bug

B2-U0-G0

ULR

ULOR

CIE flux code nº3

100

Dimming type

On/Off

Product colours

Black, White

Weight

2 kg

Operating temperature

-20 °C to 40 °C

Lens / Reflector / Optic

Reflector finishes options (Satin black, Satin gold, Matt white)

DOWNLOADS

For BIM files (Revit - RFA), please check the Variant code

LIGHT EFFECT

Optic

M (31°)

W (60°)

CODE FINDER

Lumen (lm)

Optic

Optic value

CCT / CRI

Dimming type

Product colour

Variant code

Lumen (lm)

Optic

Optic value

CCT / CRI

Dimming type

Product colour

Variant code: BRB-95021-M-9530-ND-01

Lumen (lm): 1772 lm

Optic: M

Optic value: 31°

CCT / CRI: 3000K CRI95

Dimming type: On/Off

Product colour: Black

Variant code: BRB-95021-M-9530-ND-03

Lumen (lm): 1772 lm

Optic: M

Optic value: 31°

CCT / CRI: 3000K CRI95

Dimming type: On/Off

Product colour: White

Variant code: BRB-95021-M-9540-ND-01

Lumen (lm): 1807 lm

Optic: M

Optic value: 31°

CCT / CRI: 4000K CRI95

Dimming type: On/Off

Product colour: Black

Variant code: BRB-95021-M-9540-ND-03

Lumen (lm): 1807 lm

Optic: M

Optic value: 31°

CCT / CRI: 4000K CRI95

Dimming type: On/Off

Product colour: White

Variant code: BRB-95021-W-9530-ND-01

Lumen (lm): 1772 lm

Optic: W

Optic value: 60°

CCT / CRI: 3000K CRI95

Dimming type: On/Off

Product colour: Black

Variant code: BRB-95021-W-9530-ND-03

Lumen (lm): 1772 lm

Optic: W

Optic value: 60°

CCT / CRI: 3000K CRI95

Dimming type: On/Off

Product colour: White

Variant code: BRB-95021-W-9540-ND-01

Lumen (lm): 1807 lm

Optic: W

Optic value: 60°

CCT / CRI: 4000K CRI95

Dimming type: On/Off

Product colour: Black

Variant code: BRB-95021-W-9540-ND-03

Lumen (lm): 1807 lm

Optic: W

Optic value: 60°

CCT / CRI: 4000K CRI95

Dimming type: On/Off

Product colour: White

ACCESSORY

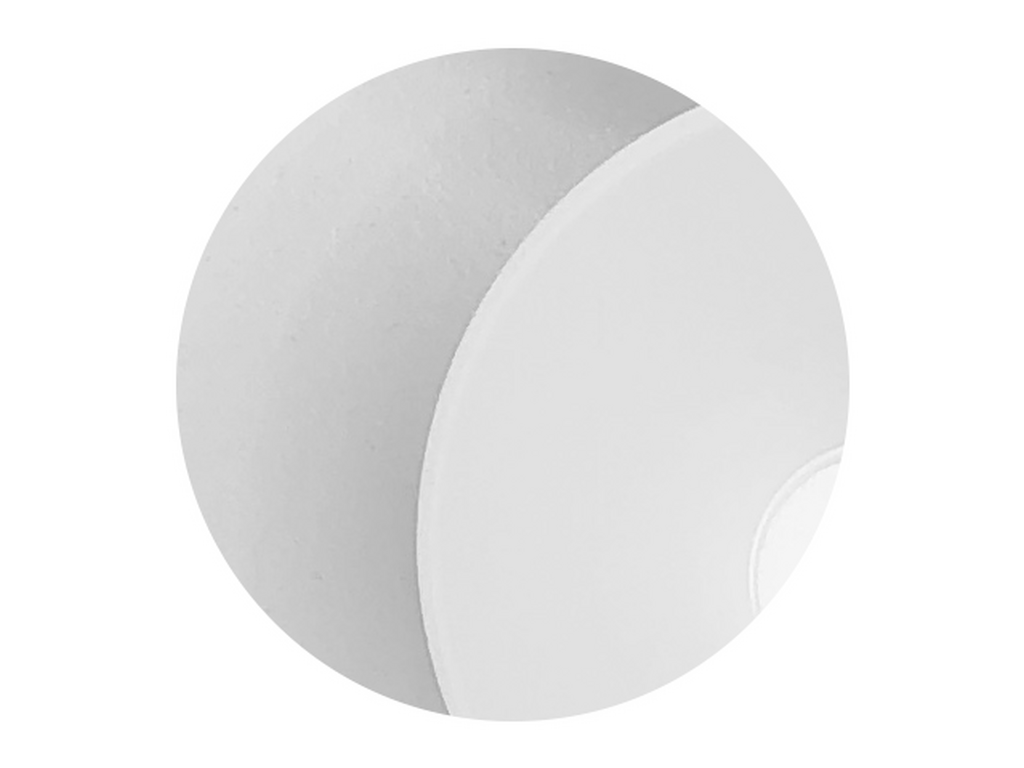

Reflector finish (Matt white) - A80024-MW

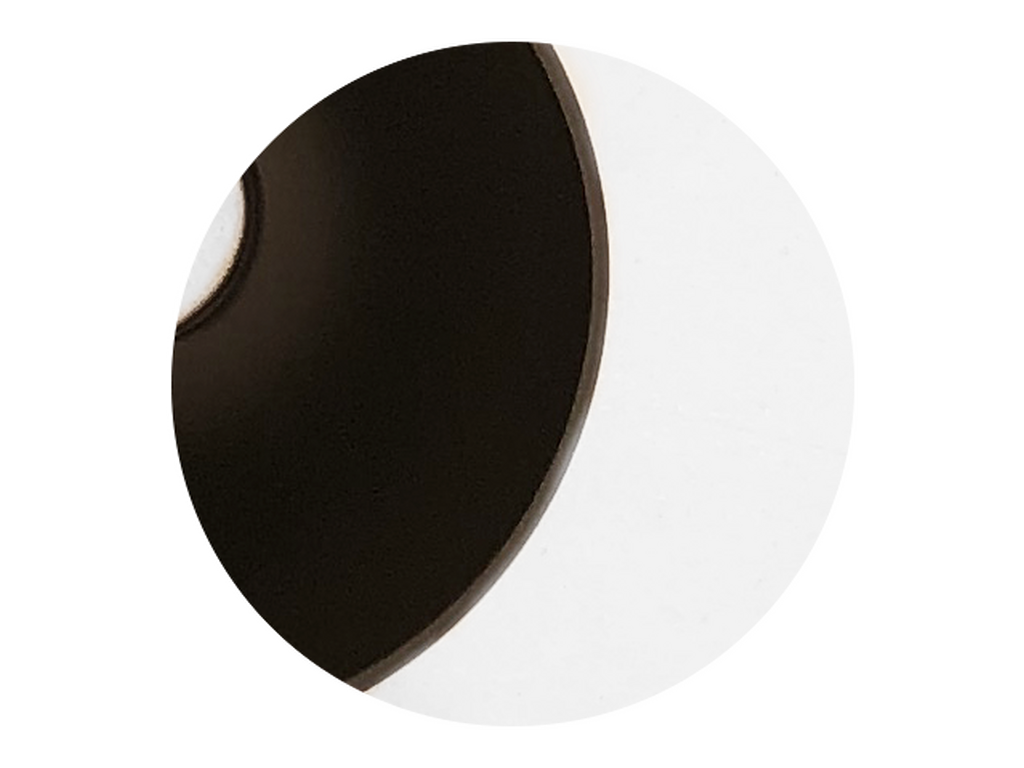

Reflector finish (Satin black) - A80024-SB

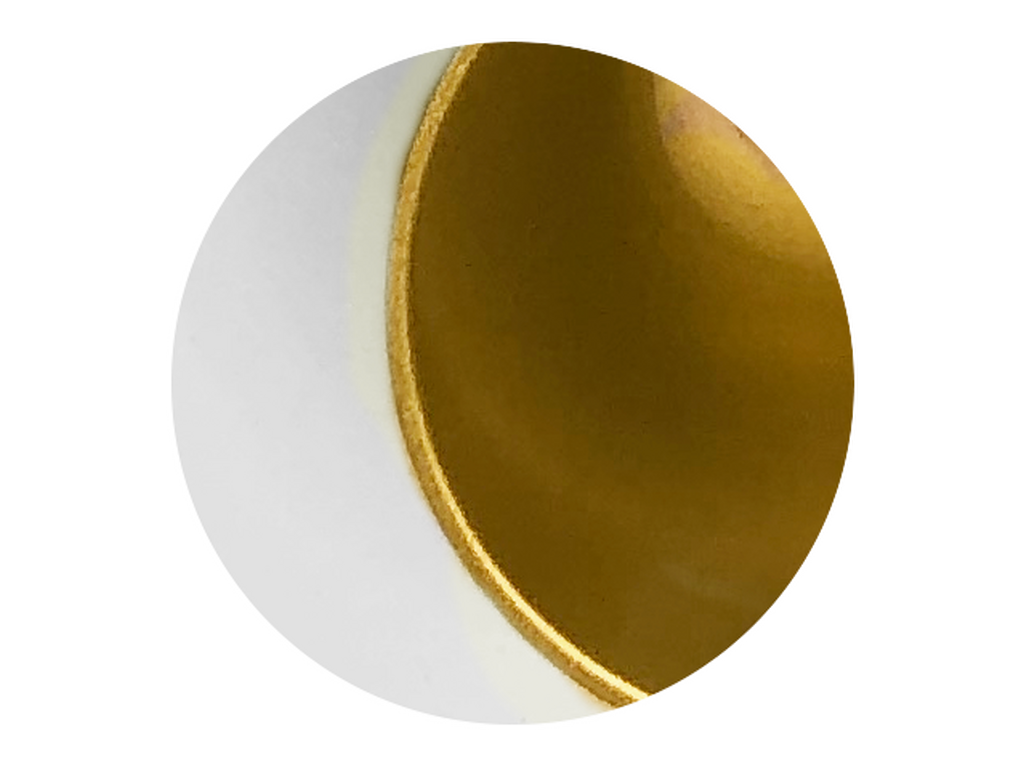

Reflector finish (Satin gold) - A80024-SG

PROJECT REFERENCE (BRISBANE Pendant luminaires)

Médiathèque of Bruges (33), Bruges - France
