LIGMAN GINO 1 GI-31582.

GINO 1GI-31582GINO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

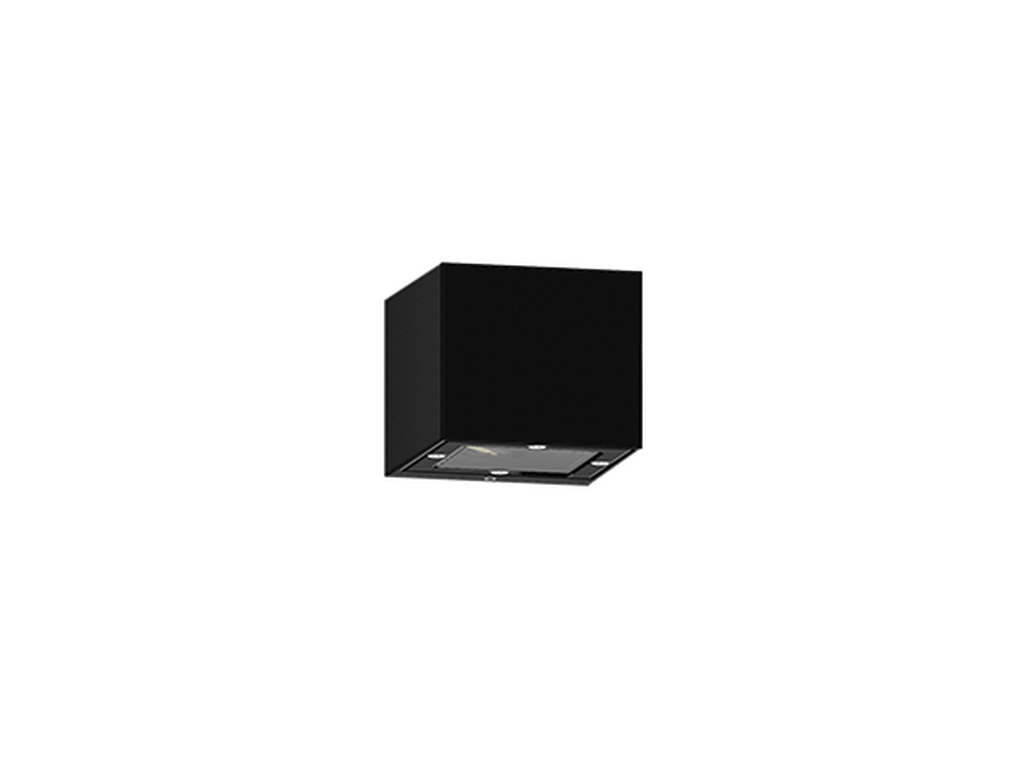

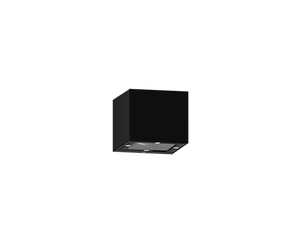

GINO 1Black

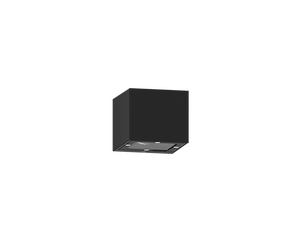

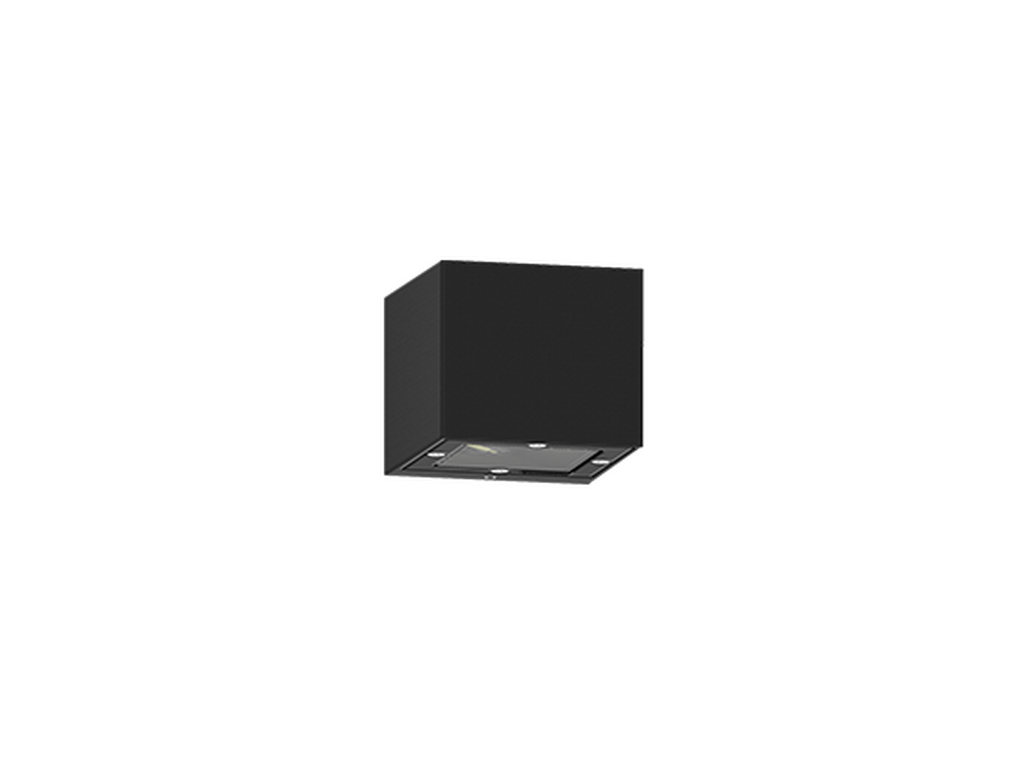

GINO 1Dark Grey
GINO 1White
GINO 1Matt Silver
GINO 1Bronze
GINO 1Concrete - Urban
GINO 1Softscape - Urban

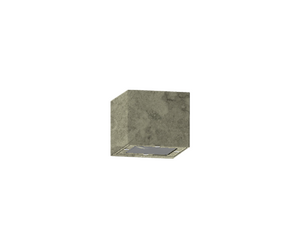

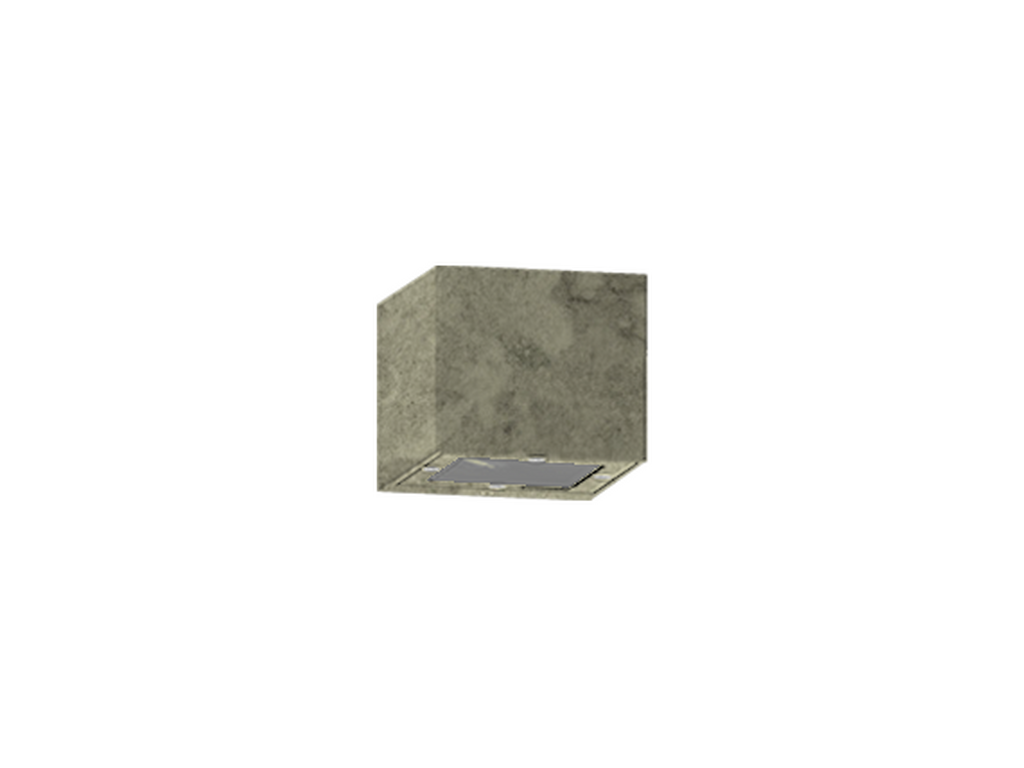

GINO 1Stone - Urban

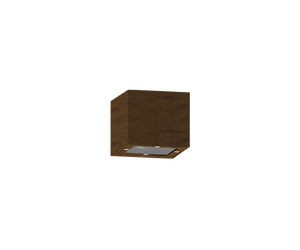

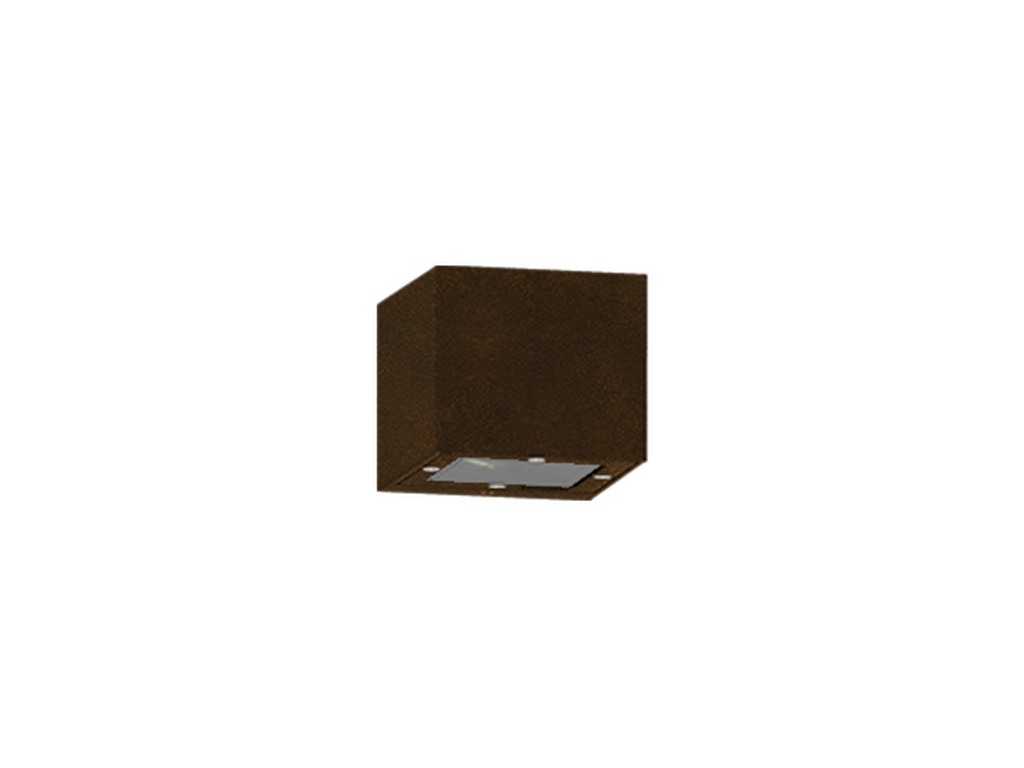

GINO 1Corten - Urban

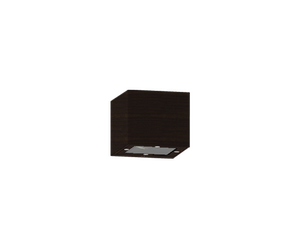

GINO 1Oak - Woodland

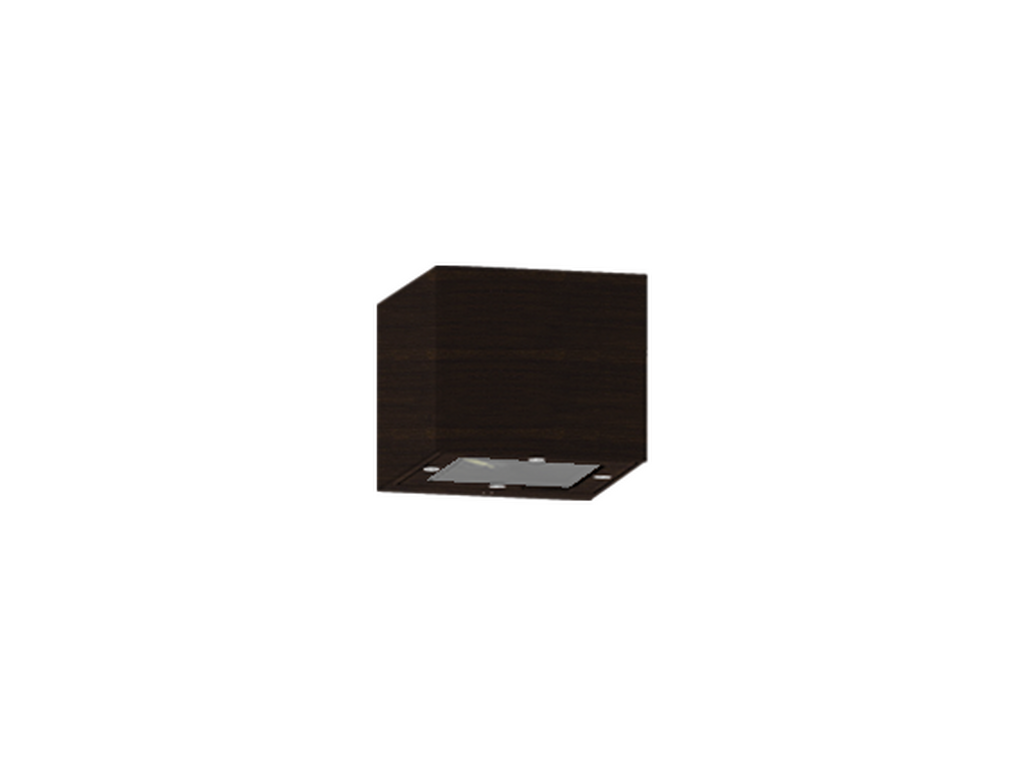

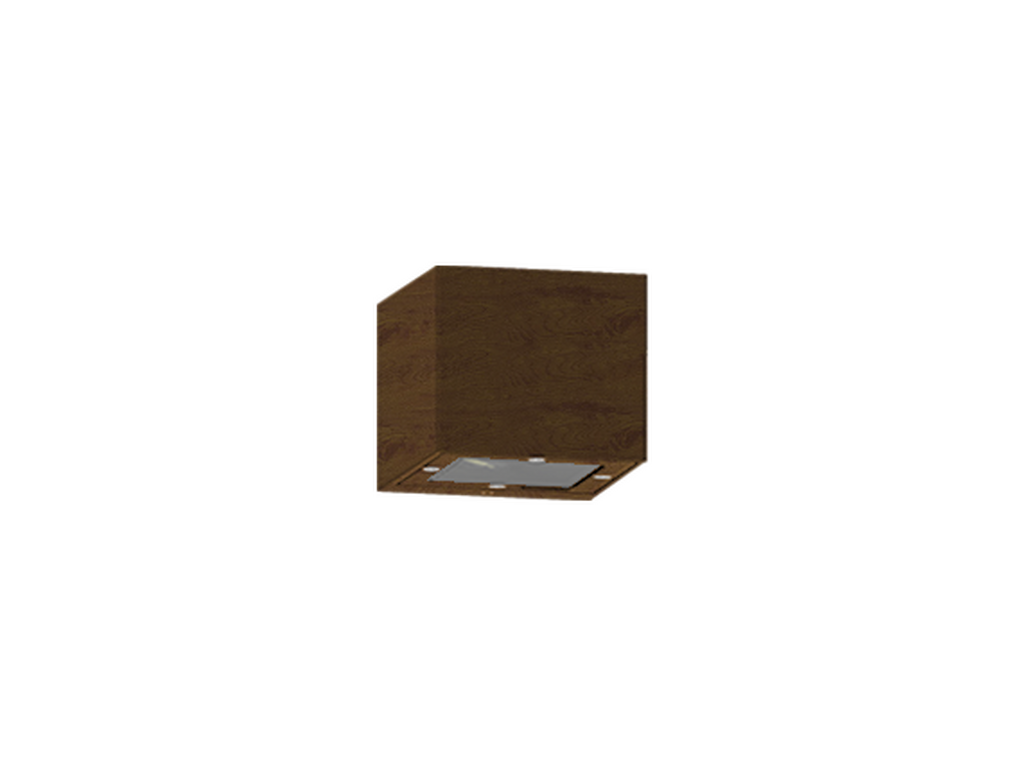

GINO 1Walnut - Woodland
GINO 1Pine - Woodland
GINO 1Black
GINO 1Dark Grey
GINO 1White
GINO 1Matt Silver
GINO 1Bronze

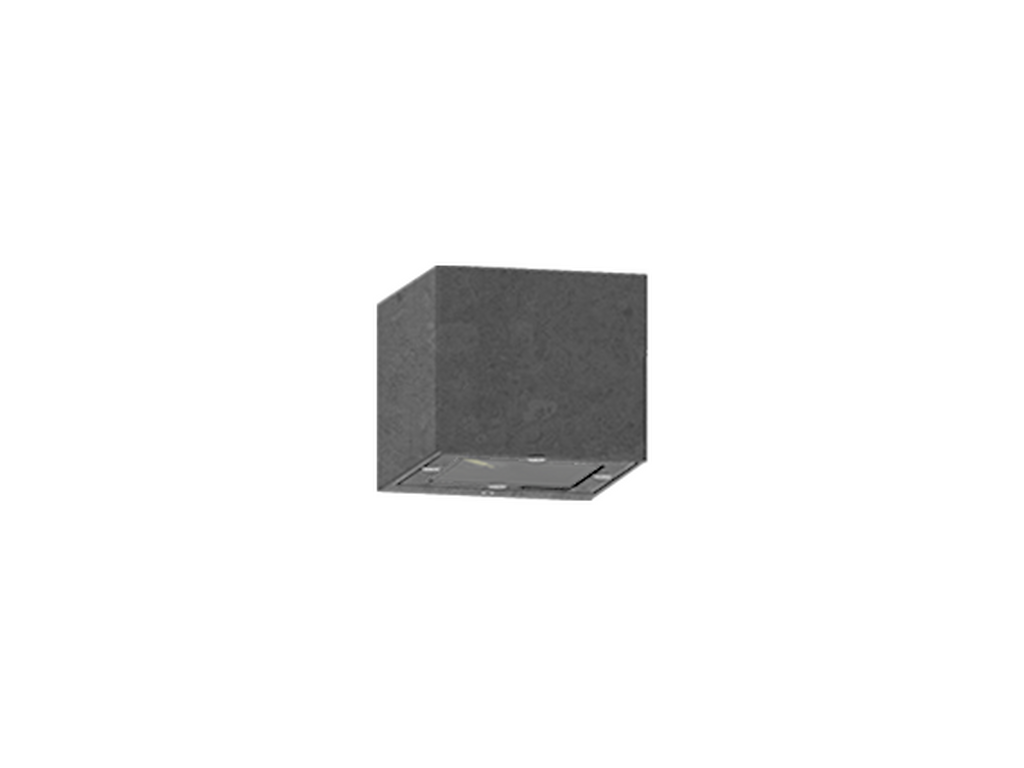

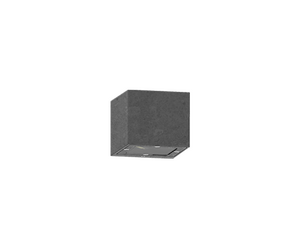

GINO 1Concrete - Urban
GINO 1Softscape - Urban
GINO 1Stone - Urban
GINO 1Corten - Urban
GINO 1Oak - Woodland
GINO 1Walnut - Woodland
GINO 1Pine - Woodland
Clear diffuser - Down (Optic) & Up (Optic 2nd)
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 & 1 LED
Power (W)
3 W
Lumen (lm)
102 lm
Efficacy (lm/W)
34 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
60°
Optic (2nd)
G
Optic (2nd) Value
60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U3-G0
ULR
100%
ULOR
100%
CIE flux code nº3
100
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
1.0 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
Frosted toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
G (60°) / G (60°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code: GI-31582-8030-ND-01
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Black
Variant code: GI-31582-8030-ND-02
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Dark Grey
Variant code: GI-31582-8030-ND-03
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: White
Variant code: GI-31582-8030-ND-05
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Matt Silver
Variant code: GI-31582-8030-ND-06
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Bronze
Variant code: GI-31582-8030-ND-SU01
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Concrete - Urban
Variant code: GI-31582-8030-ND-SU02
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Softscape - Urban
Variant code: GI-31582-8030-ND-SU03
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Stone - Urban
Variant code: GI-31582-8030-ND-SU04
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Corten - Urban
Variant code: GI-31582-8030-ND-SW01
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Oak - Woodland
Variant code: GI-31582-8030-ND-SW02
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Walnut - Woodland
Variant code: GI-31582-8030-ND-SW03
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 3000K CRI80
Product colour: Pine - Woodland
Variant code: GI-31582-8040-ND-01
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Black
Variant code: GI-31582-8040-ND-02
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Dark Grey
Variant code: GI-31582-8040-ND-03
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: White
Variant code: GI-31582-8040-ND-05
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Matt Silver
Variant code: GI-31582-8040-ND-06
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Bronze
Variant code: GI-31582-8040-ND-SU01
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Concrete - Urban
Variant code: GI-31582-8040-ND-SU02
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Softscape - Urban
Variant code: GI-31582-8040-ND-SU03
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Stone - Urban
Variant code: GI-31582-8040-ND-SU04
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Corten - Urban
Variant code: GI-31582-8040-ND-SW01
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Oak - Woodland
Variant code: GI-31582-8040-ND-SW02
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Walnut - Woodland
Variant code: GI-31582-8040-ND-SW03
Lumen (lm): 102 lm
Optic: G
Optic value: 60°
Optic (2nd): G
Optic (2nd) Value: 60°
CCT / CRI: On/Off
Dimming type: 4000K CRI80
Product colour: Pine - Woodland
