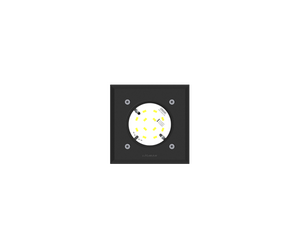

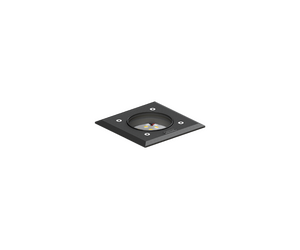

LIGMAN HARRIER 2 HA-60196-A.

HARRIER 2HA-60196-AHARRIER

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


HARRIER 2Black
HARRIER 2Dark Grey
HARRIER 2White
HARRIER 2Matt Silver
HARRIER 2Bronze
HARRIER 2Concrete - Urban
HARRIER 2Softscape - Urban
HARRIER 2Stone - Urban
HARRIER 2Corten - Urban
HARRIER 2Oak - Woodland
HARRIER 2Walnut - Woodland
HARRIER 2Pine - Woodland
HARRIER 2Black
HARRIER 2Dark Grey
HARRIER 2White
HARRIER 2Matt Silver
HARRIER 2Bronze
HARRIER 2Concrete - Urban
HARRIER 2Softscape - Urban
HARRIER 2Stone - Urban
HARRIER 2Corten - Urban
HARRIER 2Oak - Woodland
HARRIER 2Walnut - Woodland
HARRIER 2Pine - Woodland

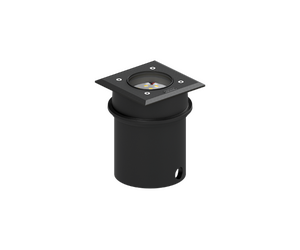

Integral control gear - With recessing box - Square - Aluminium frame
CERETILAPSNIClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (W)
6 W
Lumen (lm)
163 - 291 lm
Efficacy (lm/W)
27 - 49 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
C, F
Optic value
90°, 78°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U3-G0
ULOR
100%
CIE flux code nº3
0%
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.5 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear or frosted toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 50,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

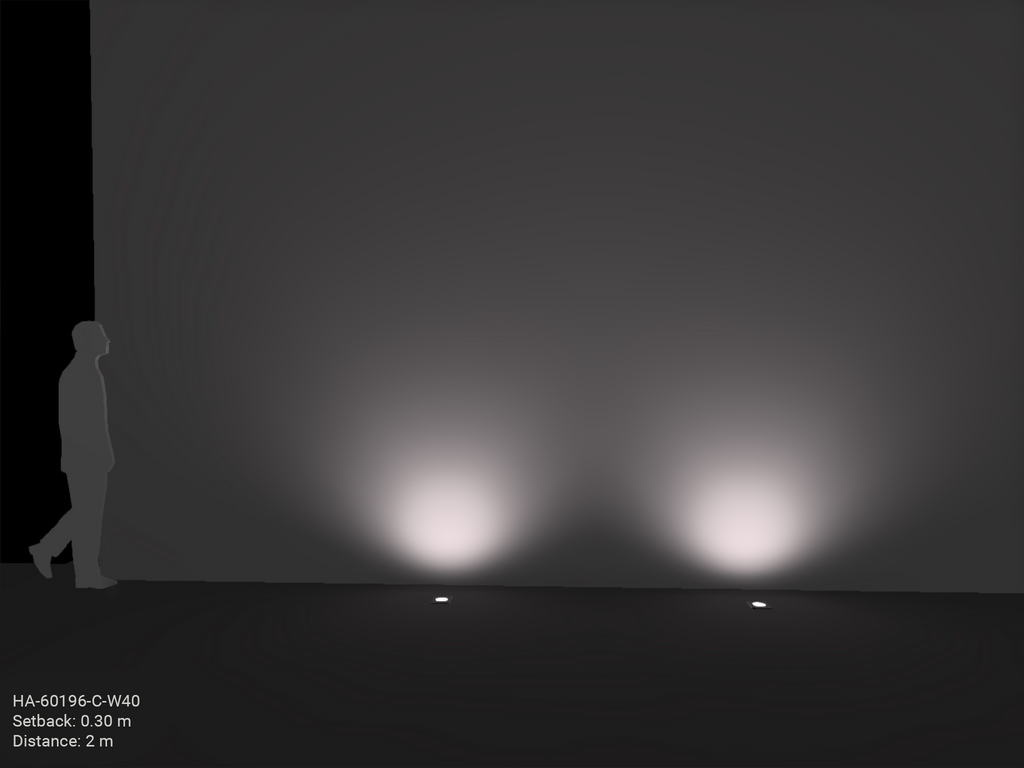

LIGHT EFFECT

Optic
C (90°)
F (78°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: HA-60196-A-C-8030-ND-01
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: HA-60196-A-C-8030-ND-02
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: HA-60196-A-C-8030-ND-03
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: HA-60196-A-C-8030-ND-05
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: HA-60196-A-C-8030-ND-06
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: HA-60196-A-C-8030-ND-SU01
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: HA-60196-A-C-8030-ND-SU02
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: HA-60196-A-C-8030-ND-SU03
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: HA-60196-A-C-8030-ND-SU04
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: HA-60196-A-C-8030-ND-SW01
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: HA-60196-A-C-8030-ND-SW02
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: HA-60196-A-C-8030-ND-SW03
Lumen (lm): 262 lm
Optic: C
Optic value: 90°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: HA-60196-A-C-8040-ND-01
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: HA-60196-A-C-8040-ND-02
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: HA-60196-A-C-8040-ND-03
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: HA-60196-A-C-8040-ND-05
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: HA-60196-A-C-8040-ND-06
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: HA-60196-A-C-8040-ND-SU01
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: HA-60196-A-C-8040-ND-SU02
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: HA-60196-A-C-8040-ND-SU03
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: HA-60196-A-C-8040-ND-SU04
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: HA-60196-A-C-8040-ND-SW01
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: HA-60196-A-C-8040-ND-SW02
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: HA-60196-A-C-8040-ND-SW03
Lumen (lm): 291 lm
Optic: C
Optic value: 90°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: HA-60196-A-F-8030-ND-01
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: HA-60196-A-F-8030-ND-02
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: HA-60196-A-F-8030-ND-03
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: HA-60196-A-F-8030-ND-05
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: HA-60196-A-F-8030-ND-06
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: HA-60196-A-F-8030-ND-SU01
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: HA-60196-A-F-8030-ND-SU02
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: HA-60196-A-F-8030-ND-SU03
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: HA-60196-A-F-8030-ND-SU04
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: HA-60196-A-F-8030-ND-SW01
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: HA-60196-A-F-8030-ND-SW02
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: HA-60196-A-F-8030-ND-SW03
Lumen (lm): 163 lm
Optic: F
Optic value: 78°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: HA-60196-A-F-8040-ND-01
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: HA-60196-A-F-8040-ND-02
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: HA-60196-A-F-8040-ND-03
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: HA-60196-A-F-8040-ND-05
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: HA-60196-A-F-8040-ND-06
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: HA-60196-A-F-8040-ND-SU01
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: HA-60196-A-F-8040-ND-SU02
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: HA-60196-A-F-8040-ND-SU03
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: HA-60196-A-F-8040-ND-SU04
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: HA-60196-A-F-8040-ND-SW01
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: HA-60196-A-F-8040-ND-SW02
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: HA-60196-A-F-8040-ND-SW03
Lumen (lm): 181 lm
Optic: F
Optic value: 78°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (HARRIER In-ground luminaires)
