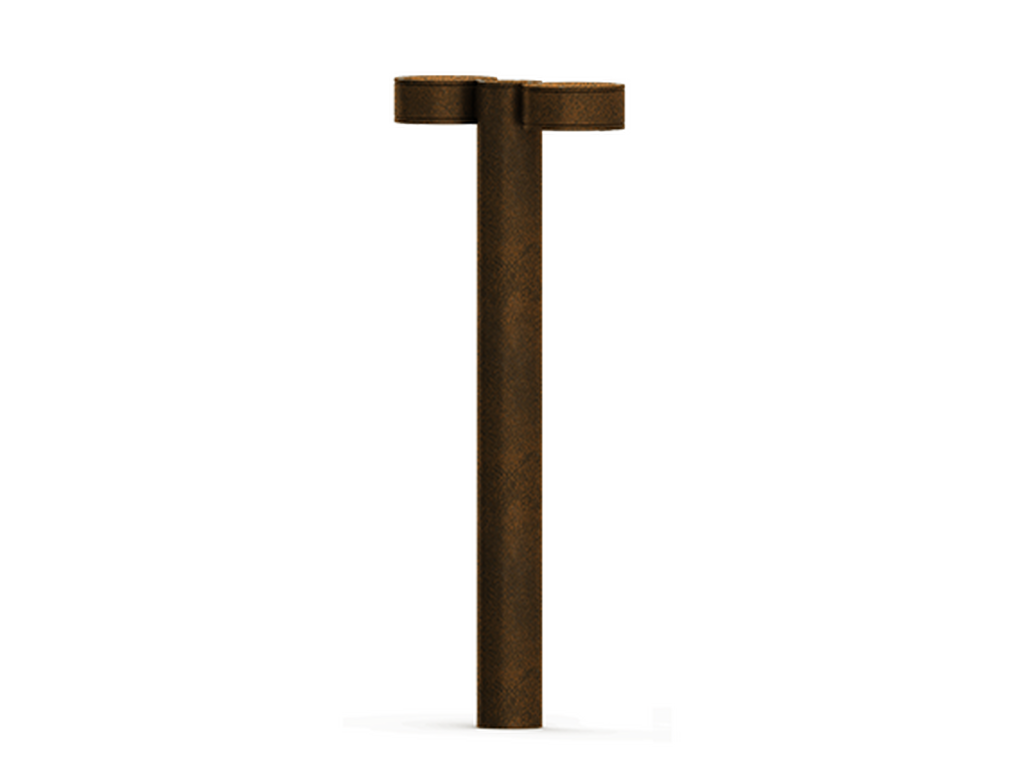

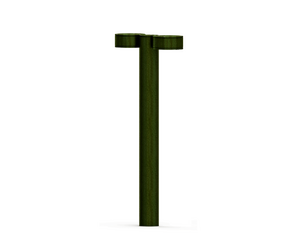

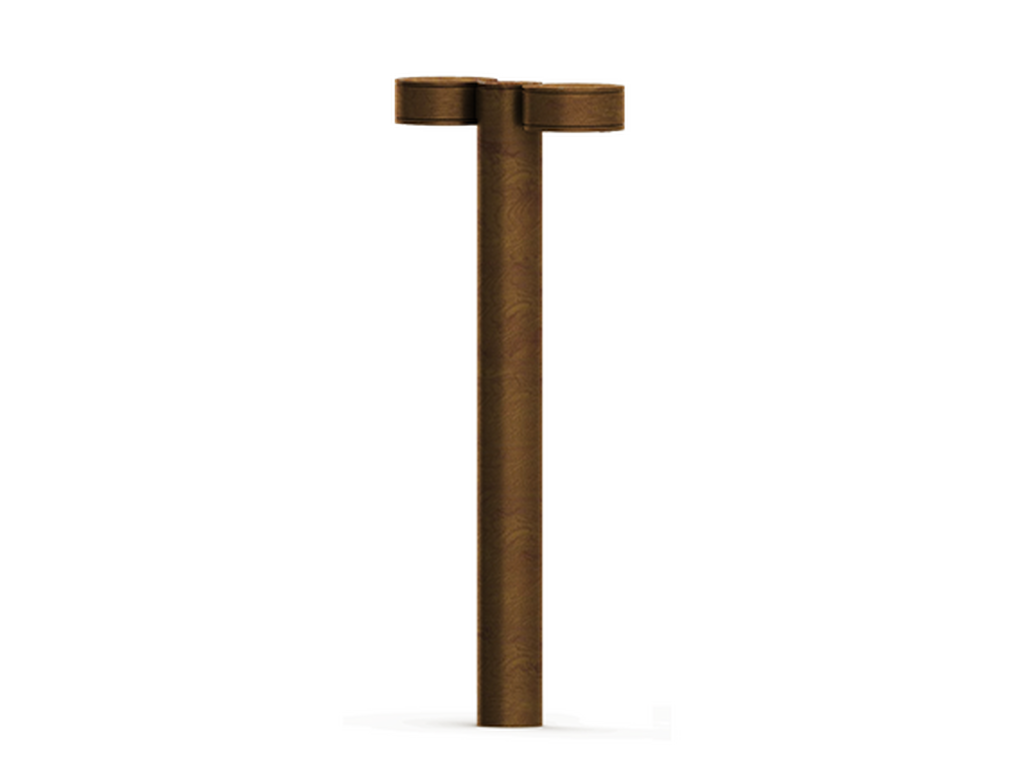

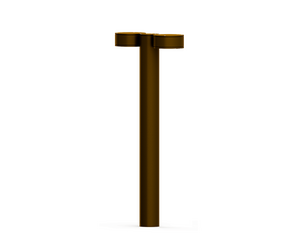

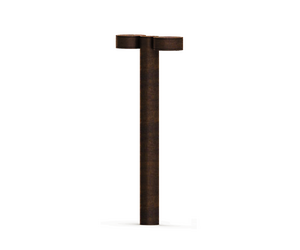

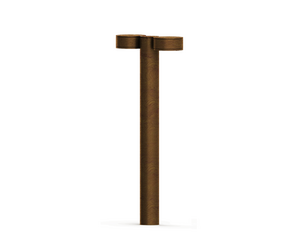

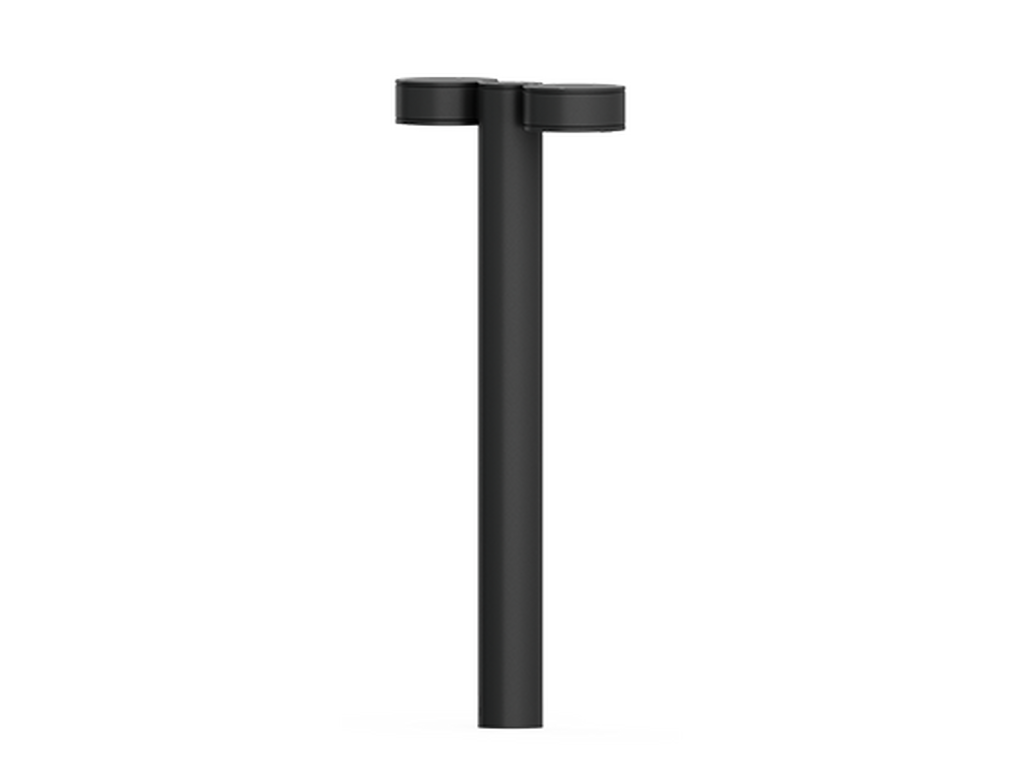

LIGMAN JET 58 JE-10582.

JET 58JE-10582

(Version 2)

JET

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

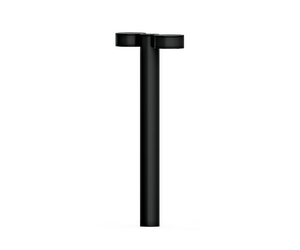

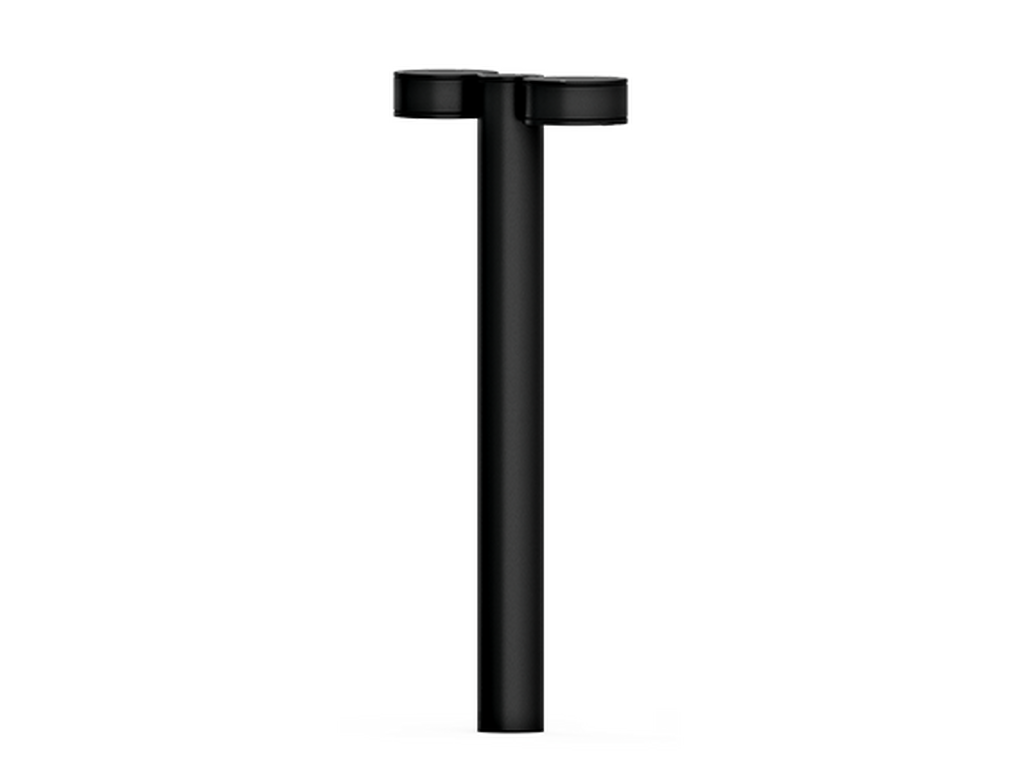

JET 58Black

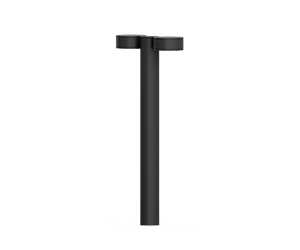

JET 58Dark Grey

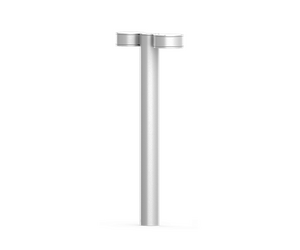

JET 58White
JET 58Matt Silver
JET 58Bronze
JET 58Concrete - Urban
JET 58Softscape - Urban

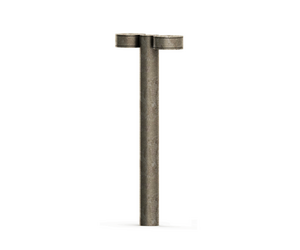

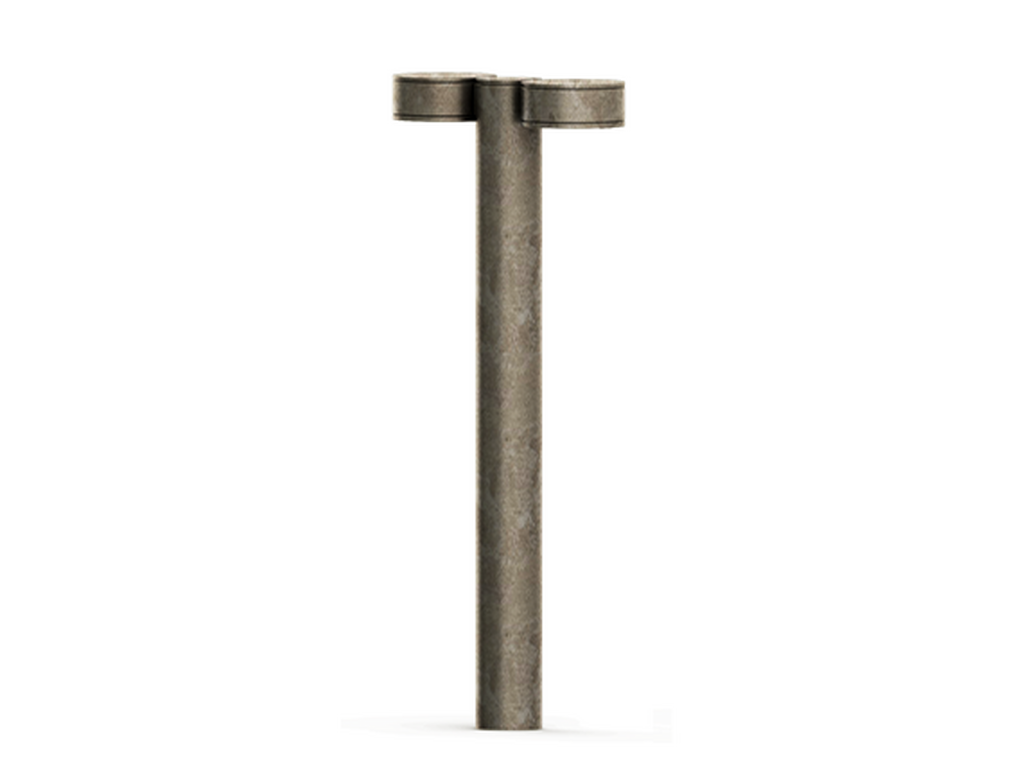

JET 58Stone - Urban
JET 58Corten - Urban

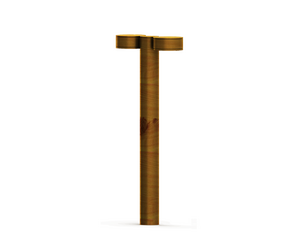

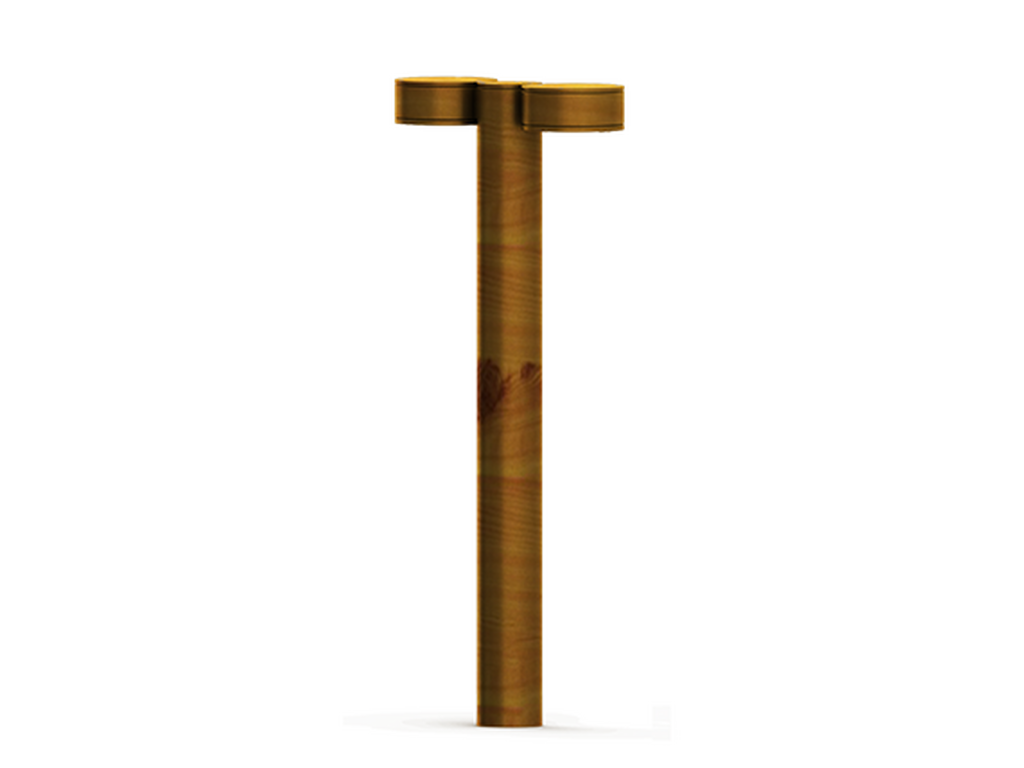

JET 58Oak - Woodland
JET 58Walnut - Woodland
JET 58Pine - Woodland
JET 58Black

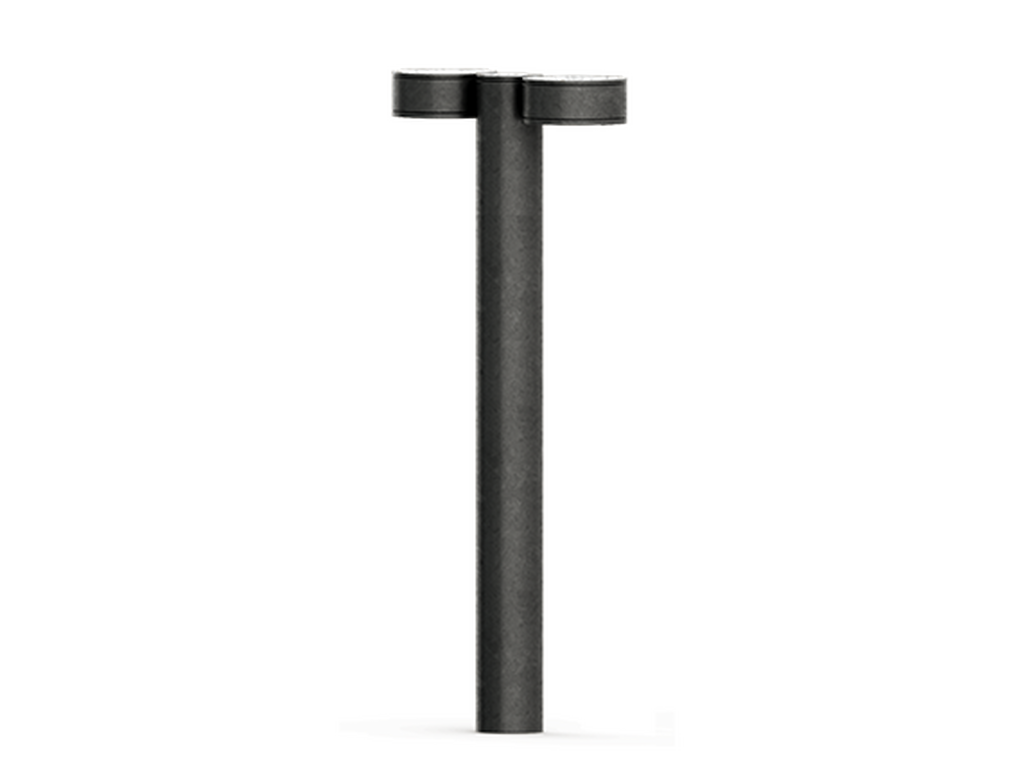

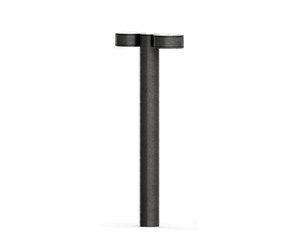

JET 58Dark Grey

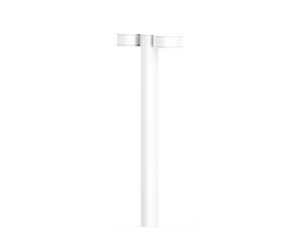

JET 58White

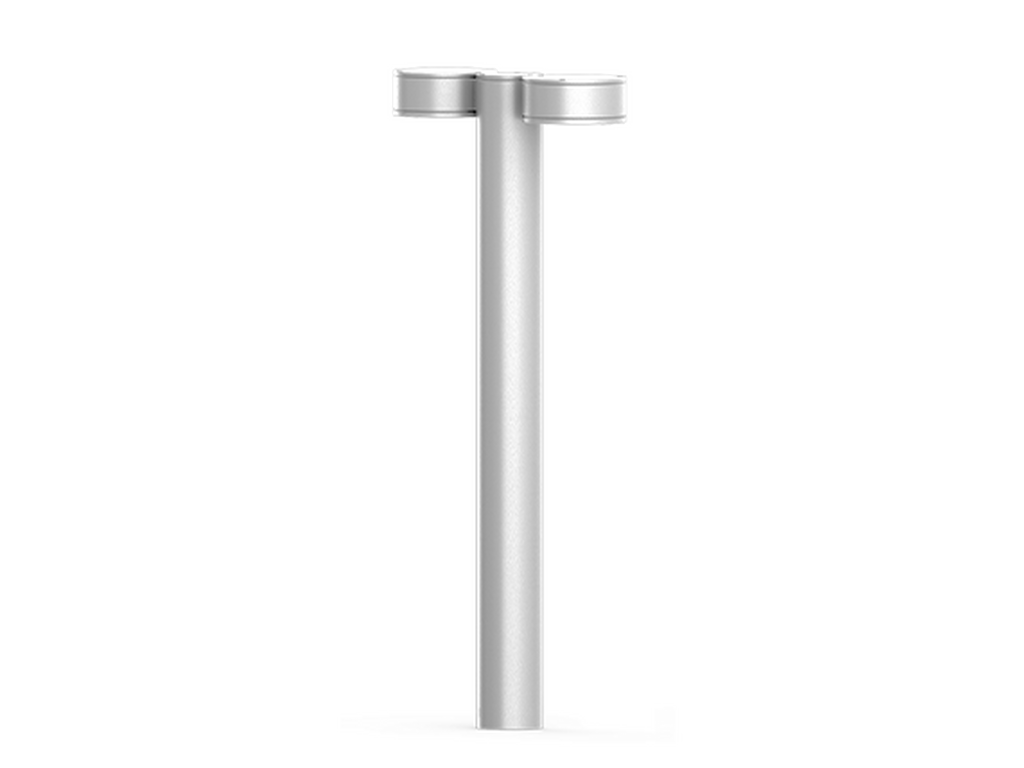

JET 58Matt Silver

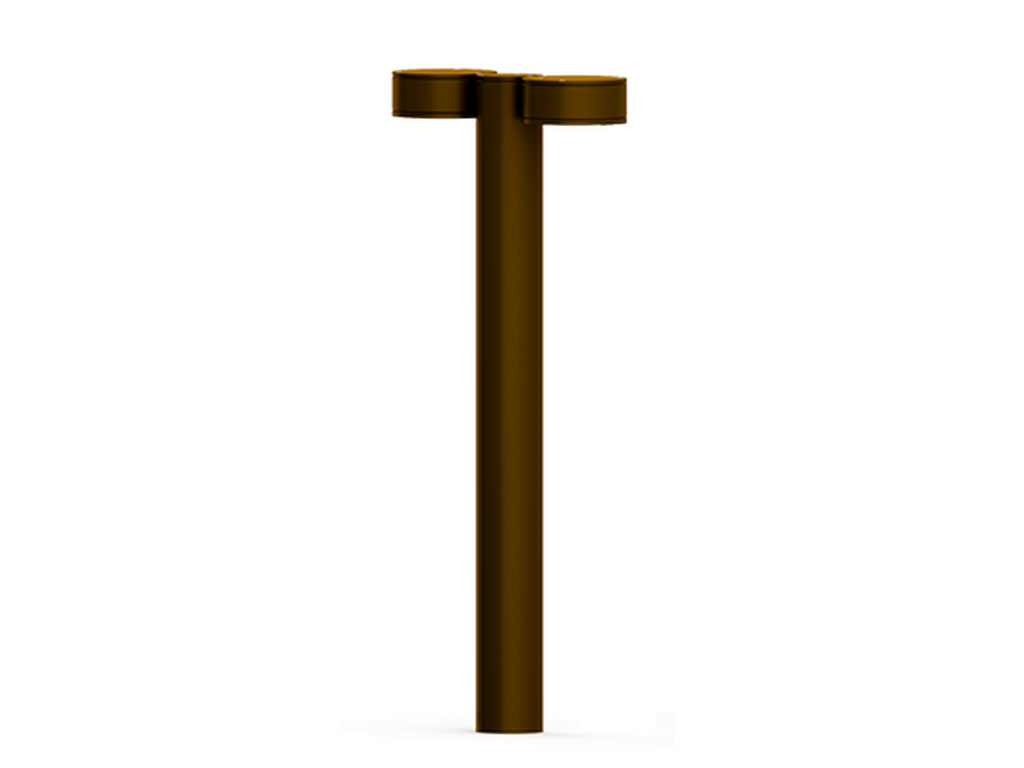

JET 58Bronze
JET 58Concrete - Urban
JET 58Softscape - Urban
JET 58Stone - Urban

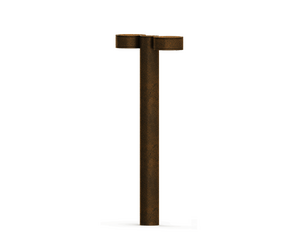

JET 58Corten - Urban
JET 58Oak - Woodland

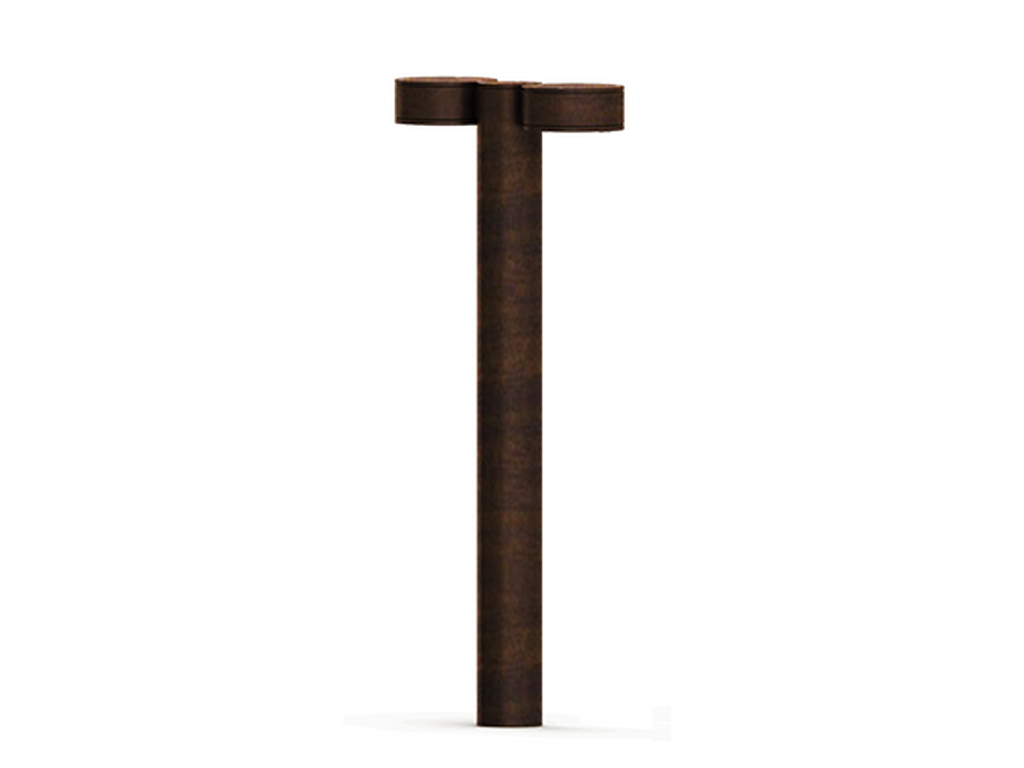

JET 58Walnut - Woodland
JET 58Pine - Woodland
Ø102 - 1000 mm - 2 sides - Round
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 4 LED
Power (W)
38 W
Lumen (lm)
3538 - 4458 lm
Efficacy (lm/W)
93 - 117 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME
Optic value
25°, 56°x34°, 109°x99°, 148°x75°, 137°x52°, 129°x90°, 100°x72°, 135°x50°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B0-U1-G0, B1-U2-G0, B1-U2-G1, B2-U2-G1
ULR
1%, 2%, 3%
ULOR
1%, 2%, 3%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
7.1 kg
Operating temperature
-20 °C to 50 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

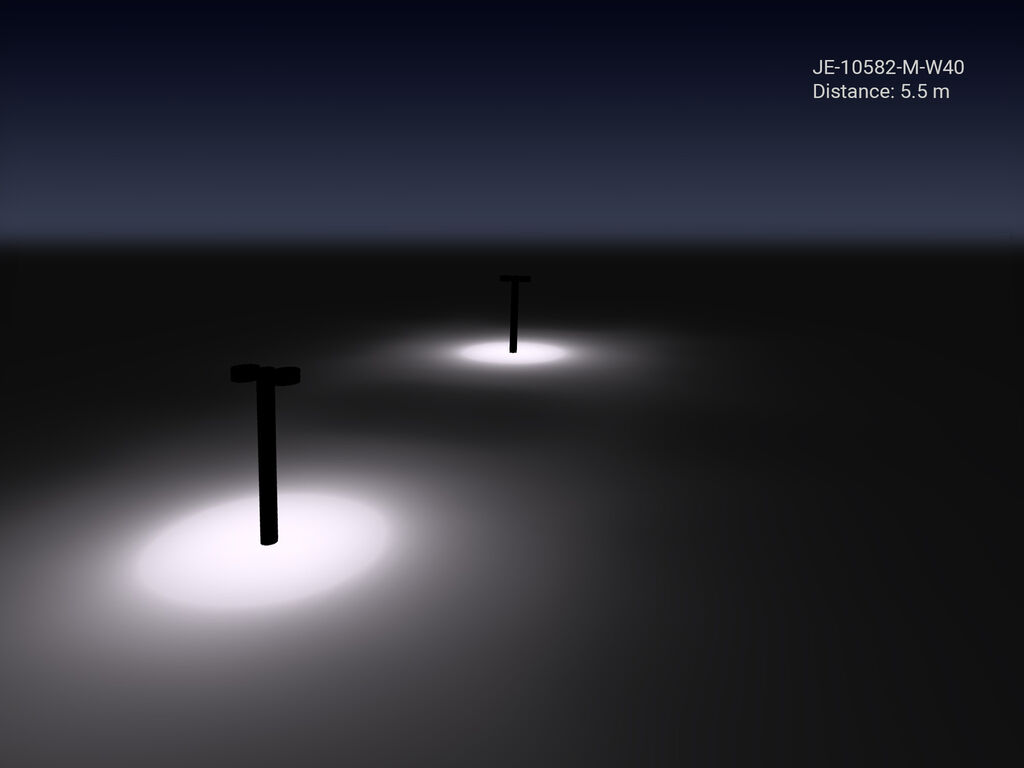

LIGHT EFFECT

Optic
M (25°)
W (56°x34°)
EW (109°x99°)
T1 (148°x75°)
T2 (137°x52°)
T3 (129°x90°)
T4 (100°x72°)
ME (135°x50°)
