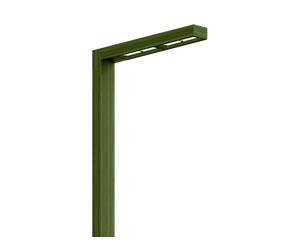

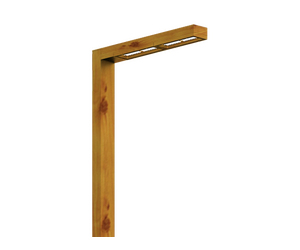

LIGMAN LIGHT LINEAR PT 4 LI-21291.

LIGHT LINEAR PT 4LI-21291LIGHT LINEAR PT

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

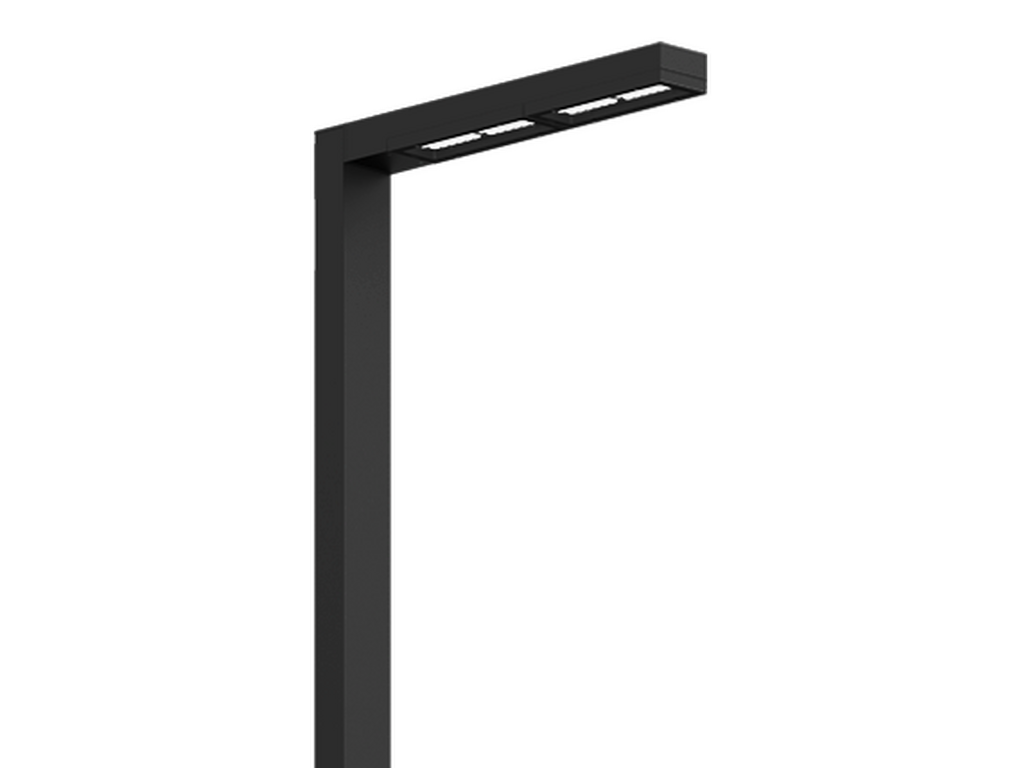

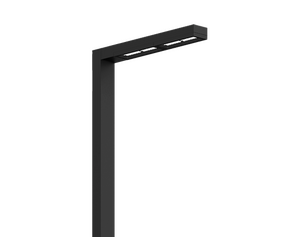

LIGHT LINEAR PT 4Black
LIGHT LINEAR PT 4Dark Grey
LIGHT LINEAR PT 4White

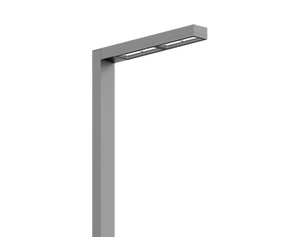

LIGHT LINEAR PT 4Matt Silver
LIGHT LINEAR PT 4Bronze

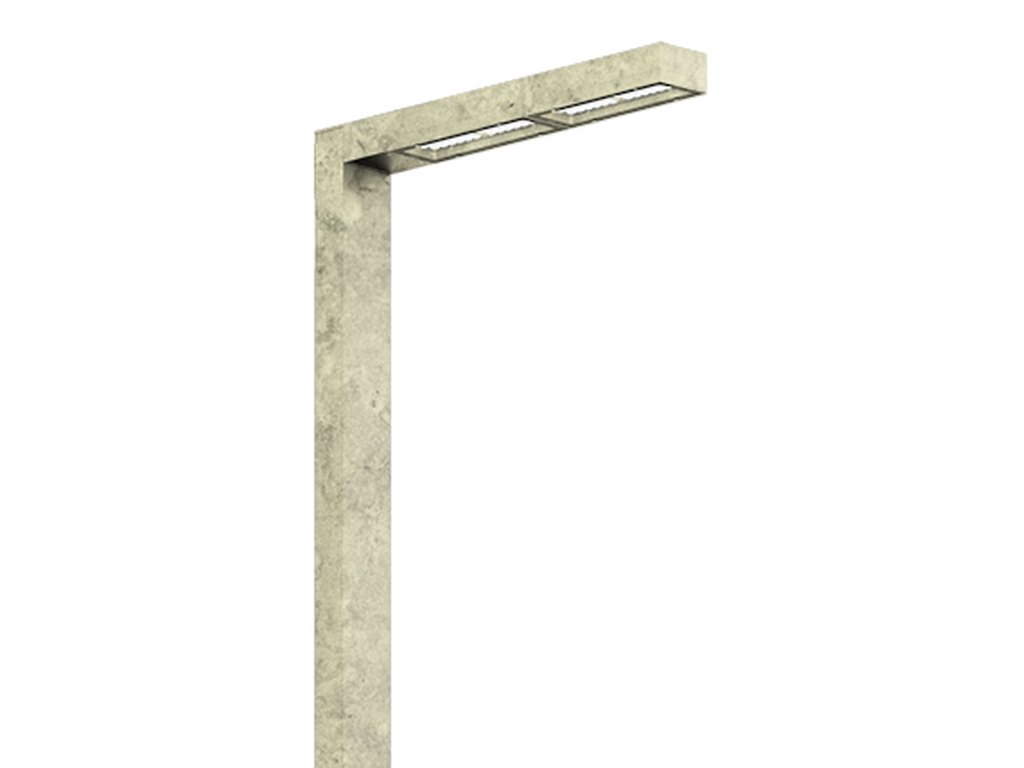

LIGHT LINEAR PT 4Concrete - Urban
LIGHT LINEAR PT 4Softscape - Urban
LIGHT LINEAR PT 4Stone - Urban

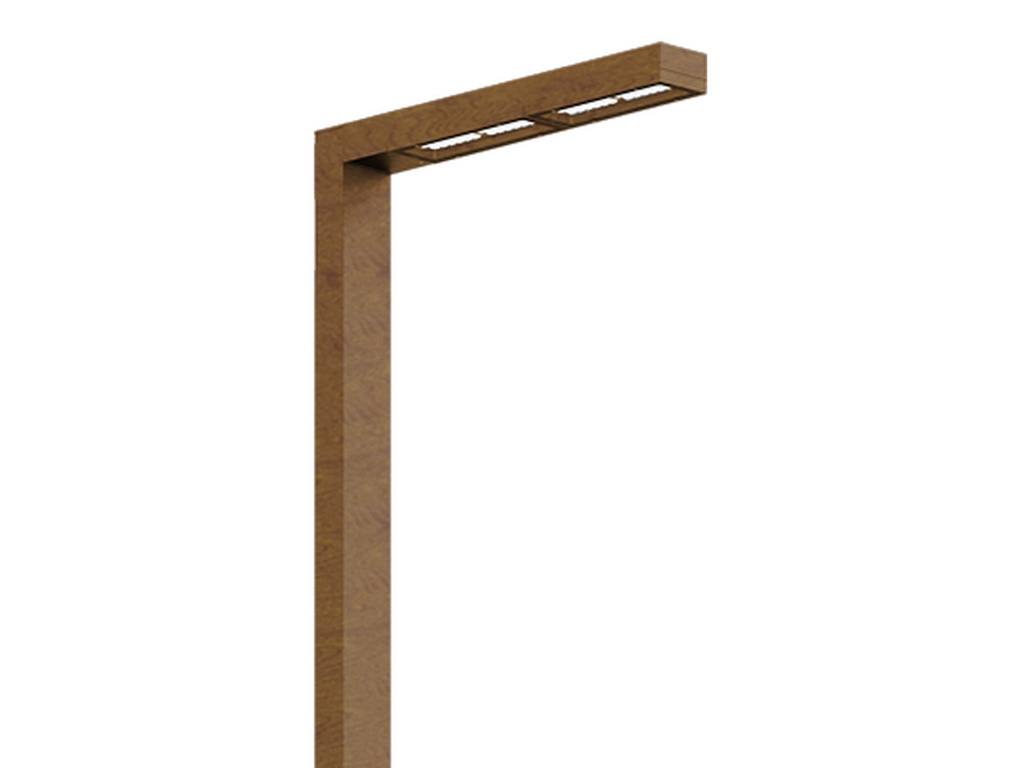

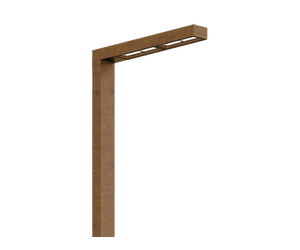

LIGHT LINEAR PT 4Corten - Urban
LIGHT LINEAR PT 4Oak - Woodland
LIGHT LINEAR PT 4Walnut - Woodland
LIGHT LINEAR PT 4Pine - Woodland
LIGHT LINEAR PT 4Black
LIGHT LINEAR PT 4Dark Grey
LIGHT LINEAR PT 4White
LIGHT LINEAR PT 4Matt Silver
LIGHT LINEAR PT 4Bronze
LIGHT LINEAR PT 4Concrete - Urban
LIGHT LINEAR PT 4Softscape - Urban
LIGHT LINEAR PT 4Stone - Urban
LIGHT LINEAR PT 4Corten - Urban
LIGHT LINEAR PT 4Oak - Woodland
LIGHT LINEAR PT 4Walnut - Woodland
LIGHT LINEAR PT 4Pine - Woodland
1 side - Supplied with specific square, straight aluminium pole - Height options: 3 - 6 m
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 x 12 LED
Power (W)
155 W
Lumen (lm)
16243 - 18534 lm
Efficacy (lm/W)
53 - 119 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, ME
Optic value
138°x42°, 124°x52°, 110°x68°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B3-U1-G3, B4-U1-G3
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
31.5 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.093
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000

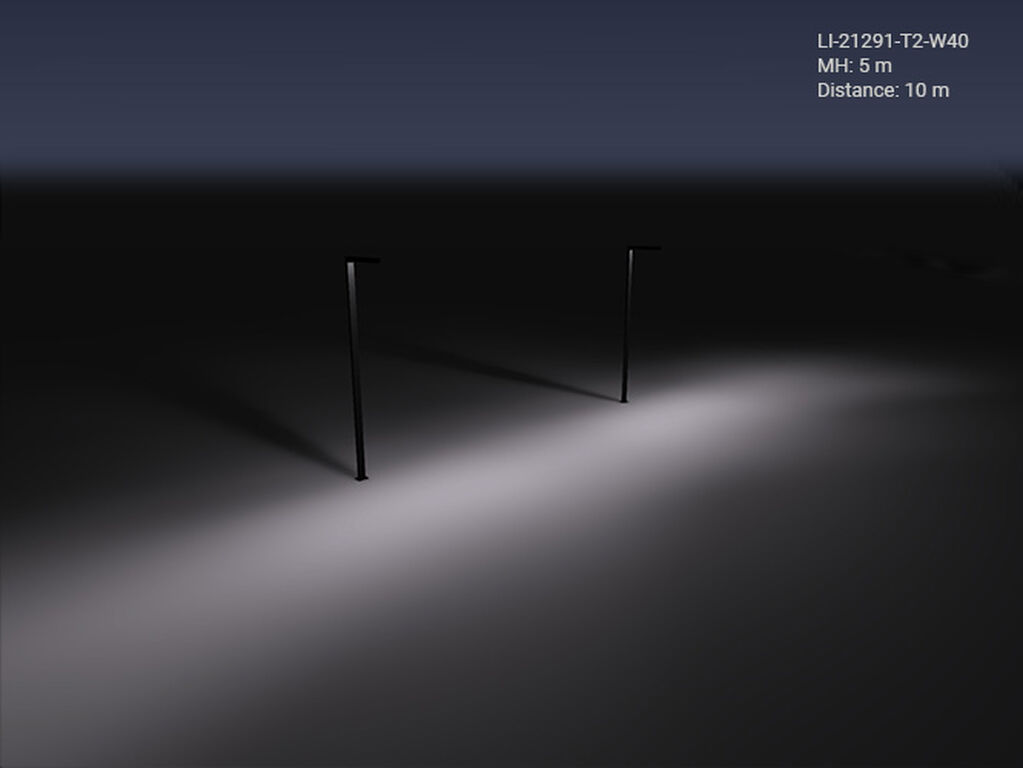

LIGHT EFFECT

Optic
T2 (138°x42°)
T3 (124°x52°)
T4 (110°x68°)
ME

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)
