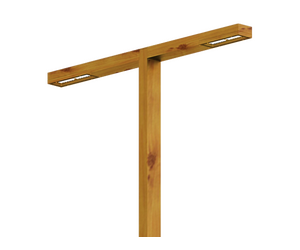

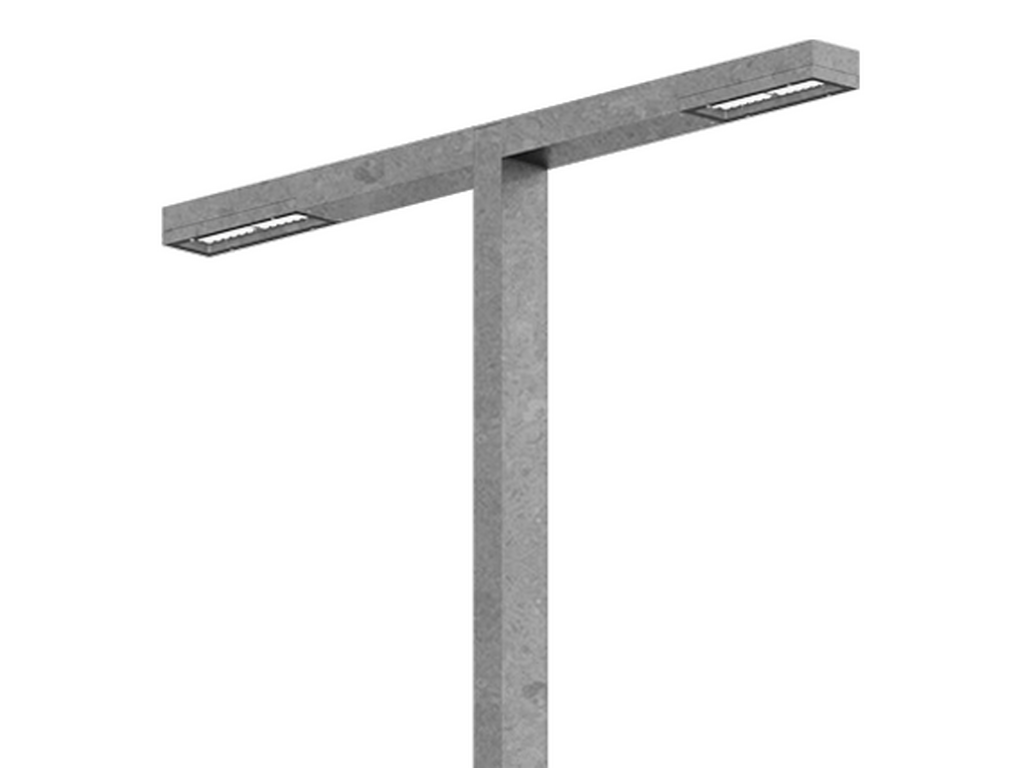

LIGMAN LIGHT LINEAR PT 5 LI-21181.

LIGHT LINEAR PT 5LI-21181LIGHT LINEAR PT

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LIGHT LINEAR PT 5Black
LIGHT LINEAR PT 5Dark Grey
LIGHT LINEAR PT 5White
LIGHT LINEAR PT 5Matt Silver
LIGHT LINEAR PT 5Bronze
LIGHT LINEAR PT 5Concrete - Urban
LIGHT LINEAR PT 5Softscape - Urban
LIGHT LINEAR PT 5Stone - Urban
LIGHT LINEAR PT 5Corten - Urban
LIGHT LINEAR PT 5Oak - Woodland

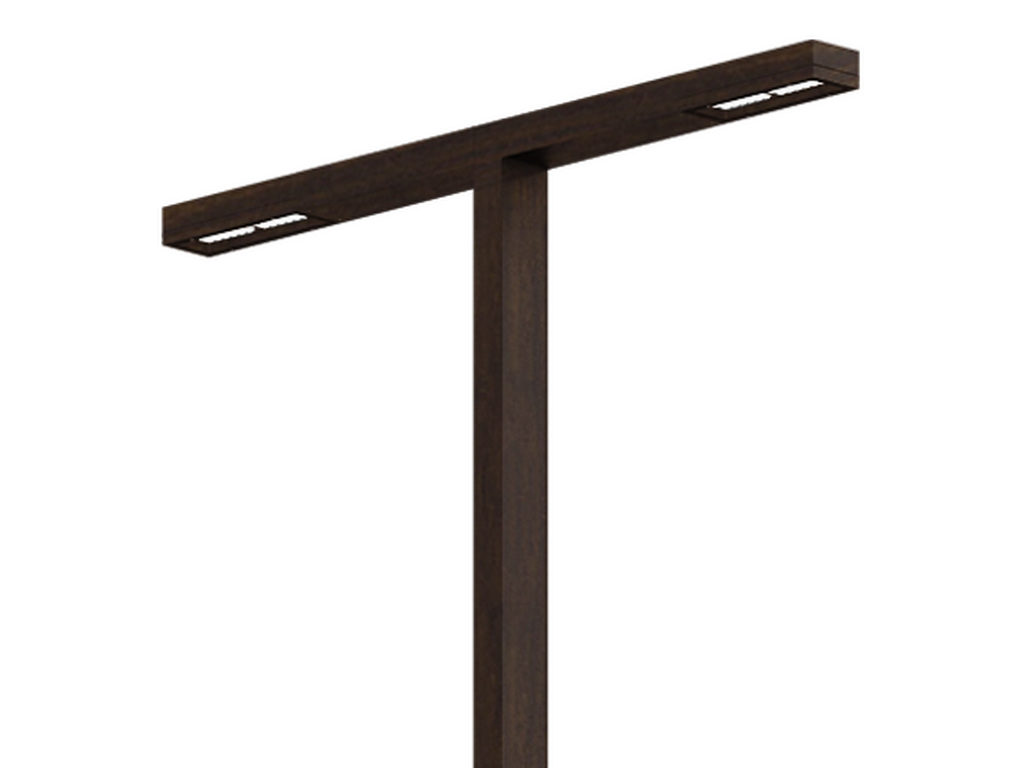

LIGHT LINEAR PT 5Walnut - Woodland
LIGHT LINEAR PT 5Pine - Woodland
LIGHT LINEAR PT 5Black

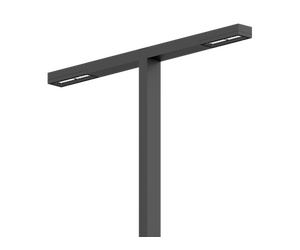

LIGHT LINEAR PT 5Dark Grey

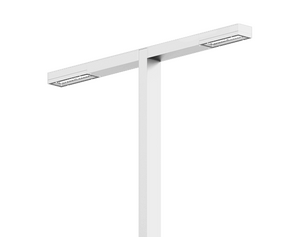

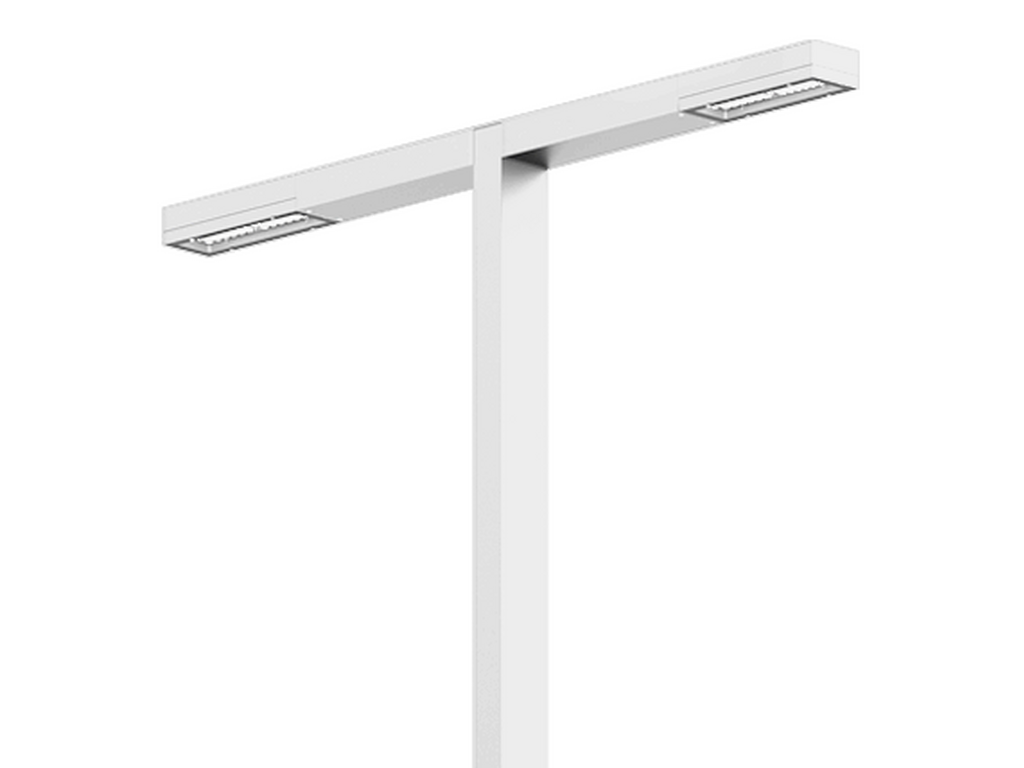

LIGHT LINEAR PT 5White
LIGHT LINEAR PT 5Matt Silver
LIGHT LINEAR PT 5Bronze
LIGHT LINEAR PT 5Concrete - Urban
LIGHT LINEAR PT 5Softscape - Urban

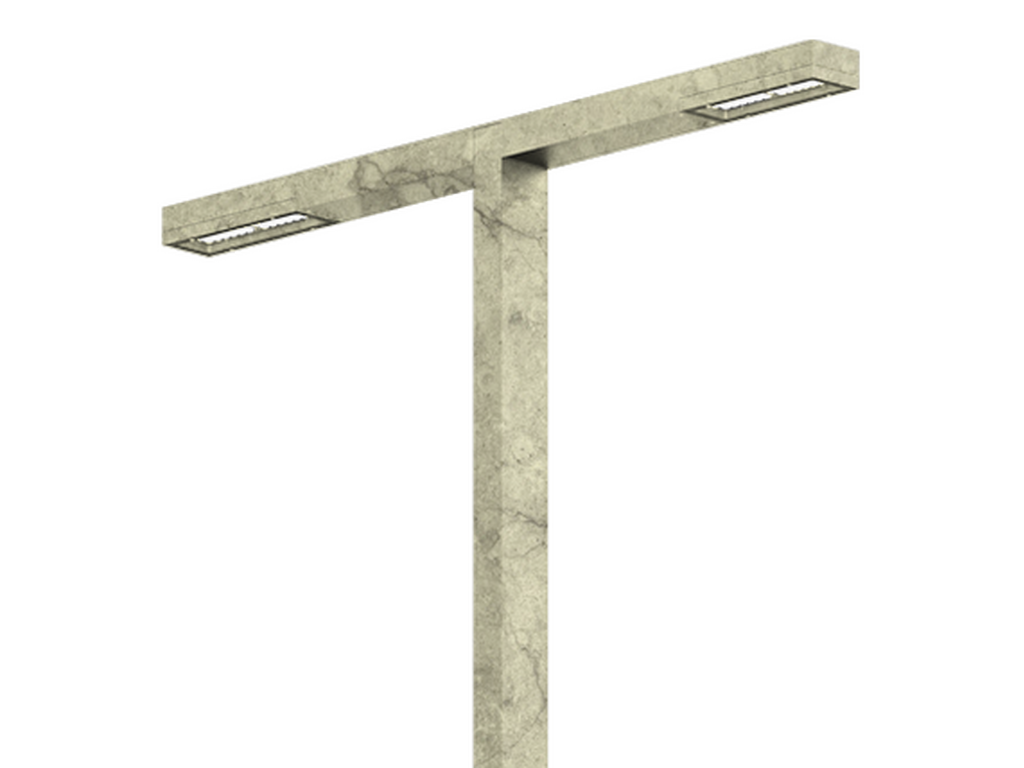

LIGHT LINEAR PT 5Stone - Urban

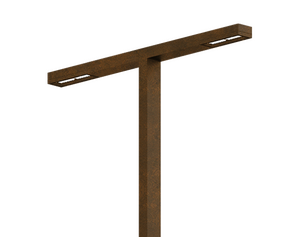

LIGHT LINEAR PT 5Corten - Urban
LIGHT LINEAR PT 5Oak - Woodland
LIGHT LINEAR PT 5Walnut - Woodland
LIGHT LINEAR PT 5Pine - Woodland
2 sides - Supplied with specific square, straight aluminium pole - Height options: 3 - 6 m
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 24 LED
Power (W)
107 W
Lumen (lm)
12250 - 14288 lm
Efficacy (lm/W)
113 - 132 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
140°x43°, 144°x72°, 120°x79°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G1, B2-U0-G2
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
36.8 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.180
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic

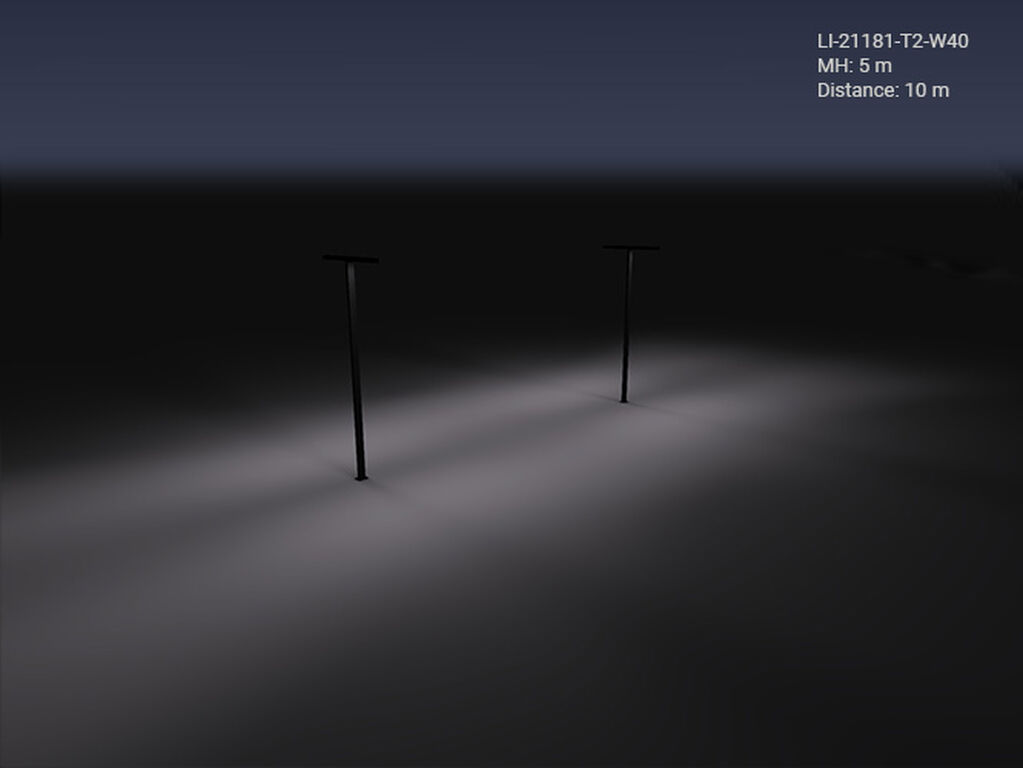

T2 (140°x43°)
T3 (144°x72°)
T4 (120°x79°)

CODE FINDER

Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
Optic (2nd)
Optic (2nd) Value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)

PROJECT REFERENCE (LIGHT LINEAR PT Street & area lighting luminaires)
