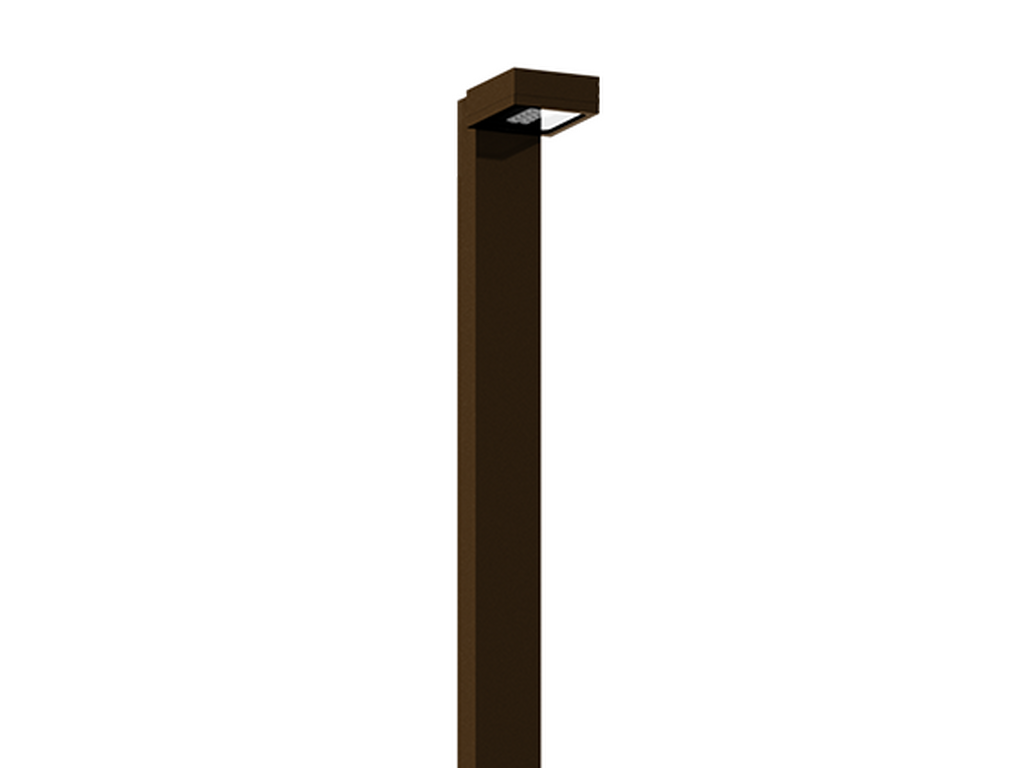

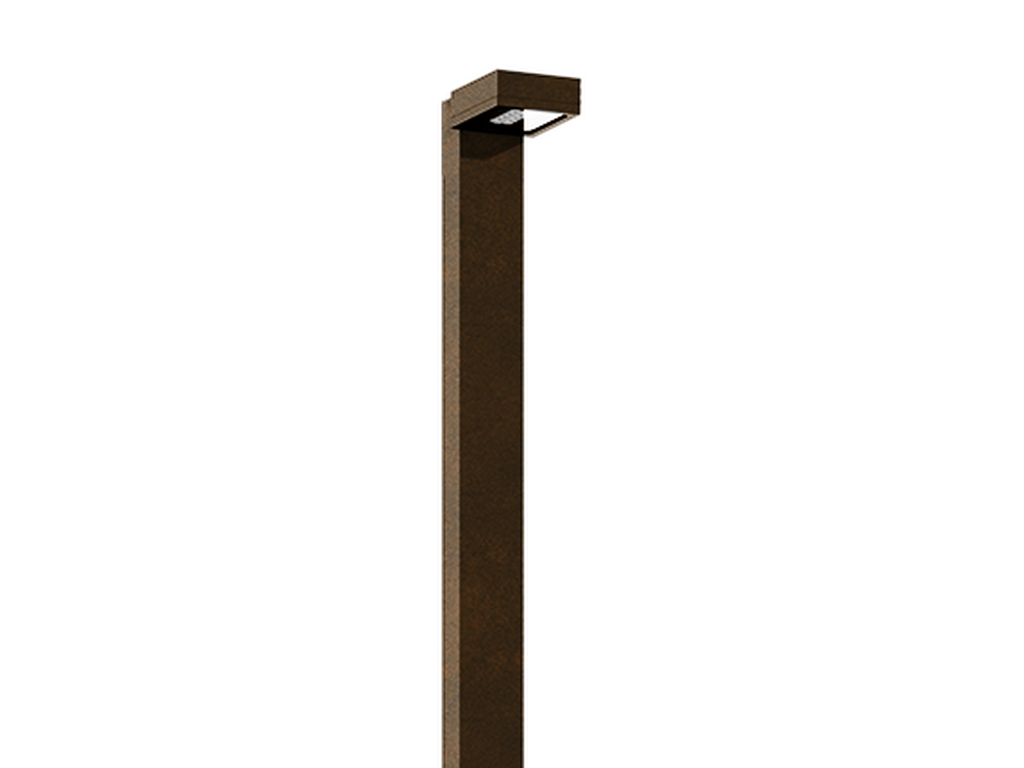

LIGMAN LIGHT LINEAR PT 7 LI-21231.

LIGHT LINEAR PT 7LI-21231LIGHT LINEAR PT

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
LIGHT LINEAR PT 7Black

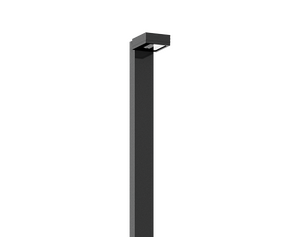

LIGHT LINEAR PT 7Dark Grey

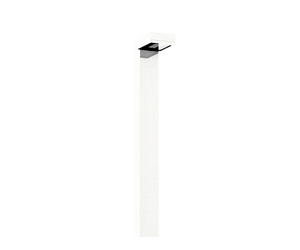

LIGHT LINEAR PT 7White

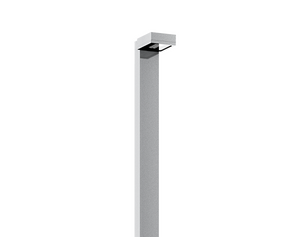

LIGHT LINEAR PT 7Matt Silver

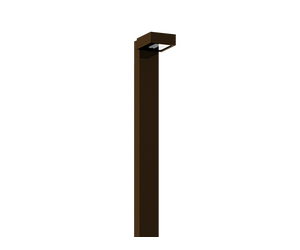

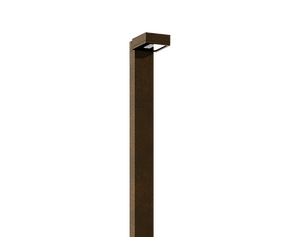

LIGHT LINEAR PT 7Bronze

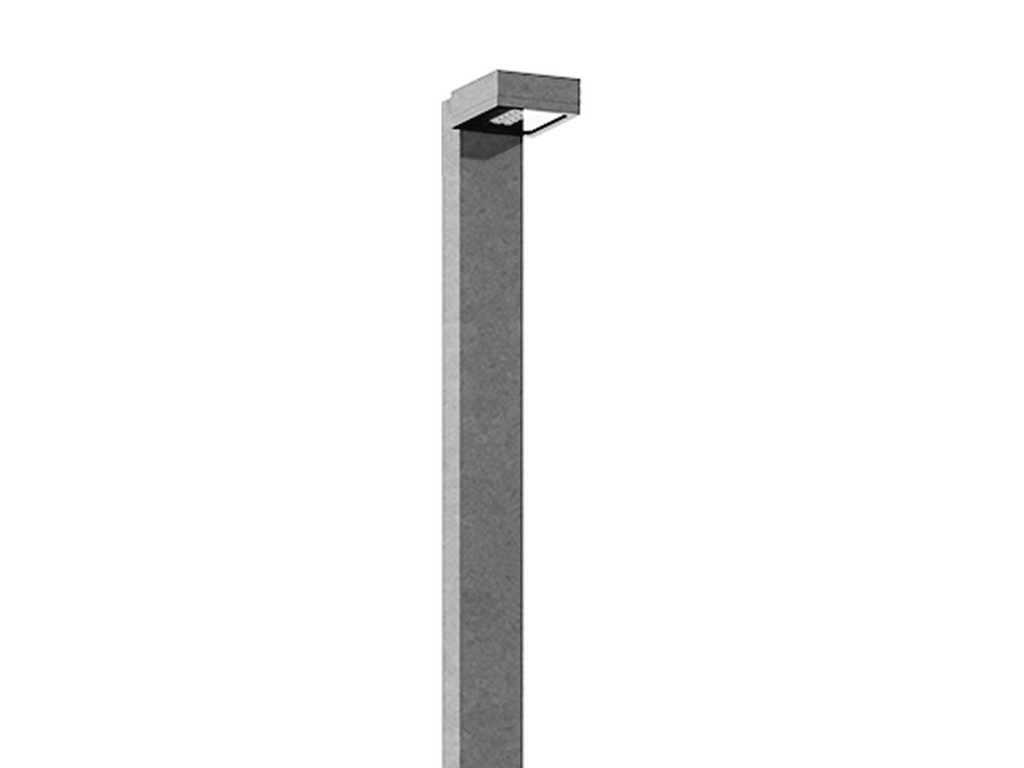

LIGHT LINEAR PT 7Concrete - Urban
LIGHT LINEAR PT 7Softscape - Urban

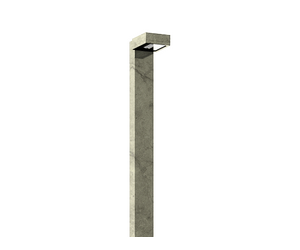

LIGHT LINEAR PT 7Stone - Urban

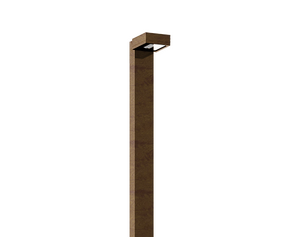

LIGHT LINEAR PT 7Corten - Urban
LIGHT LINEAR PT 7Oak - Woodland
LIGHT LINEAR PT 7Walnut - Woodland
LIGHT LINEAR PT 7Pine - Woodland
LIGHT LINEAR PT 7Black
LIGHT LINEAR PT 7Dark Grey
LIGHT LINEAR PT 7White
LIGHT LINEAR PT 7Matt Silver
LIGHT LINEAR PT 7Bronze
LIGHT LINEAR PT 7Concrete - Urban
LIGHT LINEAR PT 7Softscape - Urban
LIGHT LINEAR PT 7Stone - Urban
LIGHT LINEAR PT 7Corten - Urban
LIGHT LINEAR PT 7Oak - Woodland
LIGHT LINEAR PT 7Walnut - Woodland
LIGHT LINEAR PT 7Pine - Woodland
1 side - Supplied with specific square, straight aluminium pole - Height options: 3 - 6 m
CERETILAPClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (W)
28 W
Lumen (lm)
3225 - 3601 lm
Efficacy (lm/W)
111 - 124 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
144°x43°, 152°x72°, 122°x80°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
<1%
ULOR
<1%
CIE flux code nº3
96, 97, 98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
23.5 kg
Operating temperature
-20 °C to 50 °C
EPA (m2)
0.016
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, High-efficiency polycarbonate lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000

LIGHT EFFECT

Optic
T2 (144°x43°)
T3 (152°x72°)
T4 (122°x80°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)

PROJECT REFERENCE (LIGHT LINEAR PT Street & area lighting luminaires)
