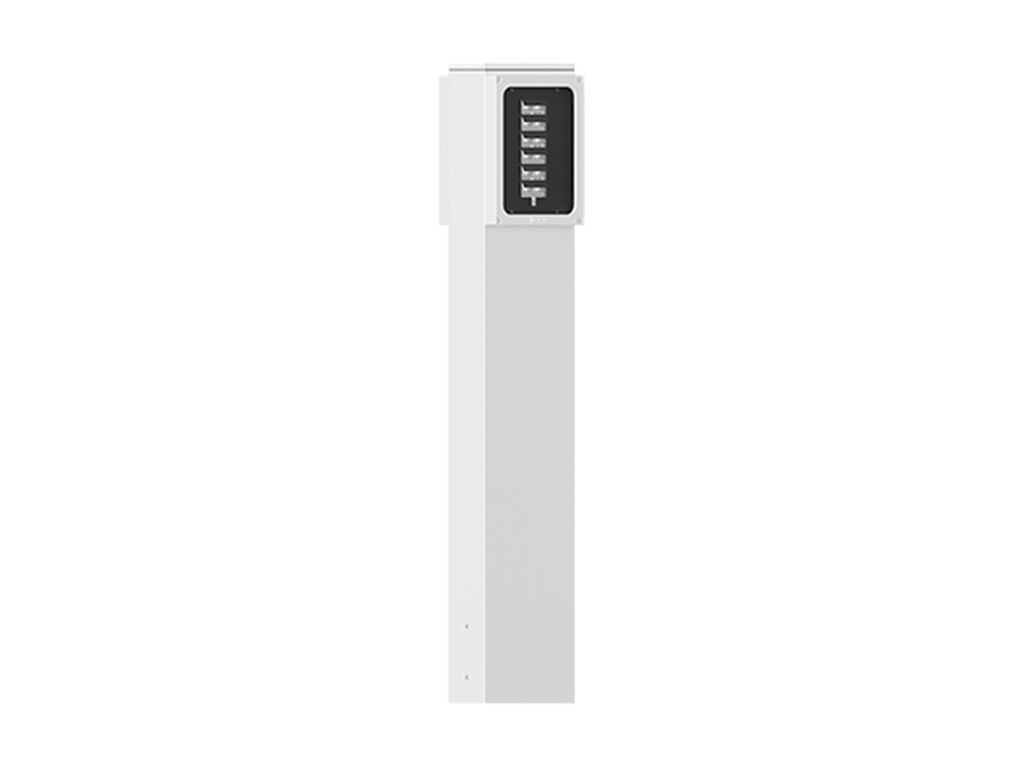

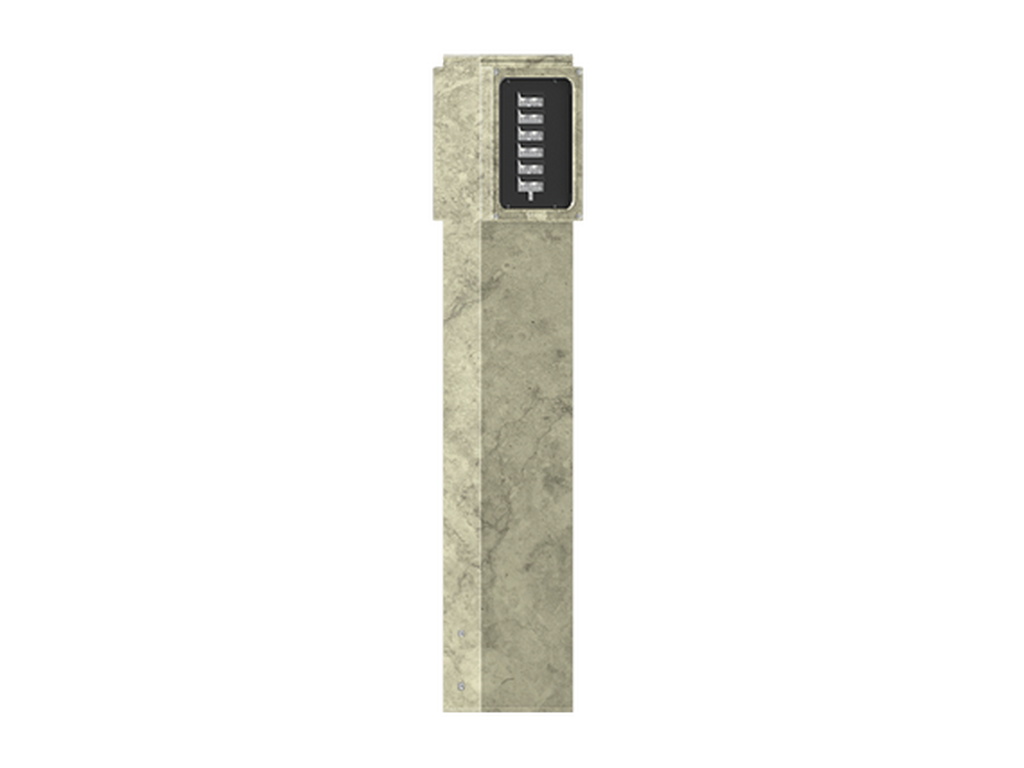

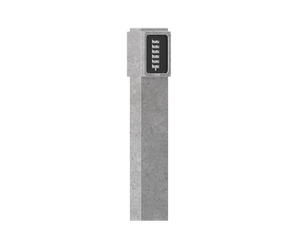

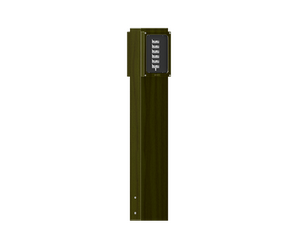

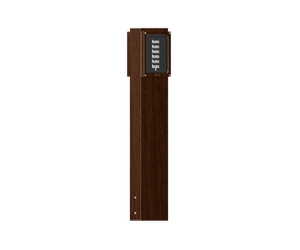

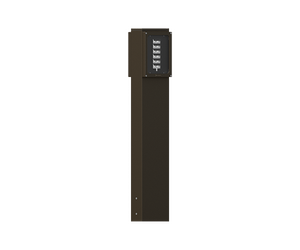

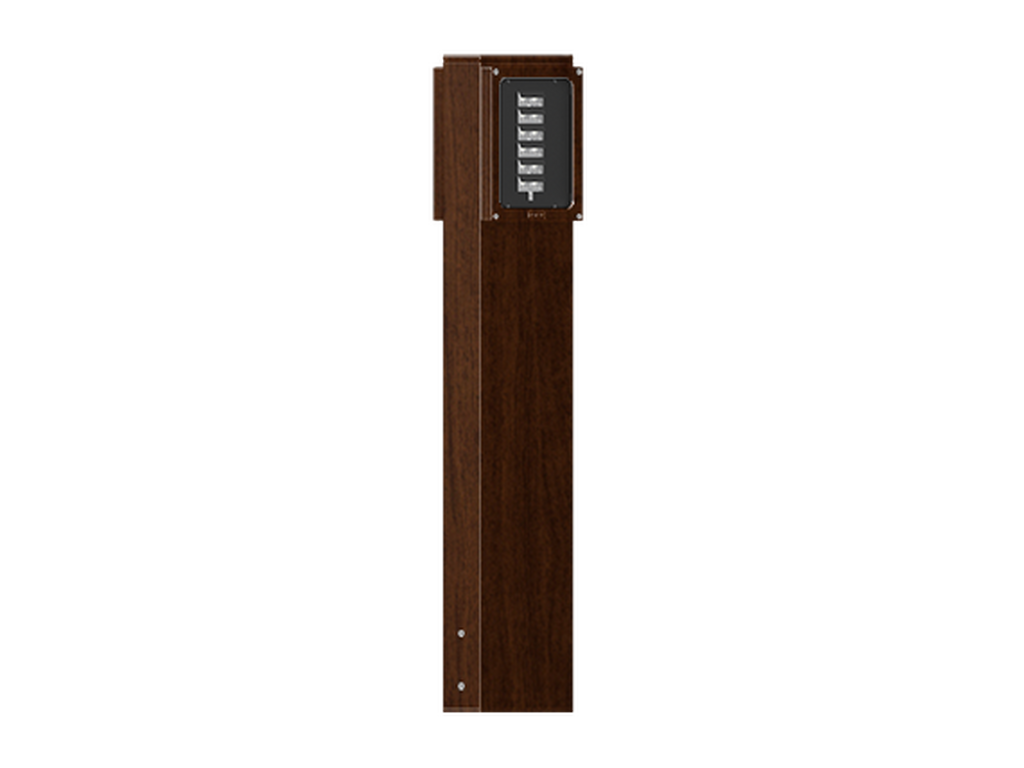

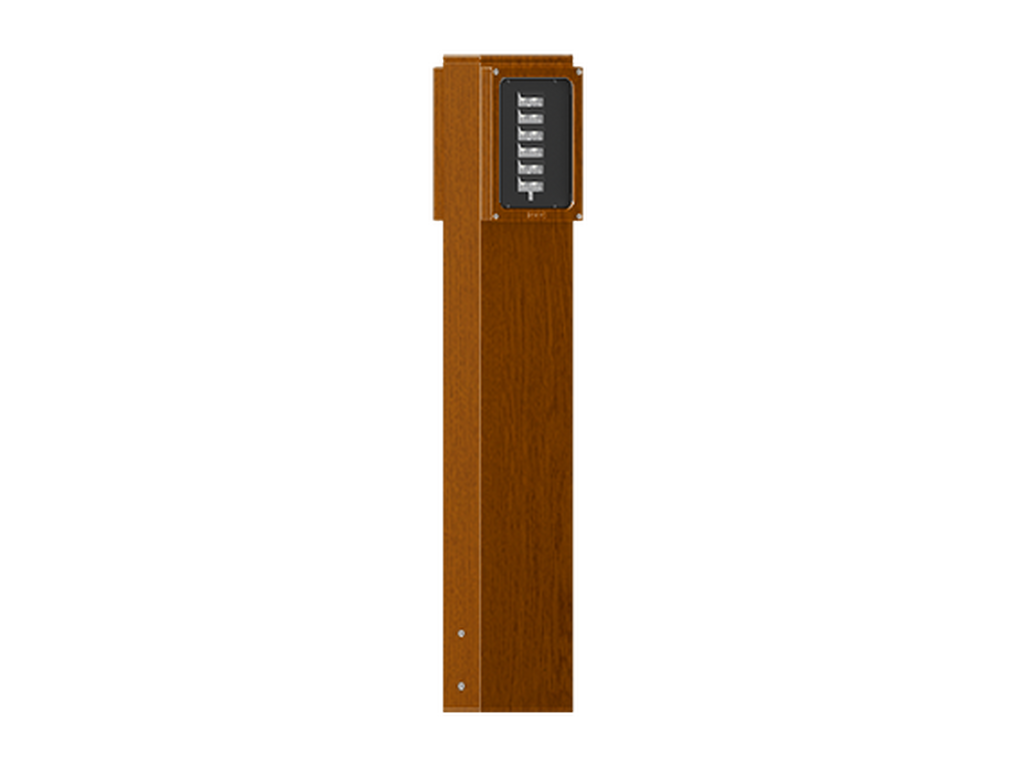

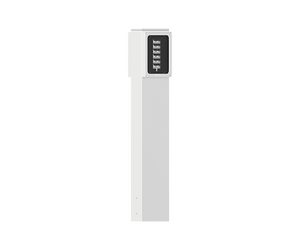

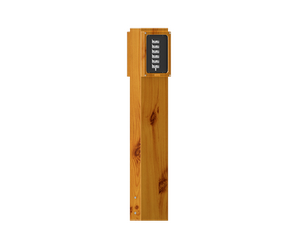

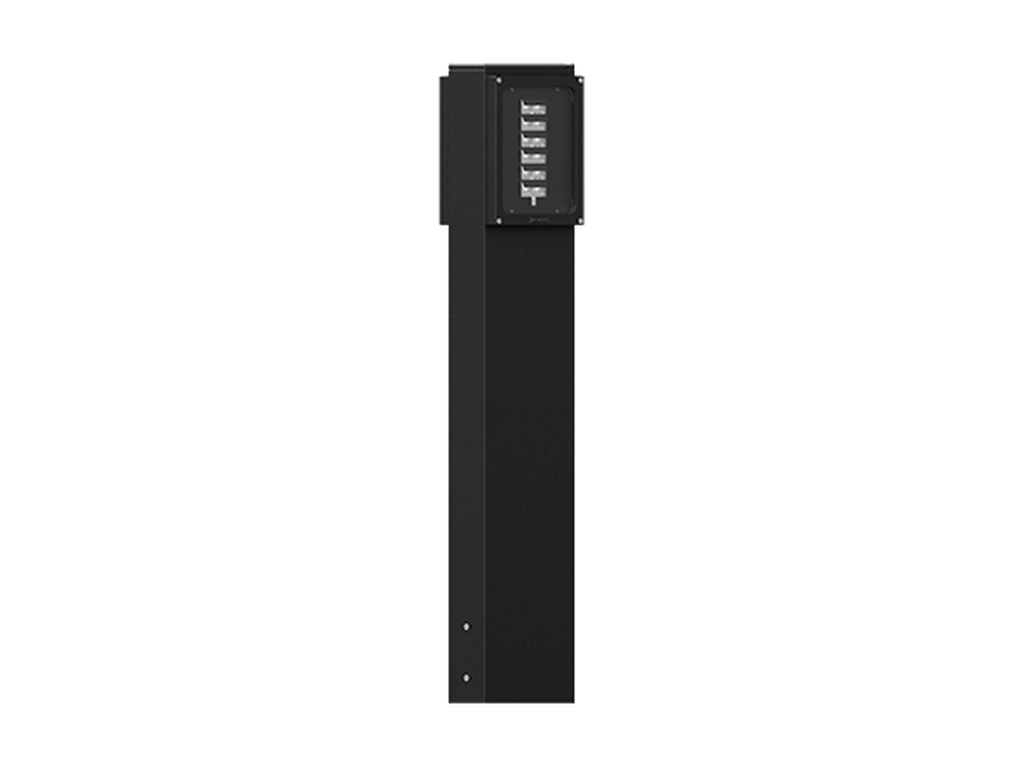

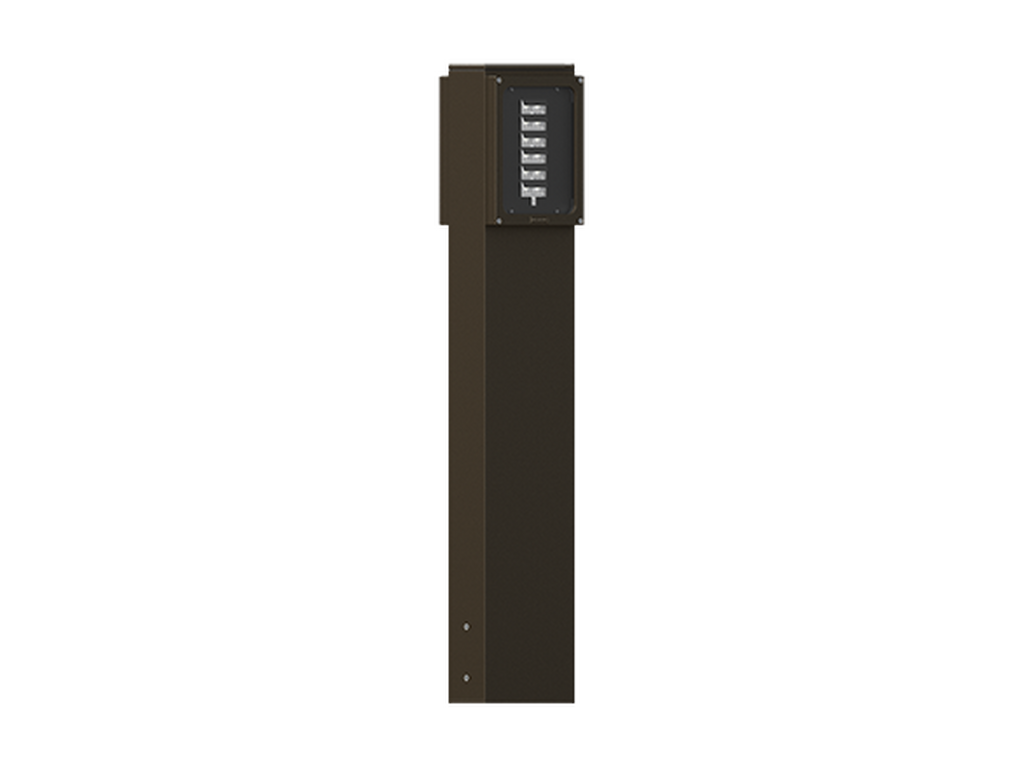

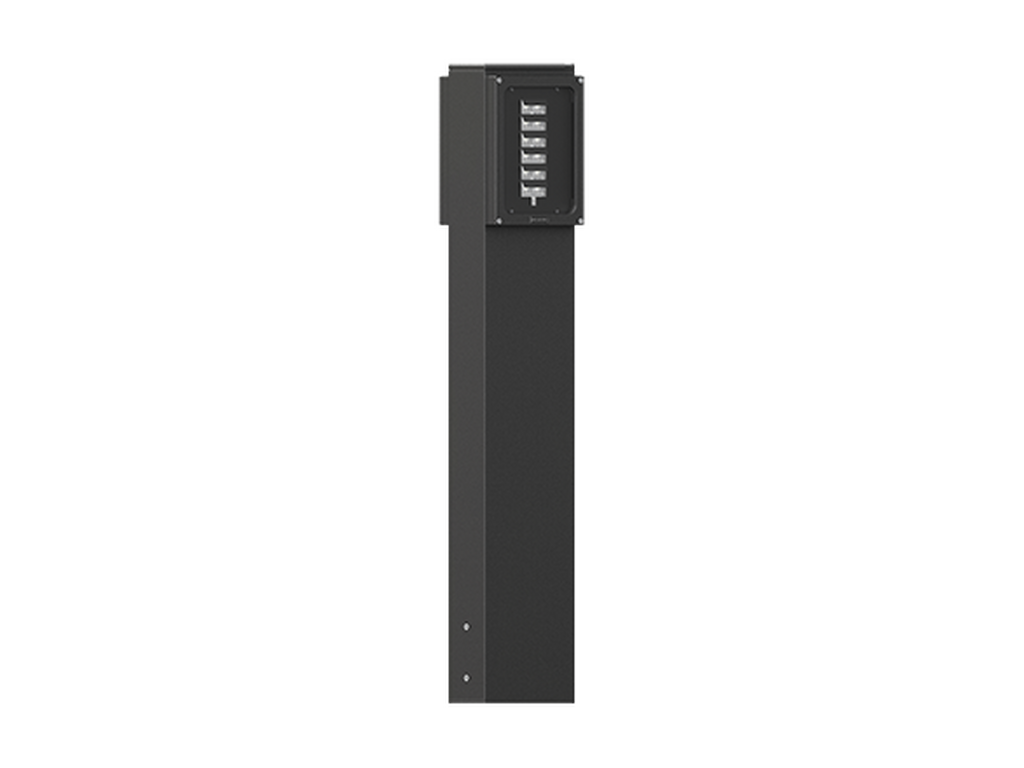

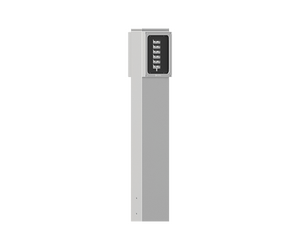

LIGHT LINEAR VT 2
200x80 mm - 1000 mm - 2 sides
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Lamp
12 LED
Power (Luminaire)
56 W
Lumen (Luminaire)
2716 - 4012 lm
Luminaire luminous efficacy
49 - 72 lm/W
EEC
A+
CCT / CRI
3000K CRI80, 4000K CRI80
MacAdam Ellipse
3 SDCM
Optic
T1, T2, T3, T4
Optic Value
110°x105°, 112°x44°, 137°x125°, 172°x94°
Dimming type
On/Off
Product colors
Black, Dark Grey, White, Matt Silver, Bronze
Weight
9.9 kg
Operating temperature
-20 °C to 40 °C

CODE FINDER

Lumen
CCT / CRI
Optic
Optic Value
Optic (2nd)
Optic (2nd) Value
Dimming type
Product colors
SKU
Lamp
Power
(Lum.)
Lumen
(Lum.)
CCT/CRI
Optic
Optic
Value
Optic
(2nd)
Optic
(2nd)
Value
Dimming
type
Product
colors
SKU: VT-10011-T1-W30-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 2716 lm
CCT/CRI: 3000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T1-W30-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 2716 lm
CCT/CRI: 3000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T1-W30-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 2716 lm
CCT/CRI: 3000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T1-W30-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 2716 lm
CCT/CRI: 3000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T1-W30-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 2716 lm
CCT/CRI: 3000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze

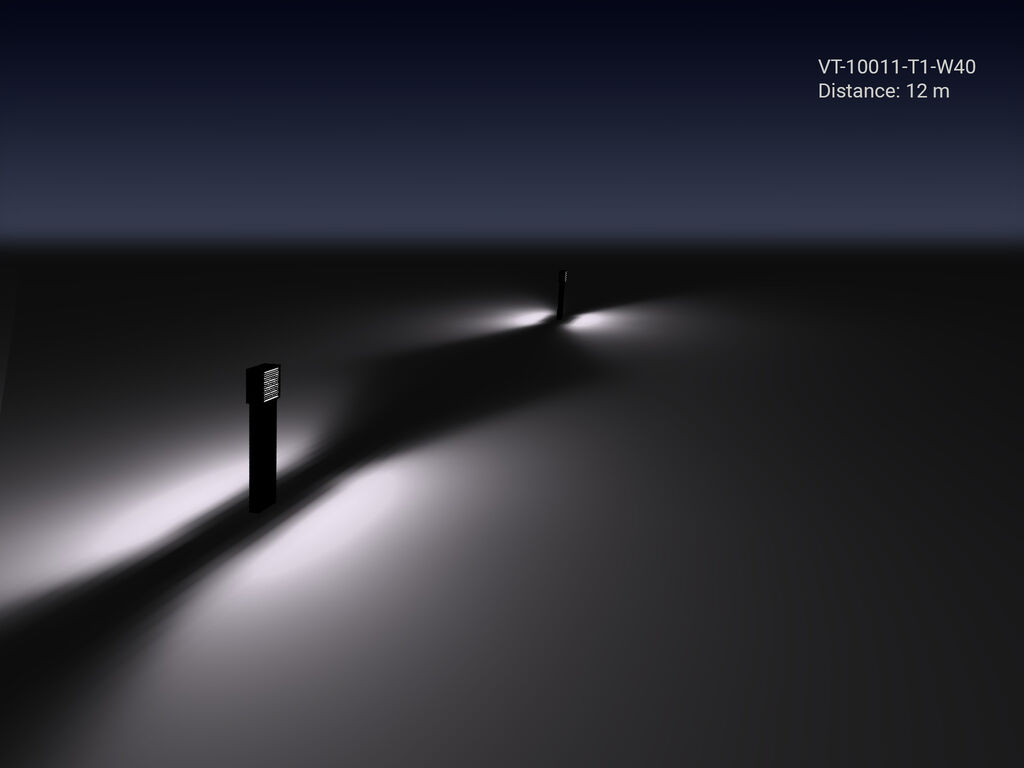

SKU: VT-10011-T1-W40-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3091 lm
CCT/CRI: 4000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T1-W40-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3091 lm
CCT/CRI: 4000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T1-W40-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3091 lm
CCT/CRI: 4000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T1-W40-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3091 lm
CCT/CRI: 4000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T1-W40-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3091 lm
CCT/CRI: 4000K CRI80
Optic: T1
Optic Value: 110°x105°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
SKU: VT-10011-T2-W30-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3136 lm
CCT/CRI: 3000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T2-W30-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3136 lm
CCT/CRI: 3000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T2-W30-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3136 lm
CCT/CRI: 3000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T2-W30-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3136 lm
CCT/CRI: 3000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T2-W30-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3136 lm
CCT/CRI: 3000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
SKU: VT-10011-T2-W40-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3569 lm
CCT/CRI: 4000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T2-W40-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3569 lm
CCT/CRI: 4000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T2-W40-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3569 lm
CCT/CRI: 4000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T2-W40-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3569 lm
CCT/CRI: 4000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T2-W40-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3569 lm
CCT/CRI: 4000K CRI80
Optic: T2
Optic Value: 137°x125°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
SKU: VT-10011-T3-W30-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3219 lm
CCT/CRI: 3000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T3-W30-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3219 lm
CCT/CRI: 3000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T3-W30-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3219 lm
CCT/CRI: 3000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T3-W30-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3219 lm
CCT/CRI: 3000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T3-W30-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3219 lm
CCT/CRI: 3000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
SKU: VT-10011-T3-W40-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3664 lm
CCT/CRI: 4000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T3-W40-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3664 lm
CCT/CRI: 4000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T3-W40-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3664 lm
CCT/CRI: 4000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T3-W40-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3664 lm
CCT/CRI: 4000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T3-W40-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3664 lm
CCT/CRI: 4000K CRI80
Optic: T3
Optic Value: 172°x94°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
SKU: VT-10011-T4-W30-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3524 lm
CCT/CRI: 3000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T4-W30-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3524 lm
CCT/CRI: 3000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T4-W30-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3524 lm
CCT/CRI: 3000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T4-W30-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3524 lm
CCT/CRI: 3000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T4-W30-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 3524 lm
CCT/CRI: 3000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
SKU: VT-10011-T4-W40-ND-01
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 4012 lm
CCT/CRI: 4000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Black
SKU: VT-10011-T4-W40-ND-02
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 4012 lm
CCT/CRI: 4000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Dark Grey
SKU: VT-10011-T4-W40-ND-03
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 4012 lm
CCT/CRI: 4000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: White
SKU: VT-10011-T4-W40-ND-05
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 4012 lm
CCT/CRI: 4000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Matt Silver
SKU: VT-10011-T4-W40-ND-06
Lamp: 12 LED
Power (Lum.): 56 W
Lumen (Lum.): 4012 lm
CCT/CRI: 4000K CRI80
Optic: T4
Optic Value: 112°x44°
Optic (2nd):
Optic (2nd) Value:
Dimming type: On/Off
Product colors: Bronze
