NEW
LISSE 1
LISSE 1

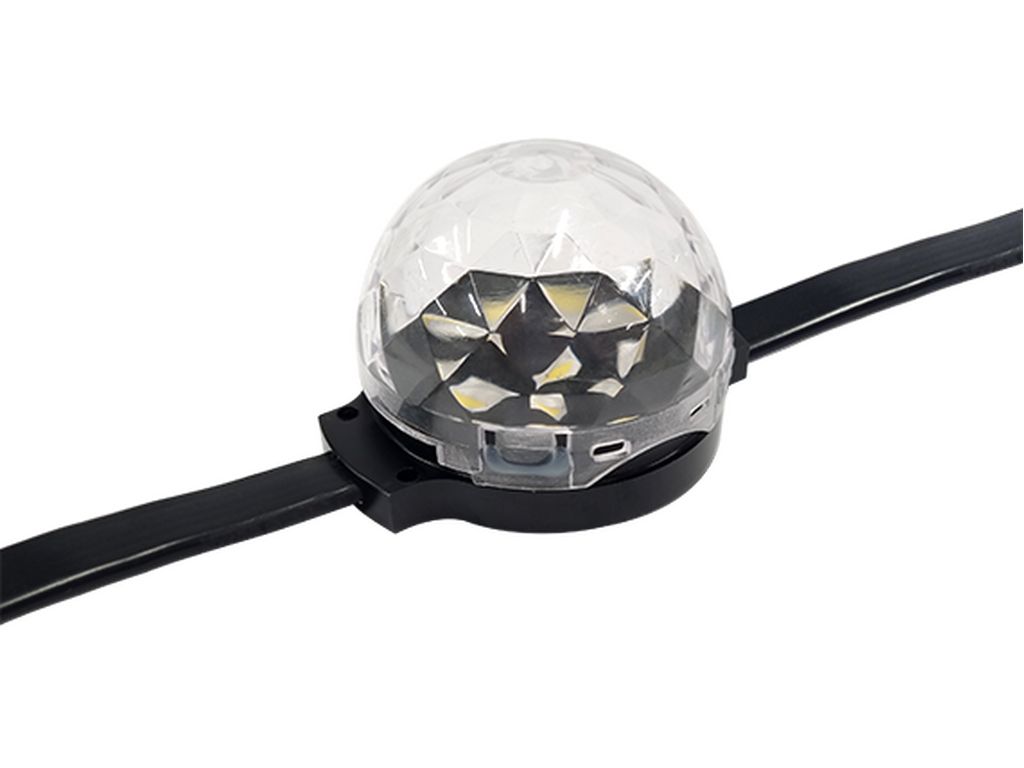

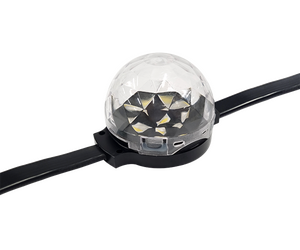

LED pixel dot - Without remote driver - Constant voltage (CV) 24 V - Dome lens - Diamond cover - RGBW
Class IIIIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
12 LED
Power (W)
3.4 W
Lumen (lm)
97 lm
Efficacy (lm/W)
29 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
C
Optic value
113°
CCT / CRI
RGBW40
Bug
B1-U0-G1
Dimming type
DMX
Product colours
Black
Weight
0.08 kg
Operating temperature
-20 °C to 50 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Dome lens, diamond polycarbonate cover

LIGHT EFFECT

Optic
C (113°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: LSS-30003-C-40-DMX-01
Lumen (lm): 97 lm
Optic: C
Optic value: 113°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
