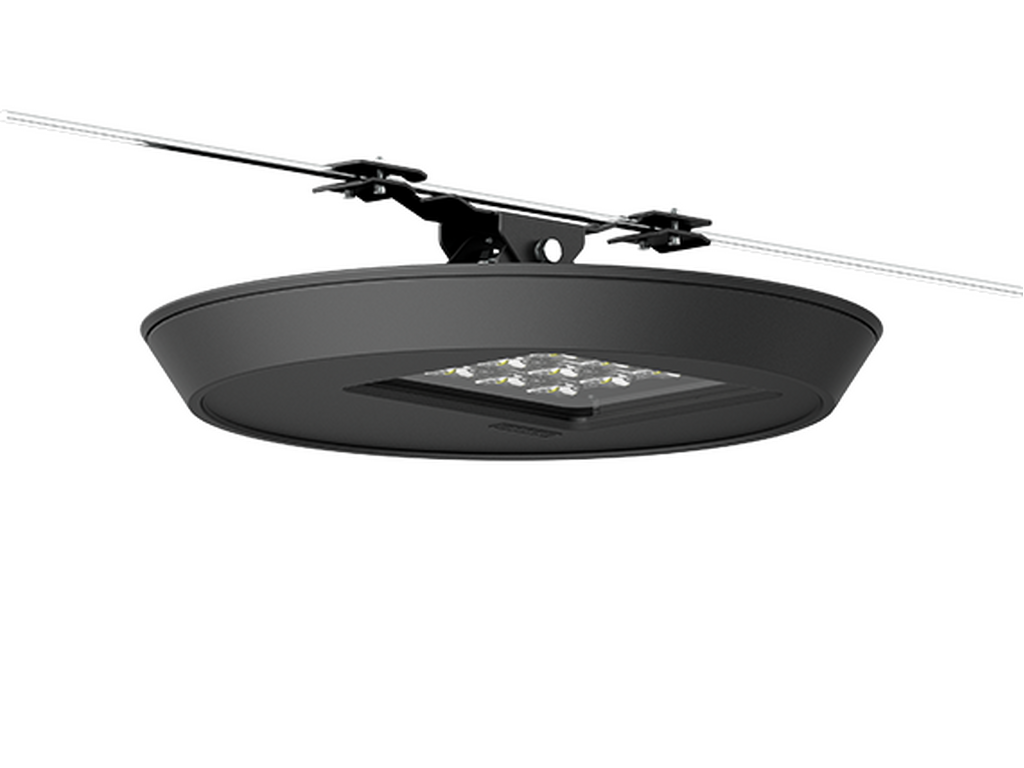

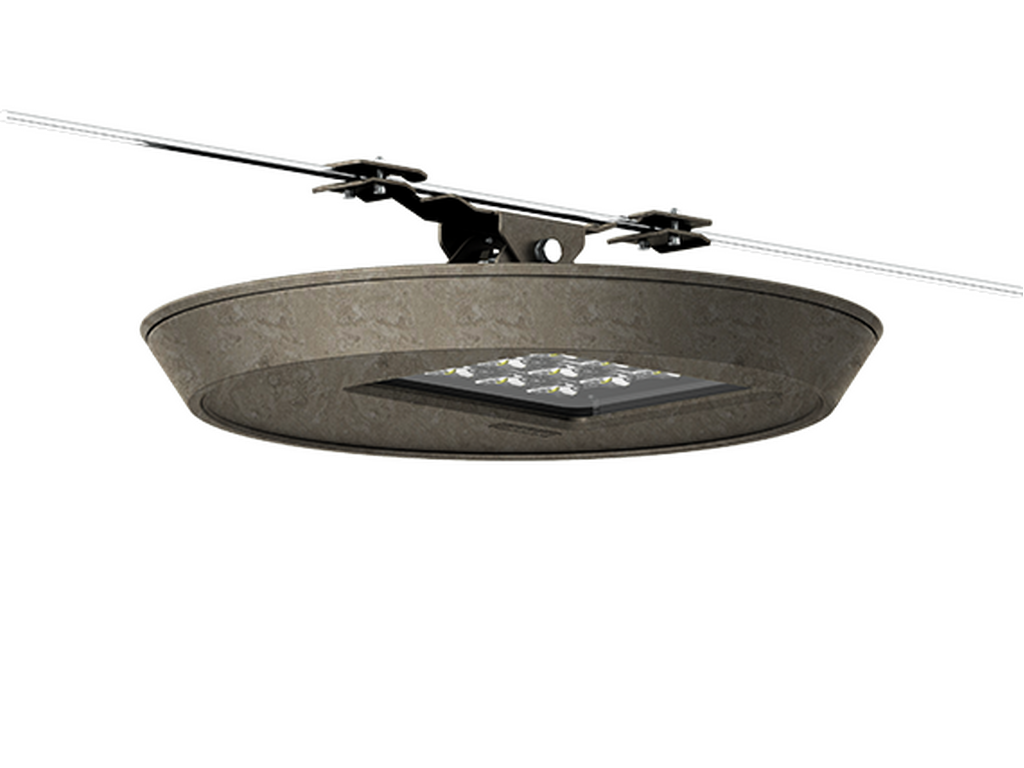

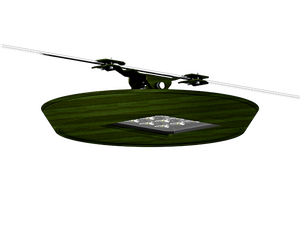

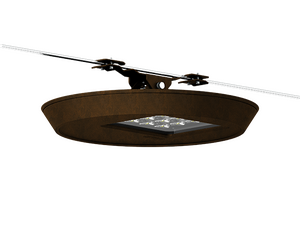

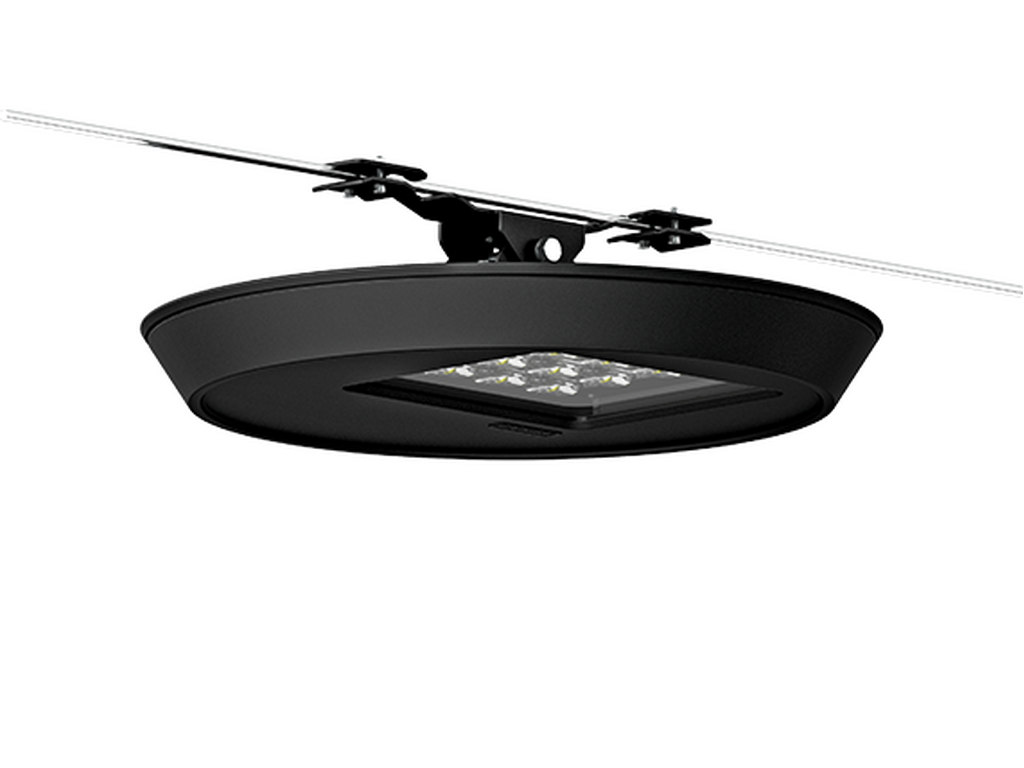

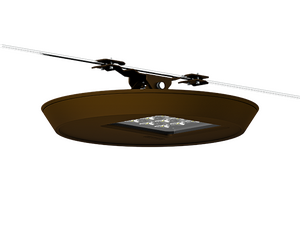

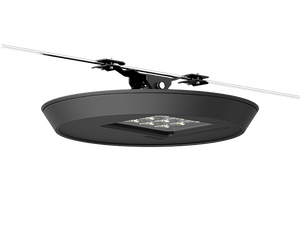

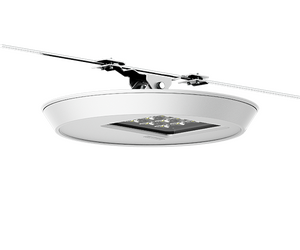

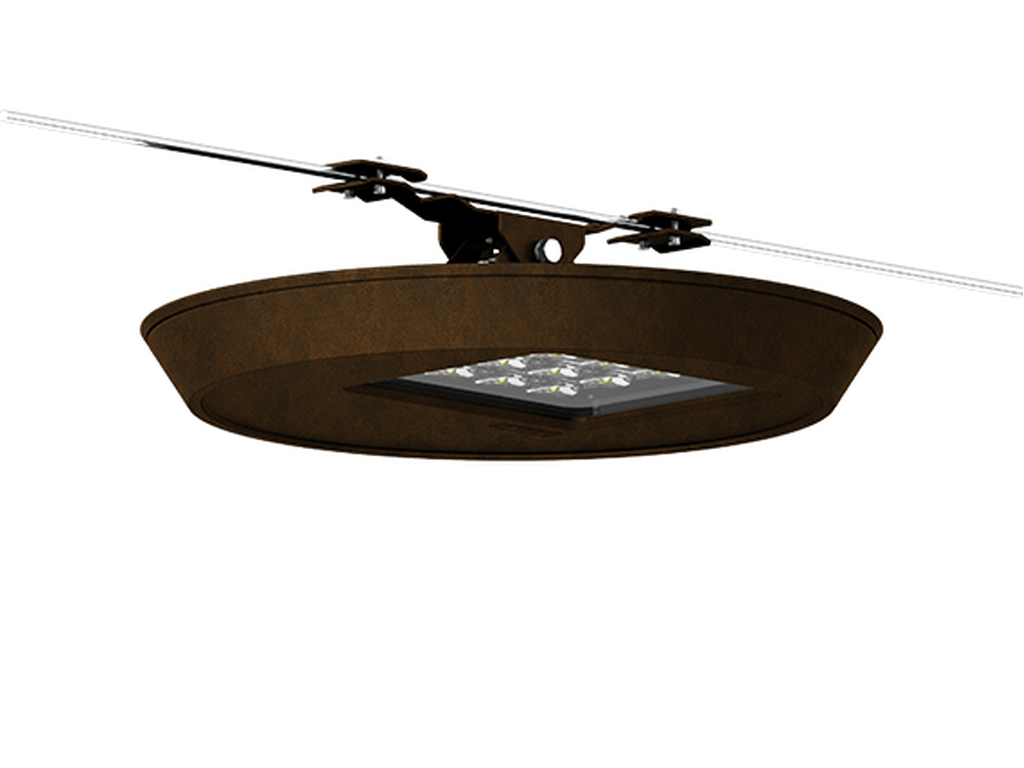

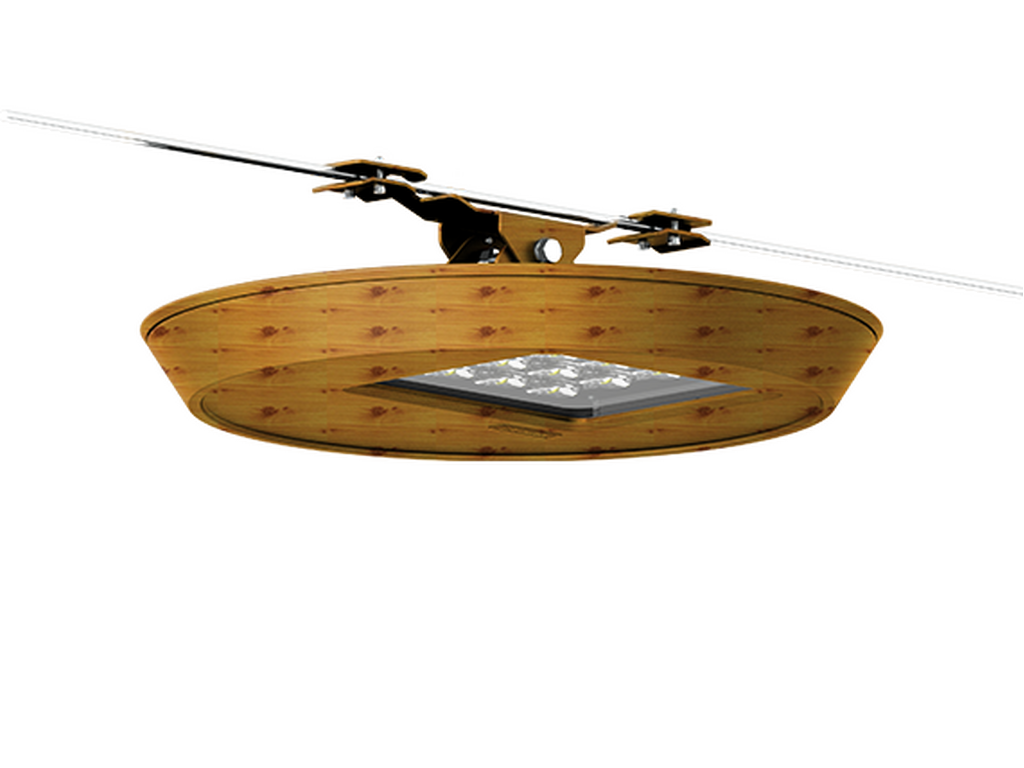

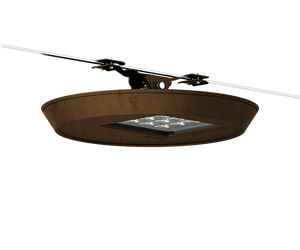

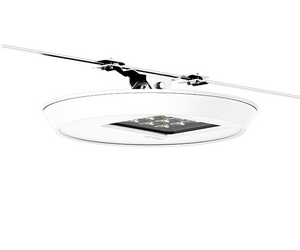

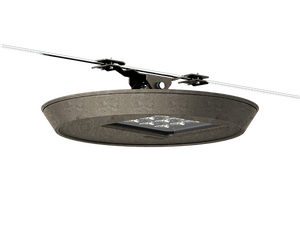

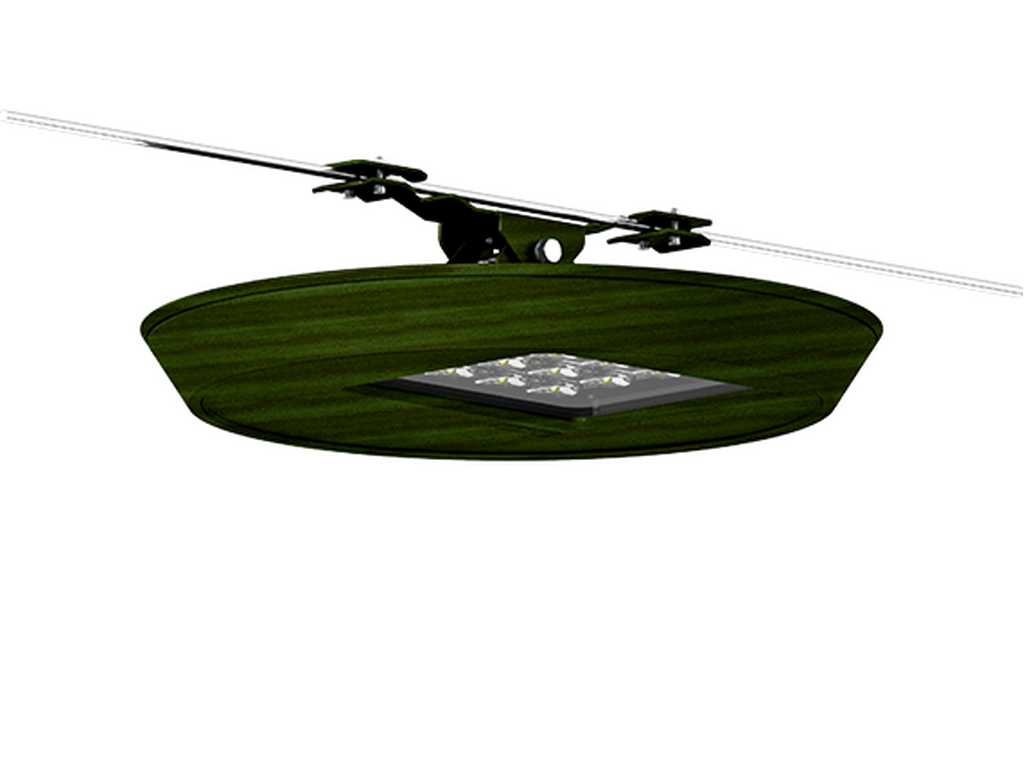

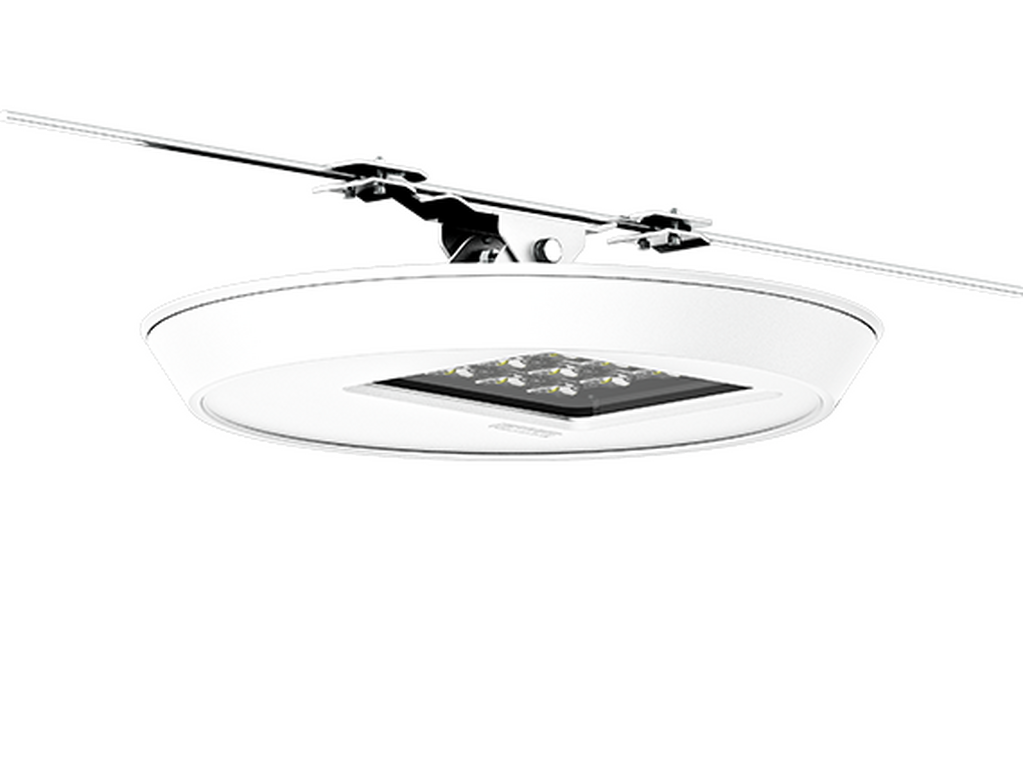

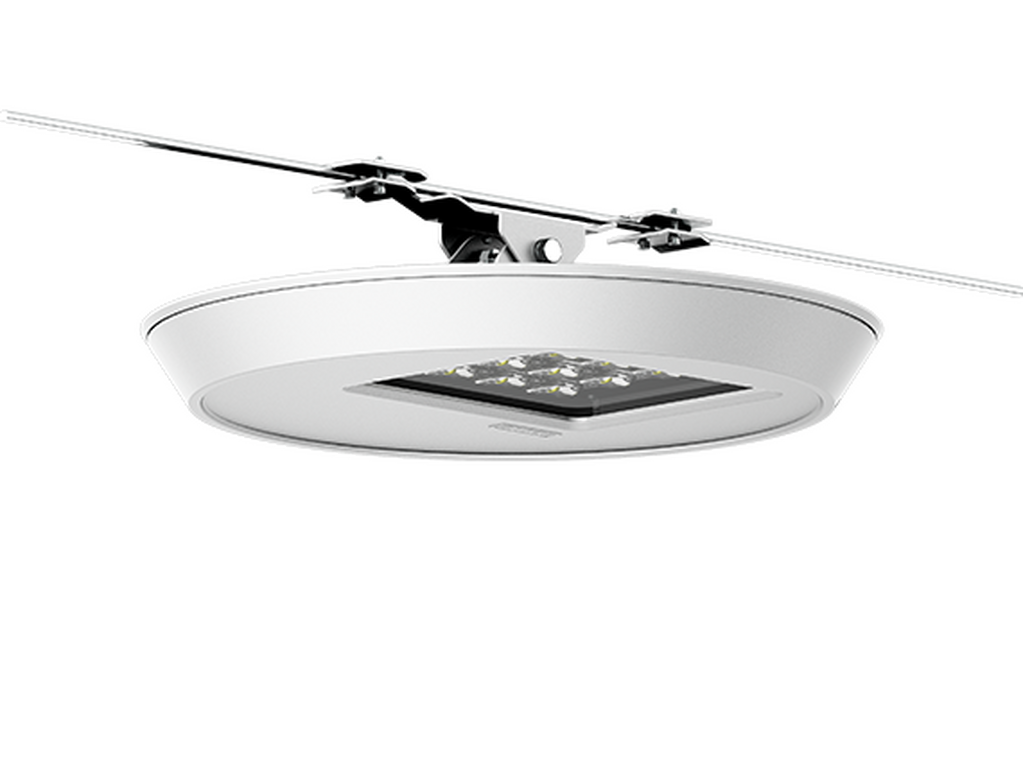

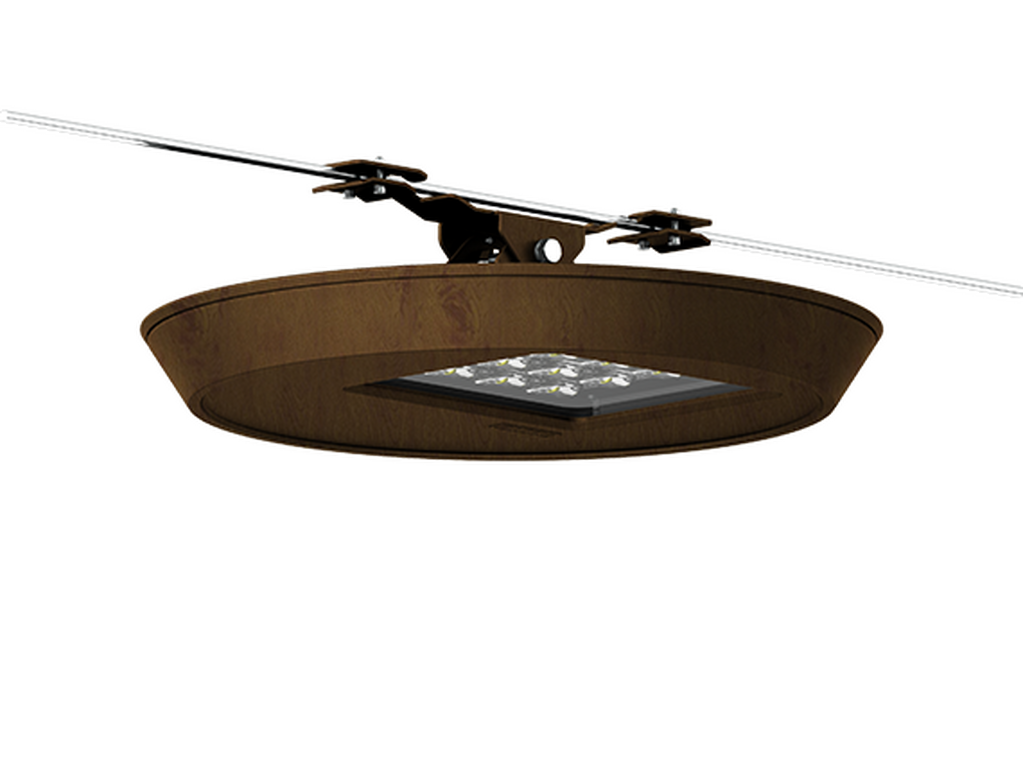

MACARON 3MC-98001Catenary luminaire
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Ø517 mm - 360°
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
48 LED
Power (W)
104 W
Lumen (lm)
12434 - 14374 lm
Efficacy (lm/W)
120 - 138 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 105°x115°, 136°x51°, 119°x86°, 102°x73°, 136°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G2, B3-U0-G1, B3-U0-G3, B4-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.5 kg
Operating temperature
-20 °C to 50 °C
Cable
One cable gland supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
3D view link
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic

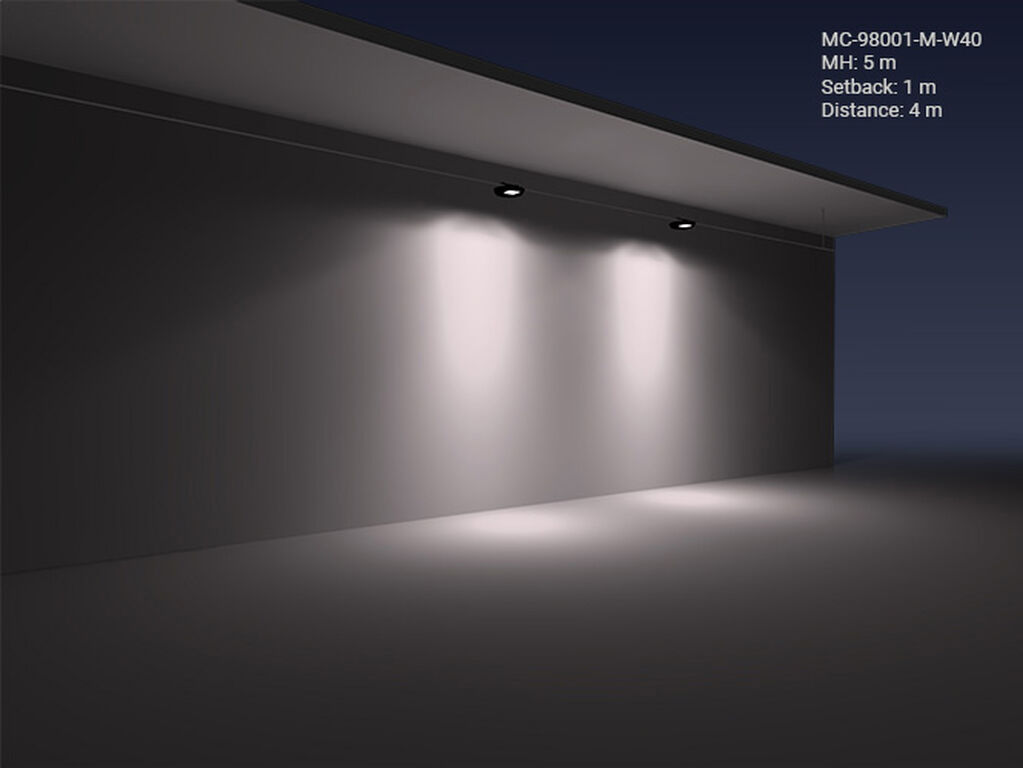

M (30°)
W (57°)
EW (105°x115°)
T2 (136°x51°)
T3 (119°x86°)
T4 (102°x73°)
ME (136°x58°)
CODE FINDER
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
