LIGMAN MARVIK 3 MV-30021.

MARVIK 3MV-30021MARVIK

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

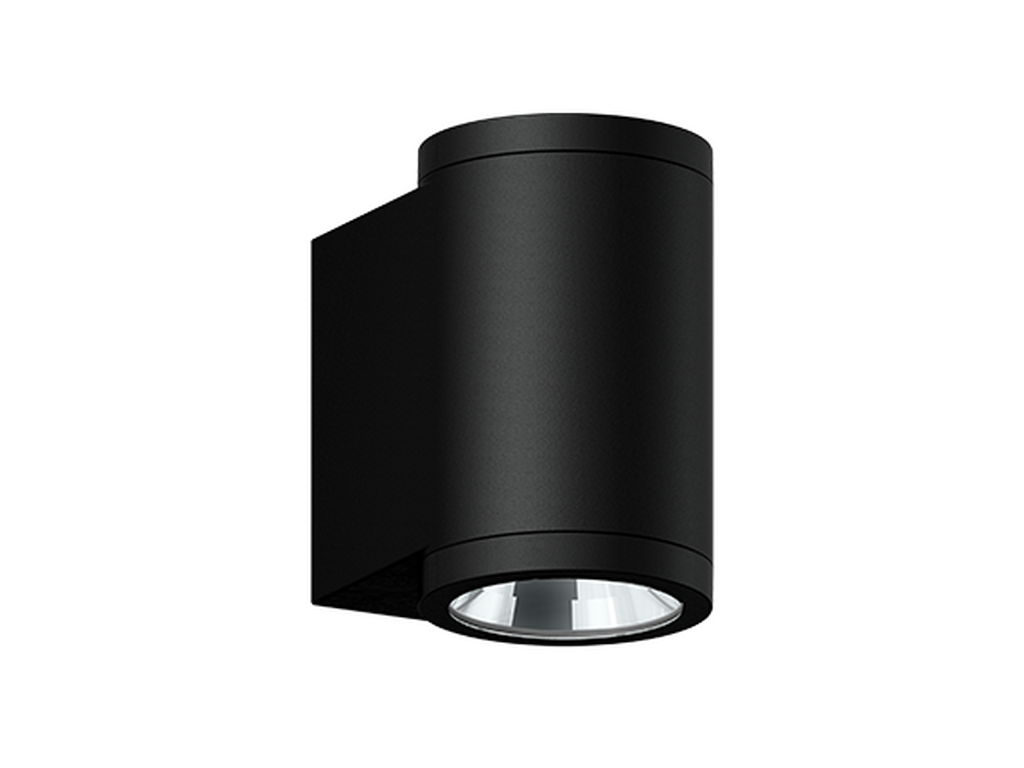

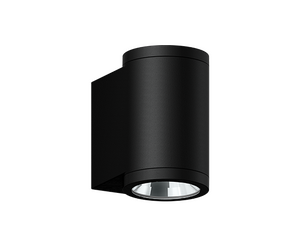

MARVIK 3Black

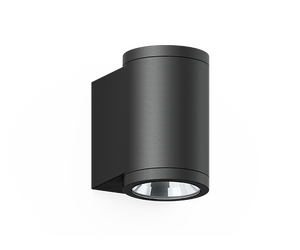

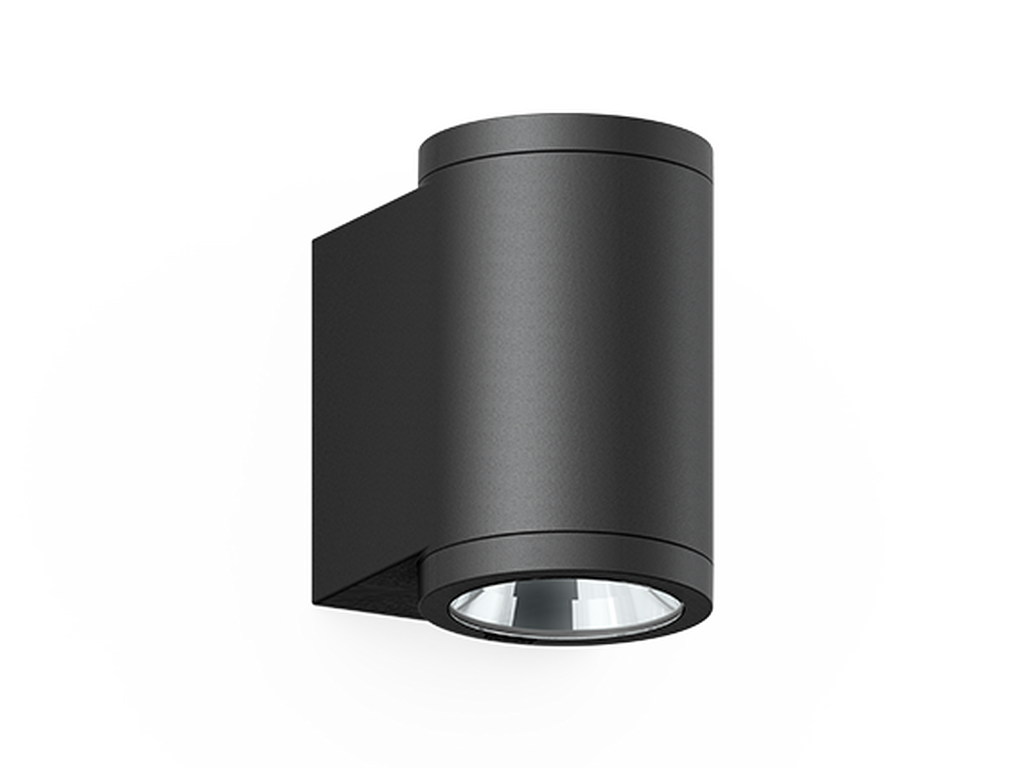

MARVIK 3Dark Grey

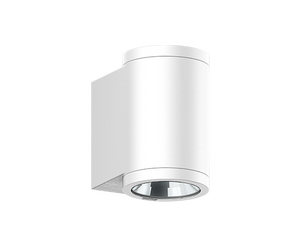

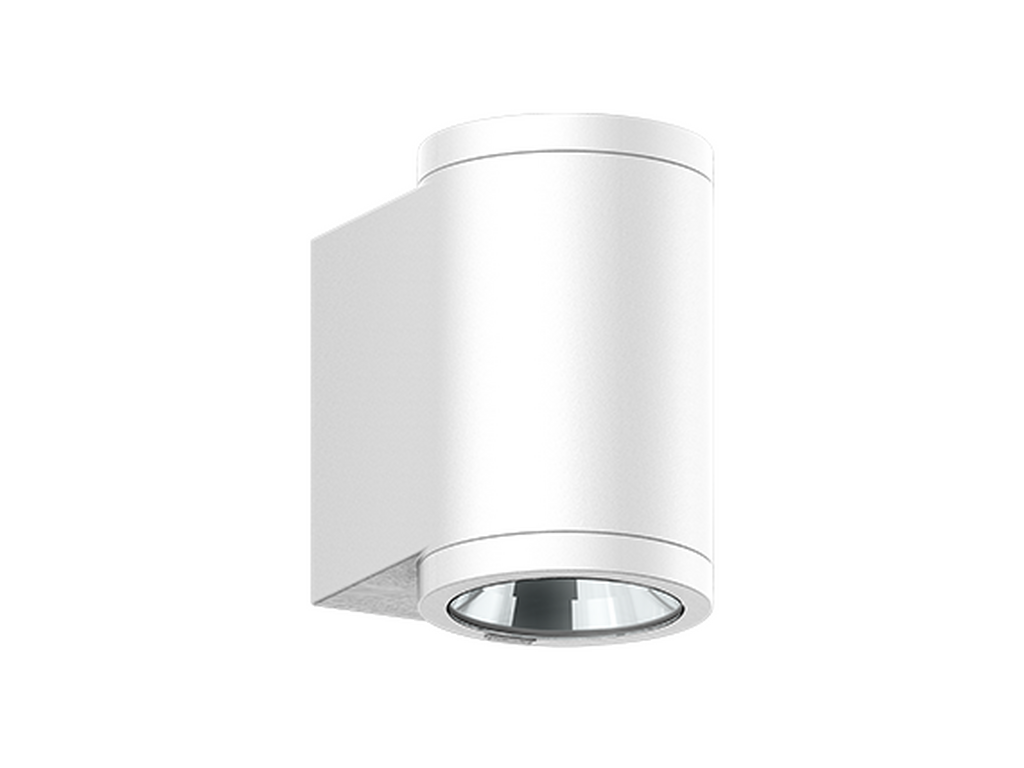

MARVIK 3White

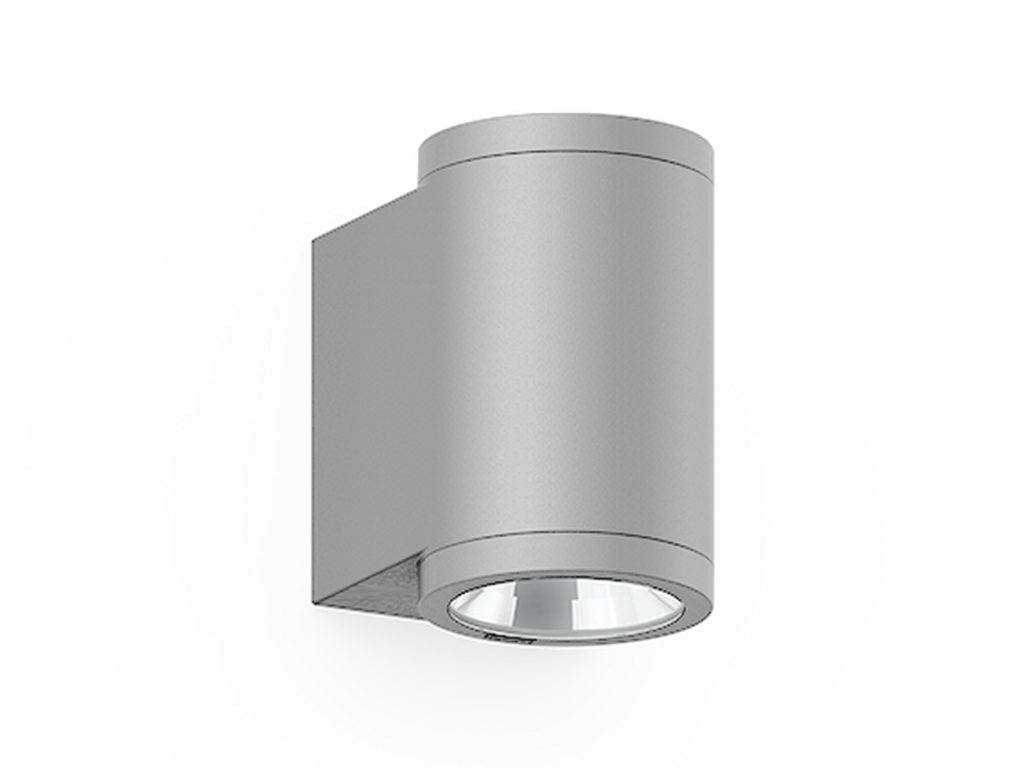

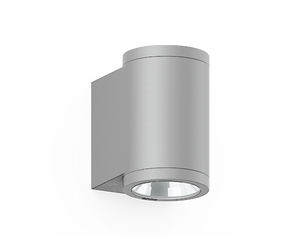

MARVIK 3Matt Silver

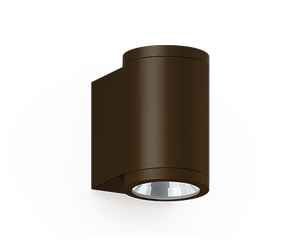

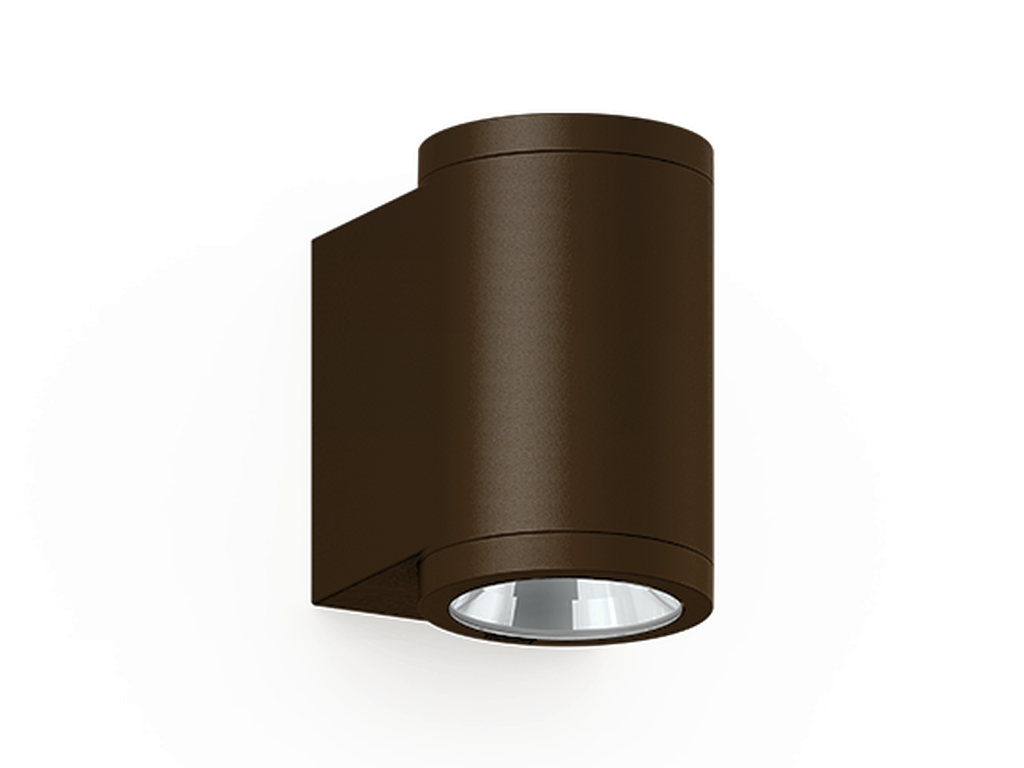

MARVIK 3Bronze

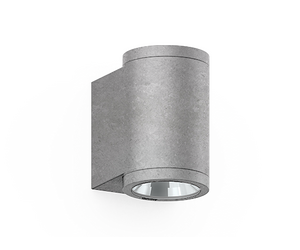

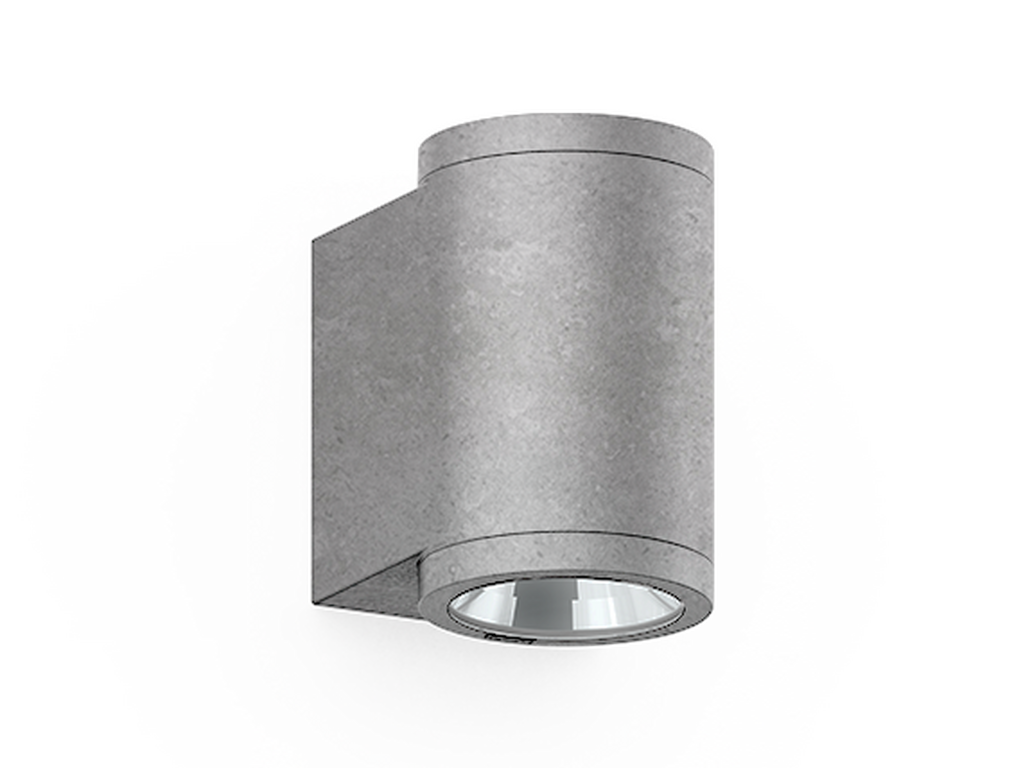

MARVIK 3Concrete - Urban
MARVIK 3Softscape - Urban

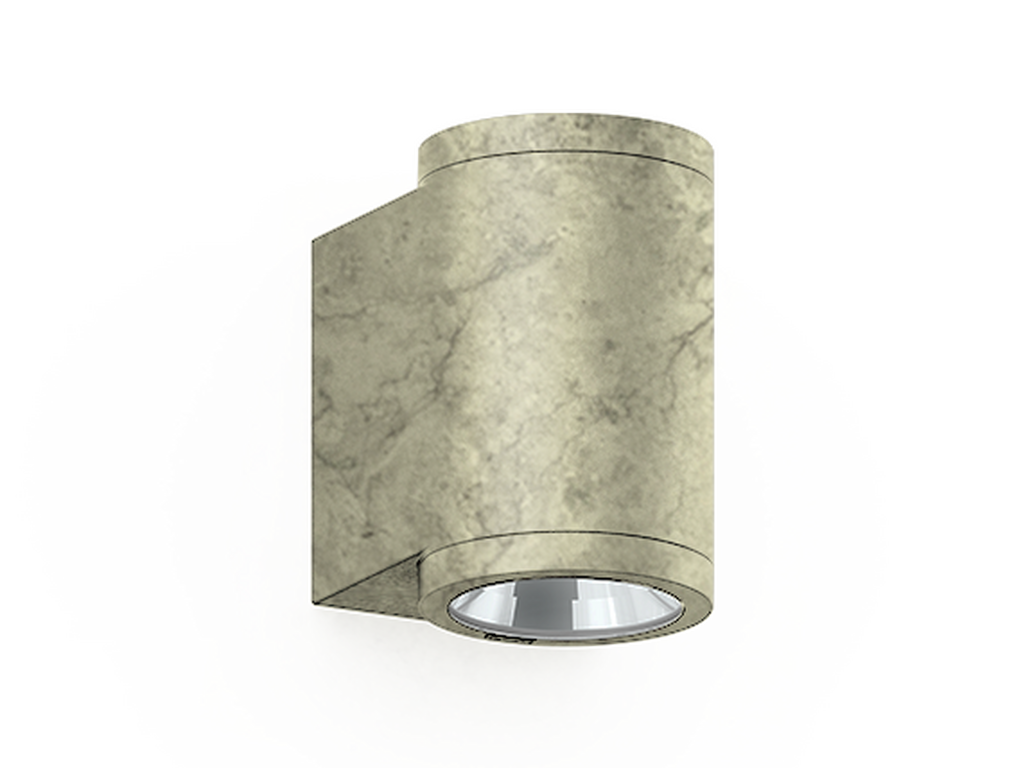

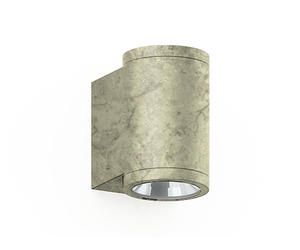

MARVIK 3Stone - Urban

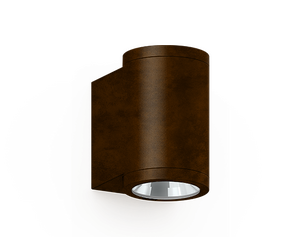

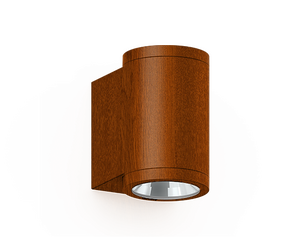

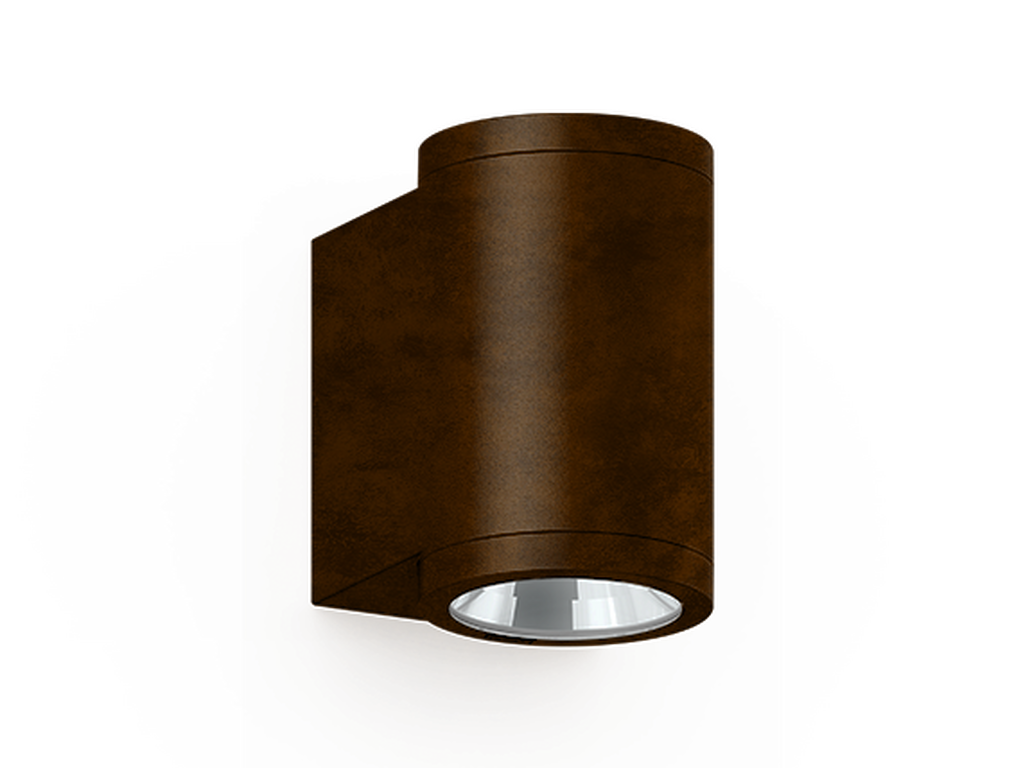

MARVIK 3Corten - Urban

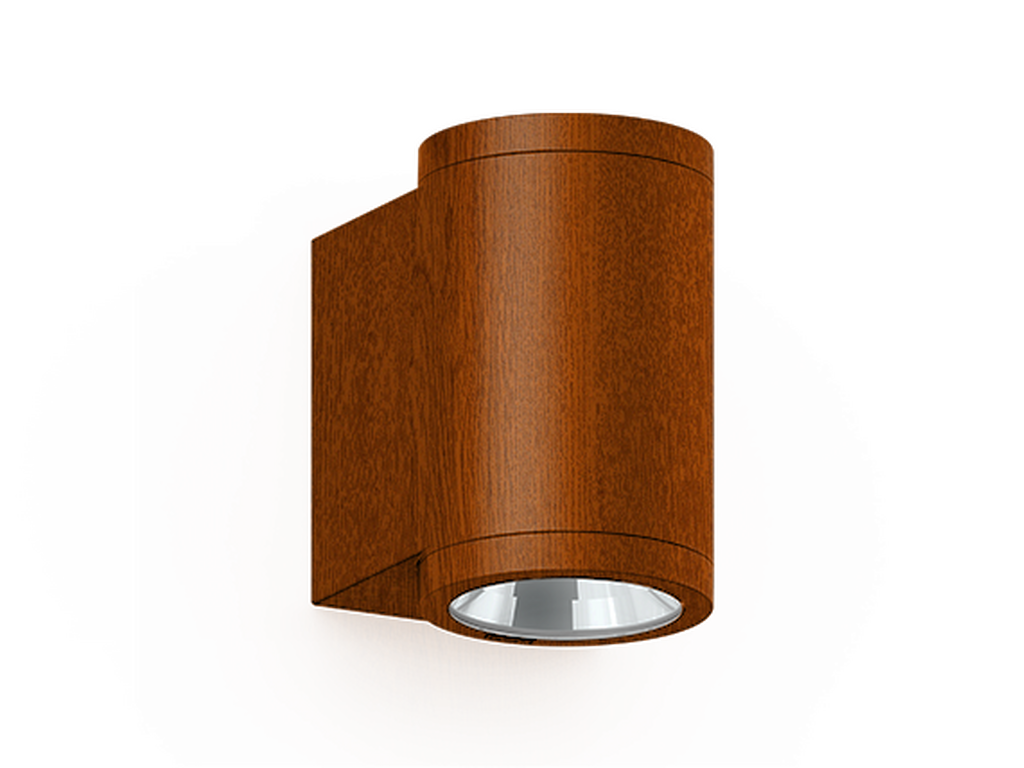

MARVIK 3Oak - Woodland

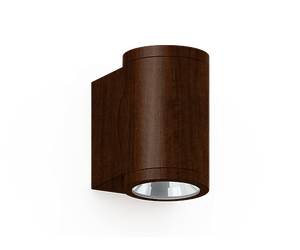

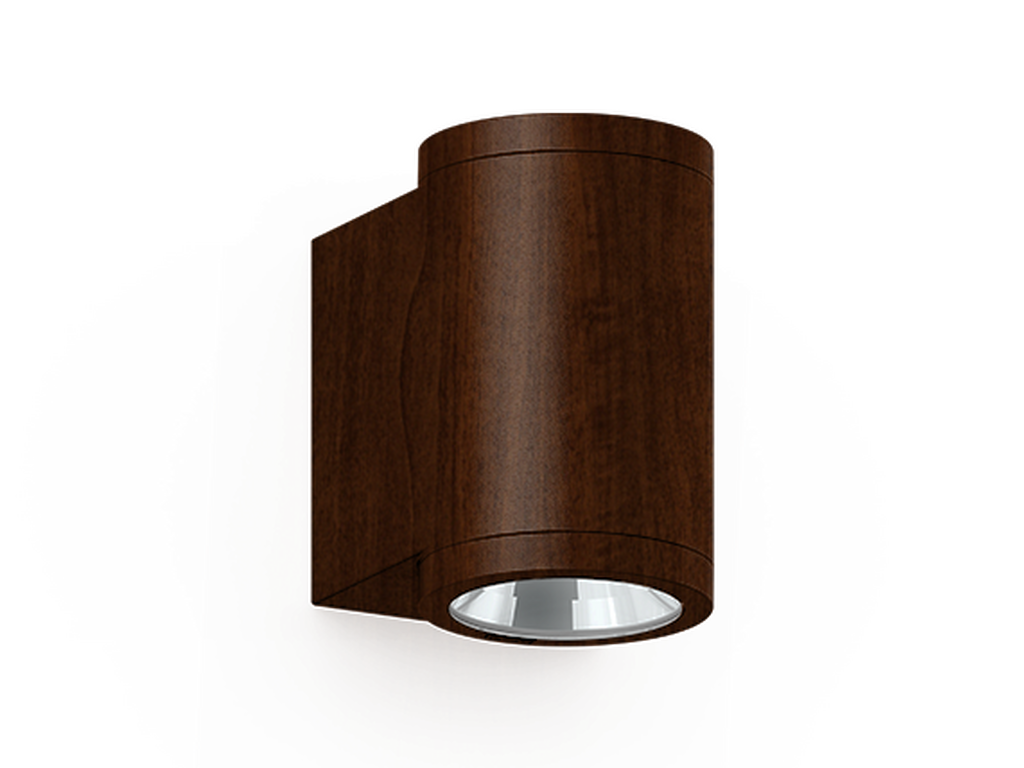

MARVIK 3Walnut - Woodland

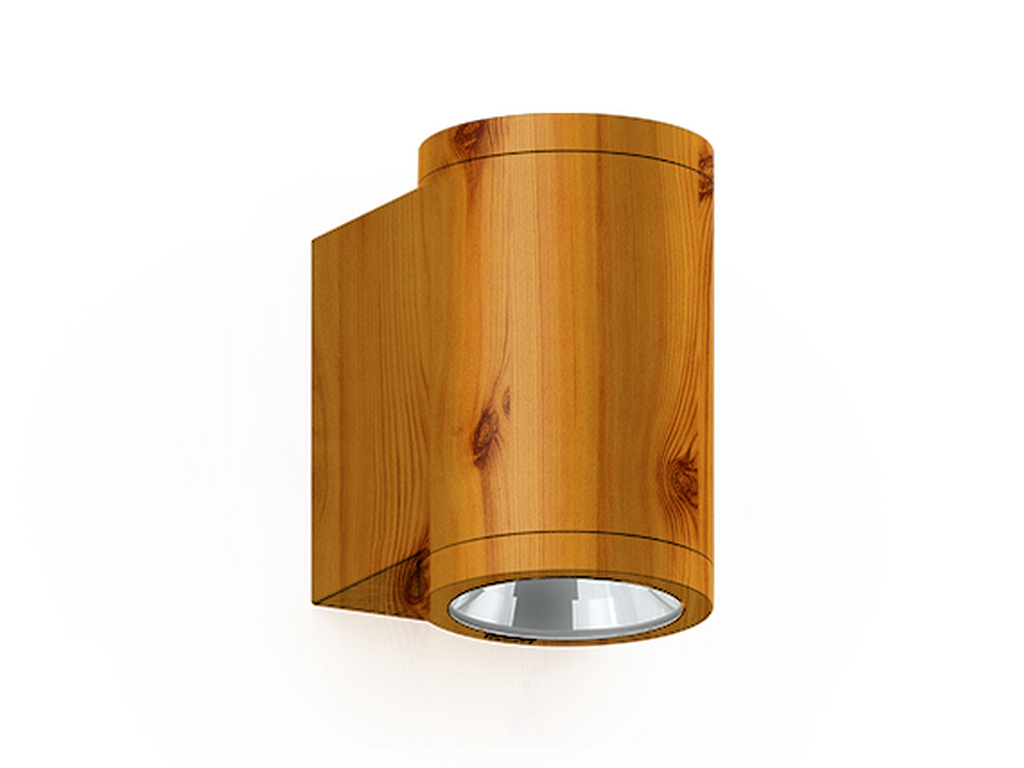

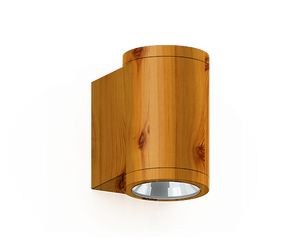

MARVIK 3Pine - Woodland
MARVIK 3Black
MARVIK 3Dark Grey
MARVIK 3White
MARVIK 3Matt Silver
MARVIK 3Bronze
MARVIK 3Concrete - Urban
MARVIK 3Softscape - Urban
MARVIK 3Stone - Urban
MARVIK 3Corten - Urban
MARVIK 3Oak - Woodland
MARVIK 3Walnut - Woodland
MARVIK 3Pine - Woodland
Ø150 - 240 mm - Down
CERETILAPBISClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
42 W
Lumen (lm)
4015 - 4931 lm
Efficacy (lm/W)
96 - 117 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W, VW
Optic value
16°, 28°, 44°, 68°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
Bug
B3-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
100, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,700
Lifetime L80B10 (hours)
> 63,500
Lifetime L80B50 (hours)
> 63,500
Variants (On/Off, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
N (16°)
M (28°)
W (44°)
VW (68°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

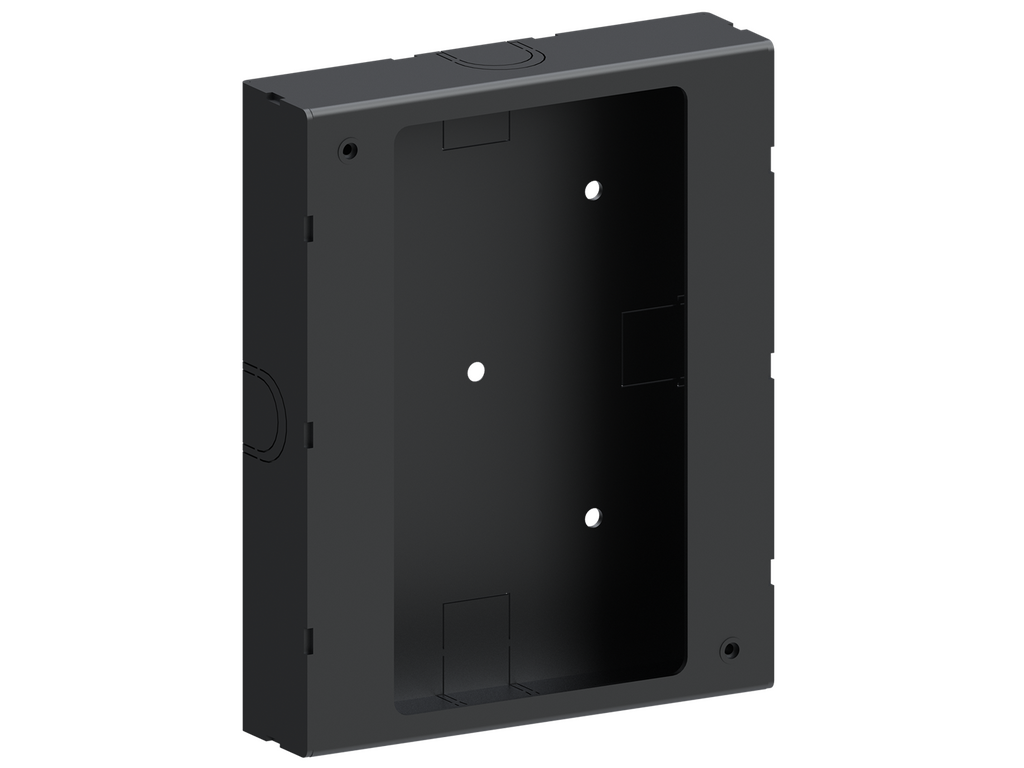

ACCESSORY

PROJECT REFERENCE (MARVIK Surface facade luminaires)
