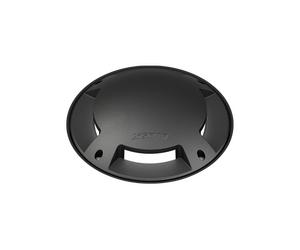

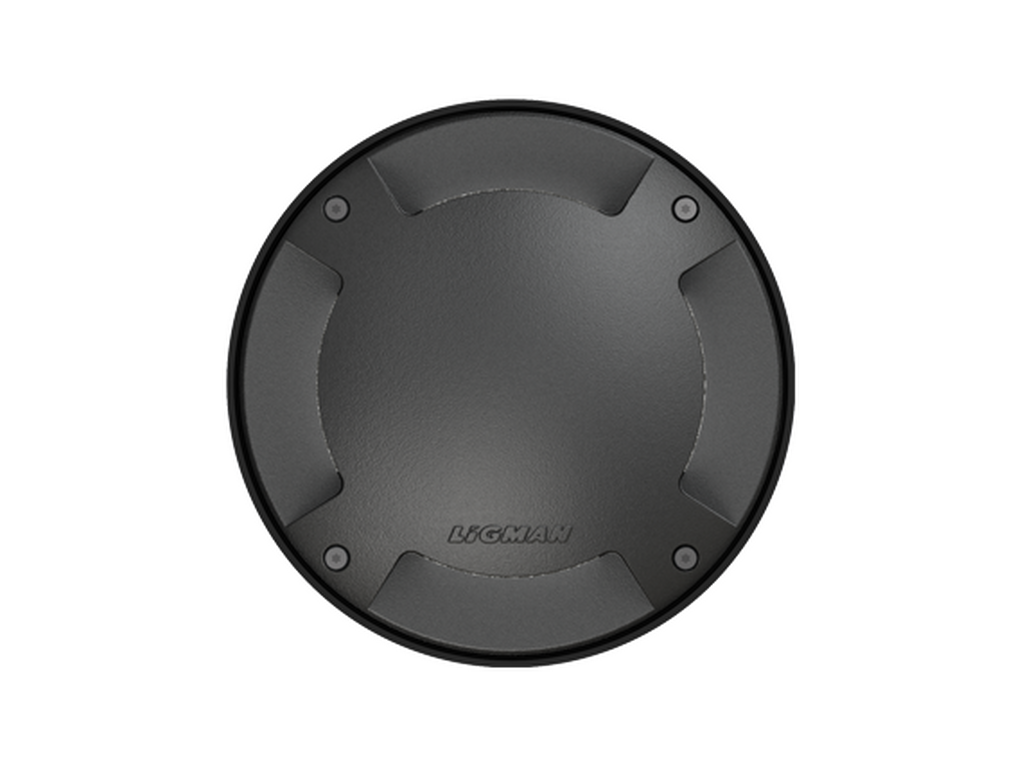

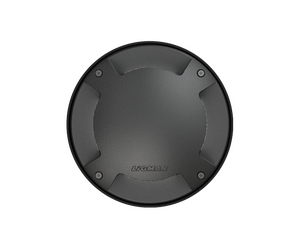

MASK 3MK-60269MASK

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


MASK 3Black
MASK 3Dark Grey
MASK 3White
MASK 3Matt Silver
MASK 3Bronze
MASK 3Concrete - Urban
MASK 3Softscape - Urban
MASK 3Stone - Urban
MASK 3Corten - Urban
MASK 3Oak - Woodland
MASK 3Walnut - Woodland
MASK 3Pine - Woodland
MASK 3Black
MASK 3Dark Grey
MASK 3White
MASK 3Matt Silver
MASK 3Bronze
MASK 3Concrete - Urban
MASK 3Softscape - Urban
MASK 3Stone - Urban
MASK 3Corten - Urban
MASK 3Oak - Woodland
MASK 3Walnut - Woodland
MASK 3Pine - Woodland

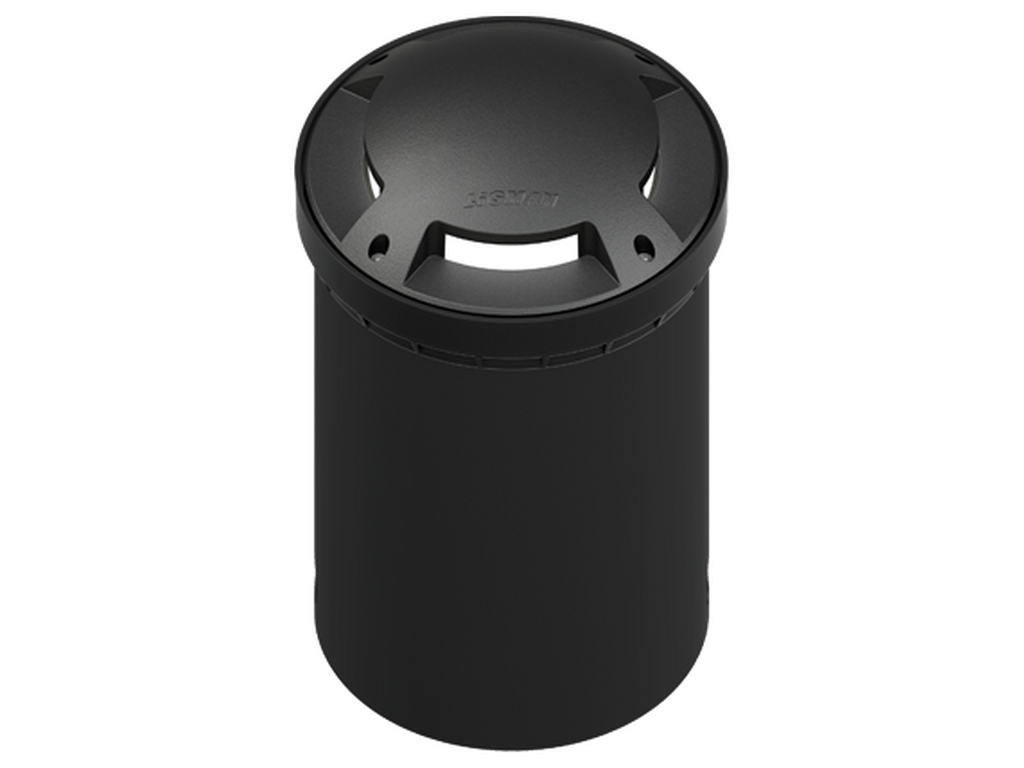

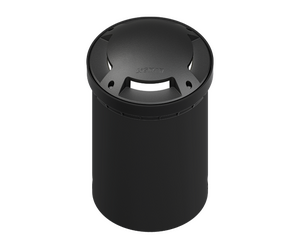

With recessing box / driver - Optic 360°
BISCERETILAPClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
4 COB
Power (W)
15 W
Lumen (lm)
402 - 433 lm
Efficacy (lm/W)
27 - 29 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
360°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
4.4 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 1 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
High-efficiency glass lens
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,000
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

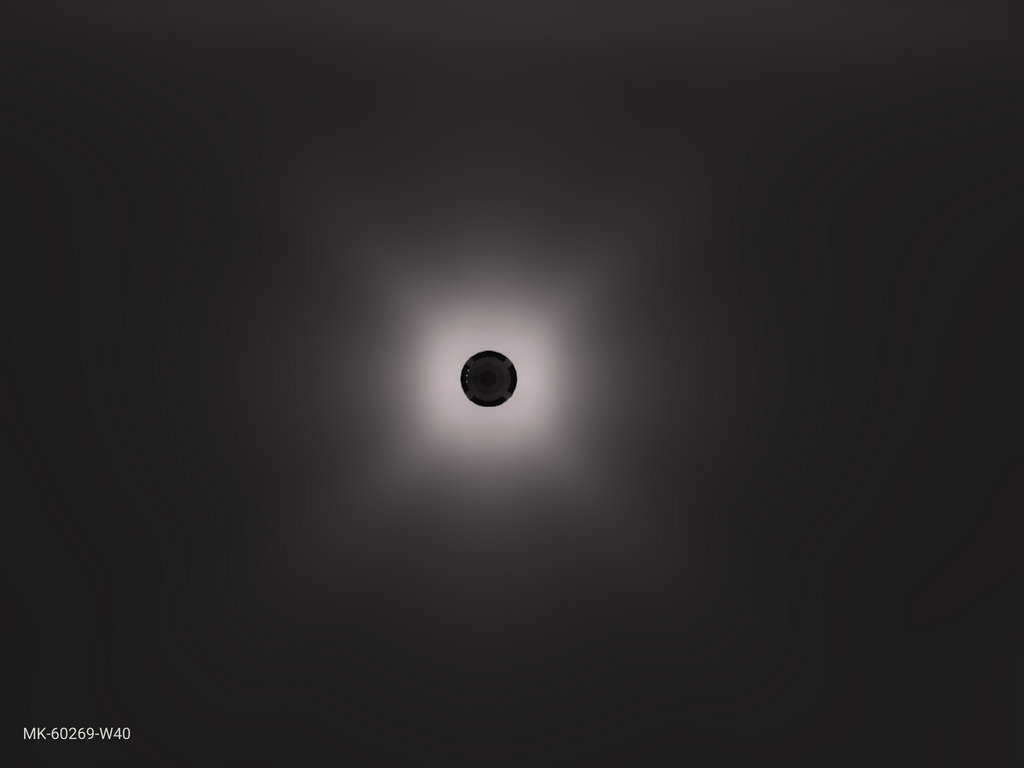

LIGHT EFFECT

Optic
G (360°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: MK-60269-8030-ND-01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MK-60269-8030-ND-02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MK-60269-8030-ND-03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MK-60269-8030-ND-05
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MK-60269-8030-ND-06
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MK-60269-8030-ND-SU01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MK-60269-8030-ND-SU02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MK-60269-8030-ND-SU03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MK-60269-8030-ND-SU04
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MK-60269-8030-ND-SW01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MK-60269-8030-ND-SW02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MK-60269-8030-ND-SW03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MK-60269-8040-ND-01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: MK-60269-8040-ND-02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: MK-60269-8040-ND-03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: MK-60269-8040-ND-05
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: MK-60269-8040-ND-06
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: MK-60269-8040-ND-SU01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: MK-60269-8040-ND-SU02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: MK-60269-8040-ND-SU03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: MK-60269-8040-ND-SU04
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: MK-60269-8040-ND-SW01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: MK-60269-8040-ND-SW02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: MK-60269-8040-ND-SW03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: MK-60269-8030-DI-01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: MK-60269-8030-DI-02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: MK-60269-8030-DI-03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: MK-60269-8030-DI-05
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: MK-60269-8030-DI-06
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: MK-60269-8030-DI-SU01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: MK-60269-8030-DI-SU02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: MK-60269-8030-DI-SU03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: MK-60269-8030-DI-SU04
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: MK-60269-8030-DI-SW01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: MK-60269-8030-DI-SW02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: MK-60269-8030-DI-SW03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: MK-60269-8040-DI-01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Black
Variant code: MK-60269-8040-DI-02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Dark Grey
Variant code: MK-60269-8040-DI-03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: White
Variant code: MK-60269-8040-DI-05
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Matt Silver
Variant code: MK-60269-8040-DI-06
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Bronze
Variant code: MK-60269-8040-DI-SU01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Concrete - Urban
Variant code: MK-60269-8040-DI-SU02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Softscape - Urban
Variant code: MK-60269-8040-DI-SU03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Stone - Urban
Variant code: MK-60269-8040-DI-SU04
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Corten - Urban
Variant code: MK-60269-8040-DI-SW01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Oak - Woodland
Variant code: MK-60269-8040-DI-SW02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Walnut - Woodland
Variant code: MK-60269-8040-DI-SW03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: 1-10V
Product colour: Pine - Woodland
Variant code: MK-60269-8030-DA-01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MK-60269-8030-DA-02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MK-60269-8030-DA-03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MK-60269-8030-DA-05
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MK-60269-8030-DA-06
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MK-60269-8030-DA-SU01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MK-60269-8030-DA-SU02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MK-60269-8030-DA-SU03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MK-60269-8030-DA-SU04
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MK-60269-8030-DA-SW01
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MK-60269-8030-DA-SW02
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MK-60269-8030-DA-SW03
Lumen (lm): 402 lm
Optic: G
Optic value: 360°
CCT / CRI: 3000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
Variant code: MK-60269-8040-DA-01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Black
Variant code: MK-60269-8040-DA-02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Dark Grey
Variant code: MK-60269-8040-DA-03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: White
Variant code: MK-60269-8040-DA-05
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Matt Silver
Variant code: MK-60269-8040-DA-06
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Bronze
Variant code: MK-60269-8040-DA-SU01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Concrete - Urban
Variant code: MK-60269-8040-DA-SU02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Softscape - Urban
Variant code: MK-60269-8040-DA-SU03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Stone - Urban
Variant code: MK-60269-8040-DA-SU04
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Corten - Urban
Variant code: MK-60269-8040-DA-SW01
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Oak - Woodland
Variant code: MK-60269-8040-DA-SW02
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Walnut - Woodland
Variant code: MK-60269-8040-DA-SW03
Lumen (lm): 433 lm
Optic: G
Optic value: 360°
CCT / CRI: 4000K CRI80
Dimming type: DALI
Product colour: Pine - Woodland
