Discontinued - 05/2024
PETRA 1
Ø120 - With recessing box - With driver
CERETILAPClass IIP67IK10

TECHNICAL SPECIFICATIONS

Material
Brass
Light source
MR16-GU10
Power (W)
8 W
Lumen (lm)
369 - 455 lm
Efficacy (lm/W)
49 - 61 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, VW, E
Optic value
10°, 25°, 60°, 10°x60°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0, B1-U0-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
97, 98
Dimming type
On/Off
Product colours
Brass
Weight
2.2 kg
Operating temperature
-20 °C to 40 °C
Cable
One cable gland supplied with 1.5 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry, through wiring upon request
Lens / Reflector / Optic
Clear toughened glass

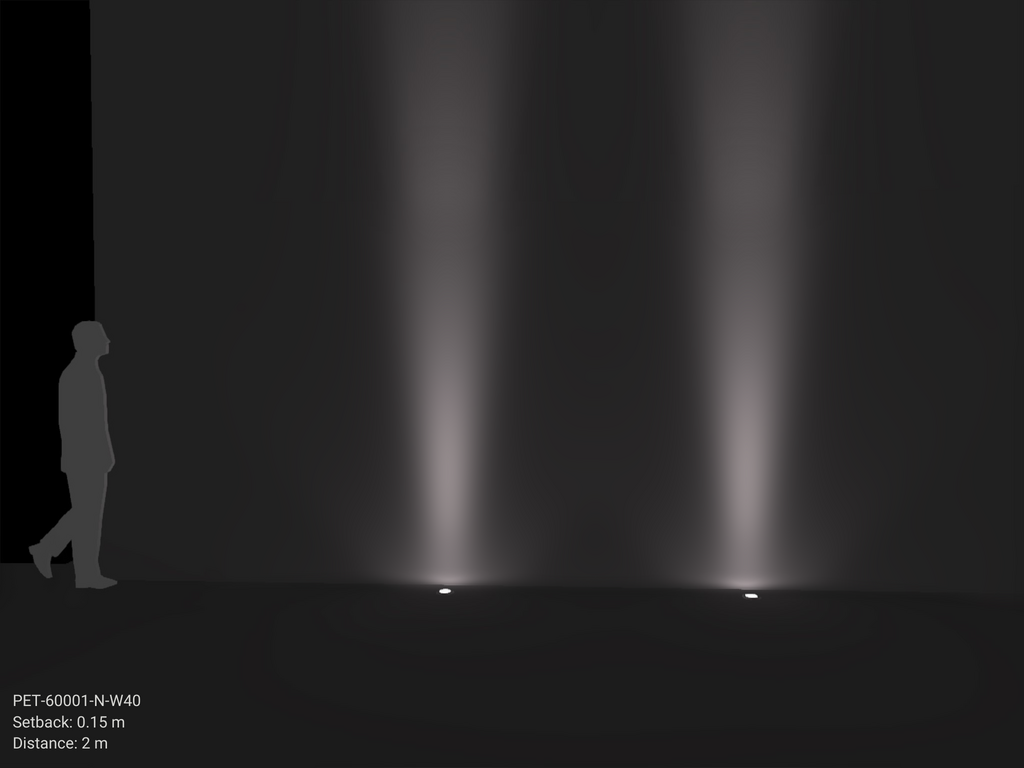

LIGHT EFFECT

Optic
N (10°)
M (25°)
VW (60°)
E (10°x60°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: PET-60001-N-8030-ND-99
Lumen (lm): 410 lm
Optic: N
Optic value: 10°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-N-8040-ND-99
Lumen (lm): 430 lm
Optic: N
Optic value: 10°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-M-8030-ND-99
Lumen (lm): 435 lm
Optic: M
Optic value: 25°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-M-8040-ND-99
Lumen (lm): 455 lm
Optic: M
Optic value: 25°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-VW-8030-ND-99
Lumen (lm): 435 lm
Optic: VW
Optic value: 60°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-VW-8040-ND-99
Lumen (lm): 455 lm
Optic: VW
Optic value: 60°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-E-8030-ND-99
Lumen (lm): 369 lm
Optic: E
Optic value: 10°x60°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Brass
Variant code: PET-60001-E-8040-ND-99
Lumen (lm): 387 lm
Optic: E
Optic value: 10°x60°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Brass
