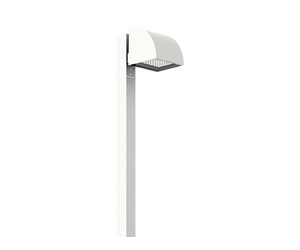

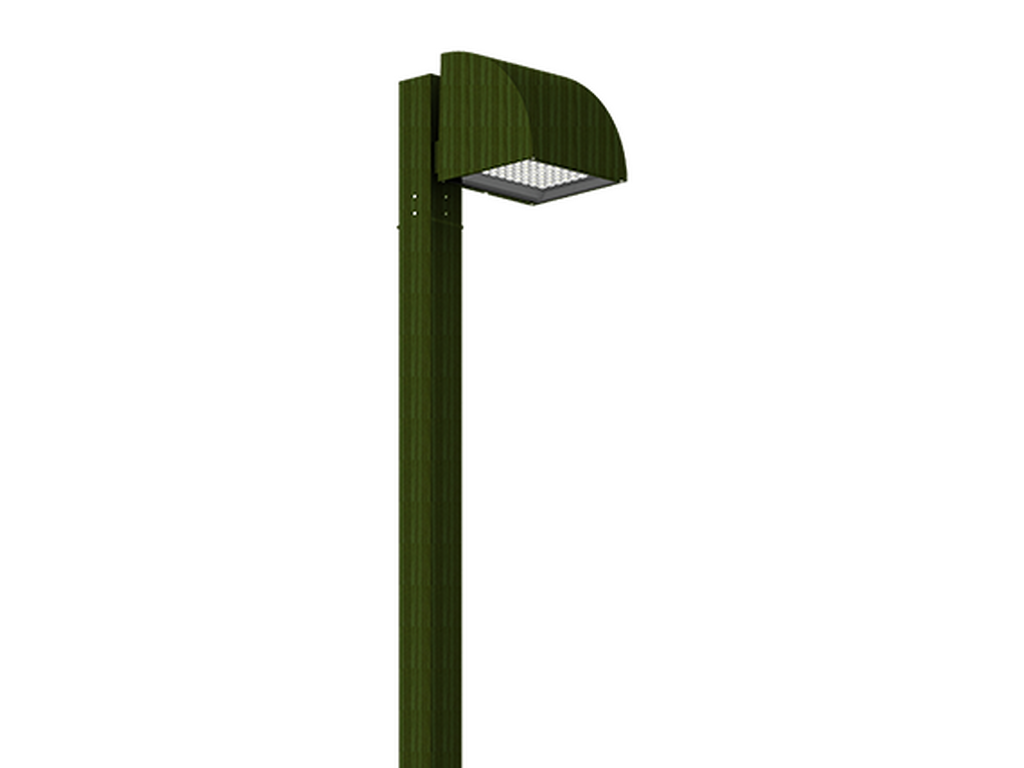

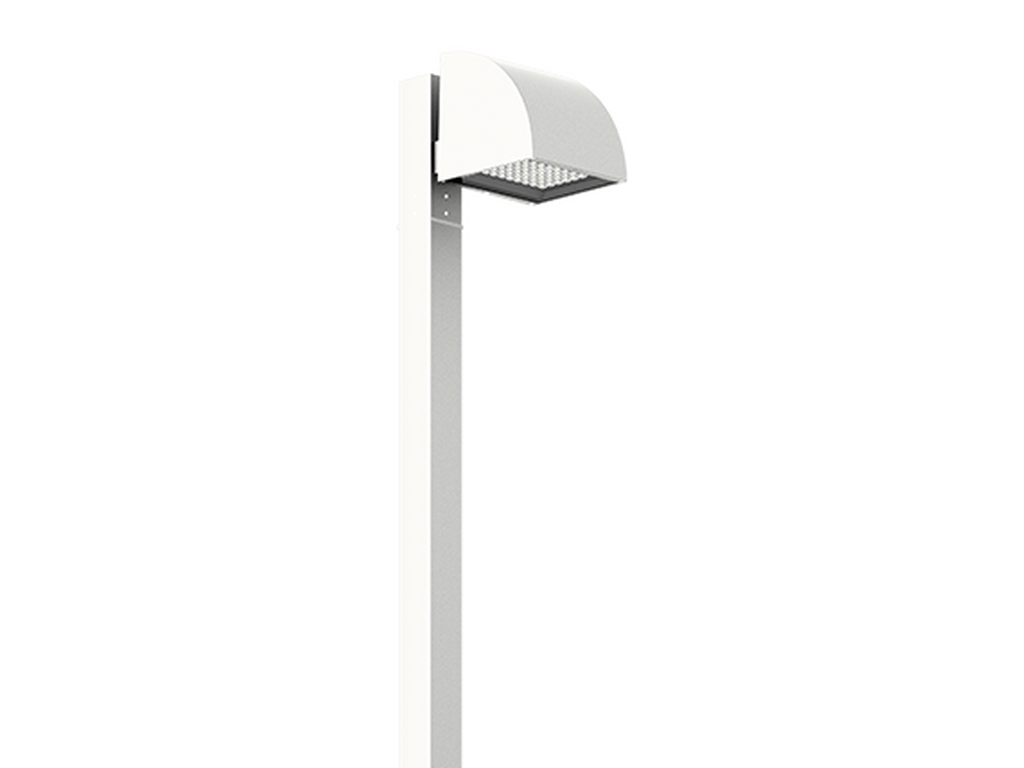

QUARTER 2QU-20022QUARTER (-)

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.


Discontinued - 10/2021

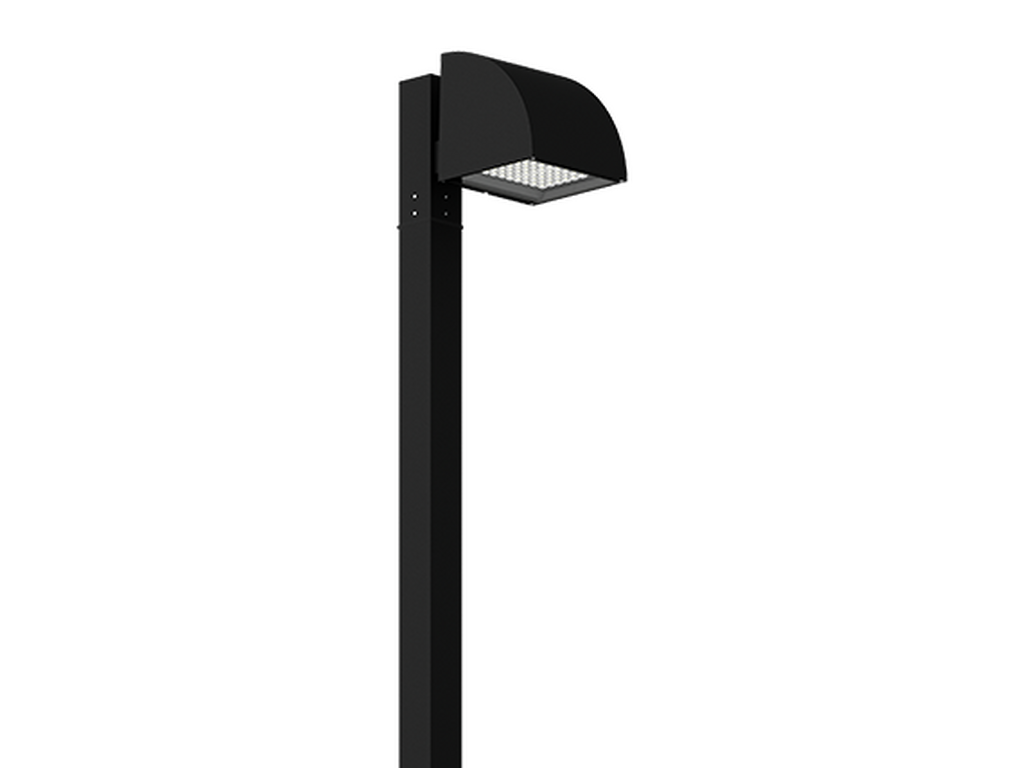

QUARTER 2Black

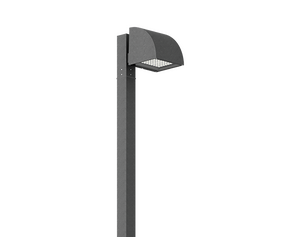

QUARTER 2Dark Grey
QUARTER 2White

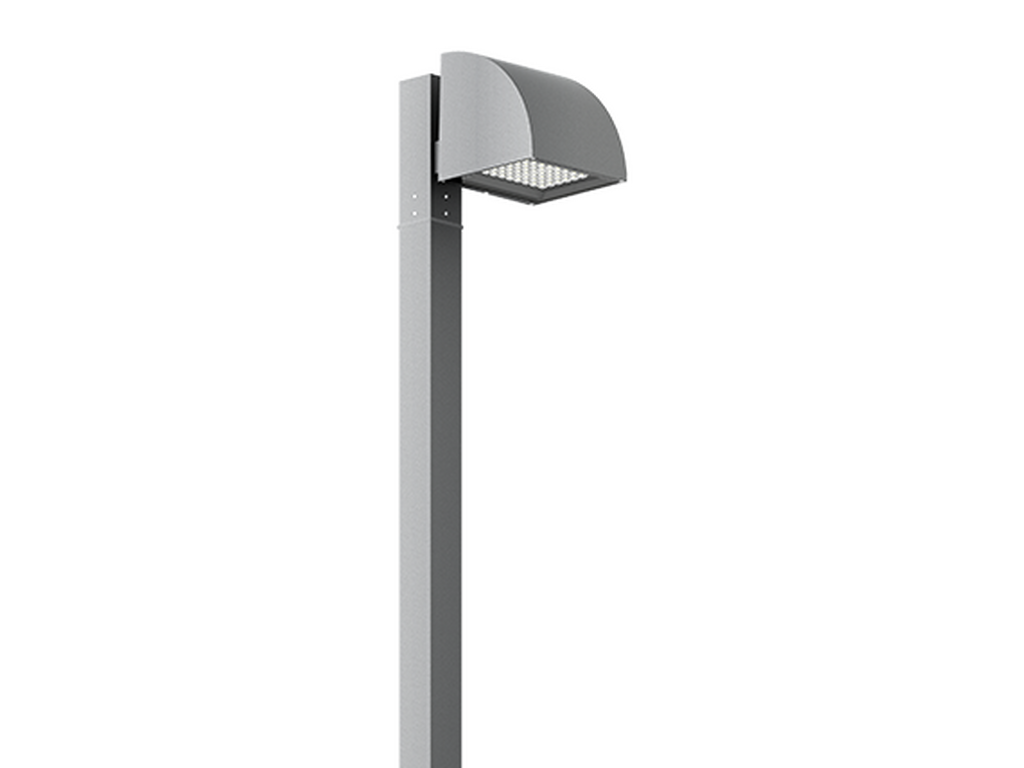

QUARTER 2Matt Silver

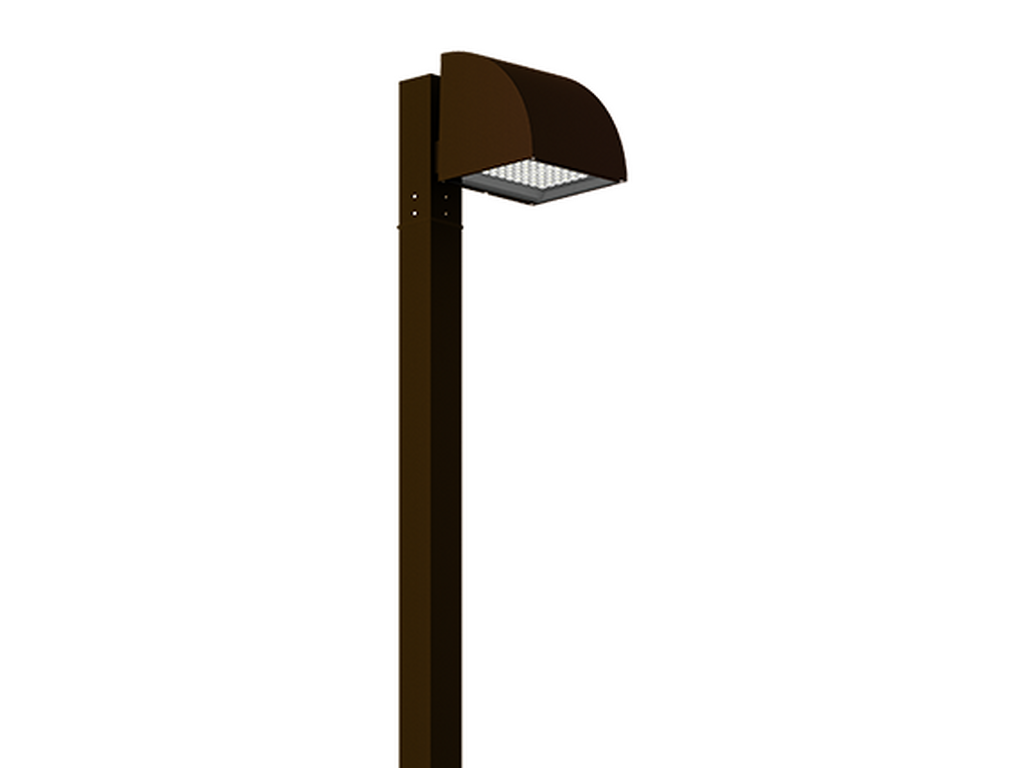

QUARTER 2Bronze
QUARTER 2Concrete - Urban
QUARTER 2Softscape - Urban

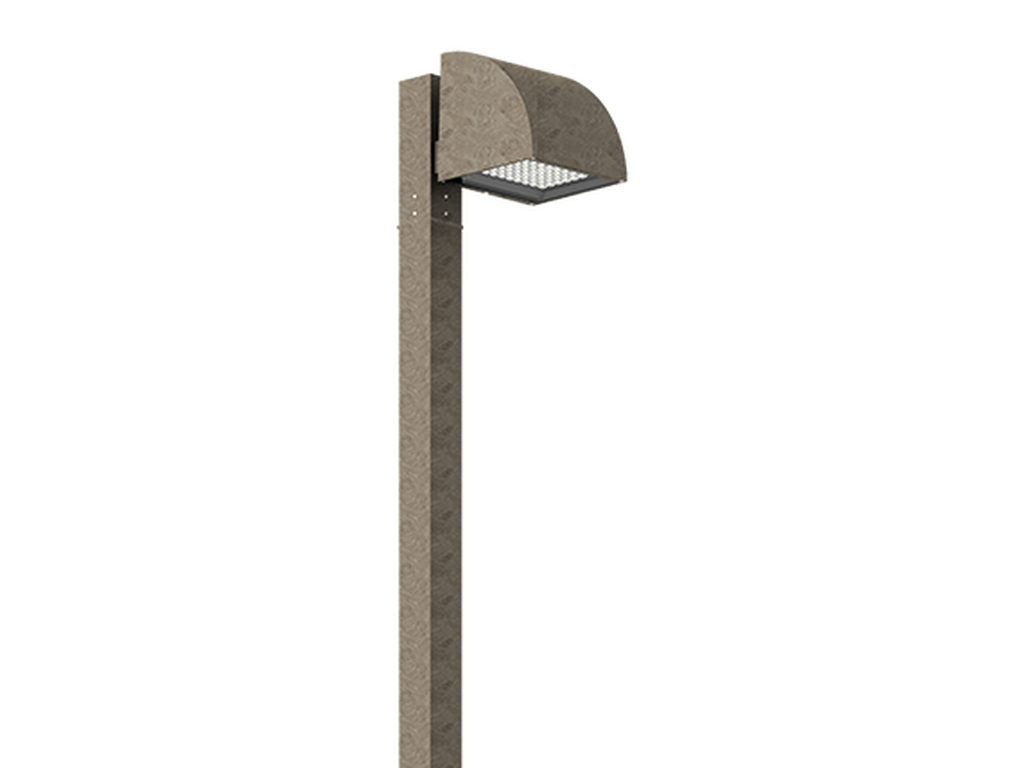

QUARTER 2Stone - Urban

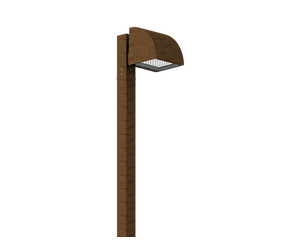

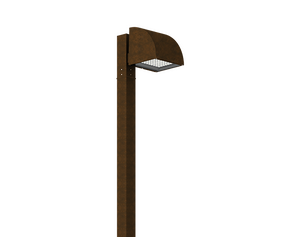

QUARTER 2Corten - Urban
QUARTER 2Oak - Woodland

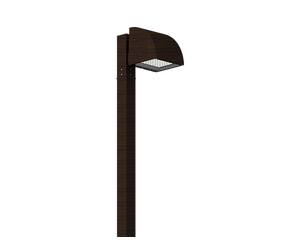

QUARTER 2Walnut - Woodland
QUARTER 2Pine - Woodland
QUARTER 2Black
QUARTER 2Dark Grey
QUARTER 2White
QUARTER 2Matt Silver
QUARTER 2Bronze
QUARTER 2Concrete - Urban
QUARTER 2Softscape - Urban
QUARTER 2Stone - Urban
QUARTER 2Corten - Urban
QUARTER 2Oak - Woodland
QUARTER 2Walnut - Woodland
QUARTER 2Pine - Woodland
Medium - 1 side
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
2 x 24 LED
Power (W)
75 W
Lumen (lm)
8814 - 10079 lm
Efficacy (lm/W)
118 - 134 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
M, W, EW, T1, T2, T3, T4, ME
Optic value
30°, 56°, 112°, 145°x75°, 136°x58°, 123°x93°, 105°x69°, 140°x63°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G1, B2-U0-G2, B3-U0-G0, B3-U0-G1, B3-U0-G3, B4-U0-G0, B4-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
96, 97, 98, 99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
13.2 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear toughened glass
Variants (On/Off, 1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

LIGHT EFFECT

Optic
M (30°)
W (56°)
EW (112°)
T1 (145°x75°)
T2 (136°x58°)
T3 (123°x93°)
T4 (105°x69°)
ME (140°x63°)
