LIGMAN STEAMER 11 SE-90022-SO-80.

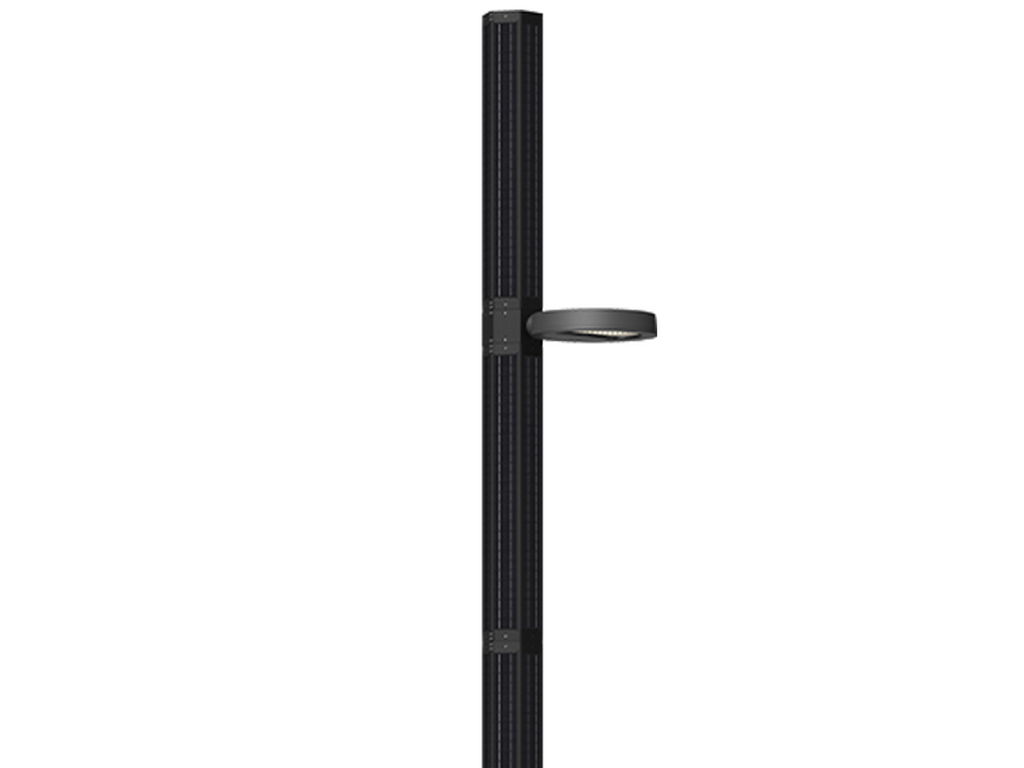

STEAMER 11SE-90022-SO-80Luminaires made to order for Vertical solar PV poles

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

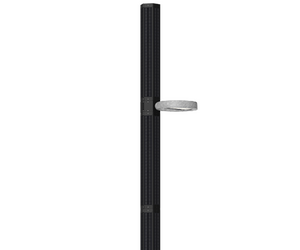

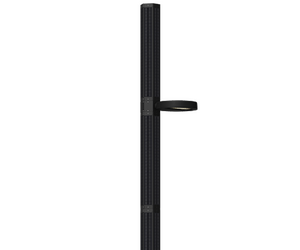

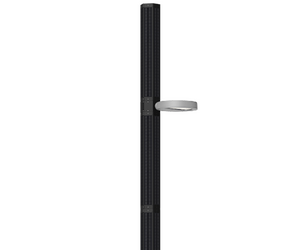

STEAMER 11Black
STEAMER 11Dark Grey
STEAMER 11White
STEAMER 11Matt Silver
STEAMER 11Bronze
STEAMER 11Concrete - Urban
STEAMER 11Softscape - Urban
STEAMER 11Stone - Urban
STEAMER 11Corten - Urban
STEAMER 11Oak - Woodland
STEAMER 11Walnut - Woodland
STEAMER 11Pine - Woodland
STEAMER 11Black
STEAMER 11Dark Grey
STEAMER 11White
STEAMER 11Matt Silver
STEAMER 11Bronze
STEAMER 11Concrete - Urban
STEAMER 11Softscape - Urban
STEAMER 11Stone - Urban
STEAMER 11Corten - Urban
STEAMER 11Oak - Woodland
STEAMER 11Walnut - Woodland
STEAMER 11Pine - Woodland
Made to order for 80 W Vertical solar PV pole
CEClass IIIIP66IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
48 LED
Power (W)
80 W
Lumen (lm)
9361 - 10821 lm
Efficacy (lm/W)
117 - 135 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
1100 mA, 72 VDC
Optic
M, W, EW, T2, T3, T4, ME
Optic value
30°, 57°, 105°x115°, 136°x51°, 119°x86°, 102°x74°, 137°x58°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U0-G2, B3-U0-G0, B4-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
97, 98, 99
Dimming type
Dusk to Dawn, 2 Step dimming with motion sensor override, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
11.2 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear toughened glass, High-efficiency PMMA lens

LIGHT EFFECT

Optic
M (30°)
W (57°)
EW (105°x115°)
T2 (136°x51°)
T3 (119°x86°)
T4 (102°x74°)
ME (137°x58°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
