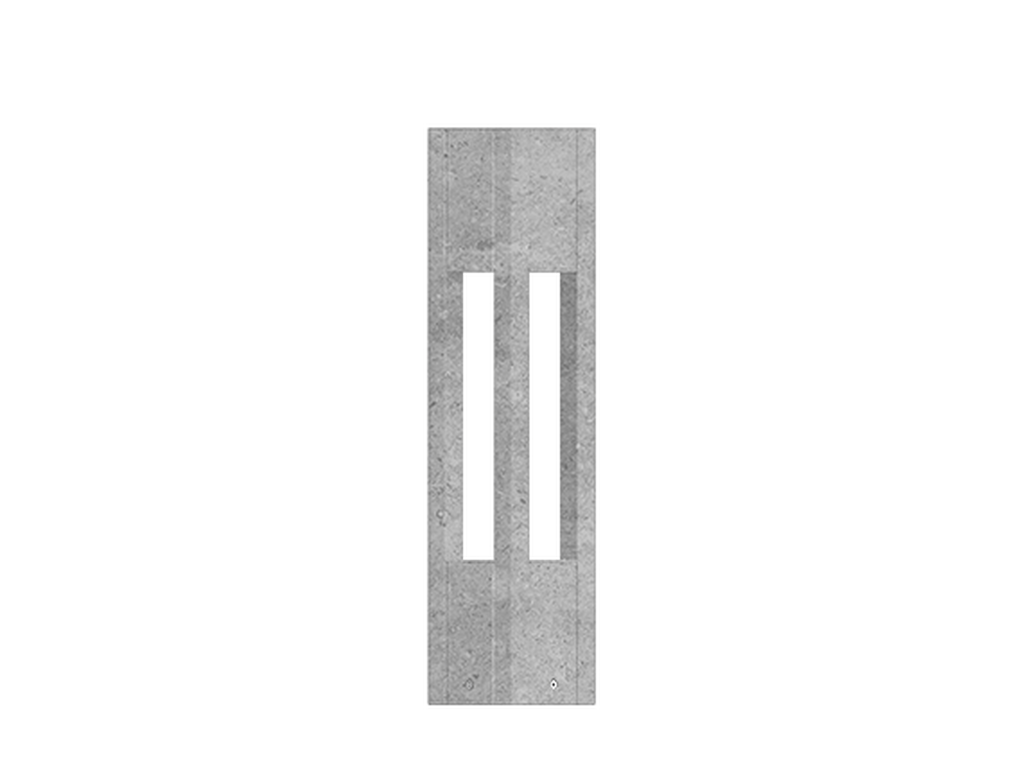

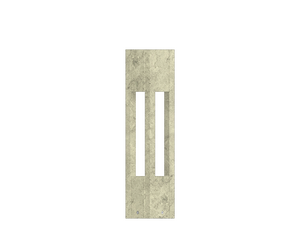

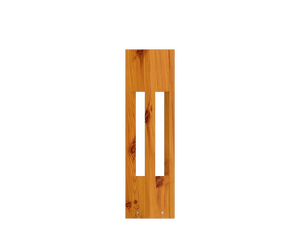

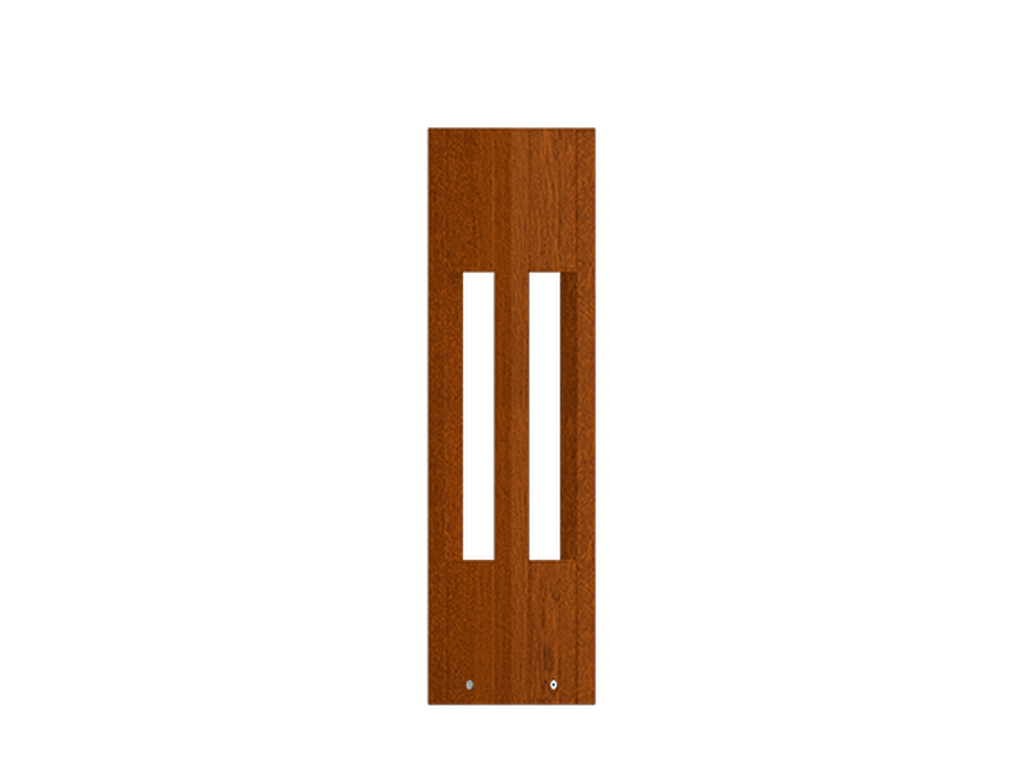

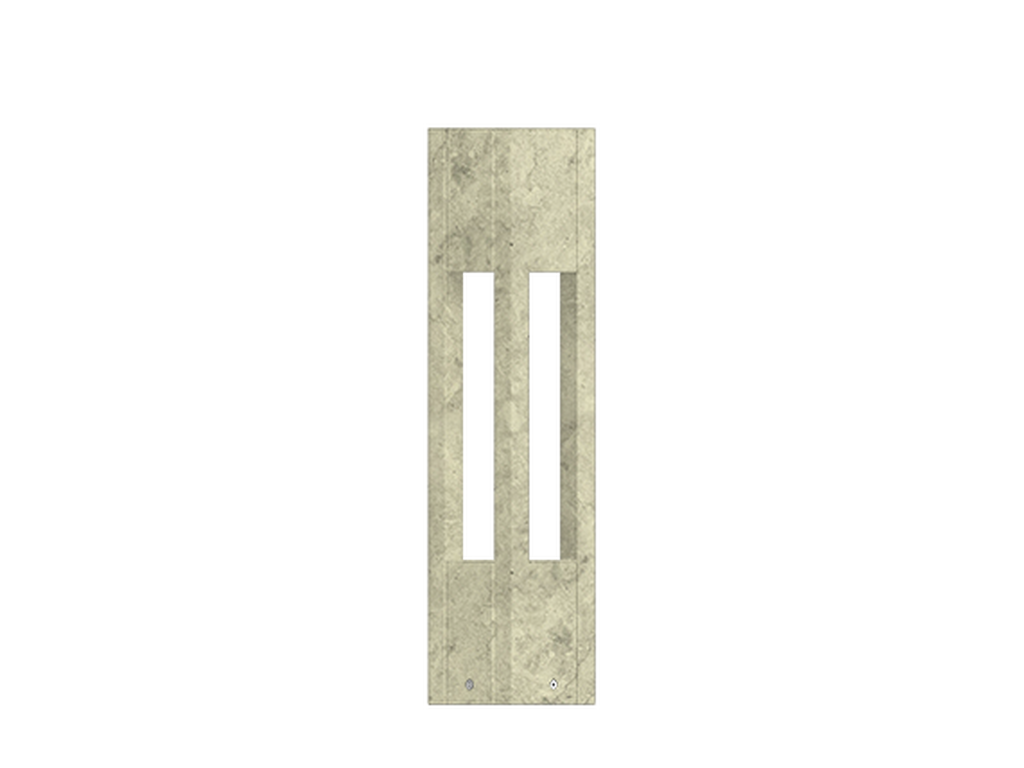

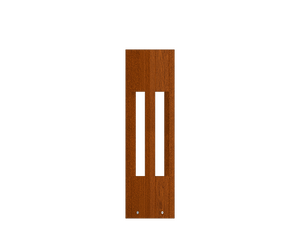

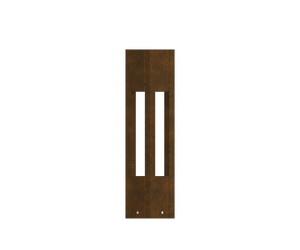

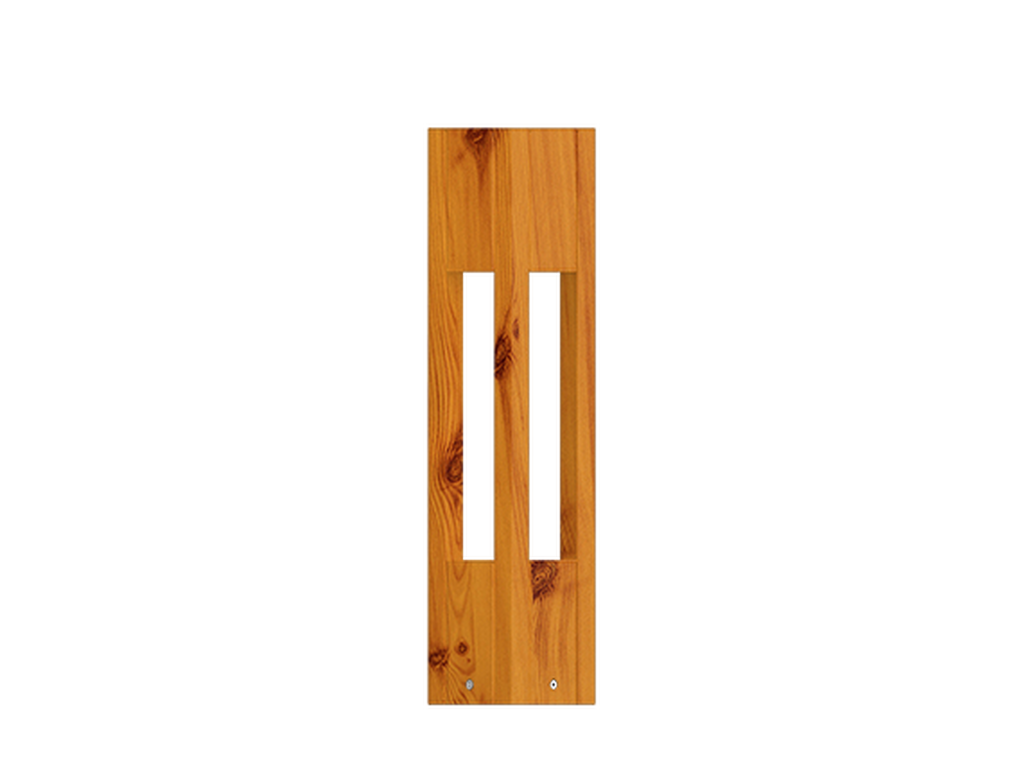

VANCOUVER 31
120x120 mm - 600 mm - No decorative pattern
CEClass IIP65IK08

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 LED
Power (W)
7 W
Lumen (lm)
192 - 200 lm
Efficacy (lm/W)
27 - 29 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
34°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
12 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency optical reflector, Clear toughened glass

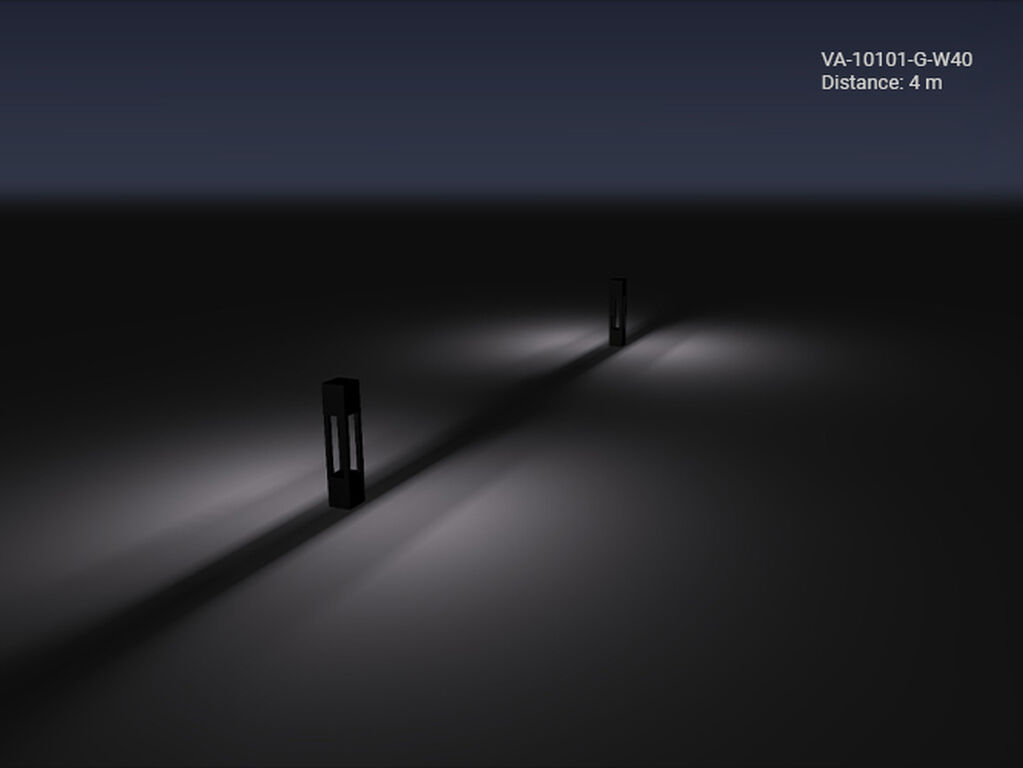

LIGHT EFFECT

Optic
G (34°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VA-10101-G-8030-ND-01
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VA-10101-G-8030-ND-02
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VA-10101-G-8030-ND-03
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VA-10101-G-8030-ND-05
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VA-10101-G-8030-ND-06
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VA-10101-G-8030-ND-SU01
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VA-10101-G-8030-ND-SU02
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VA-10101-G-8030-ND-SU03
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VA-10101-G-8030-ND-SU04
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VA-10101-G-8030-ND-SW01
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VA-10101-G-8030-ND-SW02
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VA-10101-G-8030-ND-SW03
Lumen (lm): 192 lm
Optic: G
Optic value: 34°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VA-10101-G-8040-ND-01
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VA-10101-G-8040-ND-02
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VA-10101-G-8040-ND-03
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VA-10101-G-8040-ND-05
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VA-10101-G-8040-ND-06
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VA-10101-G-8040-ND-SU01
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VA-10101-G-8040-ND-SU02
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VA-10101-G-8040-ND-SU03
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VA-10101-G-8040-ND-SU04
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VA-10101-G-8040-ND-SW01
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VA-10101-G-8040-ND-SW02
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VA-10101-G-8040-ND-SW03
Lumen (lm): 200 lm
Optic: G
Optic value: 34°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
