LIGMAN VIOS 3R VI-40307.

VIOS 3RVI-40307VIOS

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

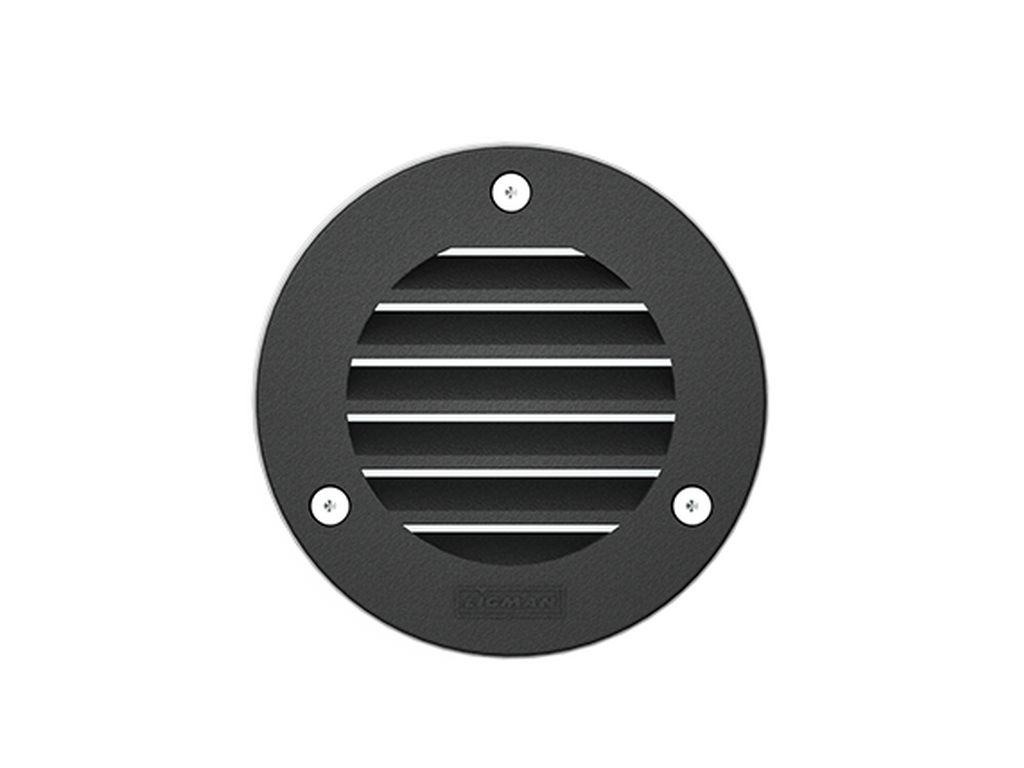

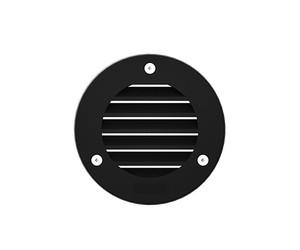

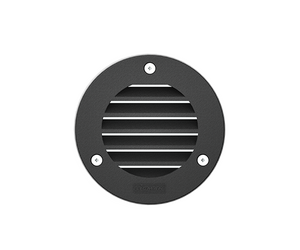

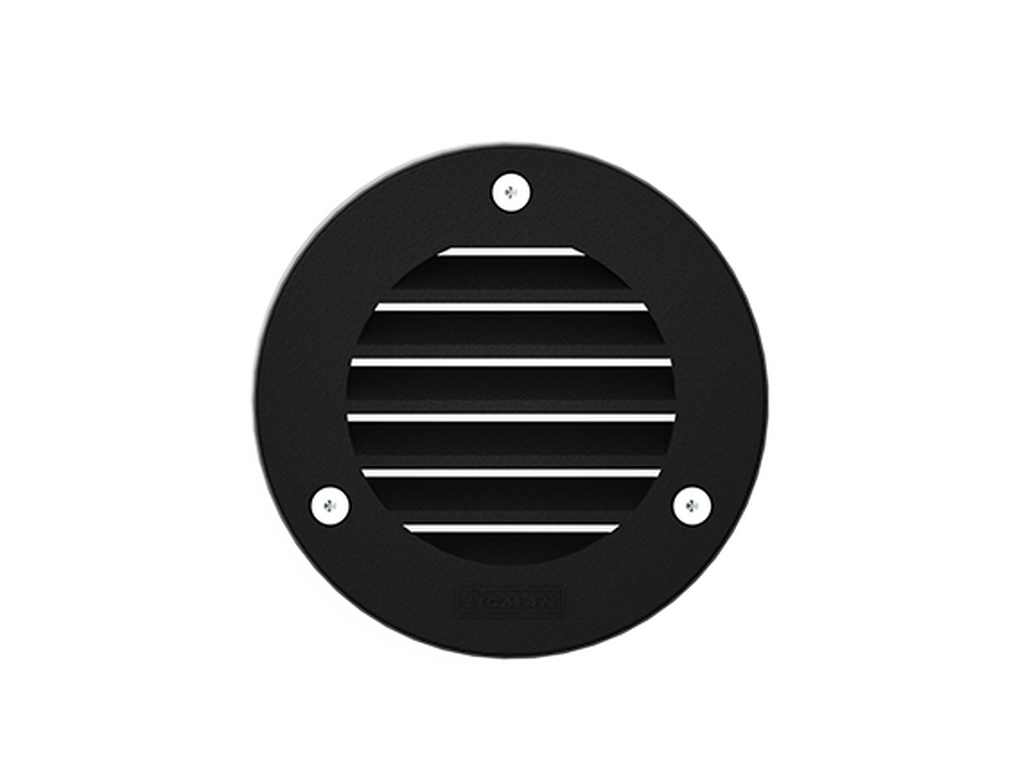

VIOS 3RBlack
VIOS 3RDark Grey

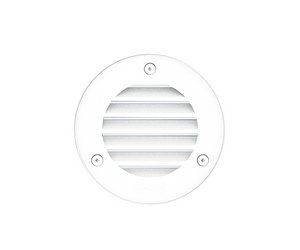

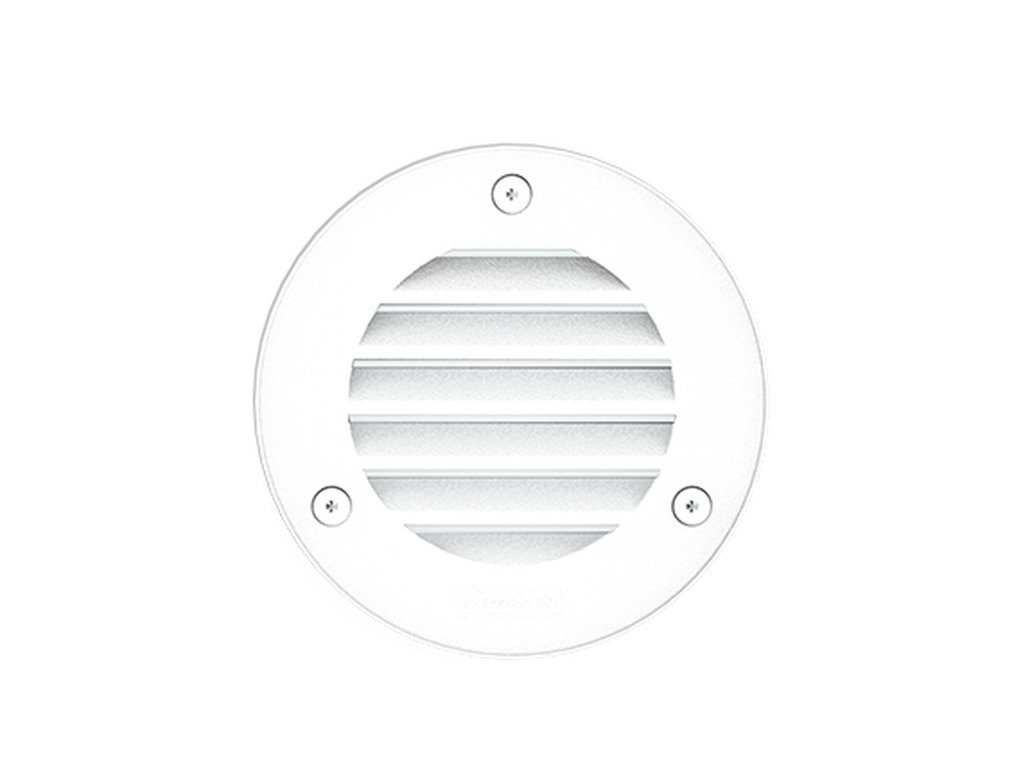

VIOS 3RWhite

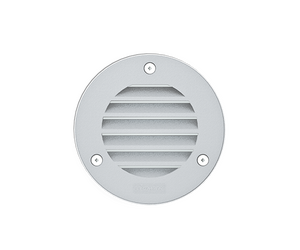

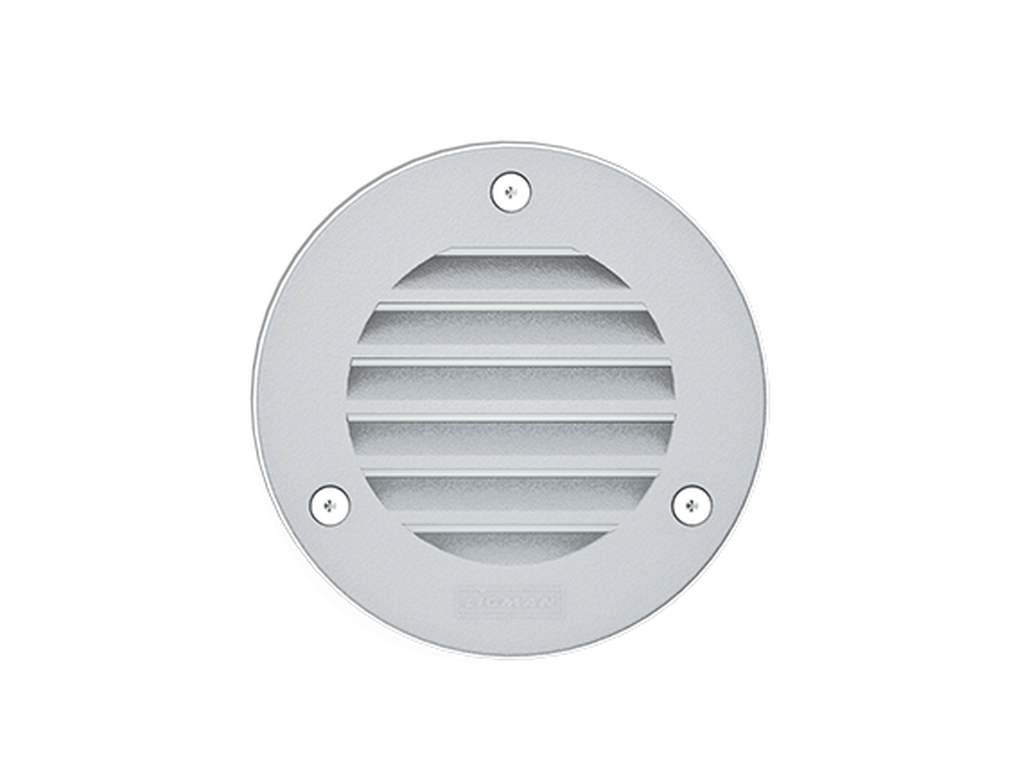

VIOS 3RMatt Silver
VIOS 3RBronze

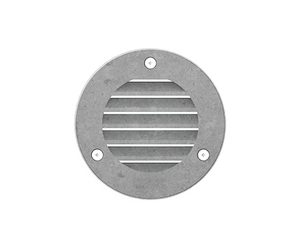

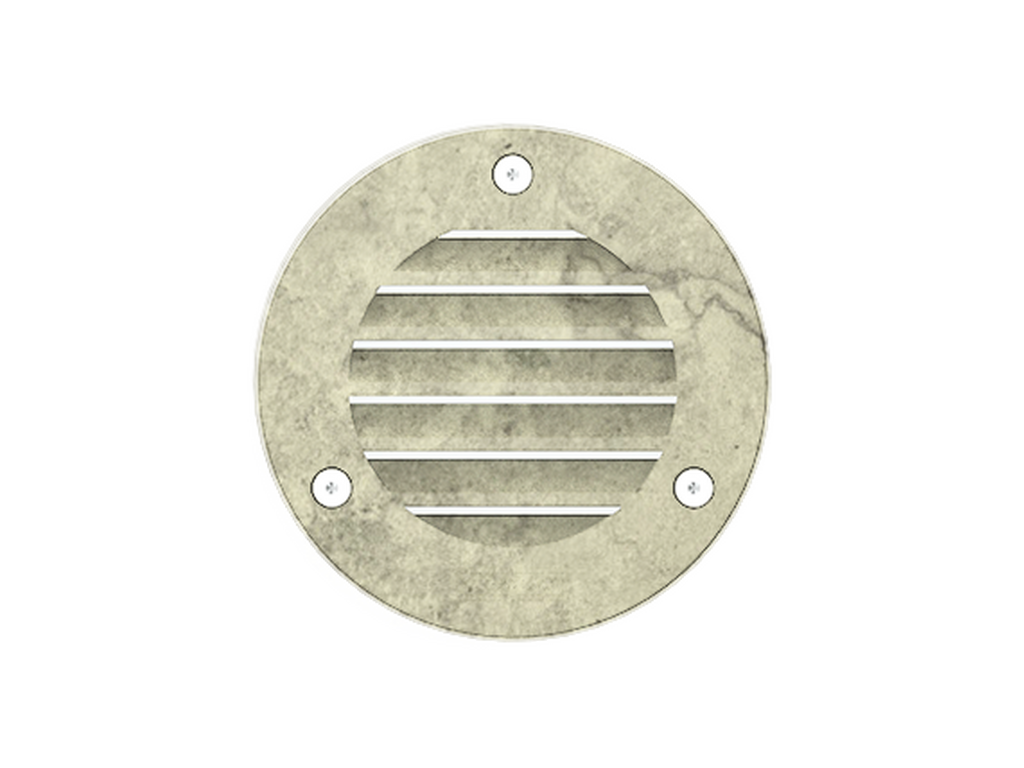

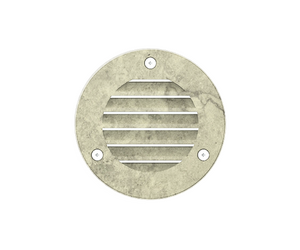

VIOS 3RConcrete - Urban

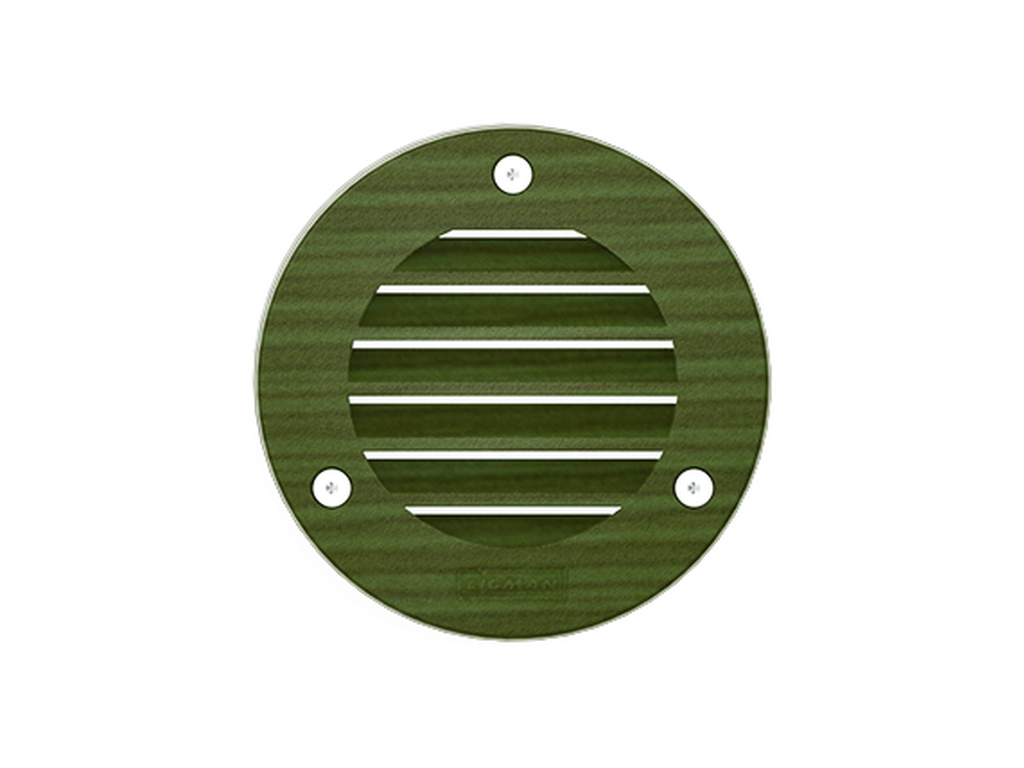

VIOS 3RSoftscape - Urban
VIOS 3RStone - Urban

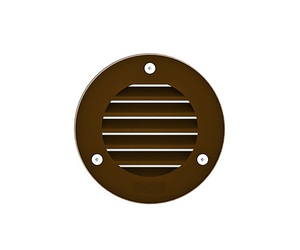

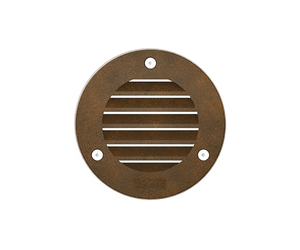

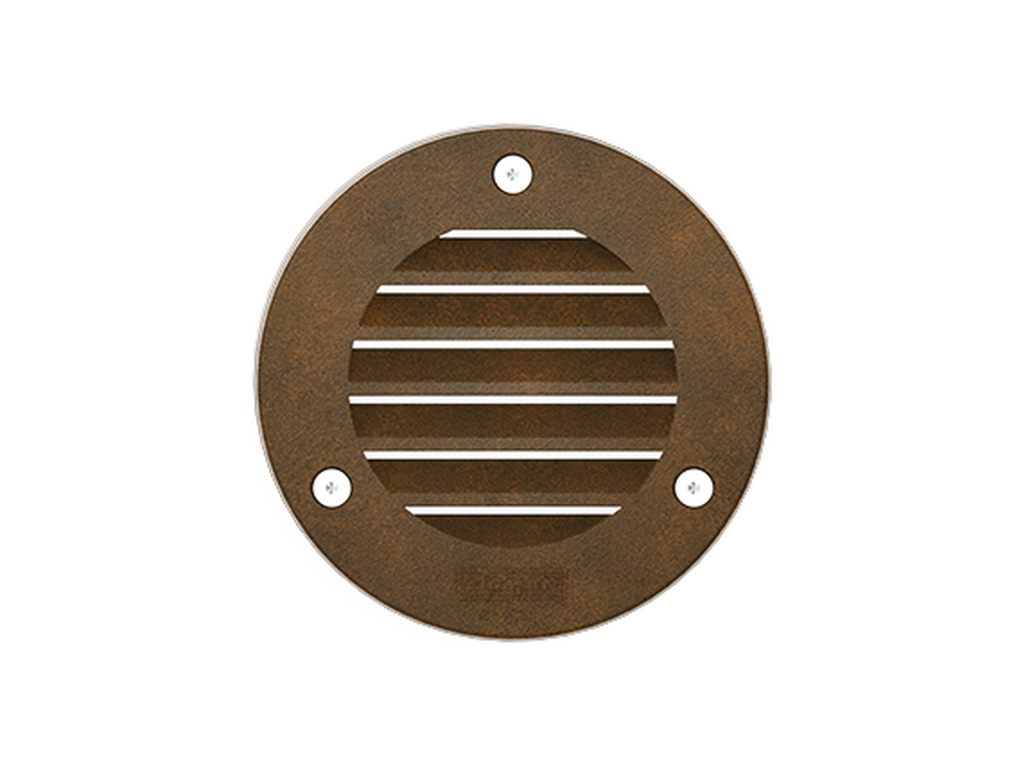

VIOS 3RCorten - Urban

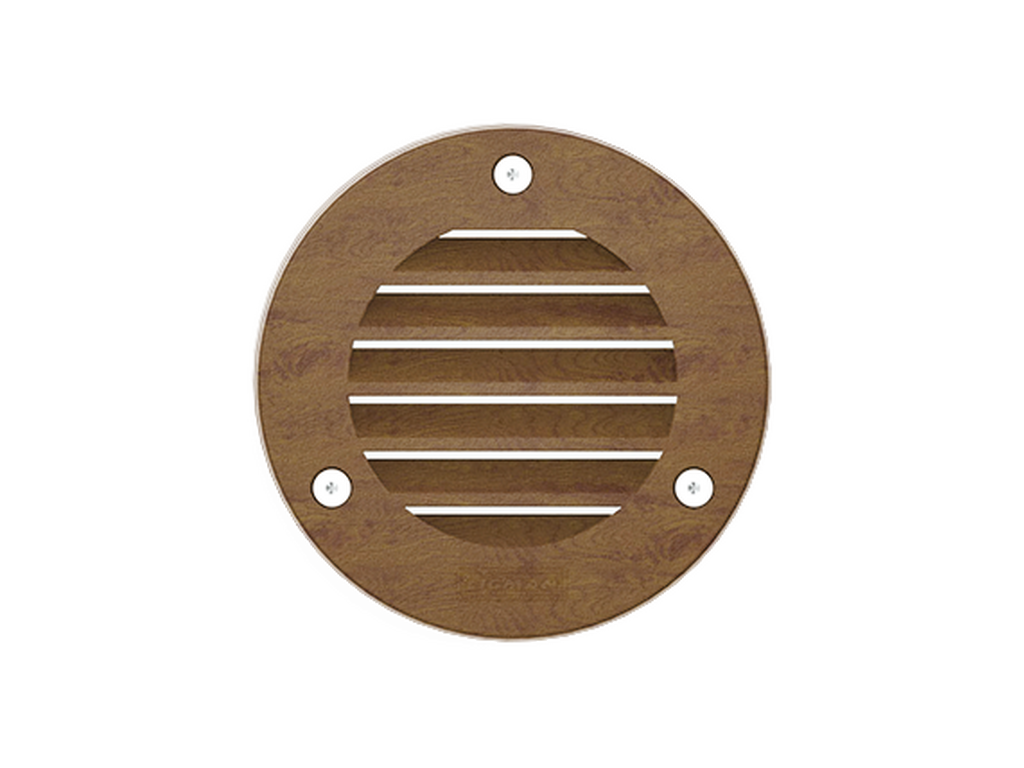

VIOS 3ROak - Woodland

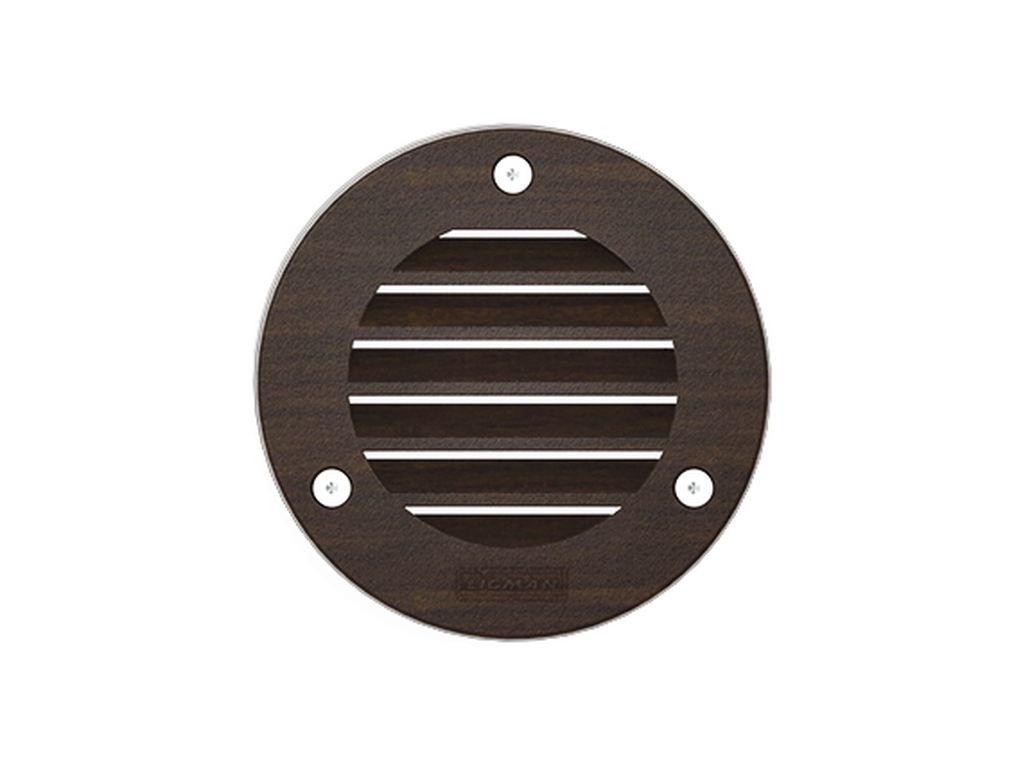

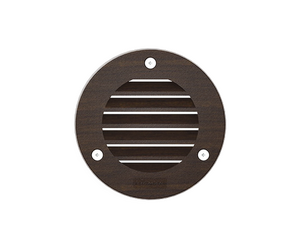

VIOS 3RWalnut - Woodland

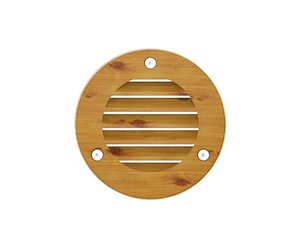

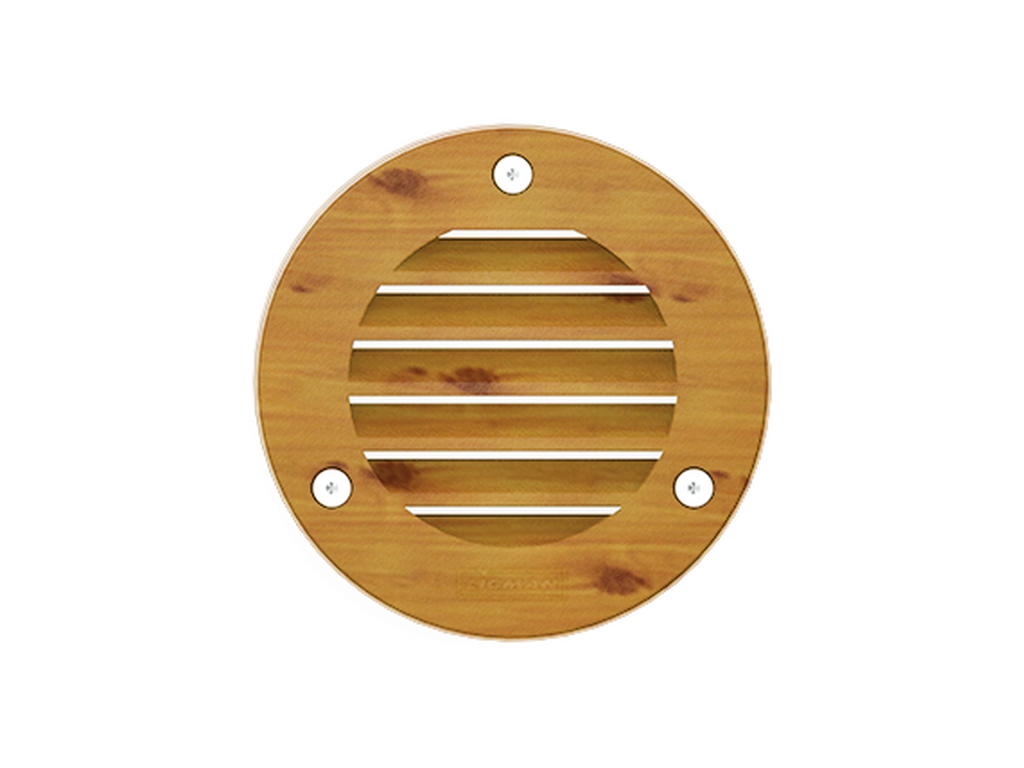

VIOS 3RPine - Woodland
VIOS 3RBlack
VIOS 3RDark Grey
VIOS 3RWhite
VIOS 3RMatt Silver
VIOS 3RBronze

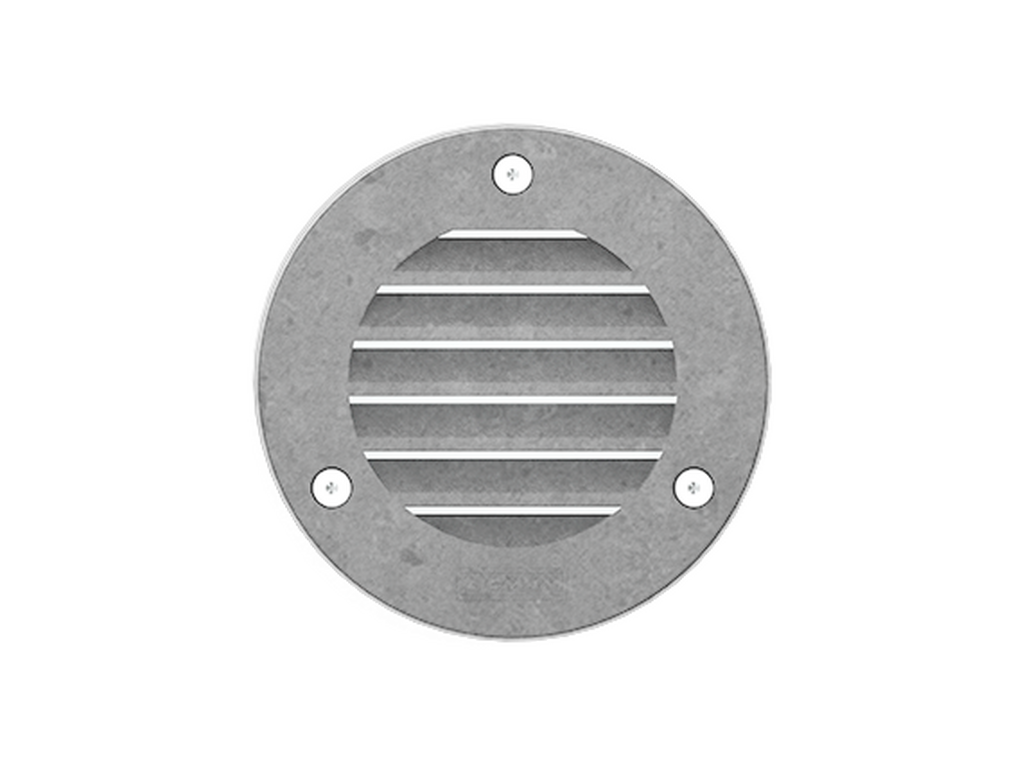

VIOS 3RConcrete - Urban
VIOS 3RSoftscape - Urban
VIOS 3RStone - Urban
VIOS 3RCorten - Urban
VIOS 3ROak - Woodland
VIOS 3RWalnut - Woodland
VIOS 3RPine - Woodland
With recessing box - Round - Shielded frame - IK07
CERETILAPClass IIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
1 COB
Power (W)
5 W
Lumen (lm)
46 - 50 lm
Efficacy (lm/W)
9 - 10 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
G
Optic value
89°x59°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B0-U1-G0
ULOR
11%
CIE flux code nº3
76%
Dimming type
On/Off
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
0.5 kg
Operating temperature
-20 °C to 40 °C
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Frosted toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 50,000
Variants (On/Off)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

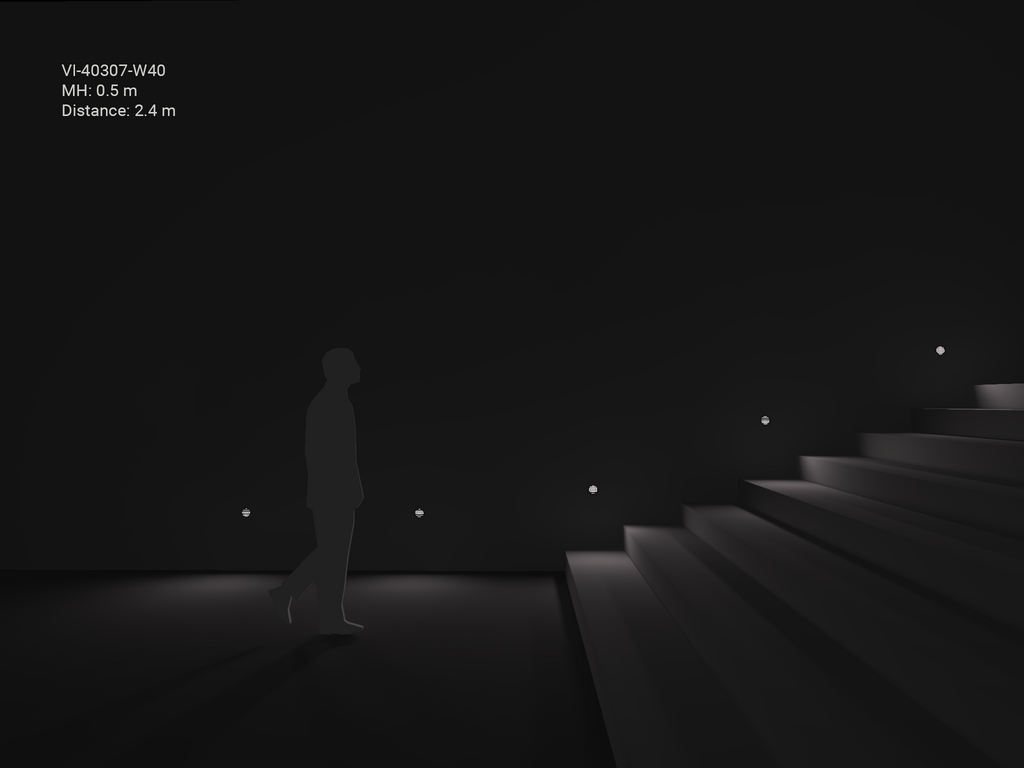

LIGHT EFFECT

Optic
G (89°x59°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: VI-40307-8030-ND-01
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VI-40307-8030-ND-02
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VI-40307-8030-ND-03
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VI-40307-8030-ND-05
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VI-40307-8030-ND-06
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VI-40307-8030-ND-SU01
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VI-40307-8030-ND-SU02
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VI-40307-8030-ND-SU03
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VI-40307-8030-ND-SU04
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VI-40307-8030-ND-SW01
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VI-40307-8030-ND-SW02
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VI-40307-8030-ND-SW03
Lumen (lm): 46 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 3000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
Variant code: VI-40307-8040-ND-01
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Black
Variant code: VI-40307-8040-ND-02
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Dark Grey
Variant code: VI-40307-8040-ND-03
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: White
Variant code: VI-40307-8040-ND-05
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Matt Silver
Variant code: VI-40307-8040-ND-06
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Bronze
Variant code: VI-40307-8040-ND-SU01
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Concrete - Urban
Variant code: VI-40307-8040-ND-SU02
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Softscape - Urban
Variant code: VI-40307-8040-ND-SU03
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Stone - Urban
Variant code: VI-40307-8040-ND-SU04
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Corten - Urban
Variant code: VI-40307-8040-ND-SW01
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Oak - Woodland
Variant code: VI-40307-8040-ND-SW02
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Walnut - Woodland
Variant code: VI-40307-8040-ND-SW03
Lumen (lm): 50 lm
Optic: G
Optic value: 89°x59°
CCT / CRI: 4000K CRI80
Dimming type: On/Off
Product colour: Pine - Woodland
