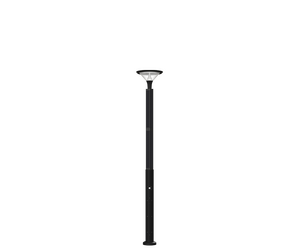

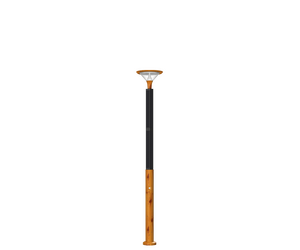

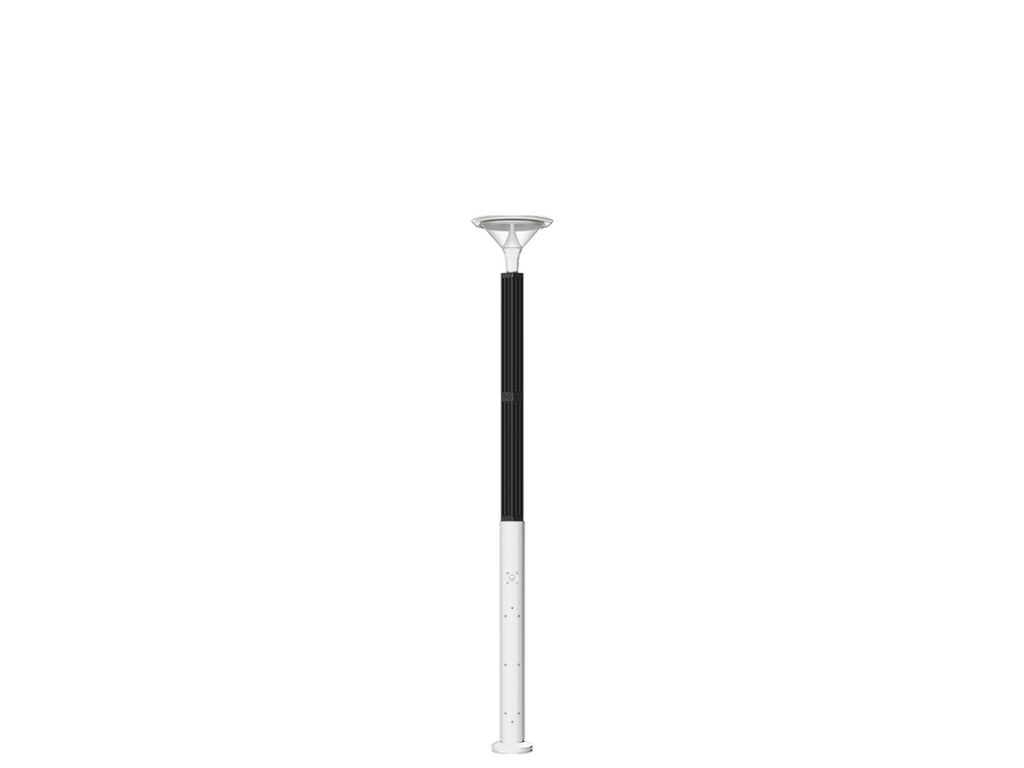

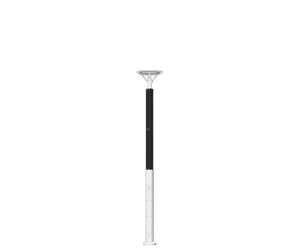

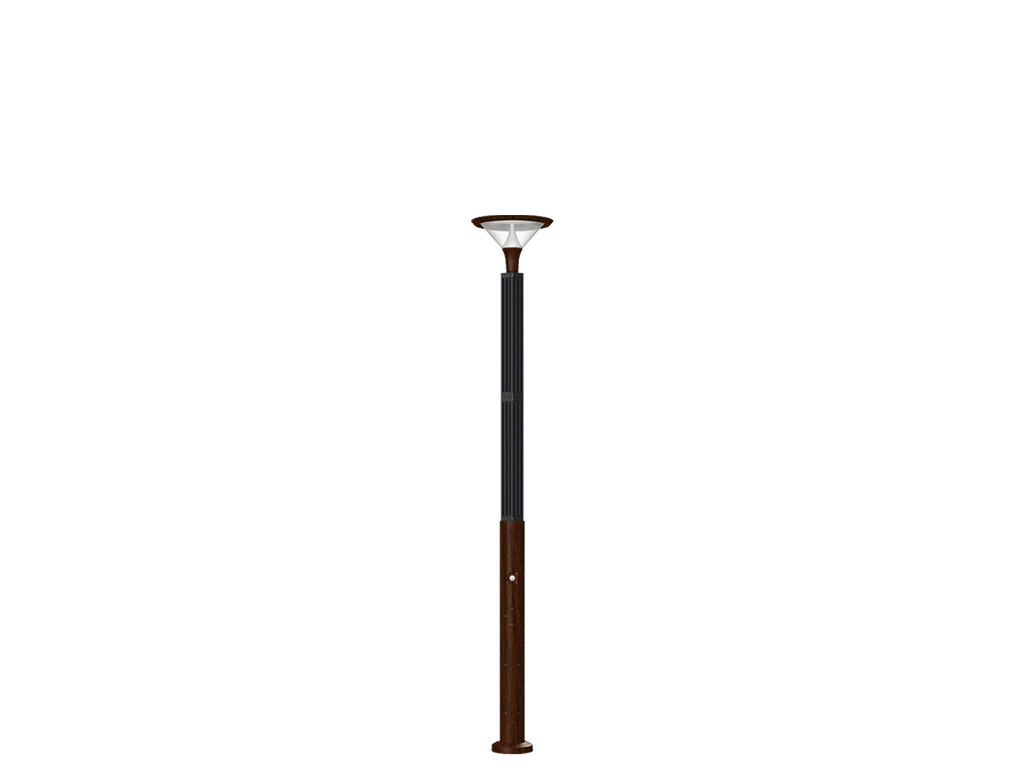

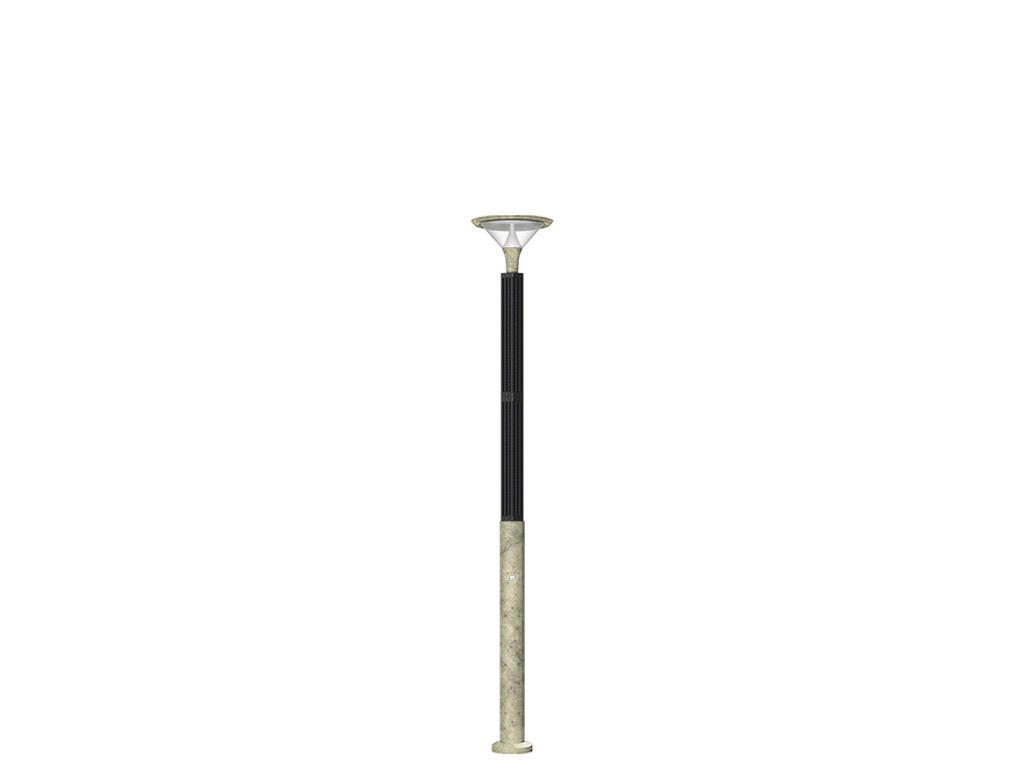

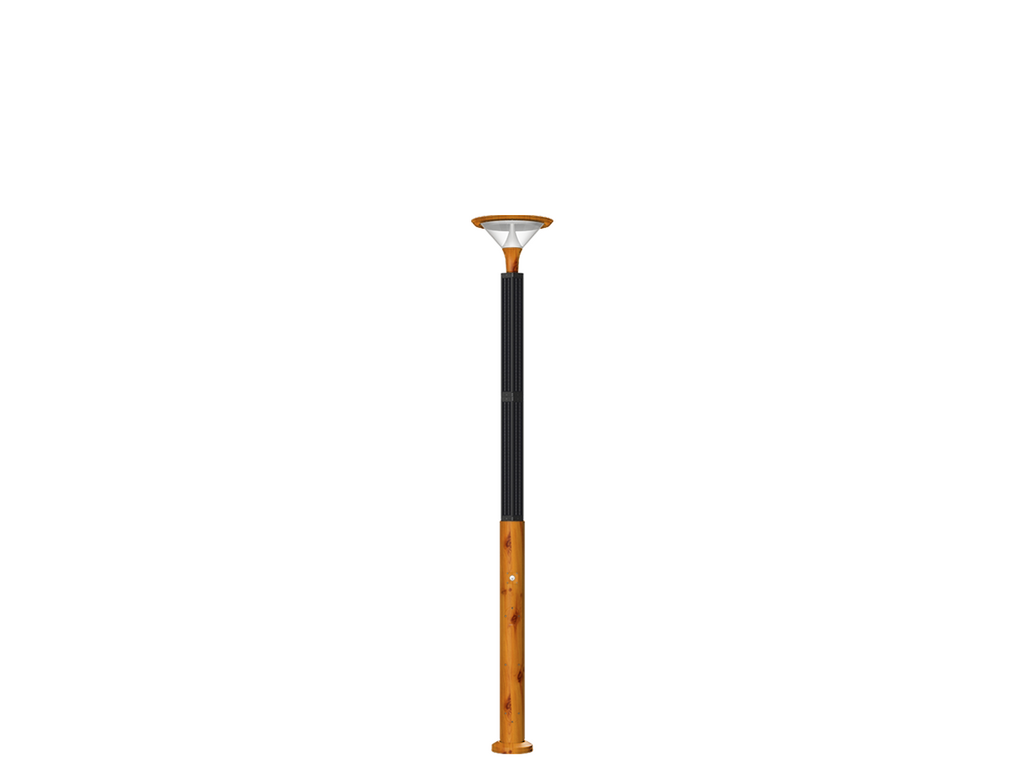

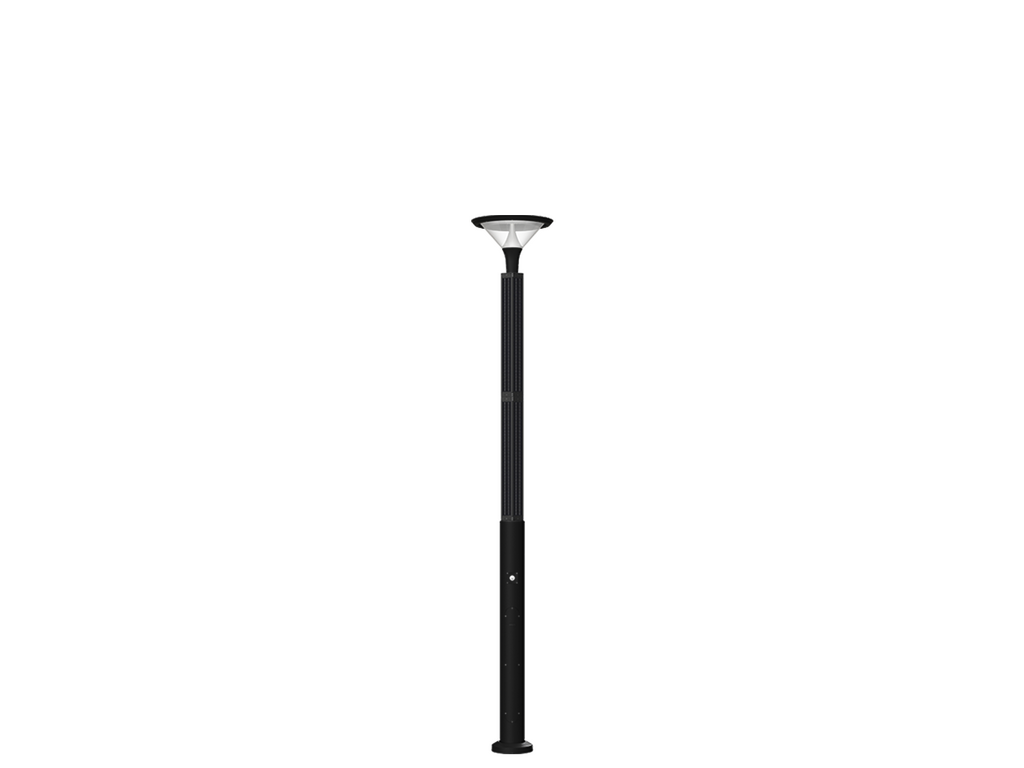

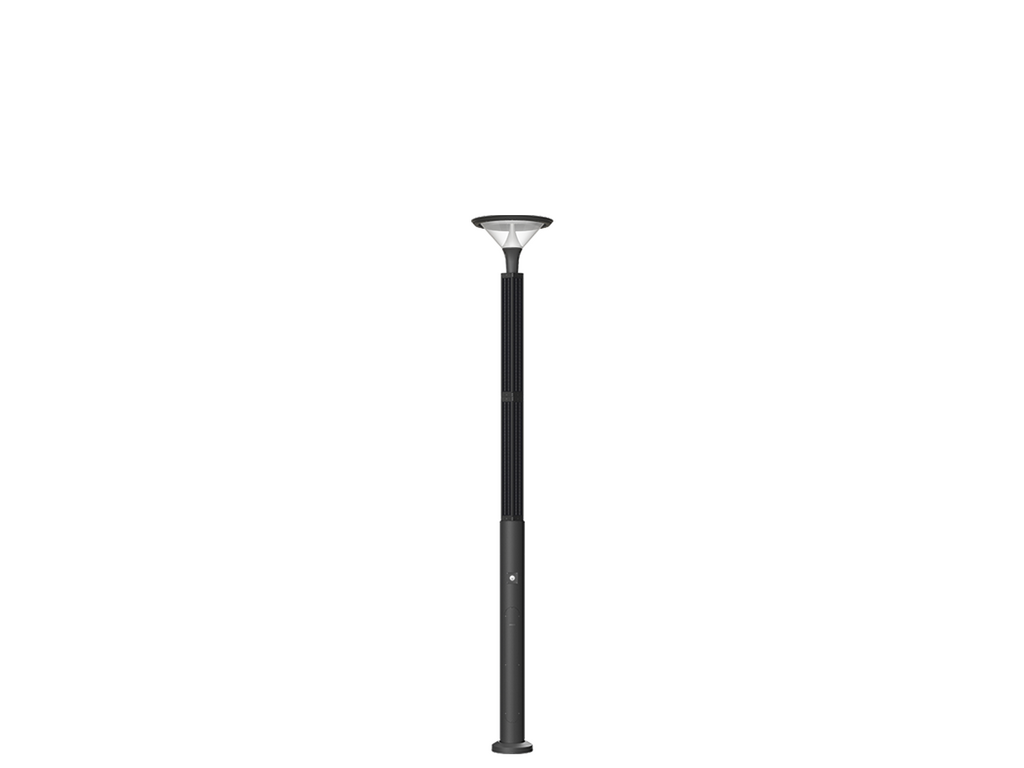

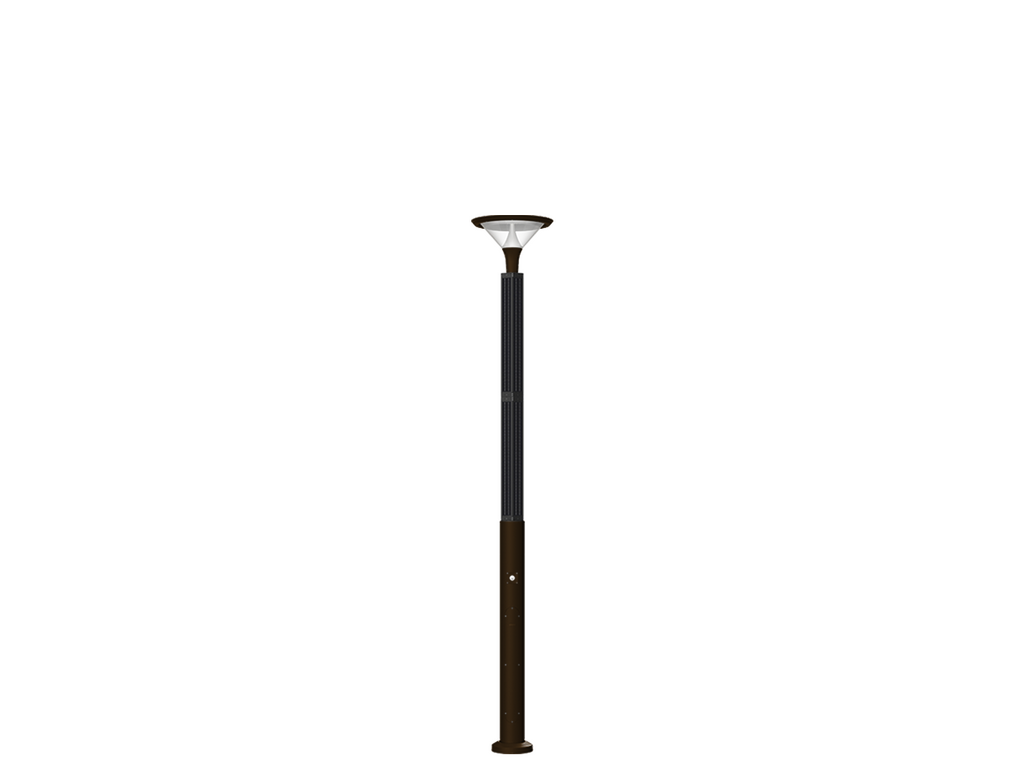

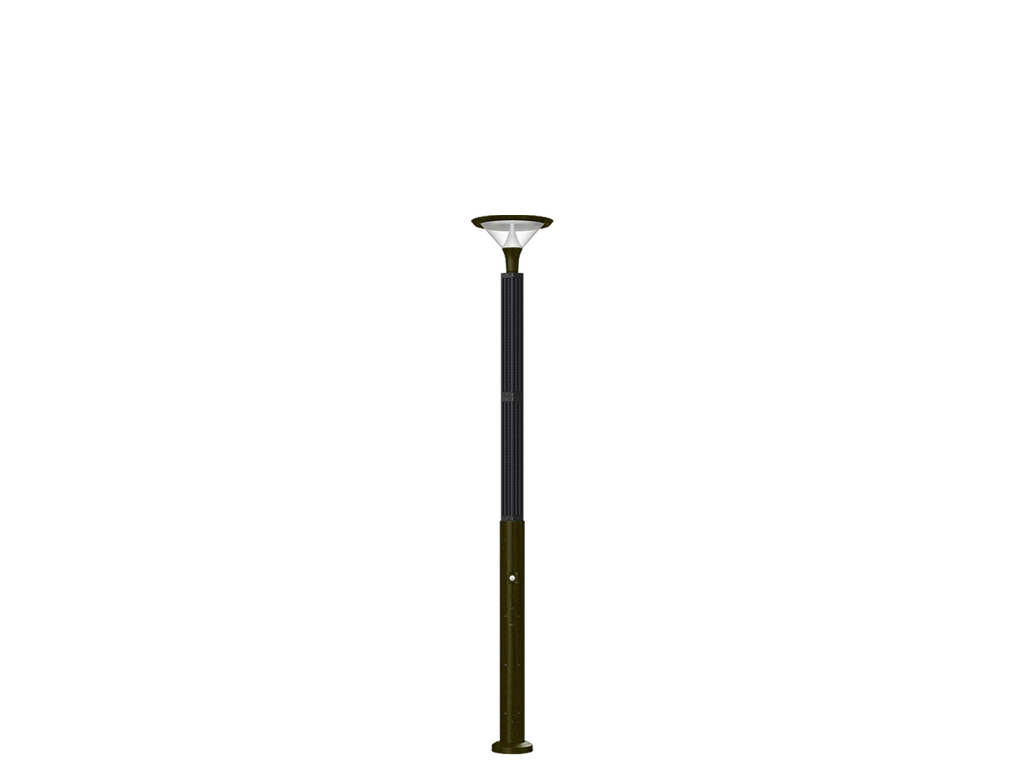

ABERDEEN 2ABA-20011-SO-40 (Version 1)

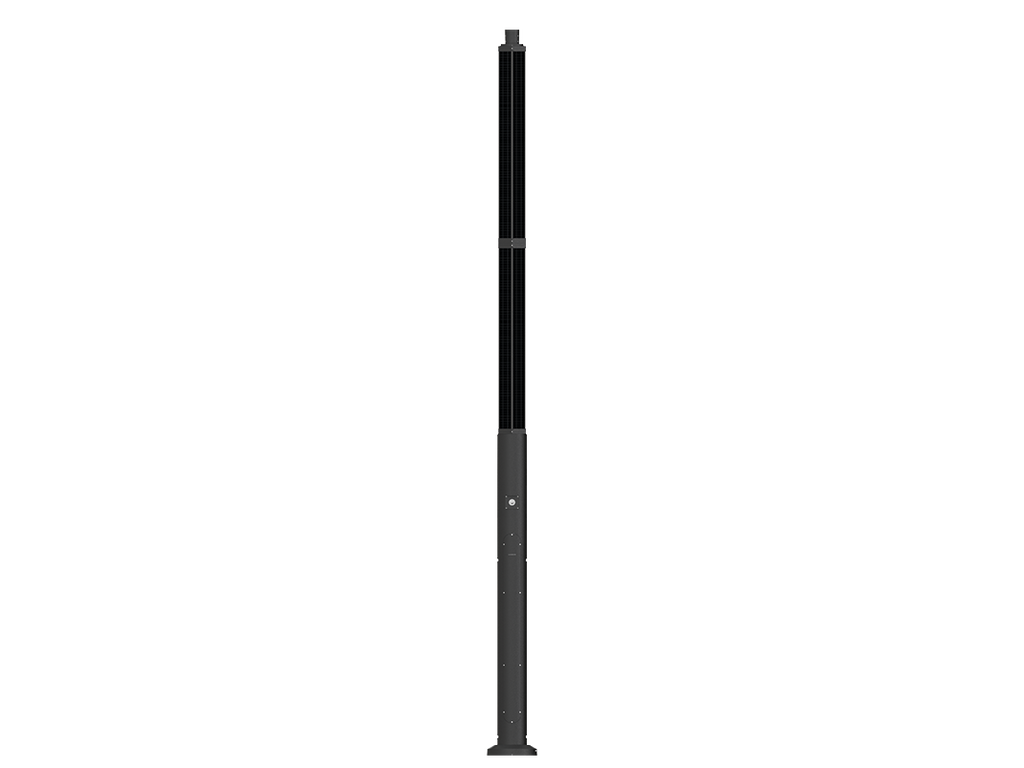

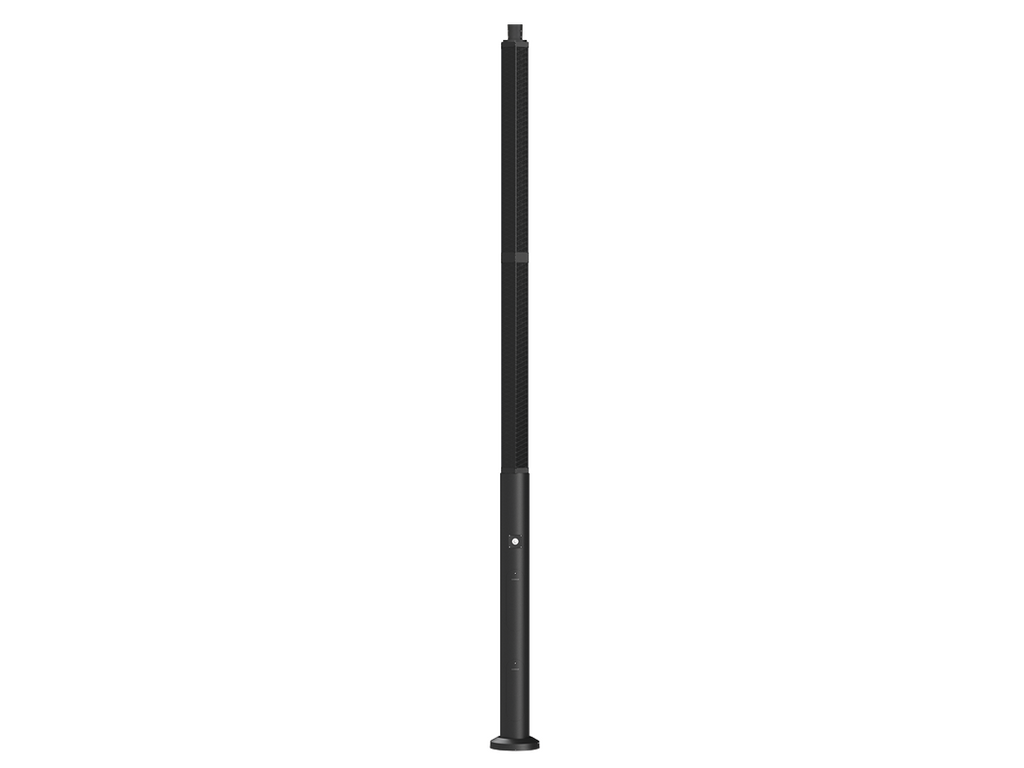

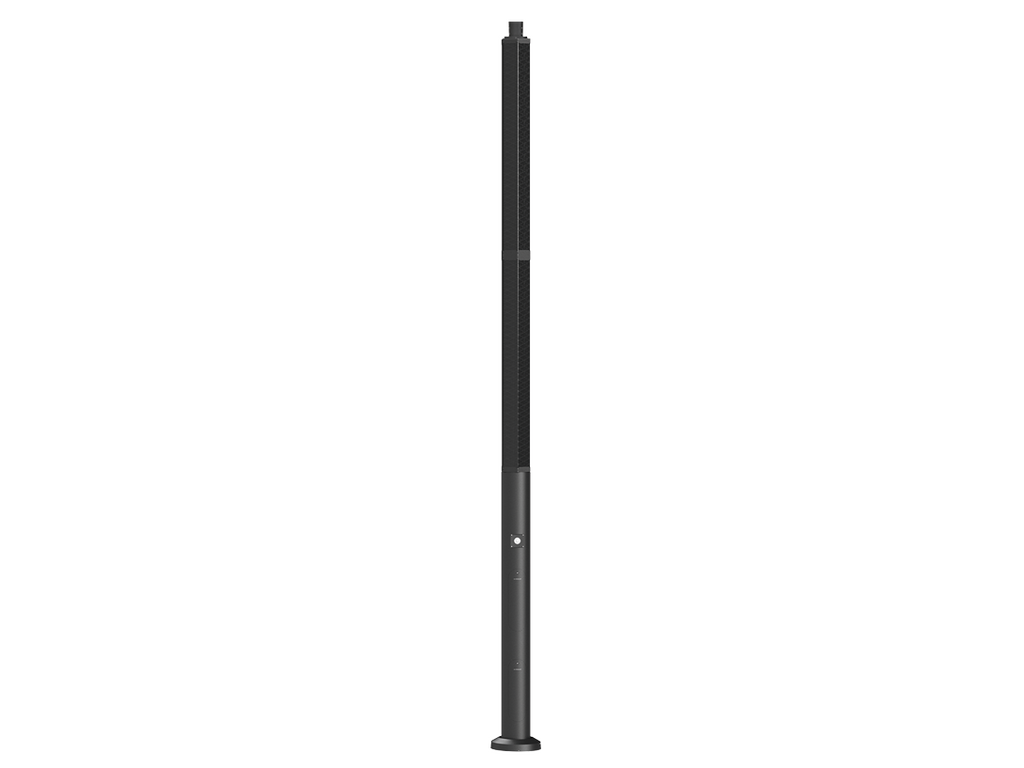

Luminaires made to order for Vertical solar PV poles
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - WoodlandMade to order for 40 W Vertical solar PV pole
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
24 LED
Power (W)
40 W
Lumen (lm)
4871 - 5383 lm
Efficacy (lm/W)
122 - 135 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
Solar 36 VDC
Optic
T2, T3, T4, T5
Optic value
142°x 58°, 124°x 86°, 106°x 68°, 118°x 141°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U3-G1, B2-U3-G1, B3-U2-G1
ULR
0.01
ULOR
0.01, 0.02
CIE flux code nº3
94
Dimming type
Dusk to Dawn, 2 Step dimming with motion sensor override, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
10.5 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
DOWNLOADS
Family spec sheet
Product spec sheet
Technical drawing
2D - CAD
BIM - IFC
DIALux - ULD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
T2 (142°x 58°)
T3 (124°x 86°)
T4 (106°x 68°)
T5 (118°x 141°)
