LIGMAN ALDO 8 ALD-30302.

ALDO 8ALD-30302

(Version 1)

ALDO

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

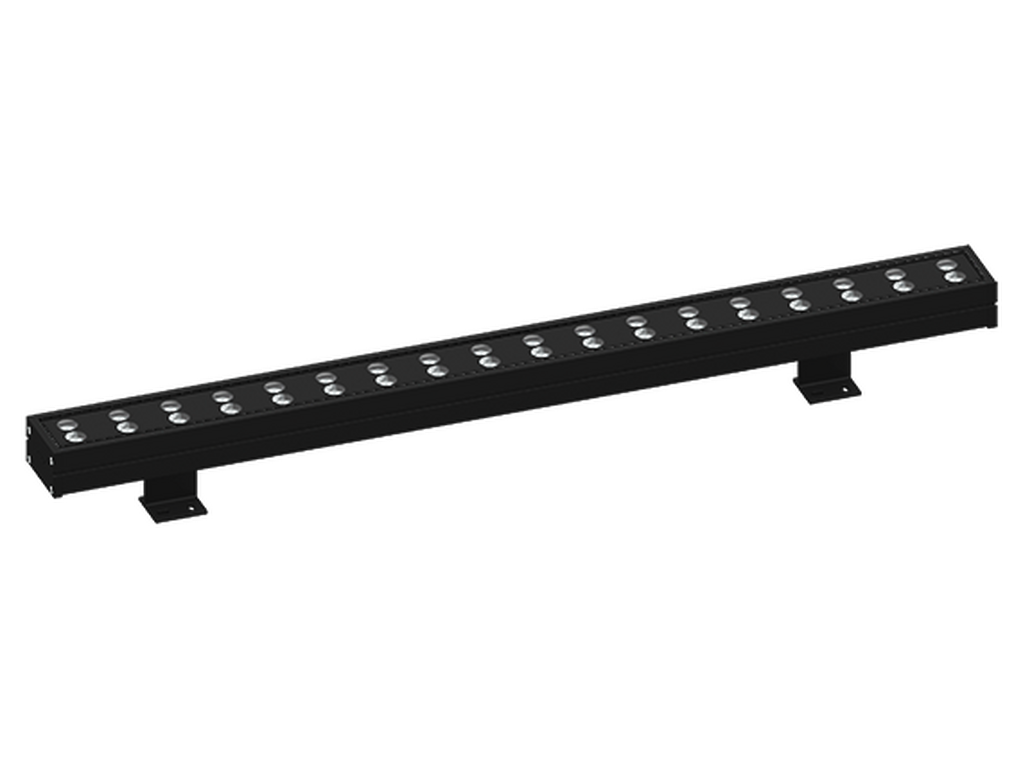

ALDO 8Black

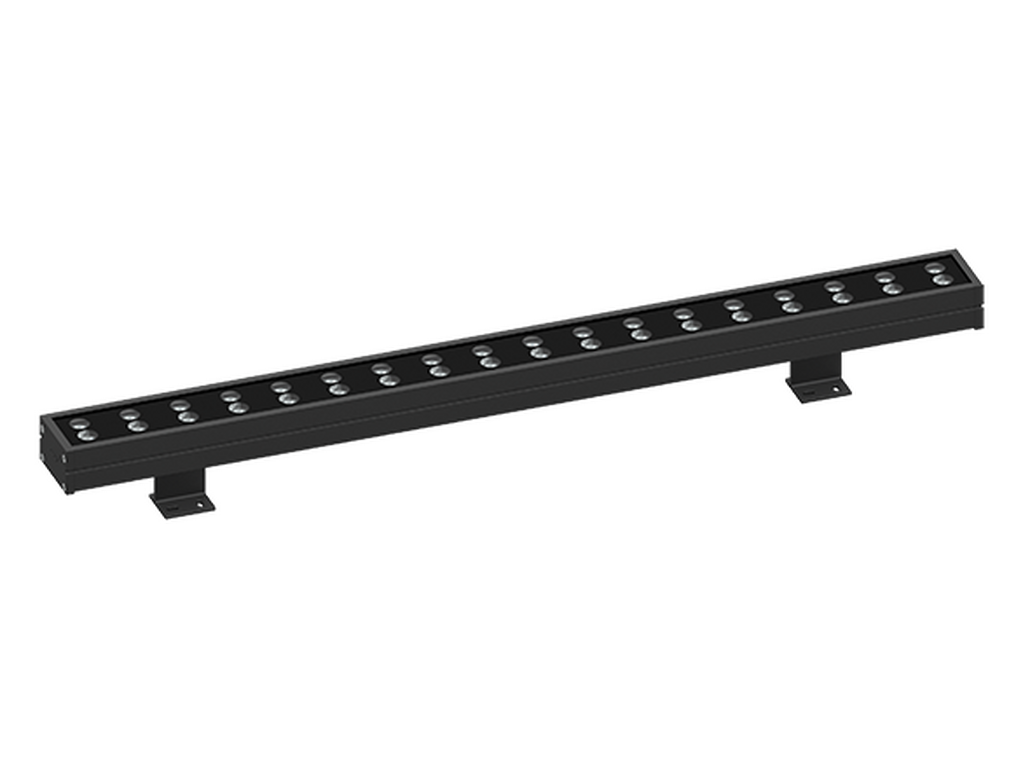

ALDO 8Dark Grey
ALDO 8White

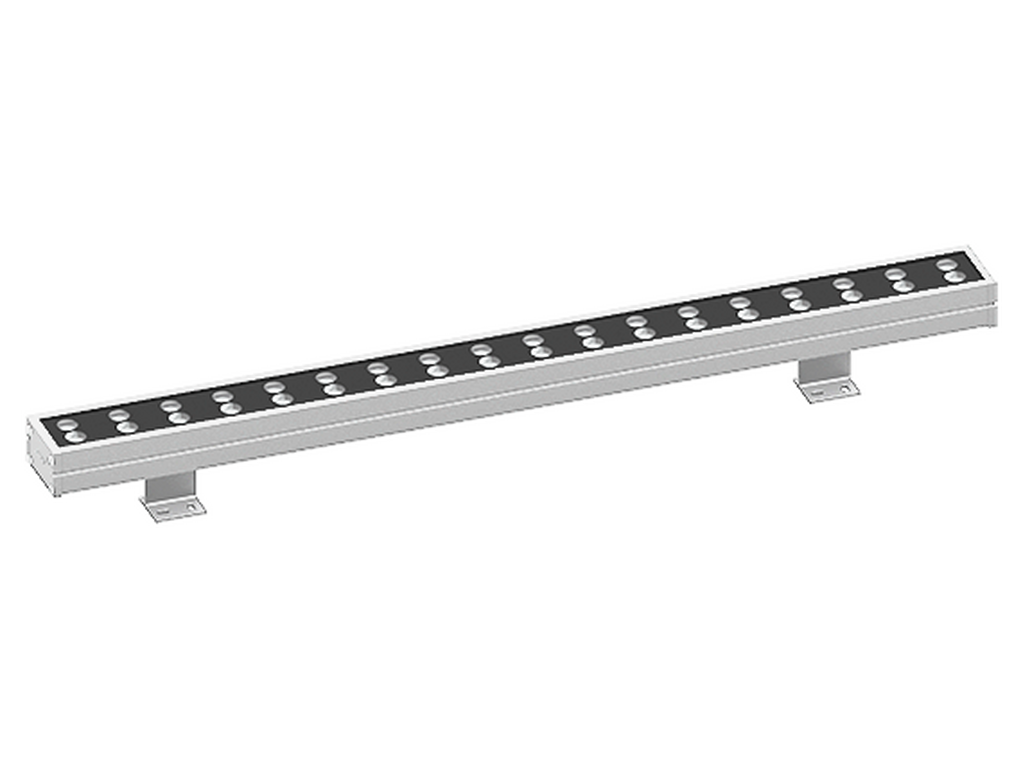

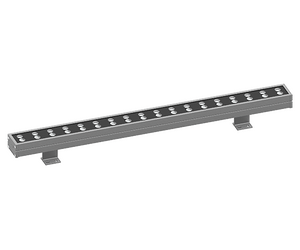

ALDO 8Matt Silver
ALDO 8Bronze
ALDO 8Concrete - Urban
ALDO 8Softscape - Urban

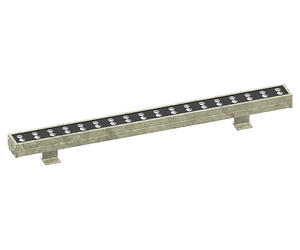

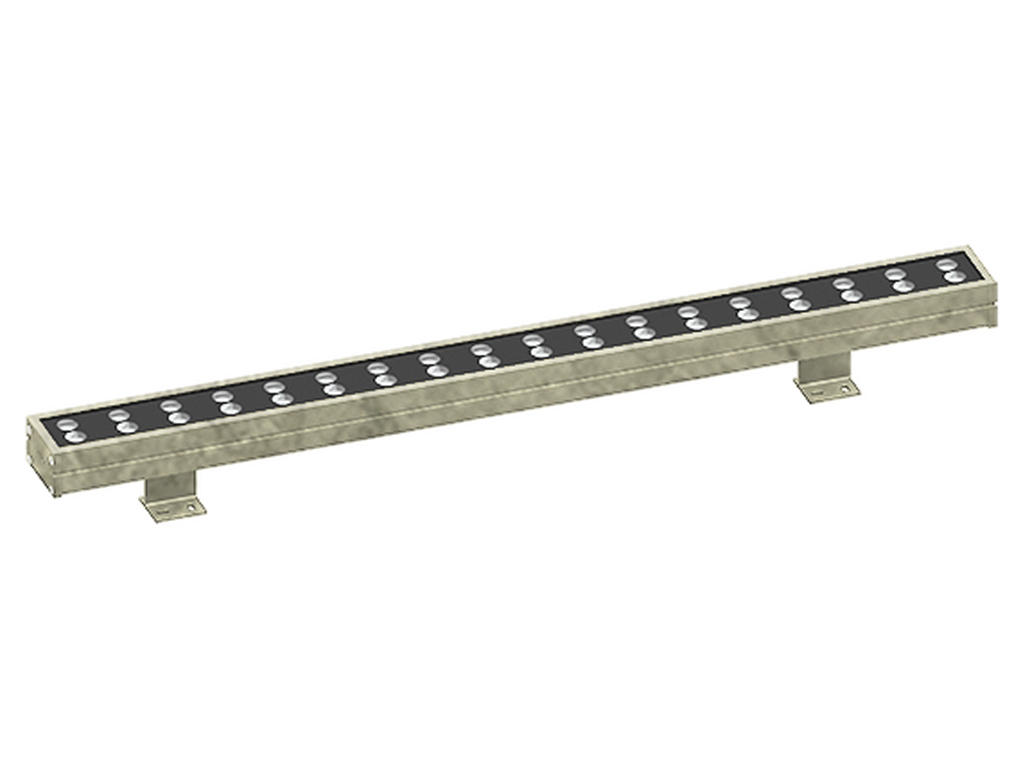

ALDO 8Stone - Urban

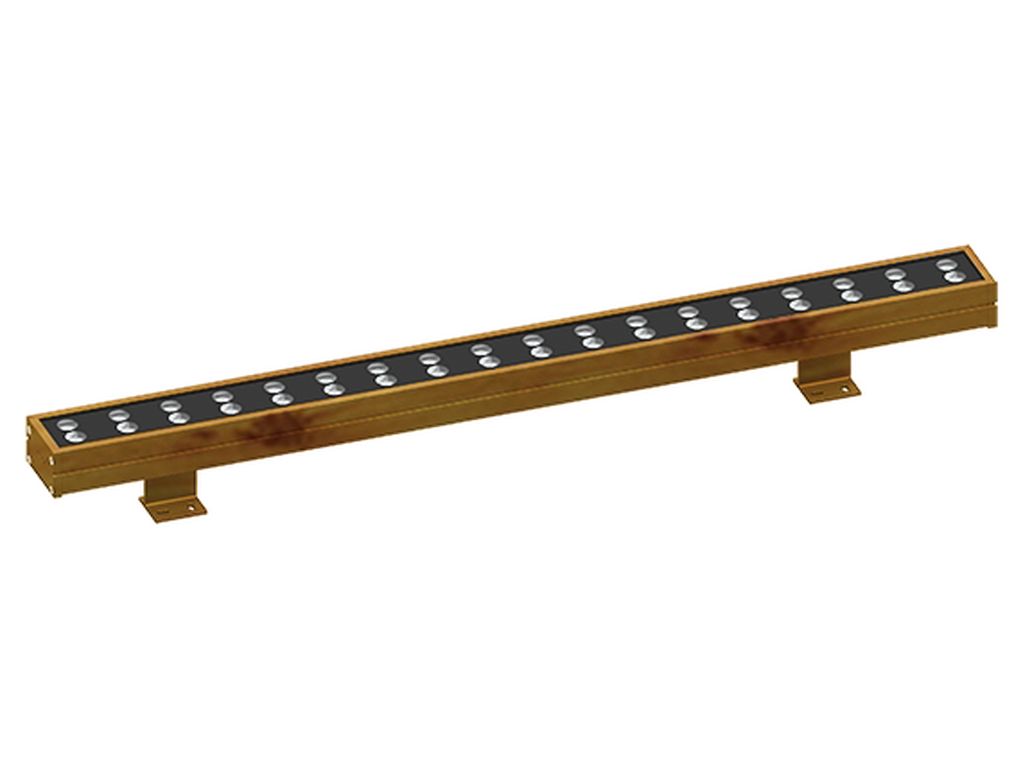

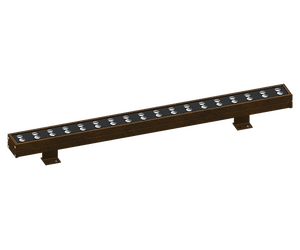

ALDO 8Corten - Urban

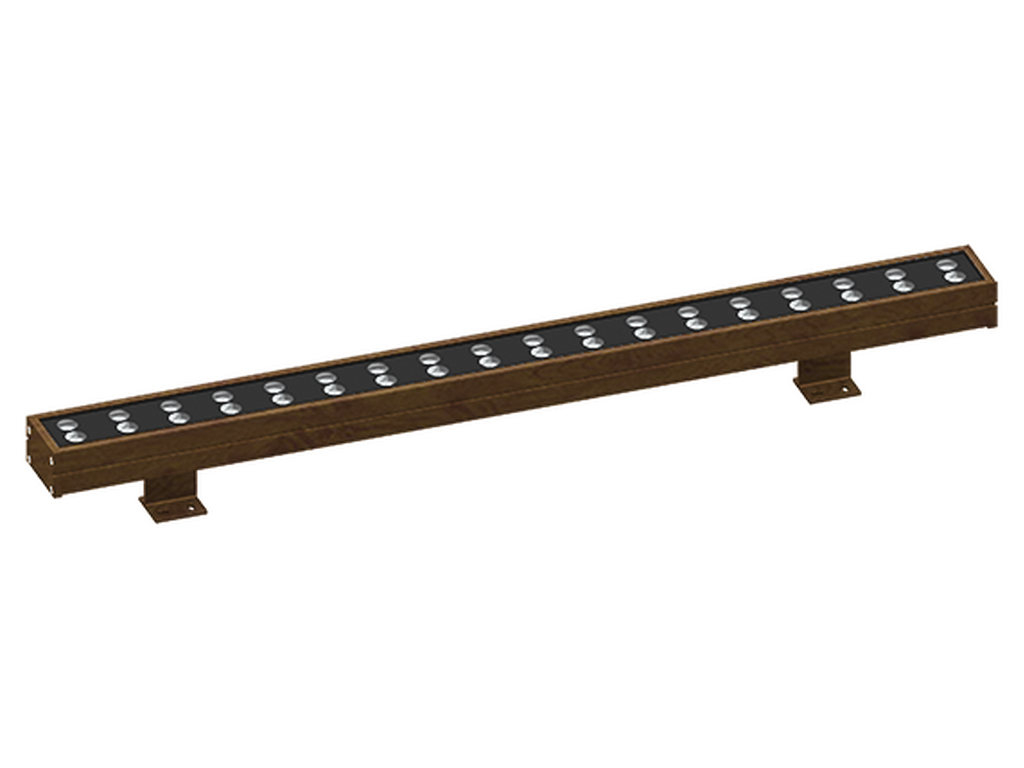

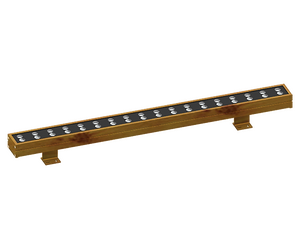

ALDO 8Oak - Woodland

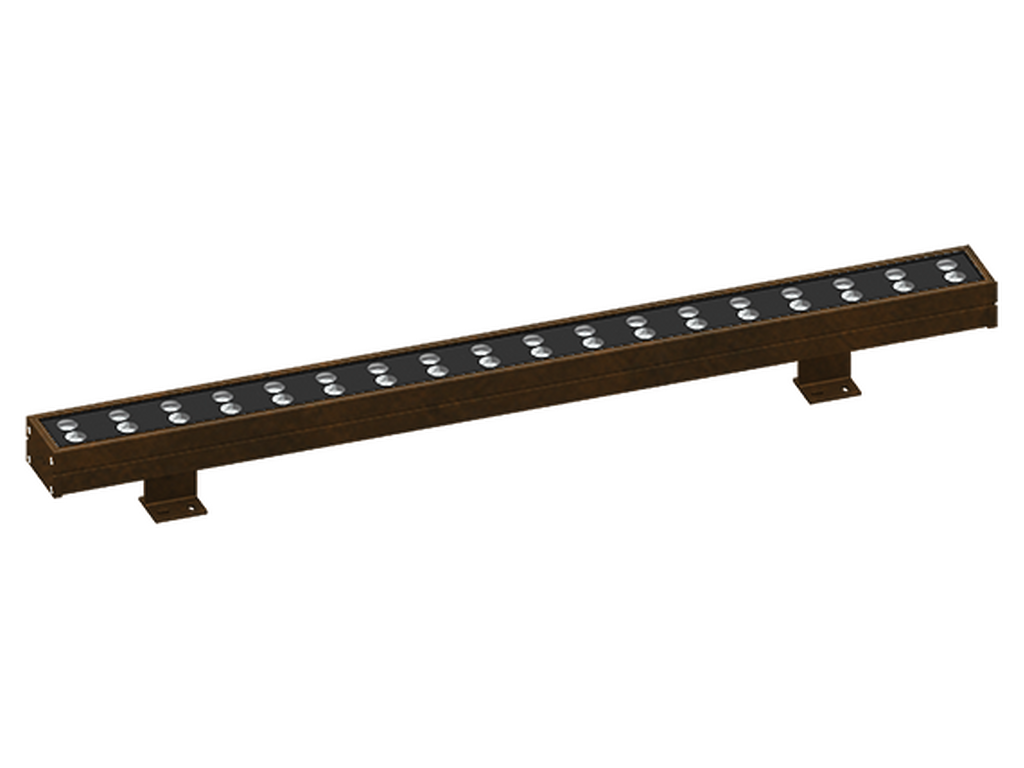

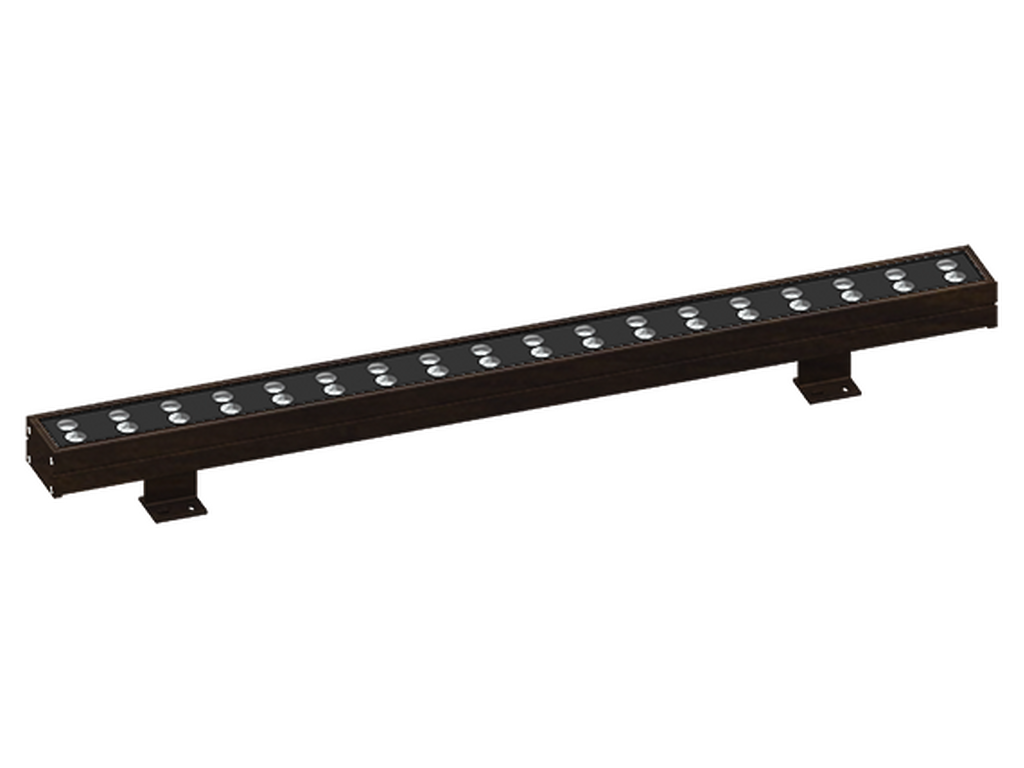

ALDO 8Walnut - Woodland

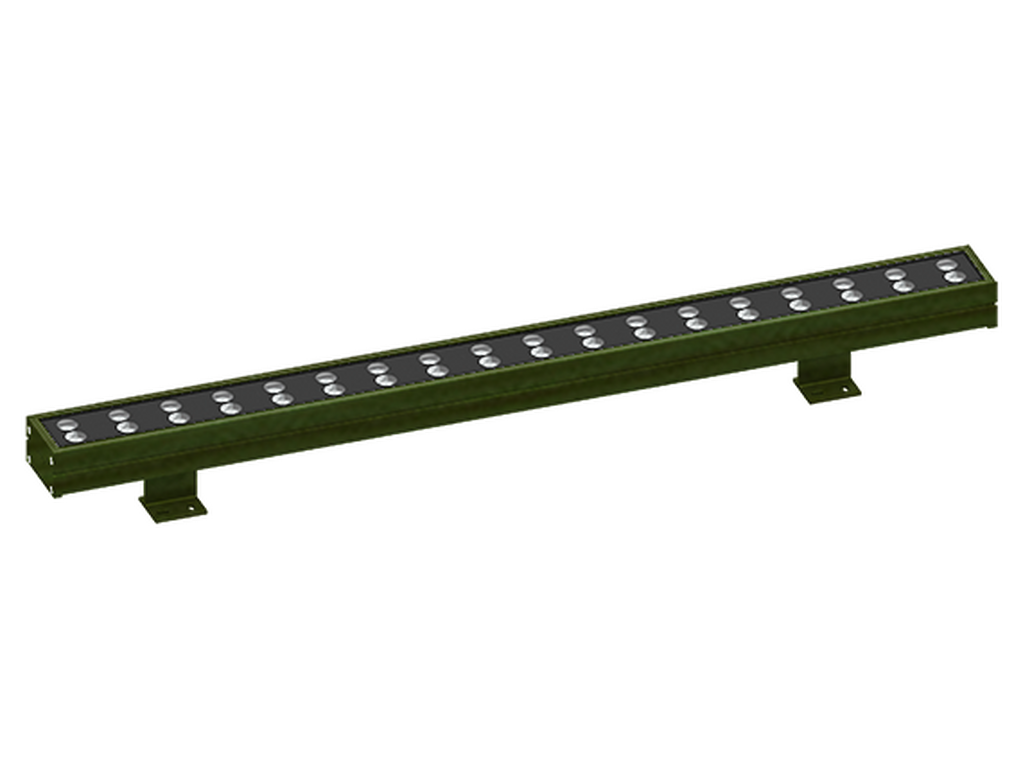

ALDO 8Pine - Woodland
ALDO 8Black
ALDO 8Dark Grey
ALDO 8White
ALDO 8Matt Silver
ALDO 8Bronze
ALDO 8Concrete - Urban
ALDO 8Softscape - Urban
ALDO 8Stone - Urban
ALDO 8Corten - Urban
ALDO 8Oak - Woodland
ALDO 8Walnut - Woodland
ALDO 8Pine - Woodland
Without remote driver - Constant voltage (CV) 24 V - 80x110 mm - 1000 mm - Class III - IK07 - RGBW
CEClass IIIIP66IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
36 LED
Power (W)
76 W
Lumen (lm)
2822 - 4174 lm
Efficacy (lm/W)
37 - 55 lm/W
Driver option
Remote driver (not included)
Driver
Constant voltage (CV)
Input voltage
24 VDC
Optic
N, M, W, E
Optic value
15°, 35°, 53°, 19°x30°
CCT / CRI
RGBW30, RGBW40
Bug
B2-U0-G0, B3-U0-G0
Dimming type
DMX, DMX/RDM
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
3.2 kg
Operating temperature
-20 °C to 40 °C
Cable
Four IP67 connectors supplied with 2x0.2 m of 2x1.0 sqmm outdoor cable and 2x0.2 m of 2x0.5 sqmm outdoor shielded cable
Through wiring
Two cable entries for through wiring
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
7 SDCM
Lifetime L80B10 (hours)
> 50,000

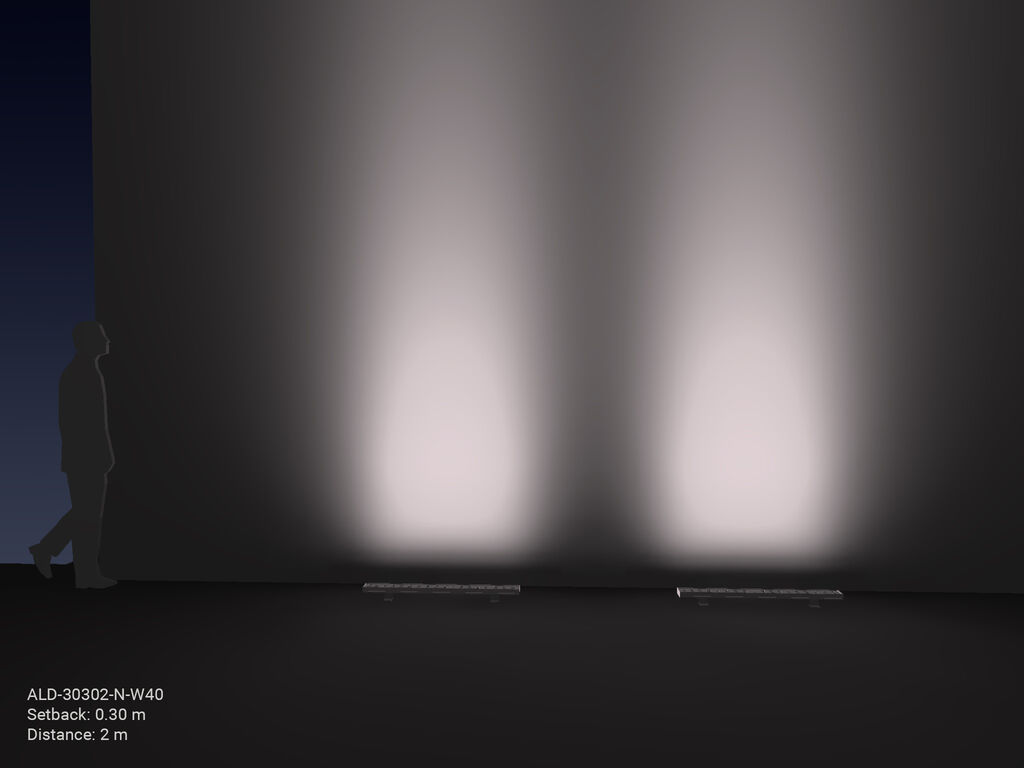

LIGHT EFFECT

Optic
N (15°)
M (35°)
W (53°)
E (19°x30°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: ALD-30302-N-30-DMX-01
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-N-30-DMX-02
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-N-30-DMX-03
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-N-30-DMX-05
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-N-30-DMX-06
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-N-30-DMX-SU01
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-N-30-DMX-SU02
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-N-30-DMX-SU03
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-N-30-DMX-SU04
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-N-30-DMX-SW01
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-N-30-DMX-SW02
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-N-30-DMX-SW03
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-N-40-DMX-01
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-N-40-DMX-02
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-N-40-DMX-03
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-N-40-DMX-05
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-N-40-DMX-06
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-N-40-DMX-SU01
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-N-40-DMX-SU02
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-N-40-DMX-SU03
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-N-40-DMX-SU04
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-N-40-DMX-SW01
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-N-40-DMX-SW02
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-N-40-DMX-SW03
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-N-30-DMXRDM-01
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-N-30-DMXRDM-02
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-N-30-DMXRDM-03
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-N-30-DMXRDM-05
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-N-30-DMXRDM-06
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-N-30-DMXRDM-SU01
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-N-30-DMXRDM-SU02
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-N-30-DMXRDM-SU03
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-N-30-DMXRDM-SU04
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-N-30-DMXRDM-SW01
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-N-30-DMXRDM-SW02
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-N-30-DMXRDM-SW03
Lumen (lm): 4102 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-N-40-DMXRDM-01
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-N-40-DMXRDM-02
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-N-40-DMXRDM-03
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-N-40-DMXRDM-05
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-N-40-DMXRDM-06
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-N-40-DMXRDM-SU01
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-N-40-DMXRDM-SU02
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-N-40-DMXRDM-SU03
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-N-40-DMXRDM-SU04
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-N-40-DMXRDM-SW01
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-N-40-DMXRDM-SW02
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-N-40-DMXRDM-SW03
Lumen (lm): 4174 lm
Optic: N
Optic value: 15°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-M-30-DMX-01
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-M-30-DMX-02
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-M-30-DMX-03
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-M-30-DMX-05
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-M-30-DMX-06
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-M-30-DMX-SU01
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-M-30-DMX-SU02
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-M-30-DMX-SU03
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-M-30-DMX-SU04
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-M-30-DMX-SW01
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-M-30-DMX-SW02
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-M-30-DMX-SW03
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-M-40-DMX-01
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-M-40-DMX-02
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-M-40-DMX-03
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-M-40-DMX-05
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-M-40-DMX-06
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-M-40-DMX-SU01
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-M-40-DMX-SU02
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-M-40-DMX-SU03
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-M-40-DMX-SU04
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-M-40-DMX-SW01
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-M-40-DMX-SW02
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-M-40-DMX-SW03
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-M-30-DMXRDM-01
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-M-30-DMXRDM-02
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-M-30-DMXRDM-03
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-M-30-DMXRDM-05
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-M-30-DMXRDM-06
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-M-30-DMXRDM-SU01
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-M-30-DMXRDM-SU02
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-M-30-DMXRDM-SU03
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-M-30-DMXRDM-SU04
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-M-30-DMXRDM-SW01
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-M-30-DMXRDM-SW02
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-M-30-DMXRDM-SW03
Lumen (lm): 2822 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-M-40-DMXRDM-01
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-M-40-DMXRDM-02
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-M-40-DMXRDM-03
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-M-40-DMXRDM-05
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-M-40-DMXRDM-06
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-M-40-DMXRDM-SU01
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-M-40-DMXRDM-SU02
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-M-40-DMXRDM-SU03
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-M-40-DMXRDM-SU04
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-M-40-DMXRDM-SW01
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-M-40-DMXRDM-SW02
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-M-40-DMXRDM-SW03
Lumen (lm): 2876 lm
Optic: M
Optic value: 35°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-W-30-DMX-01
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-W-30-DMX-02
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-W-30-DMX-03
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-W-30-DMX-05
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-W-30-DMX-06
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-W-30-DMX-SU01
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-W-30-DMX-SU02
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-W-30-DMX-SU03
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-W-30-DMX-SU04
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-W-30-DMX-SW01
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-W-30-DMX-SW02
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-W-30-DMX-SW03
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-W-40-DMX-01
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-W-40-DMX-02
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-W-40-DMX-03
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-W-40-DMX-05
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-W-40-DMX-06
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-W-40-DMX-SU01
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-W-40-DMX-SU02
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-W-40-DMX-SU03
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-W-40-DMX-SU04
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-W-40-DMX-SW01
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-W-40-DMX-SW02
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-W-40-DMX-SW03
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-W-30-DMXRDM-01
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-W-30-DMXRDM-02
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-W-30-DMXRDM-03
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-W-30-DMXRDM-05
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-W-30-DMXRDM-06
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-W-30-DMXRDM-SU01
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-W-30-DMXRDM-SU02
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-W-30-DMXRDM-SU03
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-W-30-DMXRDM-SU04
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-W-30-DMXRDM-SW01
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-W-30-DMXRDM-SW02
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-W-30-DMXRDM-SW03
Lumen (lm): 2854 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-W-40-DMXRDM-01
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-W-40-DMXRDM-02
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-W-40-DMXRDM-03
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-W-40-DMXRDM-05
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-W-40-DMXRDM-06
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-W-40-DMXRDM-SU01
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-W-40-DMXRDM-SU02
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-W-40-DMXRDM-SU03
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-W-40-DMXRDM-SU04
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-W-40-DMXRDM-SW01
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-W-40-DMXRDM-SW02
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-W-40-DMXRDM-SW03
Lumen (lm): 2908 lm
Optic: W
Optic value: 53°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-E-30-DMX-01
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-E-30-DMX-02
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-E-30-DMX-03
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-E-30-DMX-05
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-E-30-DMX-06
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-E-30-DMX-SU01
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-E-30-DMX-SU02
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-E-30-DMX-SU03
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-E-30-DMX-SU04
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-E-30-DMX-SW01
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-E-30-DMX-SW02
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-E-30-DMX-SW03
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-E-40-DMX-01
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Black
Variant code: ALD-30302-E-40-DMX-02
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Dark Grey
Variant code: ALD-30302-E-40-DMX-03
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: White
Variant code: ALD-30302-E-40-DMX-05
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Matt Silver
Variant code: ALD-30302-E-40-DMX-06
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Bronze
Variant code: ALD-30302-E-40-DMX-SU01
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Concrete - Urban
Variant code: ALD-30302-E-40-DMX-SU02
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Softscape - Urban
Variant code: ALD-30302-E-40-DMX-SU03
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Stone - Urban
Variant code: ALD-30302-E-40-DMX-SU04
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Corten - Urban
Variant code: ALD-30302-E-40-DMX-SW01
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Oak - Woodland
Variant code: ALD-30302-E-40-DMX-SW02
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Walnut - Woodland
Variant code: ALD-30302-E-40-DMX-SW03
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX
Product colour: Pine - Woodland
Variant code: ALD-30302-E-30-DMXRDM-01
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-E-30-DMXRDM-02
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-E-30-DMXRDM-03
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-E-30-DMXRDM-05
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-E-30-DMXRDM-06
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-E-30-DMXRDM-SU01
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-E-30-DMXRDM-SU02
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-E-30-DMXRDM-SU03
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-E-30-DMXRDM-SU04
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-E-30-DMXRDM-SW01
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-E-30-DMXRDM-SW02
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-E-30-DMXRDM-SW03
Lumen (lm): 3626 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW30
Dimming type: DMX/RDM
Product colour: Pine - Woodland
Variant code: ALD-30302-E-40-DMXRDM-01
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Black
Variant code: ALD-30302-E-40-DMXRDM-02
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Dark Grey
Variant code: ALD-30302-E-40-DMXRDM-03
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: White
Variant code: ALD-30302-E-40-DMXRDM-05
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Matt Silver
Variant code: ALD-30302-E-40-DMXRDM-06
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Bronze
Variant code: ALD-30302-E-40-DMXRDM-SU01
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Concrete - Urban
Variant code: ALD-30302-E-40-DMXRDM-SU02
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Softscape - Urban
Variant code: ALD-30302-E-40-DMXRDM-SU03
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Stone - Urban
Variant code: ALD-30302-E-40-DMXRDM-SU04
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Corten - Urban
Variant code: ALD-30302-E-40-DMXRDM-SW01
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Oak - Woodland
Variant code: ALD-30302-E-40-DMXRDM-SW02
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Walnut - Woodland
Variant code: ALD-30302-E-40-DMXRDM-SW03
Lumen (lm): 3694 lm
Optic: E
Optic value: 19°x30°
CCT / CRI: RGBW40
Dimming type: DMX/RDM
Product colour: Pine - Woodland

ACCESSORY

PROJECT REFERENCE (ALDO Surface facade luminaires)

SOCIAL

Facebook-f Instagram Youtube Linkedin-in Twitter Pinterest Line

NEWSLETTER

Sign up to our newsletter

Copyright © LIGMAN Lighting Co., Ltd.

Privacy Policy      Privacy Policy CCTV      Terms of use      Terms of sales
