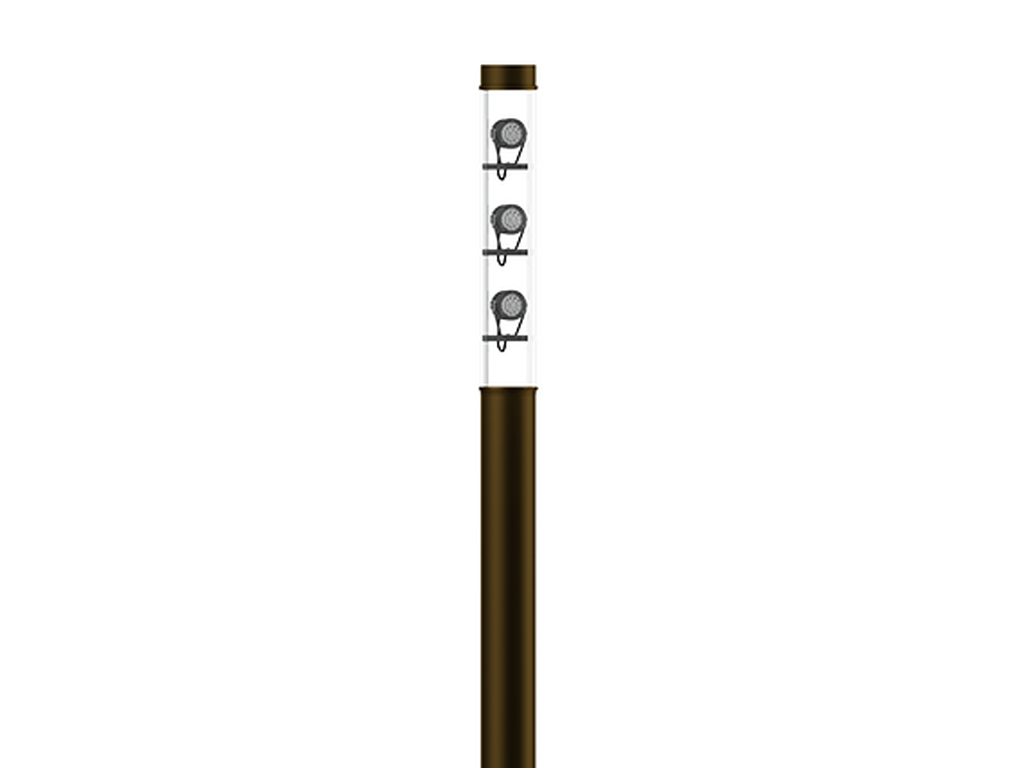

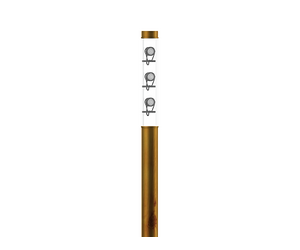

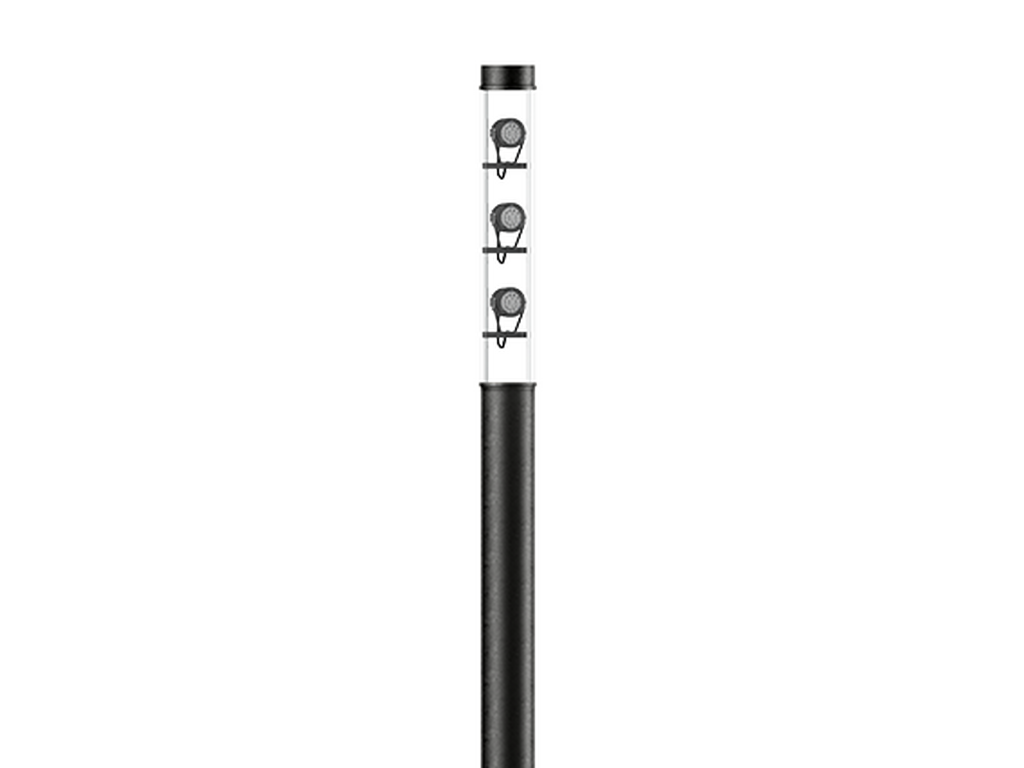

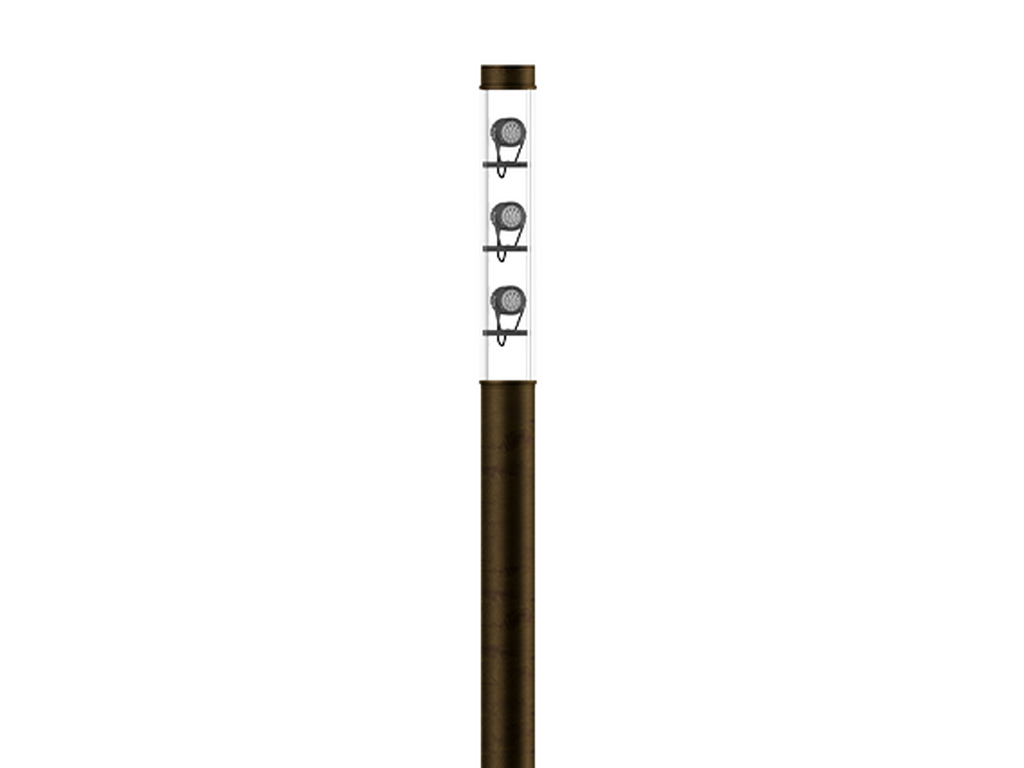

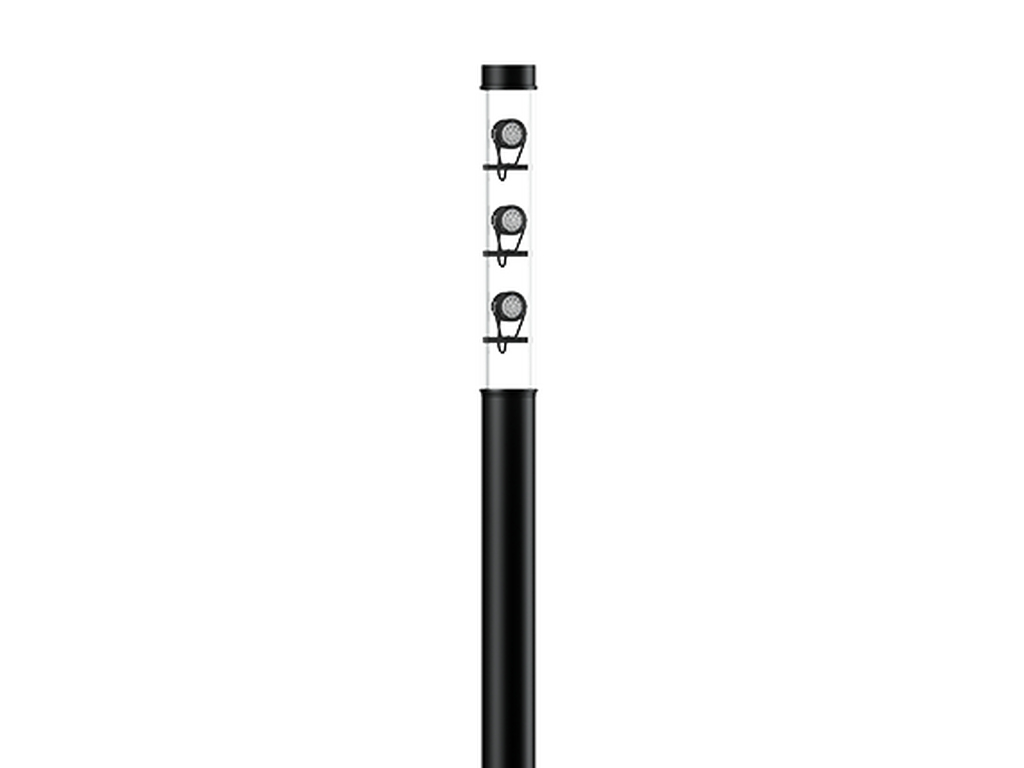

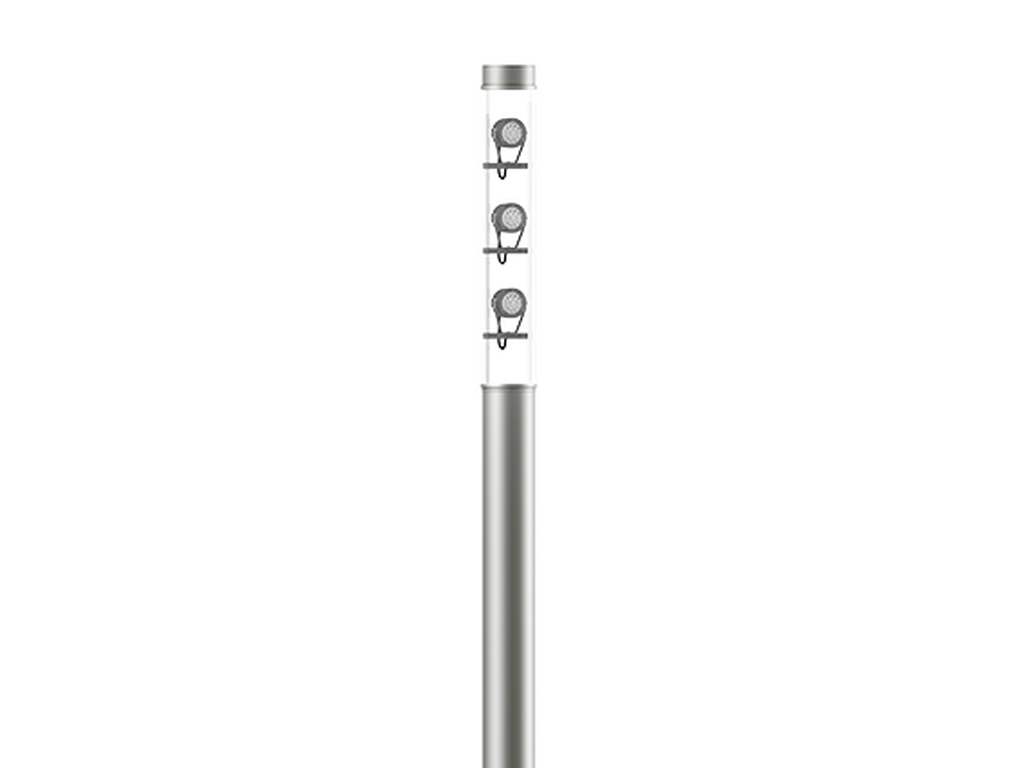

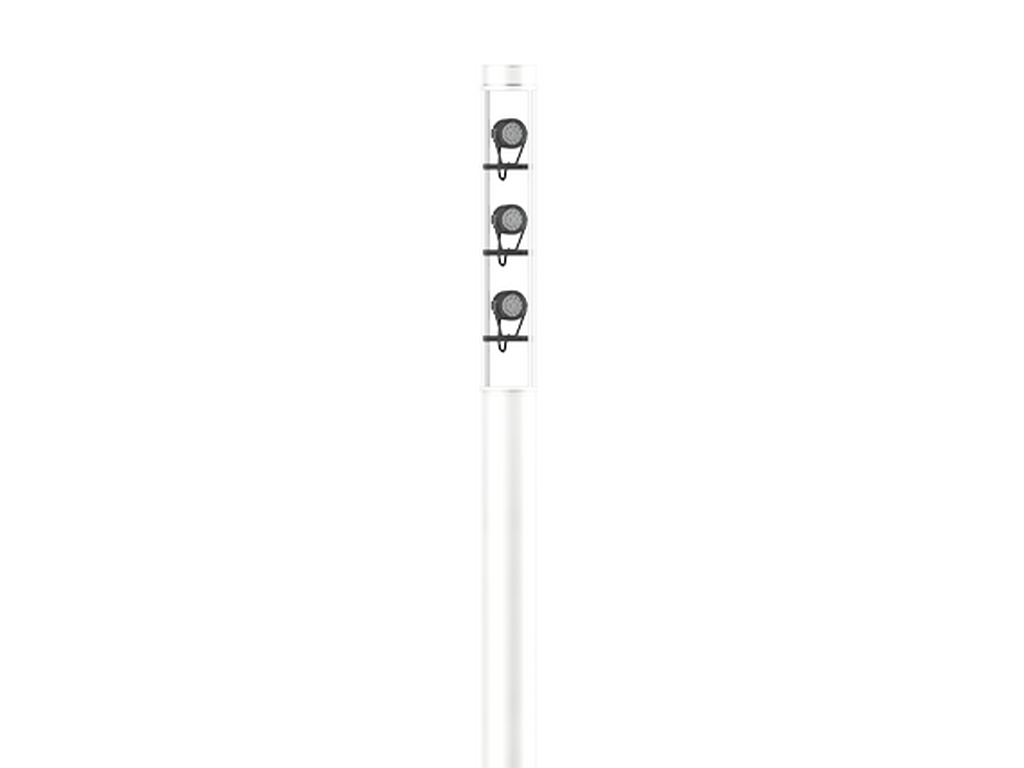

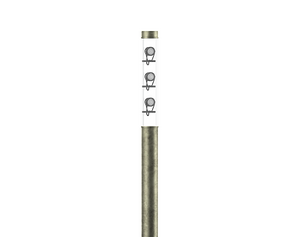

LIGMAN ARIZONA 3 AR-20993.

ARIZONA 3AR-20993ARIZONA(-)

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
Discontinued - 05/2024
ARIZONA 3Black
ARIZONA 3Dark Grey
ARIZONA 3White
ARIZONA 3Matt Silver
ARIZONA 3Bronze
ARIZONA 3Concrete - Urban
ARIZONA 3Softscape - Urban
ARIZONA 3Stone - Urban
ARIZONA 3Corten - Urban
ARIZONA 3Oak - Woodland
ARIZONA 3Walnut - Woodland
ARIZONA 3Pine - Woodland
ARIZONA 3Black
ARIZONA 3Dark Grey
ARIZONA 3White
ARIZONA 3Matt Silver
ARIZONA 3Bronze
ARIZONA 3Concrete - Urban
ARIZONA 3Softscape - Urban
ARIZONA 3Stone - Urban
ARIZONA 3Corten - Urban
ARIZONA 3Oak - Woodland
ARIZONA 3Walnut - Woodland
ARIZONA 3Pine - Woodland

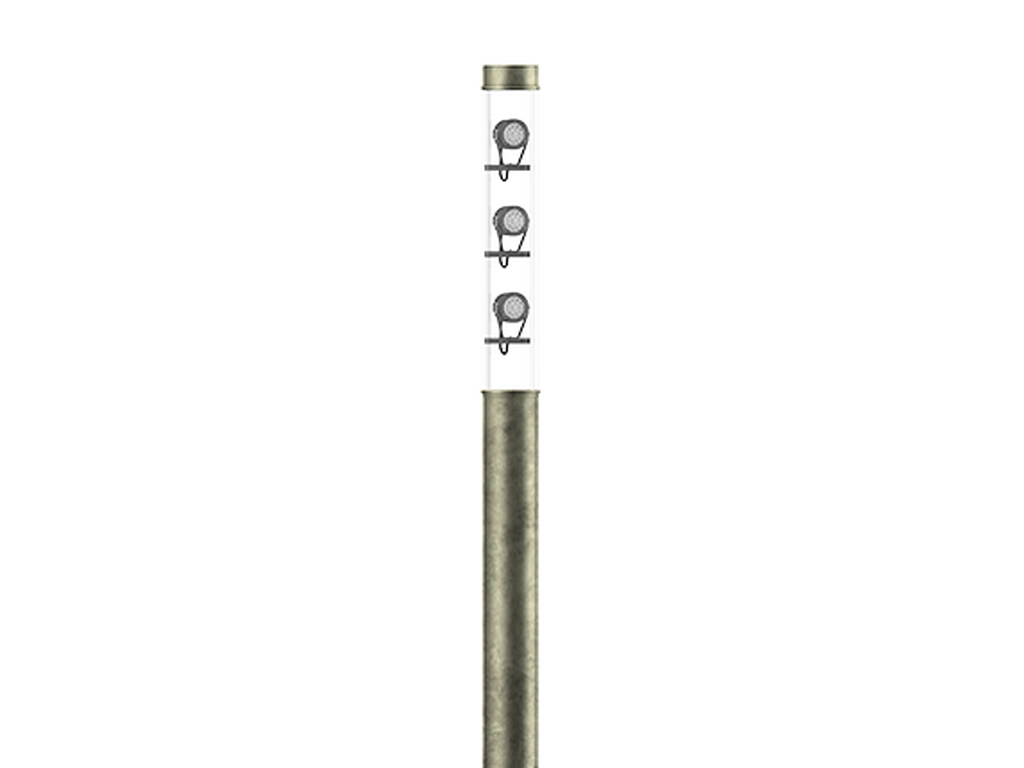

Ø225 mm - 3 projectors - Supplied with specific 3 m cylindrical, straight aluminium pole: APD130225-AR-20993 - IP65 - IK06
CERETILAPClass IIP65IK06

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
3 x 24 LED
Power (W)
114 W
Lumen (lm)
10902 - 12795 lm
Efficacy (lm/W)
96 - 112 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
N, M, W
Optic value
15°, 24°, 39°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B2-U1-G0, B3-U1-G0
ULR
<1%
ULOR
<1%
CIE flux code nº3
99
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
42.0 kg
Operating temperature
-20 °C to 40 °C
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 120,000
Lifetime L80B10 (hours)
> 120,000
Lifetime L80B50 (hours)
> 120,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

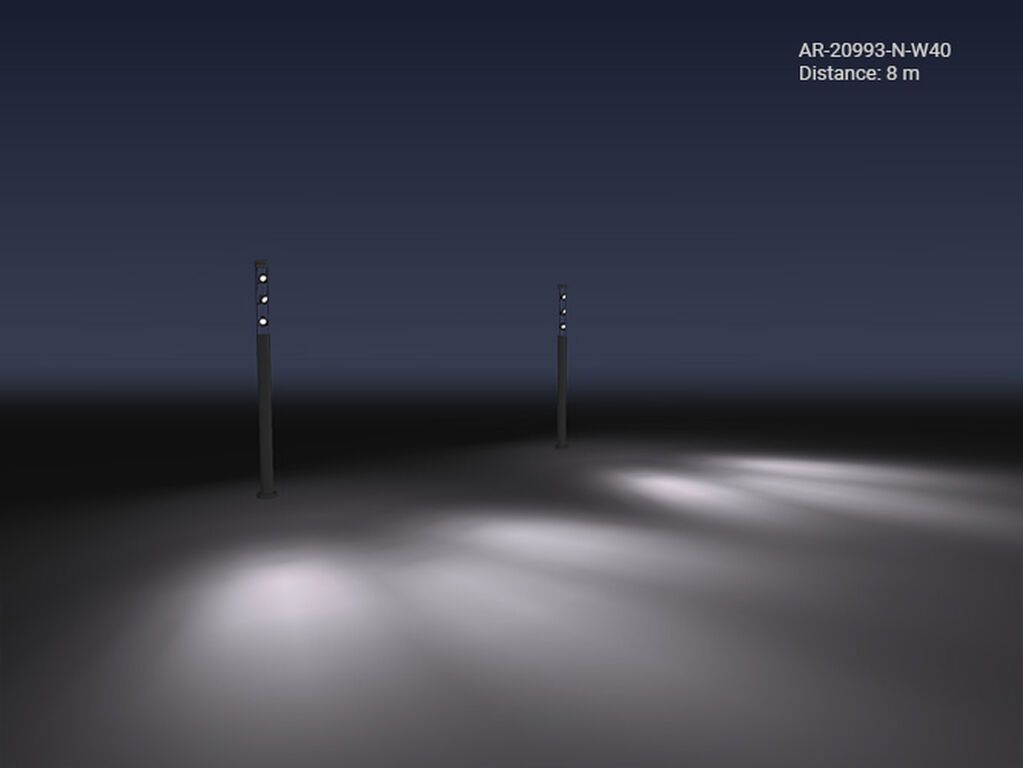

LIGHT EFFECT

Optic
N (15°)
M (24°)
W (39°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

ACCESSORY

Pole (required)
