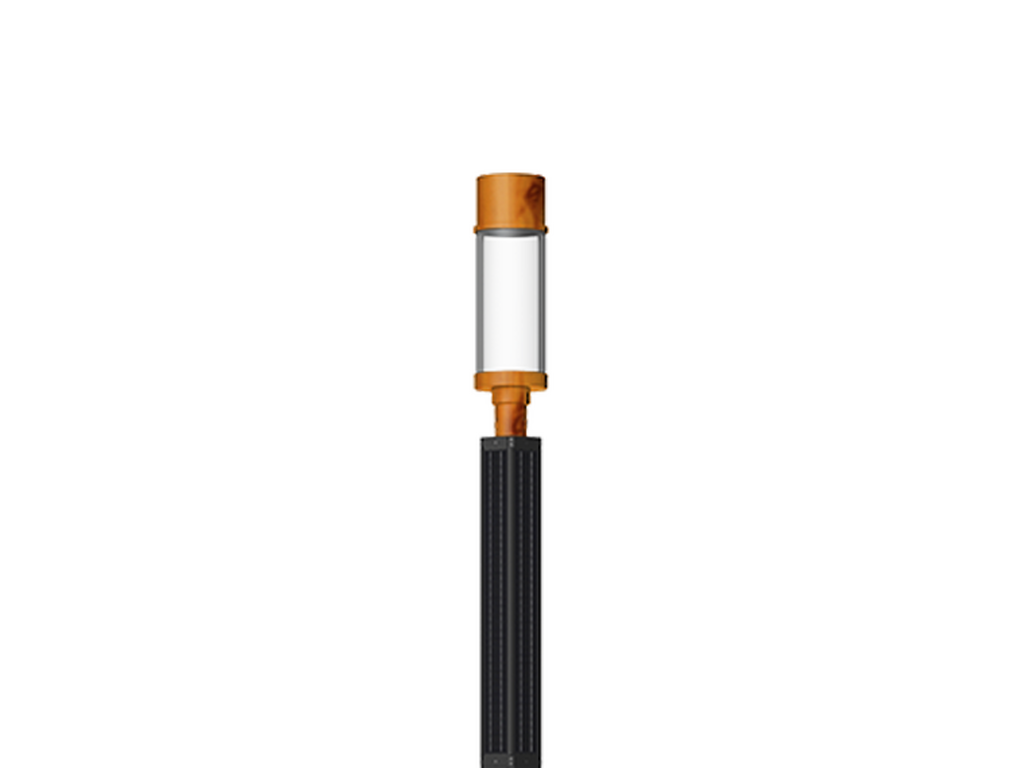

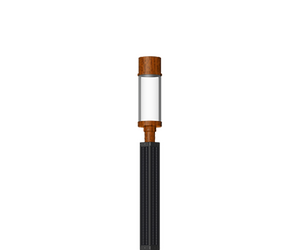

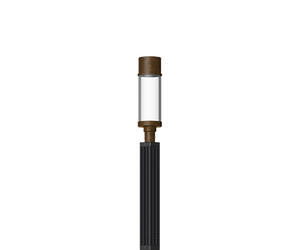

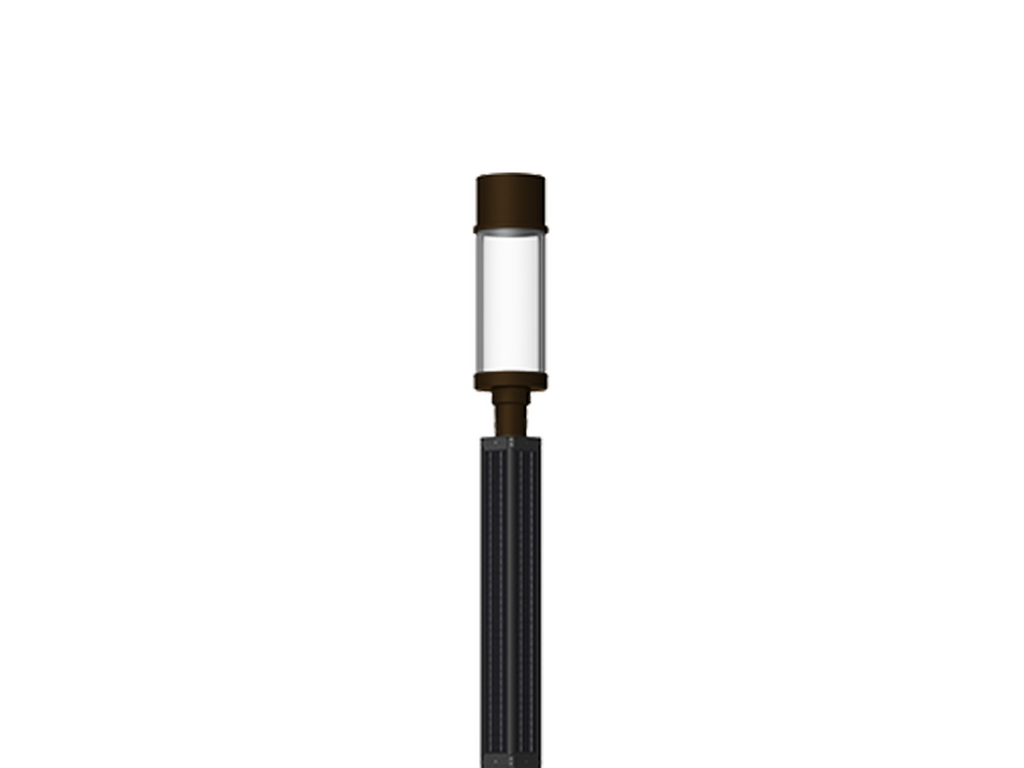

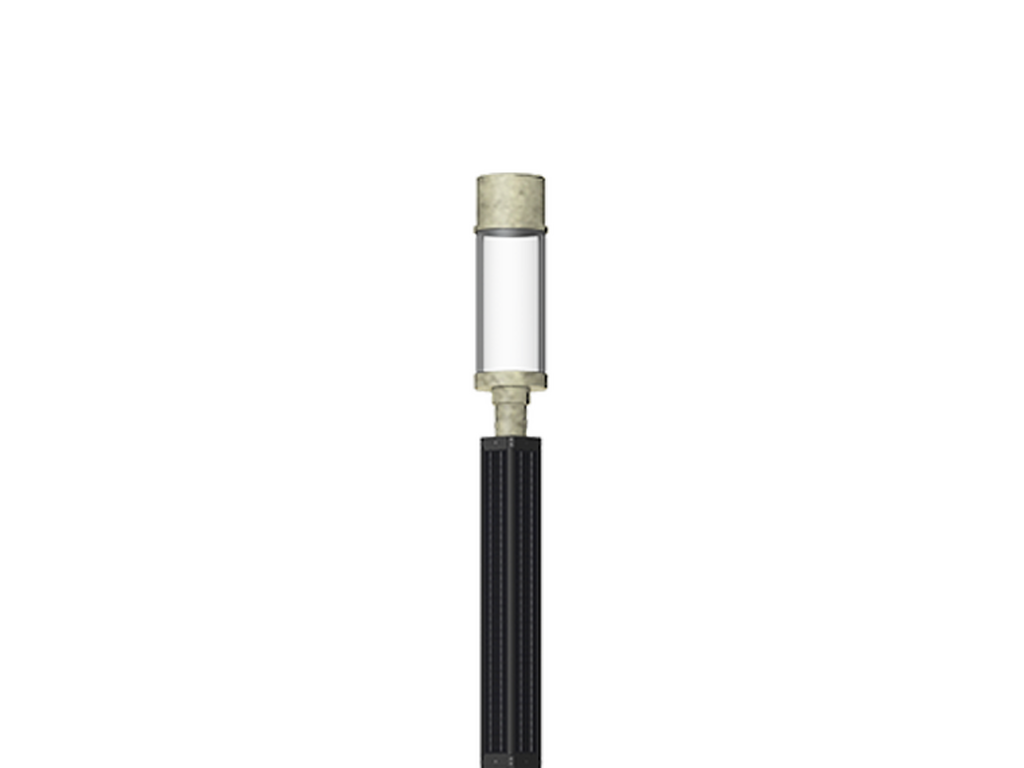

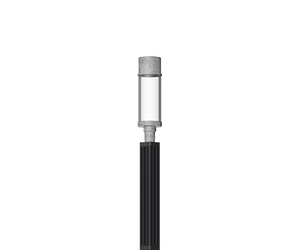

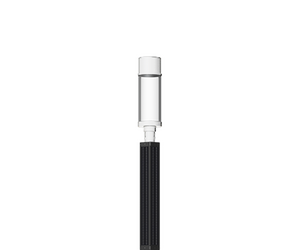

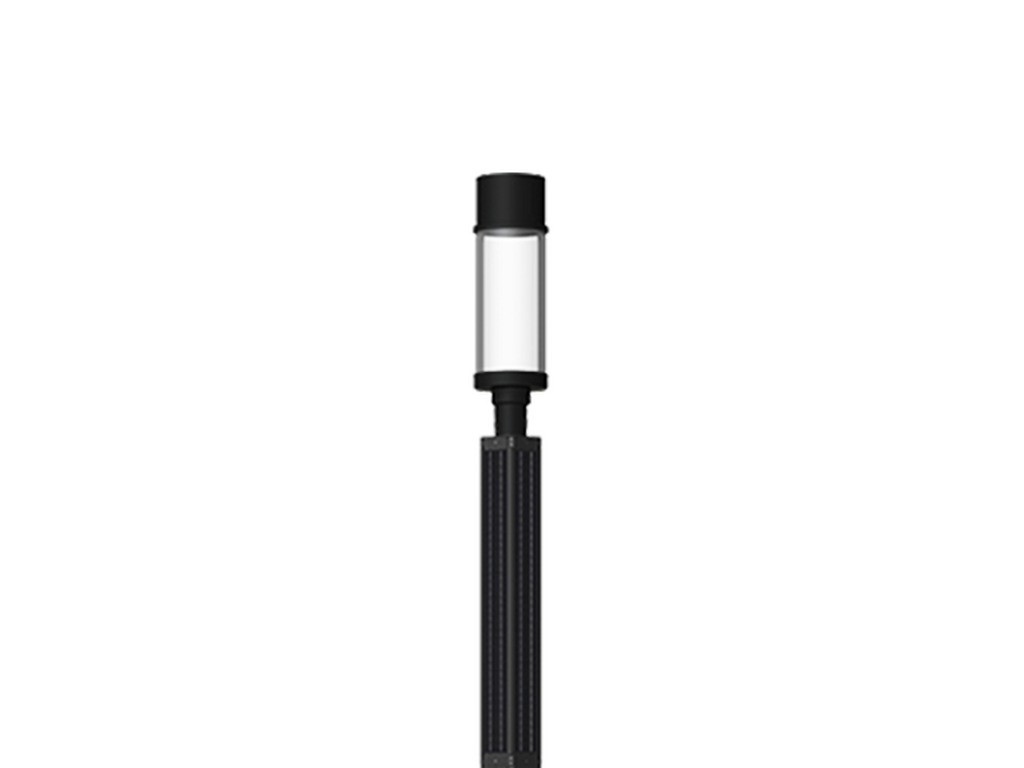

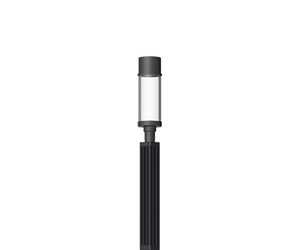

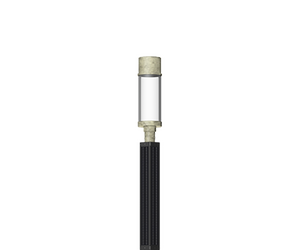

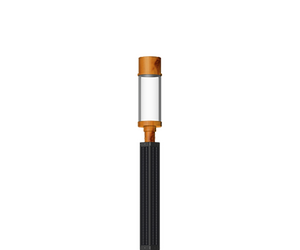

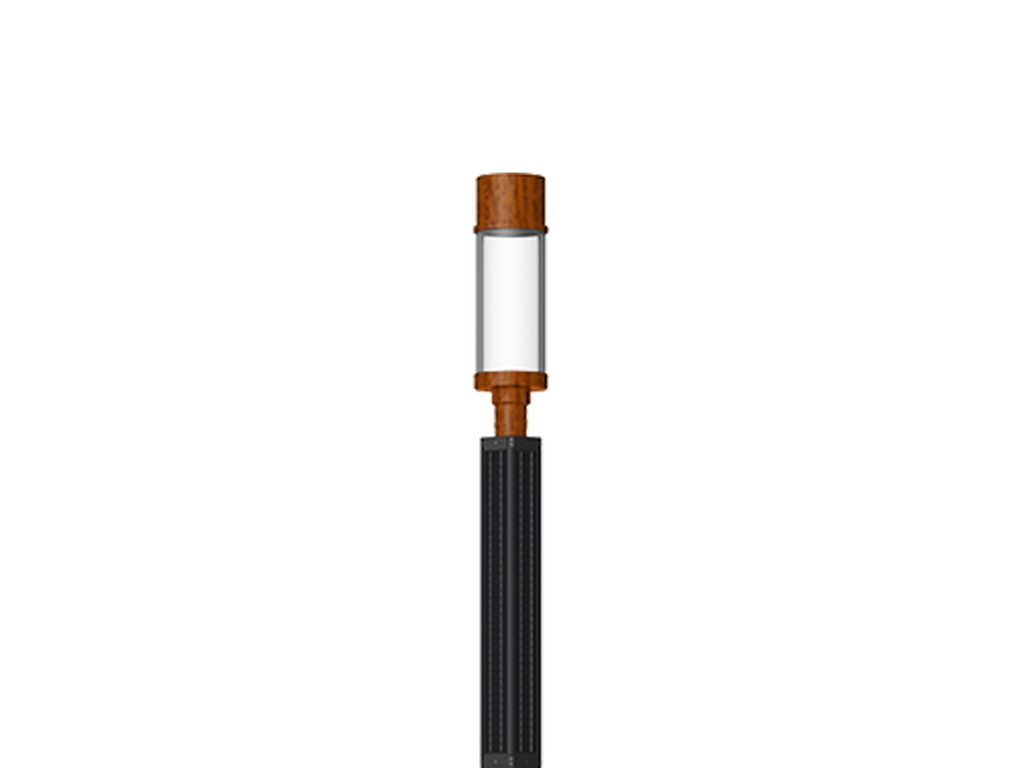

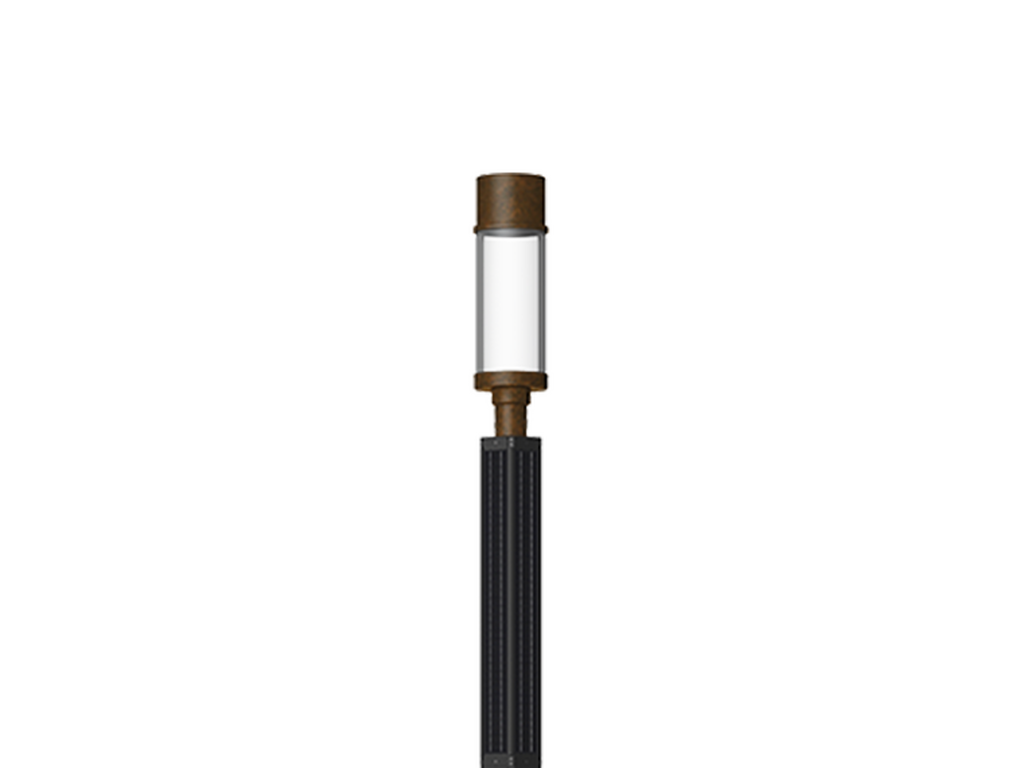

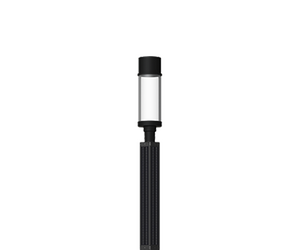

ARIZONA 5
Made to order for 40 W Vertical solar PV pole
CEClass IIIIP65IK06

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
16 LED
Power (Luminaire)
40 W
Lumen (Luminaire)
3599 - 4351 lm
Luminaire luminous efficacy
90 - 109 lm/W
Driver option
Remote driver (NOT included)
Driver
Constant current (CC)
Input voltage
410 mA, 48 VDC
Optic
T2, T3, T4
Optic value
137°x 65°, 142°x 52°, 93°x 64°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
2 Step dimming with motion sensor override, Dusk to Dawn, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.1 kg
Operating temperature
-20 °C to 40 °C
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
