LIGMAN ARIZONA 5 AR-21052.

ARIZONA 5AR-21052ARIZONA

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.

Send us an E-Mail or use the contact form:

I have read the privacy policy and agree to the processing of my data *

The fields marked with an * must be correctly filled.
Your request was successfully sent.
ARIZONA 5
ARIZONA 5
ARIZONA 5

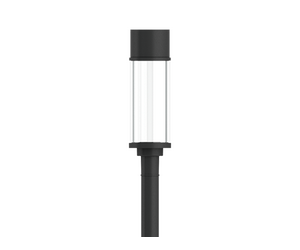

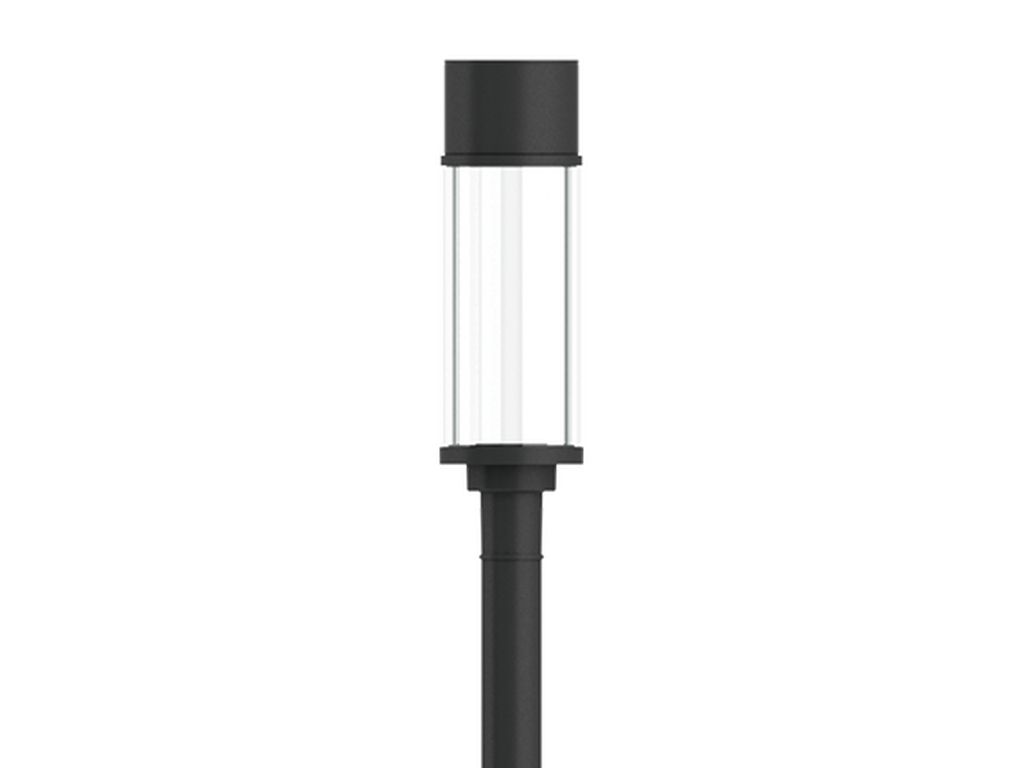

ARIZONA 5Black

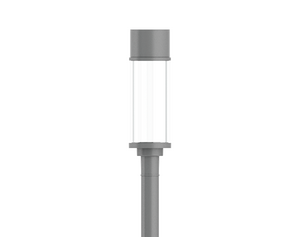

ARIZONA 5Dark Grey

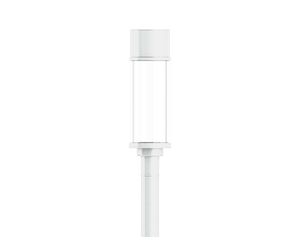

ARIZONA 5White

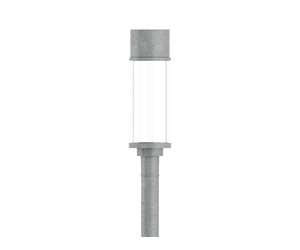

ARIZONA 5Matt Silver

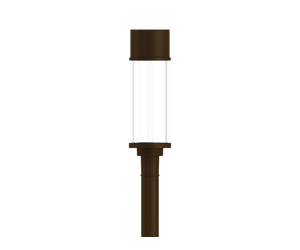

ARIZONA 5Bronze
ARIZONA 5Concrete - Urban
ARIZONA 5Softscape - Urban

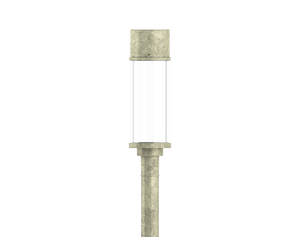

ARIZONA 5Stone - Urban

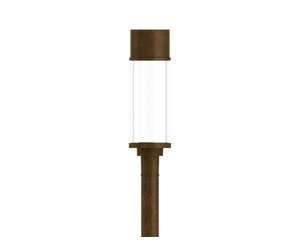

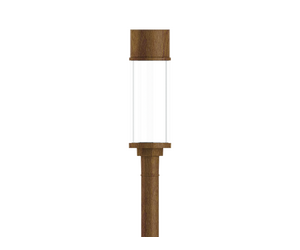

ARIZONA 5Corten - Urban

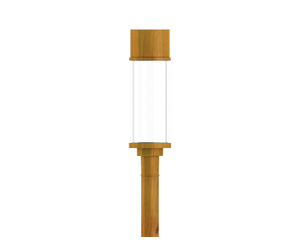

ARIZONA 5Oak - Woodland
ARIZONA 5Walnut - Woodland
ARIZONA 5Pine - Woodland
ARIZONA 5
ARIZONA 5
ARIZONA 5
ARIZONA 5Black
ARIZONA 5Dark Grey
ARIZONA 5White
ARIZONA 5Matt Silver
ARIZONA 5Bronze
ARIZONA 5Concrete - Urban
ARIZONA 5Softscape - Urban
ARIZONA 5Stone - Urban
ARIZONA 5Corten - Urban
ARIZONA 5Oak - Woodland
ARIZONA 5Walnut - Woodland
ARIZONA 5Pine - Woodland

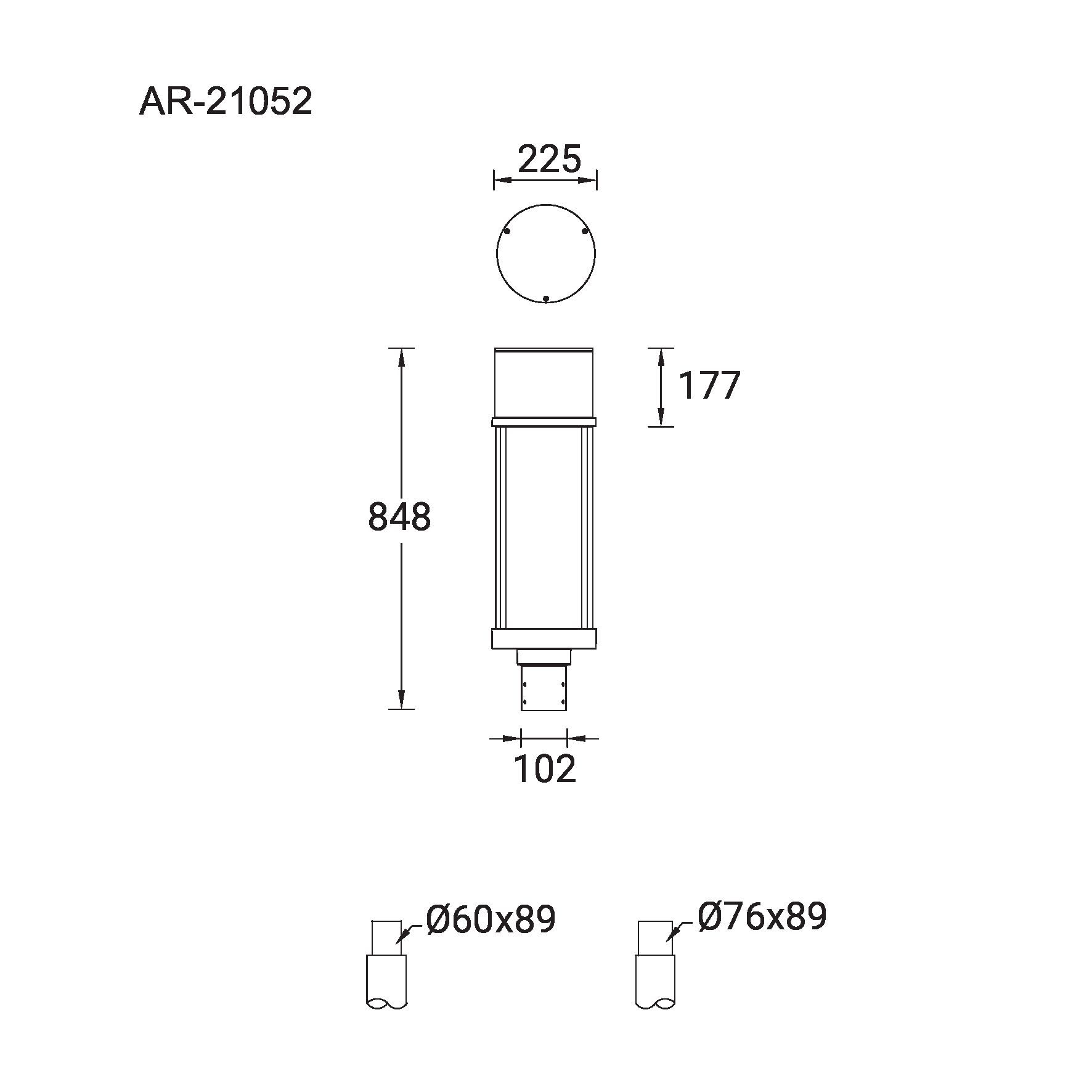

Top Ø225 mm - IK06
CERETILAPClass IIP65IK06

Technical information

Material
Aluminium
Light source
16 LED
Power (W)
37 W
Lumen (lm)
3113 - 3697 lm
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4, ME
Optic value
142°x 52°, 137°x 65°, 93°x 64°, 135°x 60°
CCT / CRI
2700K CRI80, 3000K CRI80, 4000K CRI80
ULR
1%, 4%
ULOR
1%, 4%
CIE flux code nº3
B1-U2-G1
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
8.1kg
Operating temperature
-20 °C to 40 °C
EPA (m2)
0.171
Cable
One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
High-efficiency PMMA lens, Clear acrylic PMMA diffuser
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (1-10V, DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)

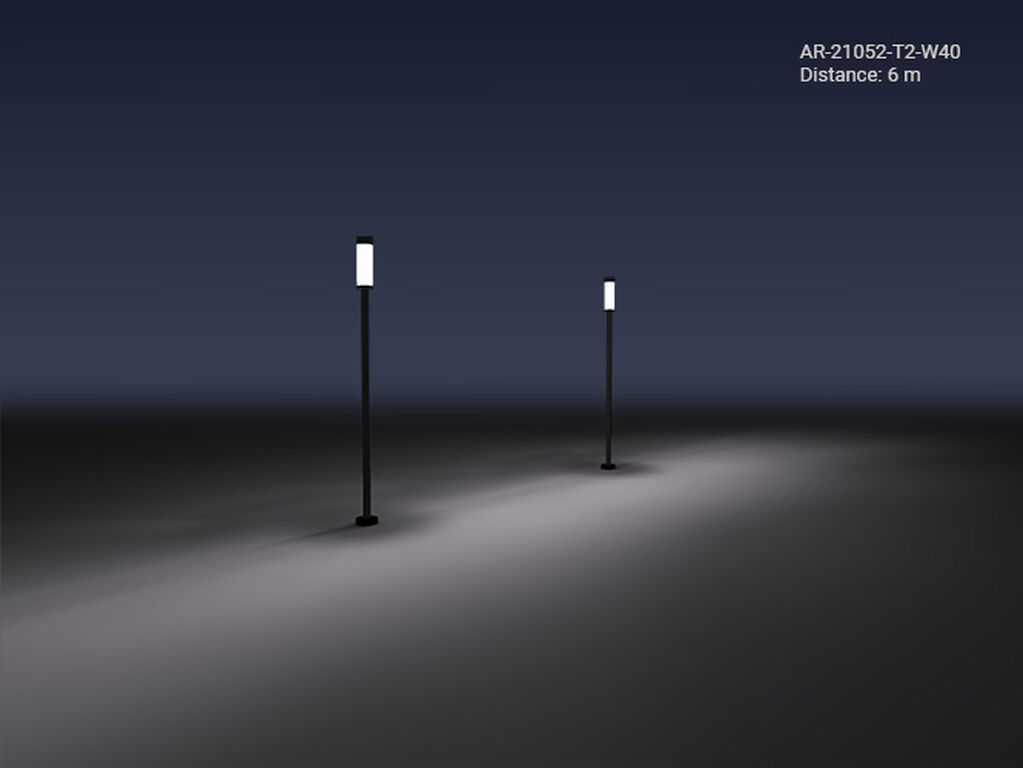

Light effect

Optic
T2 (142°x 52°)
T3 (137°x 65°)
T4 (93°x 64°)
ME (135°x 60°)

Code finder

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour

Accessory

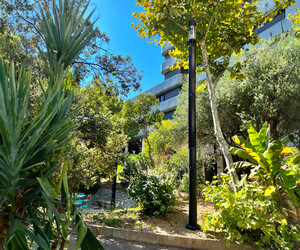

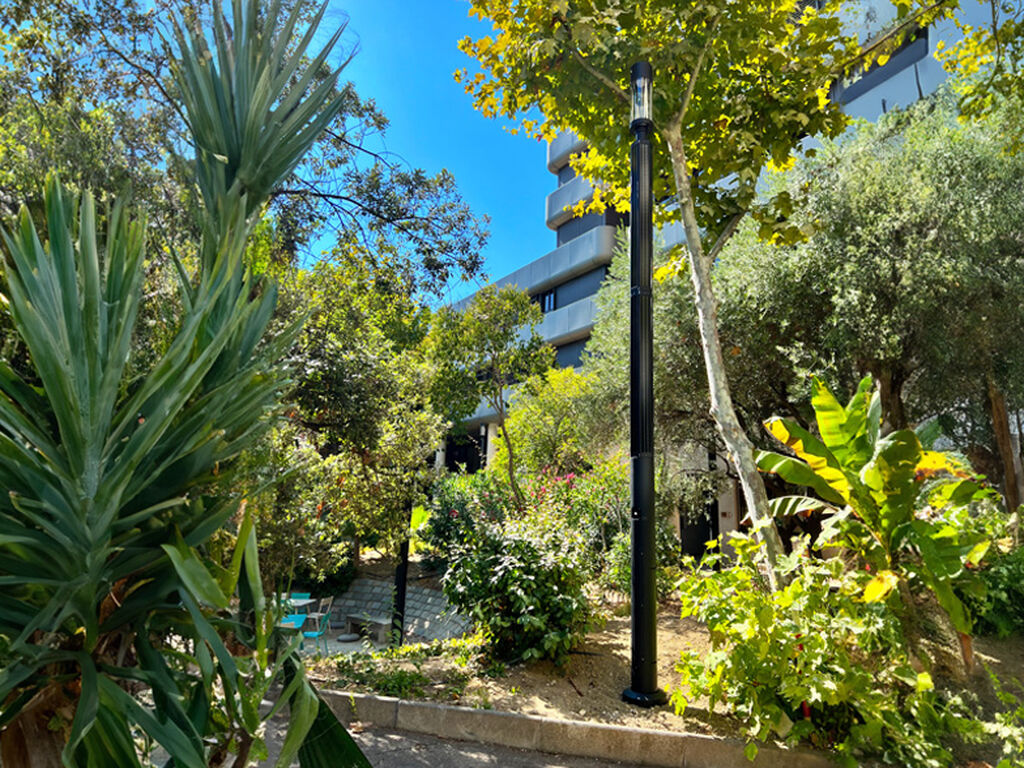

Project reference (ARIZONA Post top luminaires)
