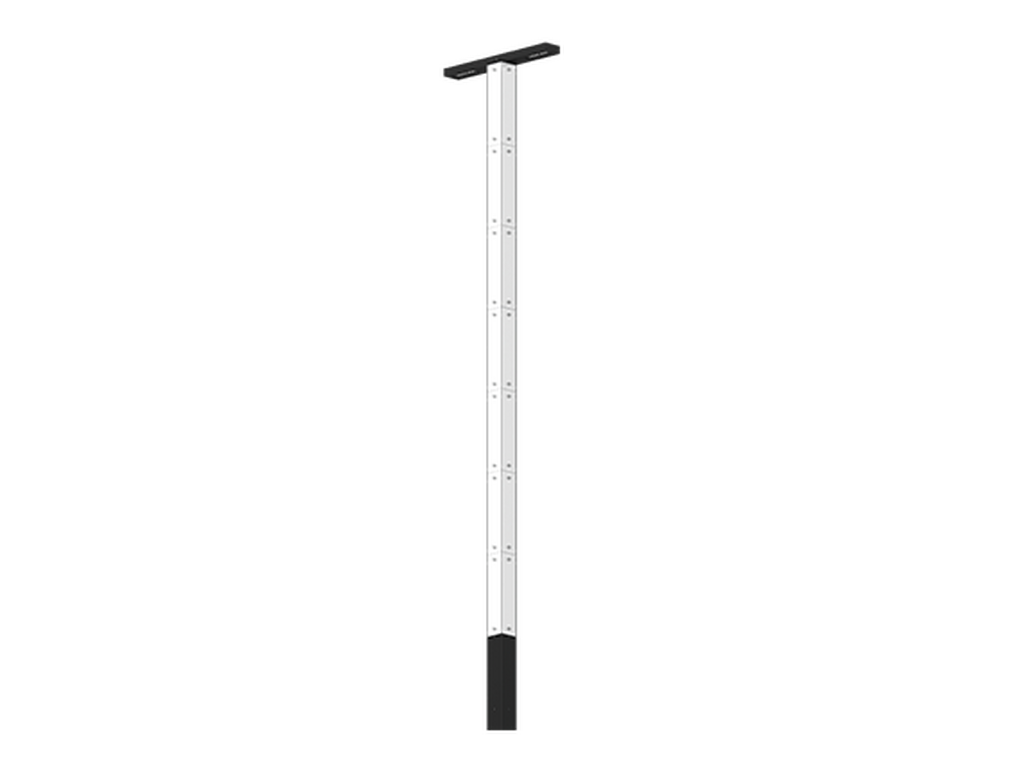

AUBAINE 2AUB-20011AUBAINE
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
Black
Dark Grey
White
Matt Silver
Bronze
Concrete - Urban
Softscape - Urban
Stone - Urban
Corten - Urban
Oak - Woodland
Walnut - Woodland
Pine - Woodland
2 sides - Supplied with specific 9.160 m square, straight galvanised steel pole: SPC290150-AUB-20011 - Illuminated on 4 sides with LED tape with a glass cover - 1050 W
TECHNICAL SPECIFICATIONS
Material
Aluminium
Light source
2 x 24 LED - LED tape
Power (W)
108 W
Lumen (lm)
11002 - 12386 lm
Efficacy (lm/W)
102 - 115 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Input voltage
220-240 V 50/60 Hz
Optic
T2, T3, T4
Optic value
140°x47°, 134°x68°, 92°x78°
CCT / CRI
3000K CRI80, 4000K CRI80
Bug
B1-U0-G1
ULR
0%
ULOR
0%
CIE flux code nº3
98
Dimming type
On/Off, 1-10V, DALI
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
312 kg
Cable
One IP68 connector supplied with 0.3 m of 3x1.0 sqmm outdoor cable
Through wiring
Single cable entry
Lens / Reflector / Optic
Clear toughened glass, Opal toughened glass diffuser for around the pole
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 90,000
Lifetime L80B10 (hours)
> 90,000
Lifetime L80B50 (hours)
> 90,000
Variants (DALI)
Compatible with EN/ IEC 60598-2-22: Suitable for emergency installations as central supply, non-maintained (Z0)
DOWNLOADS
Family spec sheet
Product spec sheet
Installation manual
Technical drawing
2D - CAD
IES
CE documentFor BIM files (Revit - RFA), please check the Variant code
LIGHT EFFECT
Optic
T2 (140°x47°)
T3 (134°x68°)
T4 (92°x78°)
