Discontinued - 05/2022
AUGUSTA 9
200x80 mm - 1120 mm - 10.5 hours of operation time (2 Step dimming with motion sensor override) - 5 days of autonomy
CEClass IIIIP65IK07

TECHNICAL SPECIFICATIONS

Material
Aluminium
Light source
40 LED
Power (W)
6 W
Lumen (lm)
342 - 360 lm
Efficacy (lm/W)
57 - 60 lm/W
Driver option
Integral control gear
Driver
Constant current (CC)
Optic
G
Optic value
75°x105°
CCT / CRI
3000K CRI80, 4000K CRI80
Dimming type
Dusk to Dawn, 2 Step dimming with motion sensor override, Solar Custom
Product colours
Black, Dark Grey, White, Matt Silver, Bronze, Concrete - Urban, Softscape - Urban, Stone - Urban, Corten - Urban, Oak - Woodland, Walnut - Woodland, Pine - Woodland
Weight
15 kg
Operating temperature
-20 °C to 40 °C
Lens / Reflector / Optic
Clear toughened glass
MacAdam Ellipse
3 SDCM
Lifetime L90B10 (hours)
> 23,000
Lifetime L80B10 (hours)
> 45,000
Lifetime L80B50 (hours)
> 49,000

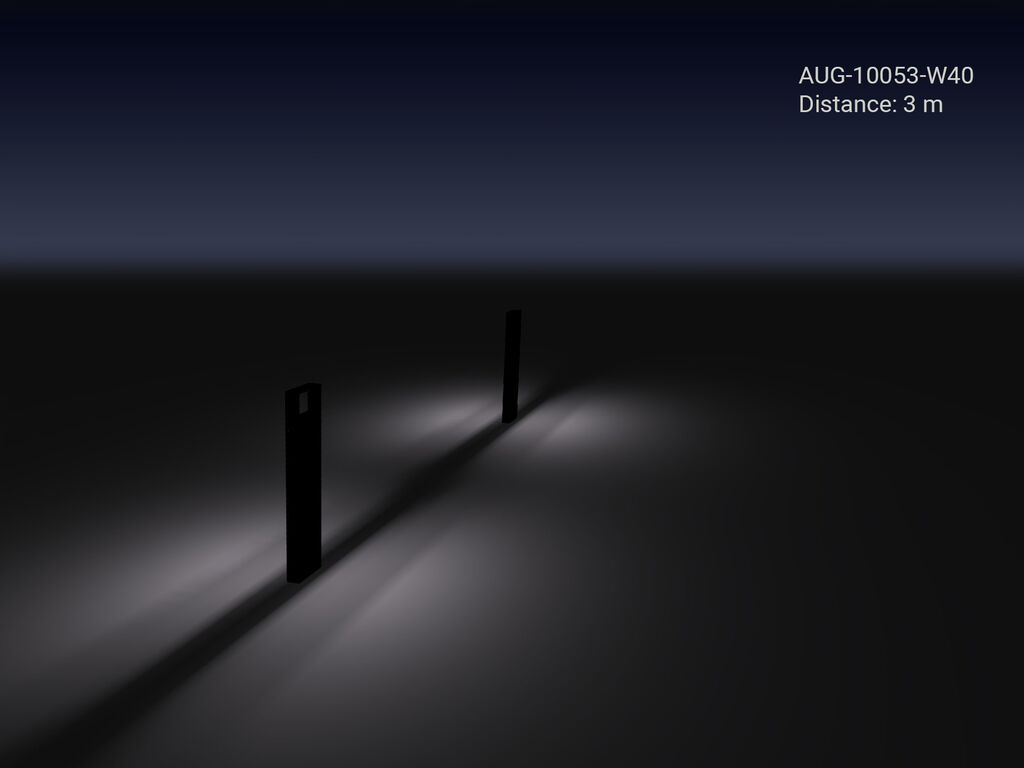

LIGHT EFFECT

Optic
G (75°x105°)

CODE FINDER

Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code
Lumen (lm)
Optic
Optic value
CCT / CRI
Dimming type
Product colour
Variant code: AUG-10053-G-8030-NDS-01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Black
Variant code: AUG-10053-G-8030-NDS-02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Dark Grey
Variant code: AUG-10053-G-8030-NDS-03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: White
Variant code: AUG-10053-G-8030-NDS-05
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Matt Silver
Variant code: AUG-10053-G-8030-NDS-06
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Bronze
Variant code: AUG-10053-G-8030-NDS-SU01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Concrete - Urban
Variant code: AUG-10053-G-8030-NDS-SU02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Softscape - Urban
Variant code: AUG-10053-G-8030-NDS-SU03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Stone - Urban
Variant code: AUG-10053-G-8030-NDS-SU04
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Corten - Urban
Variant code: AUG-10053-G-8030-NDS-SW01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Oak - Woodland
Variant code: AUG-10053-G-8030-NDS-SW02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Walnut - Woodland
Variant code: AUG-10053-G-8030-NDS-SW03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Dusk to Dawn
Product colour: Pine - Woodland
Variant code: AUG-10053-G-8040-NDS-01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Black
Variant code: AUG-10053-G-8040-NDS-02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Dark Grey
Variant code: AUG-10053-G-8040-NDS-03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: White
Variant code: AUG-10053-G-8040-NDS-05
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Matt Silver
Variant code: AUG-10053-G-8040-NDS-06
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Bronze
Variant code: AUG-10053-G-8040-NDS-SU01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Concrete - Urban
Variant code: AUG-10053-G-8040-NDS-SU02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Softscape - Urban
Variant code: AUG-10053-G-8040-NDS-SU03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Stone - Urban
Variant code: AUG-10053-G-8040-NDS-SU04
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Corten - Urban
Variant code: AUG-10053-G-8040-NDS-SW01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Oak - Woodland
Variant code: AUG-10053-G-8040-NDS-SW02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Walnut - Woodland
Variant code: AUG-10053-G-8040-NDS-SW03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Dusk to Dawn
Product colour: Pine - Woodland
Variant code: AUG-10053-G-8030-STD-01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Black
Variant code: AUG-10053-G-8030-STD-02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Dark Grey
Variant code: AUG-10053-G-8030-STD-03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: White
Variant code: AUG-10053-G-8030-STD-05
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Matt Silver
Variant code: AUG-10053-G-8030-STD-06
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Bronze
Variant code: AUG-10053-G-8030-STD-SU01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Concrete - Urban
Variant code: AUG-10053-G-8030-STD-SU02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Softscape - Urban
Variant code: AUG-10053-G-8030-STD-SU03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Stone - Urban
Variant code: AUG-10053-G-8030-STD-SU04
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Corten - Urban
Variant code: AUG-10053-G-8030-STD-SW01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Oak - Woodland
Variant code: AUG-10053-G-8030-STD-SW02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Walnut - Woodland
Variant code: AUG-10053-G-8030-STD-SW03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Pine - Woodland
Variant code: AUG-10053-G-8040-STD-01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Black
Variant code: AUG-10053-G-8040-STD-02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Dark Grey
Variant code: AUG-10053-G-8040-STD-03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: White
Variant code: AUG-10053-G-8040-STD-05
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Matt Silver
Variant code: AUG-10053-G-8040-STD-06
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Bronze
Variant code: AUG-10053-G-8040-STD-SU01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Concrete - Urban
Variant code: AUG-10053-G-8040-STD-SU02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Softscape - Urban
Variant code: AUG-10053-G-8040-STD-SU03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Stone - Urban
Variant code: AUG-10053-G-8040-STD-SU04
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Corten - Urban
Variant code: AUG-10053-G-8040-STD-SW01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Oak - Woodland
Variant code: AUG-10053-G-8040-STD-SW02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Walnut - Woodland
Variant code: AUG-10053-G-8040-STD-SW03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: 2 Step dimming with motion sensor override
Product colour: Pine - Woodland
Variant code: AUG-10053-G-8030-CT-01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Black
Variant code: AUG-10053-G-8030-CT-02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Dark Grey
Variant code: AUG-10053-G-8030-CT-03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: White
Variant code: AUG-10053-G-8030-CT-05
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Matt Silver
Variant code: AUG-10053-G-8030-CT-06
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Bronze
Variant code: AUG-10053-G-8030-CT-SU01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Concrete - Urban
Variant code: AUG-10053-G-8030-CT-SU02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Softscape - Urban
Variant code: AUG-10053-G-8030-CT-SU03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Stone - Urban
Variant code: AUG-10053-G-8030-CT-SU04
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Corten - Urban
Variant code: AUG-10053-G-8030-CT-SW01
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Oak - Woodland
Variant code: AUG-10053-G-8030-CT-SW02
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Walnut - Woodland
Variant code: AUG-10053-G-8030-CT-SW03
Lumen (lm): 342 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 3000K CRI80
Dimming type: Solar Custom
Product colour: Pine - Woodland
Variant code: AUG-10053-G-8040-CT-01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Black
Variant code: AUG-10053-G-8040-CT-02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Dark Grey
Variant code: AUG-10053-G-8040-CT-03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: White
Variant code: AUG-10053-G-8040-CT-05
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Matt Silver
Variant code: AUG-10053-G-8040-CT-06
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Bronze
Variant code: AUG-10053-G-8040-CT-SU01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Concrete - Urban
Variant code: AUG-10053-G-8040-CT-SU02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Softscape - Urban
Variant code: AUG-10053-G-8040-CT-SU03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Stone - Urban
Variant code: AUG-10053-G-8040-CT-SU04
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Corten - Urban
Variant code: AUG-10053-G-8040-CT-SW01
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Oak - Woodland
Variant code: AUG-10053-G-8040-CT-SW02
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Walnut - Woodland
Variant code: AUG-10053-G-8040-CT-SW03
Lumen (lm): 360 lm
Optic: G
Optic value: 75°x105°
CCT / CRI: 4000K CRI80
Dimming type: Solar Custom
Product colour: Pine - Woodland
